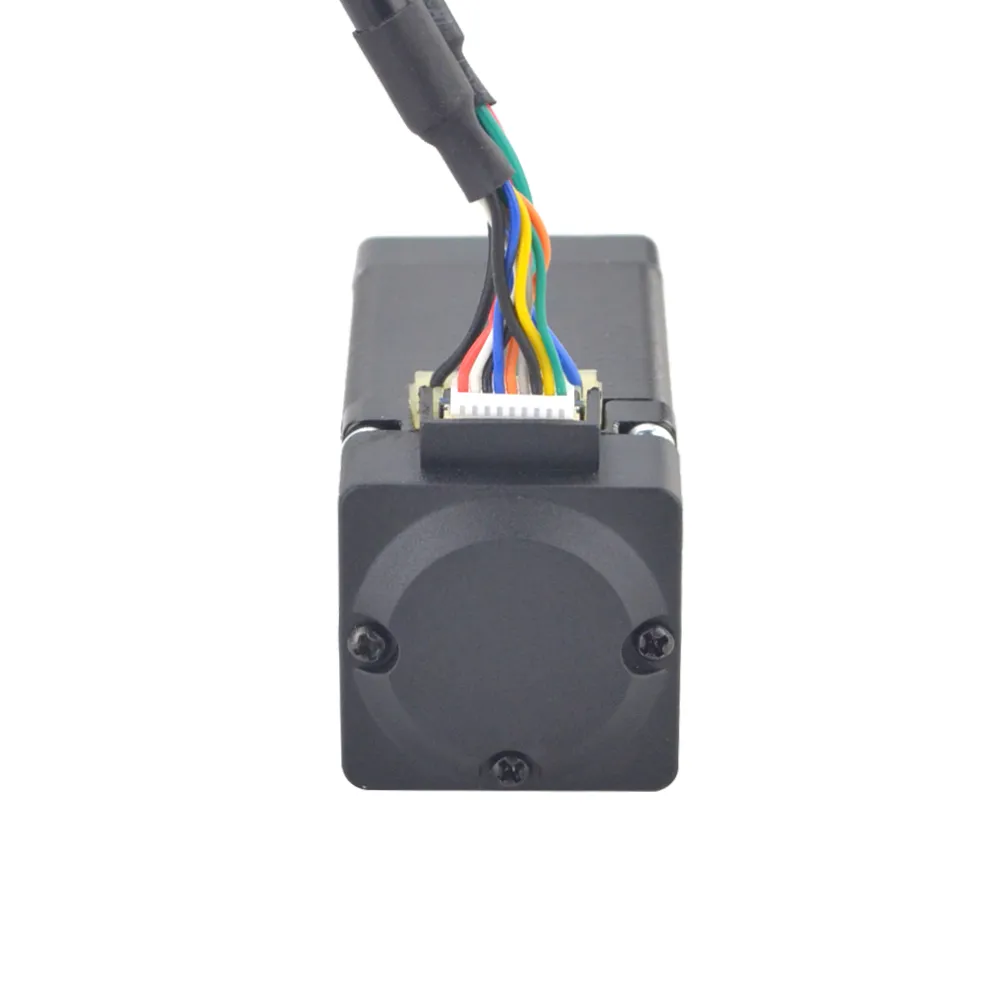

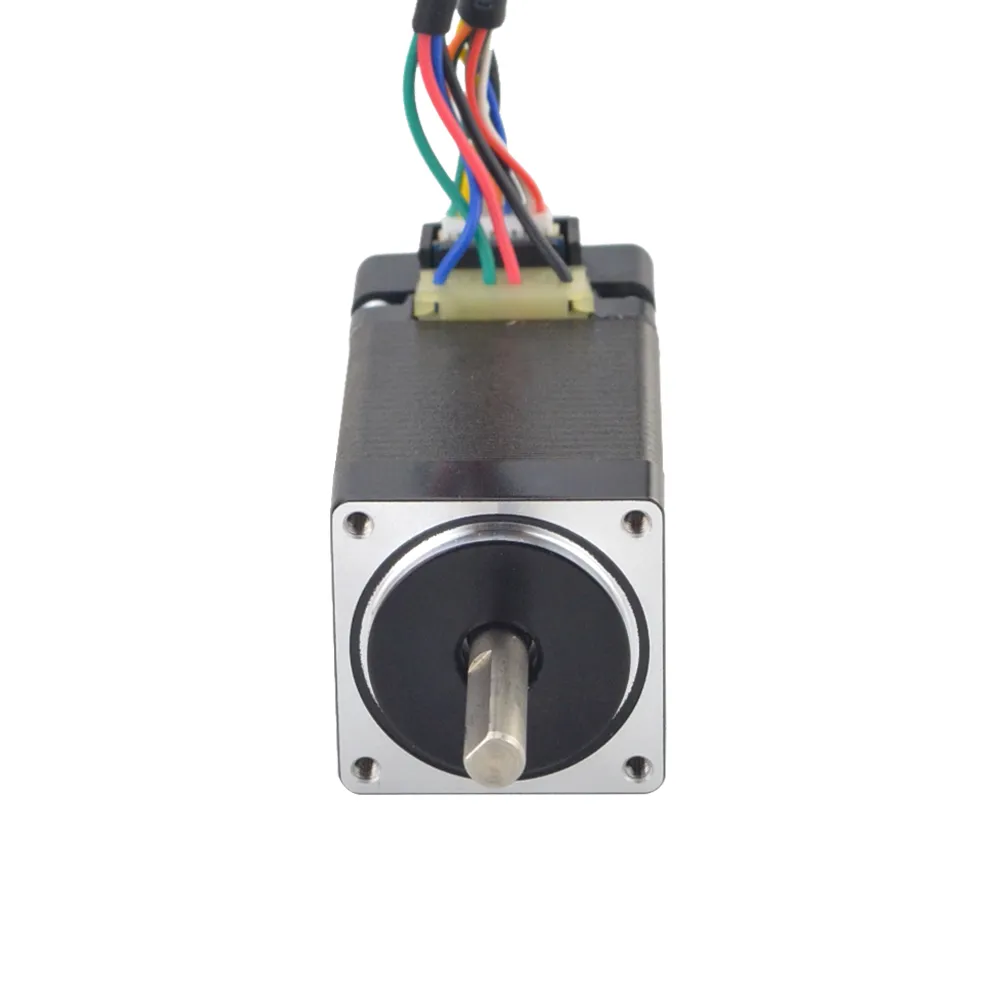

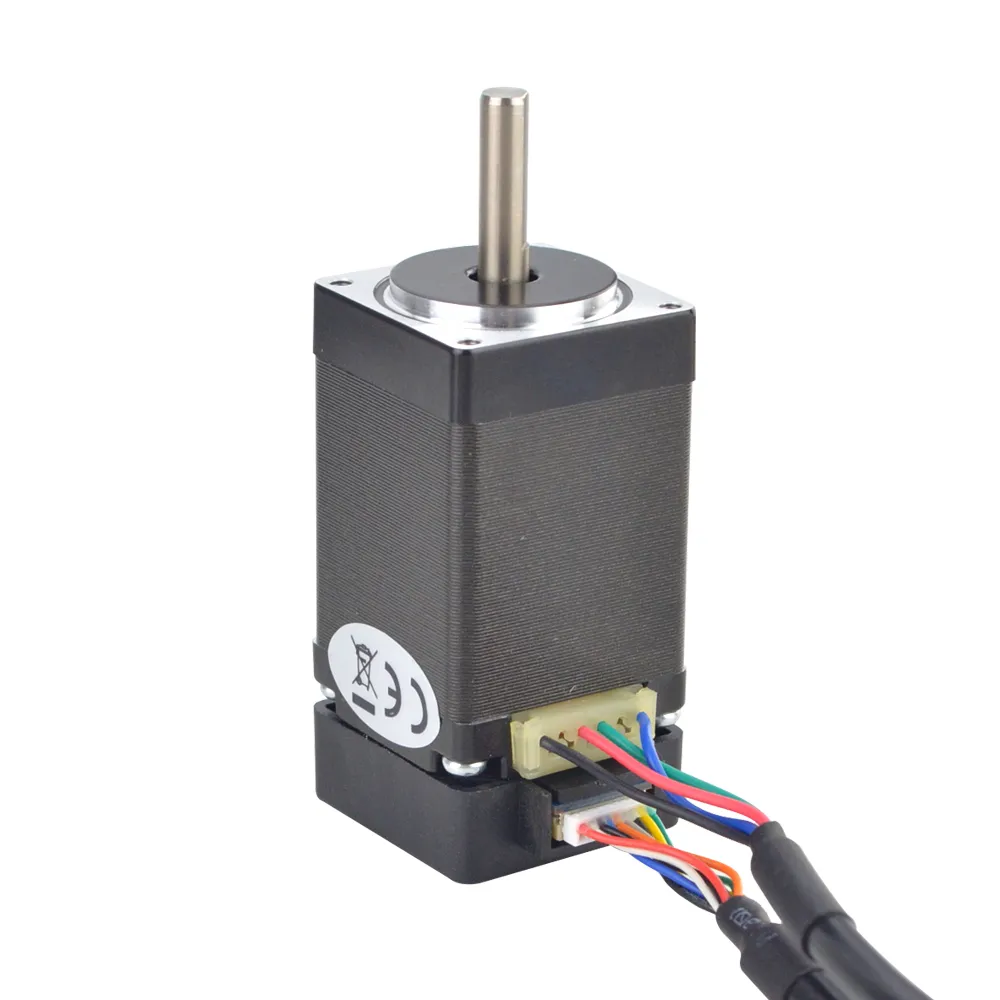

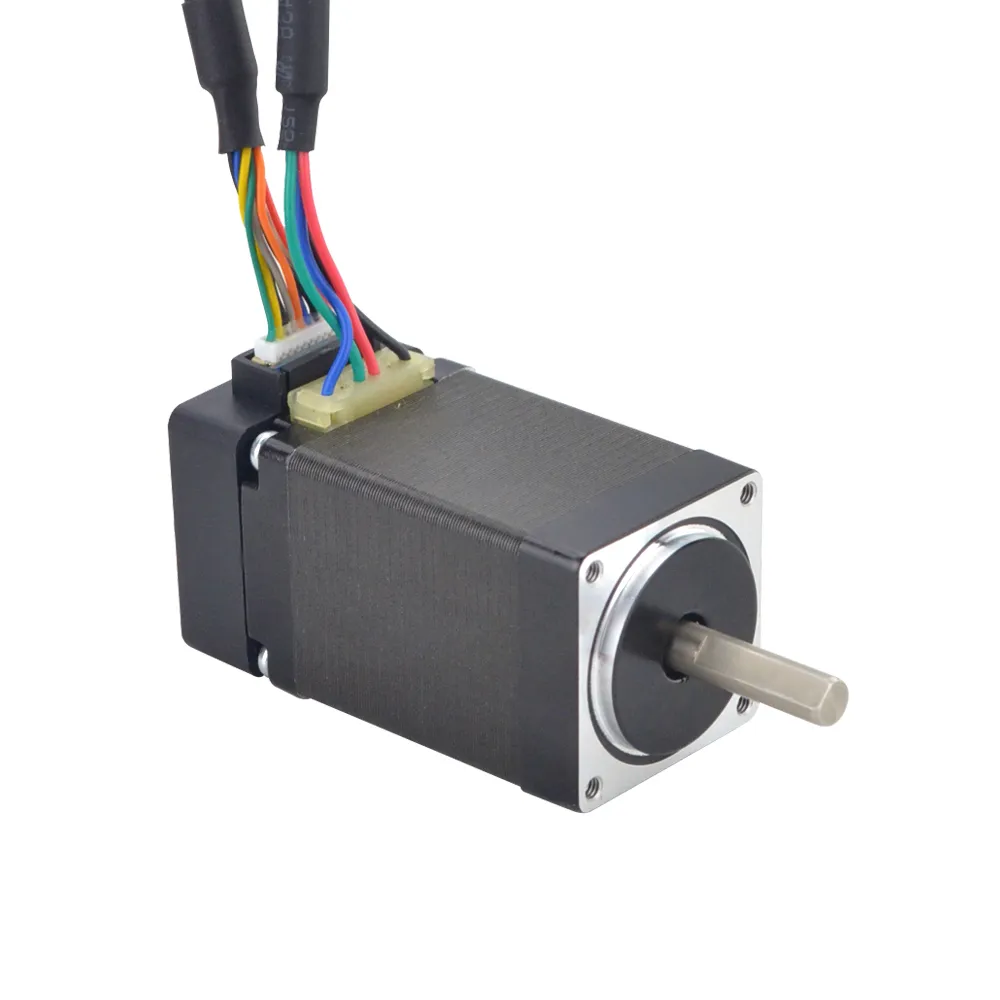

Nema 11 1.8deg 0.1Nm 0.68A Stepper Motor

$553.90

Nema 11 1.8deg 0.1Nm 0.68A Stepper Motor, a compact and efficient solution for your automation needs. With its moderate torque output and accurate step resolution, this motor offers reliable performance and precise motion control. Whether you're working on robotics, CNC machines, or other applications requiring controlled movement, this stepper motor is designed to meet your requirements.

Model Type

Degree()1.8

Rated Torque(Nm)()0.1

Current(A)()0.68

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 11HS18-0674D-E1000
Number of Phases 2
Step Angle 1.8 deg
Holding Torque 0.1 Nm (14.16 oz.in)
Rated Current/Phase 0.67A
Phase Resistance 6.8 ohms ± 10%
Inductance 6.0mH ± 20% (1KHz)

Physical Specifications

Frame Size 28 x 28mm
Body Length 57mm
Shaft Diameter Φ5mm
Shaft Length 20mm
D-cut Shaft Length 15mm
Lead Length 300mm
Weight 0.14kg

Encoder Specification

Output Circuit Type Differential type
Encoder Type Optical Incremental
Encoder Resolution 1000 PPR (4000 CPR)
Output Signal Channels 3 channels
Supply Voltage Min 4.5V
Supply Voltage Max 5.5V
Output Current 100mA MAX
Output High Voltage ≥Vcc-0.4V
Output Low Voltage ≤0.4V
Output Frequency Max 1.85Hz
