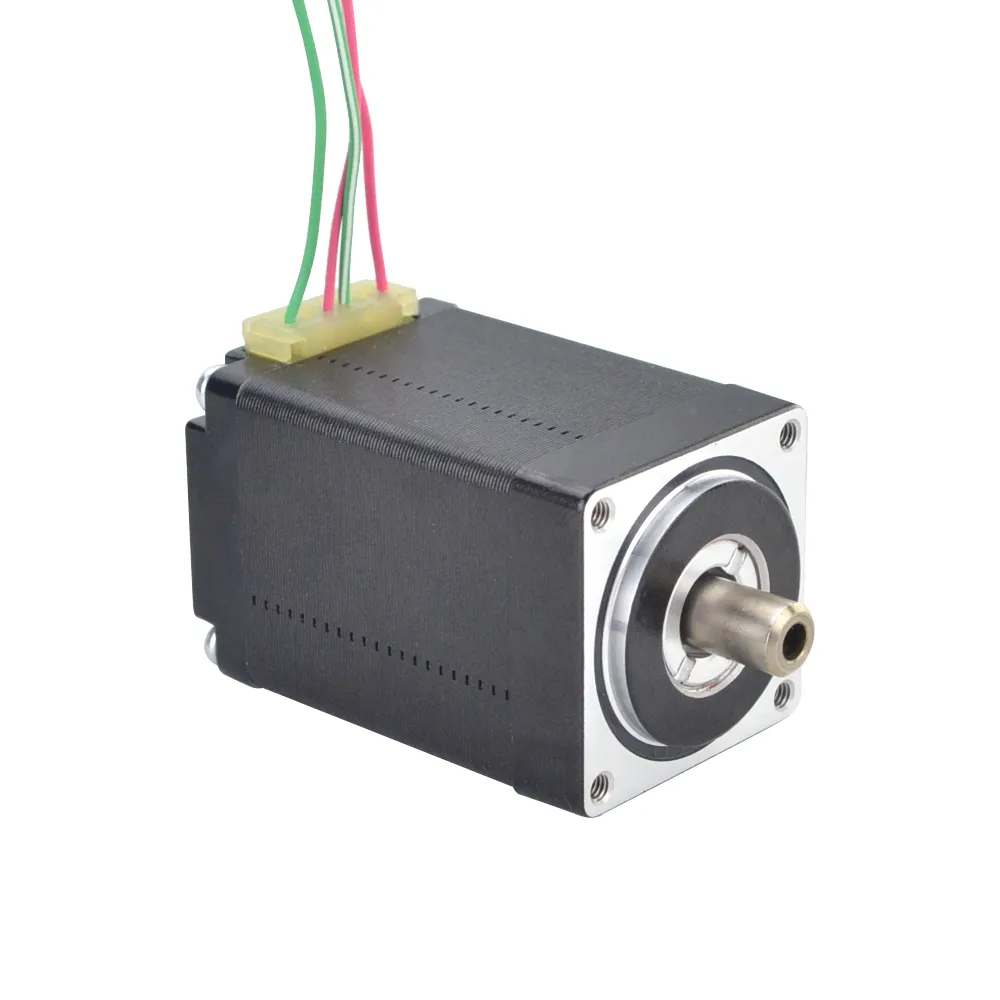

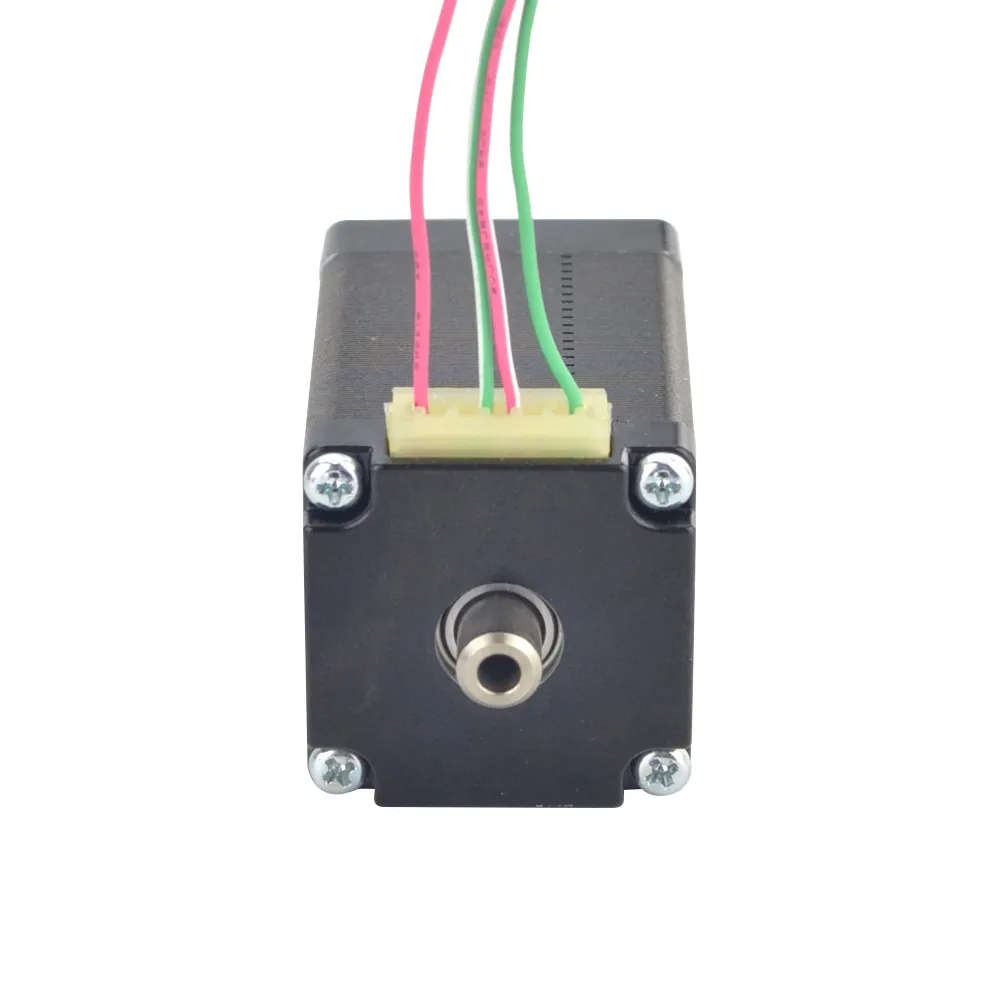

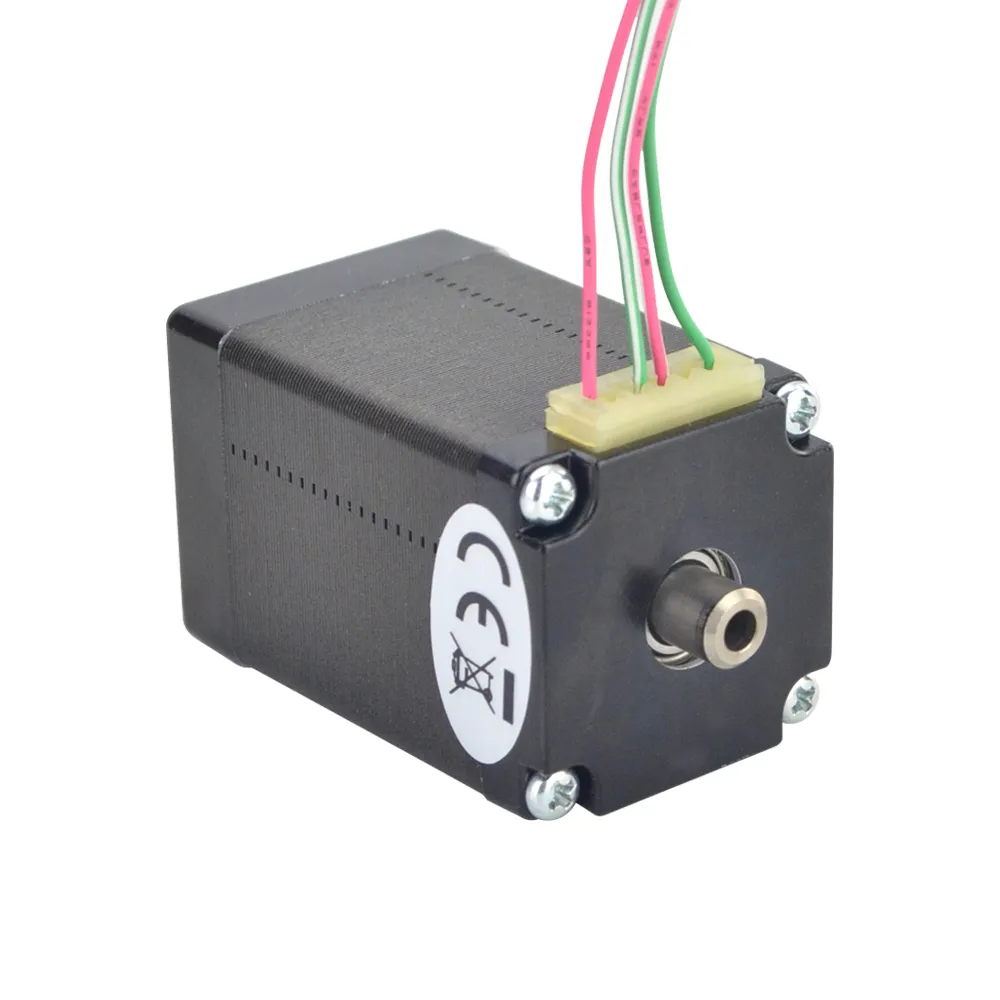

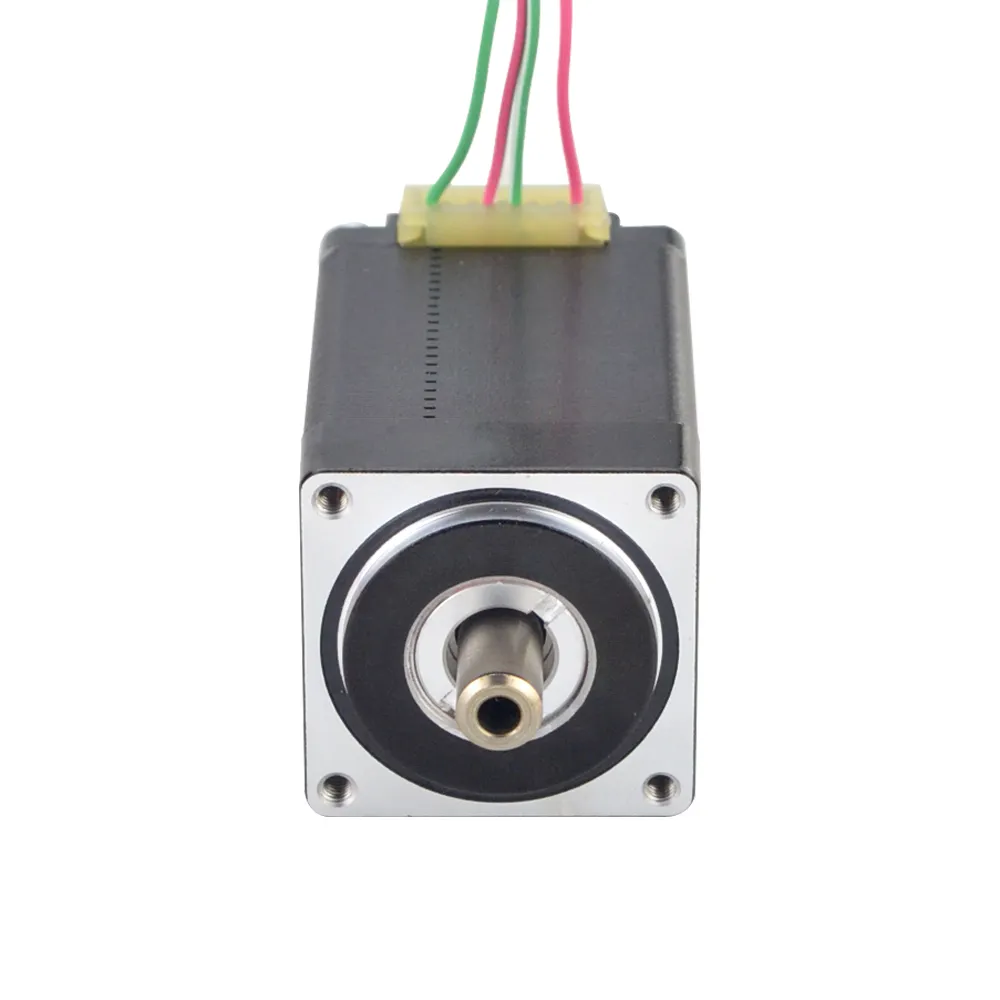

Nema 11 1.8deg 0.075Ncm 1A Stepper Motor

Nema 11 1.8deg 0.075Ncm 1A Stepper Motor

Name: Nema 11 1.8deg 0.075Ncm 1A Stepper Motor
Price: 16.77 USD
Availability: InStock

$16.77

Nema 11 1.8deg 0.075Ncm 1A Stepper Motor, a compact and efficient solution for your automation needs. With its low torque and high current rating, this motor is suitable for applications requiring precise and rapid motion control.

Get a Quote Leave a Message

Model Type

Degree()1.8

Rated Torque(Ncm)()0.075

Current(A)()1

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number	11HS18-1004H
Motor Type	Bipolar Stepper
Step Angle	1.8 deg
Holding Torque	0.075 Nm (10.62 oz.in)
Rated Current/phase	1.0A
Phase Resistance	2.1 ohms ± 10%
Inductance	1.5mH ± 20% (1KHz)

Physical Specifications

Frame Size	28 x 28mm
Body Length	44mm
Shaft Outer Diameter	Φ6mm
Shaft Inner Diameter	Φ3mm
Front Shaft Length	10mm
Rear Shaft Length	5mm
Number of Leads	4
Lead Length	310mm
Weight	0.14kg

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
Stepper-Motor-Catalog.pdf	19.2MB	Download
