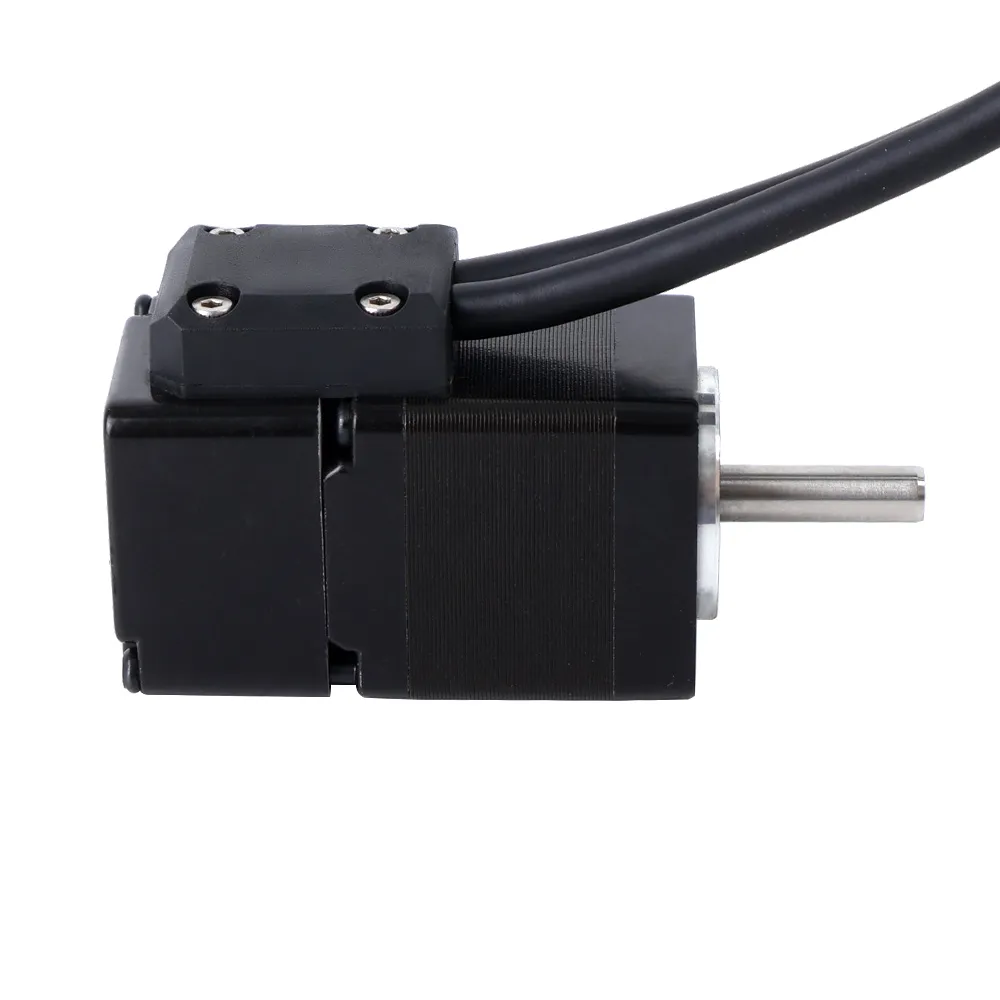

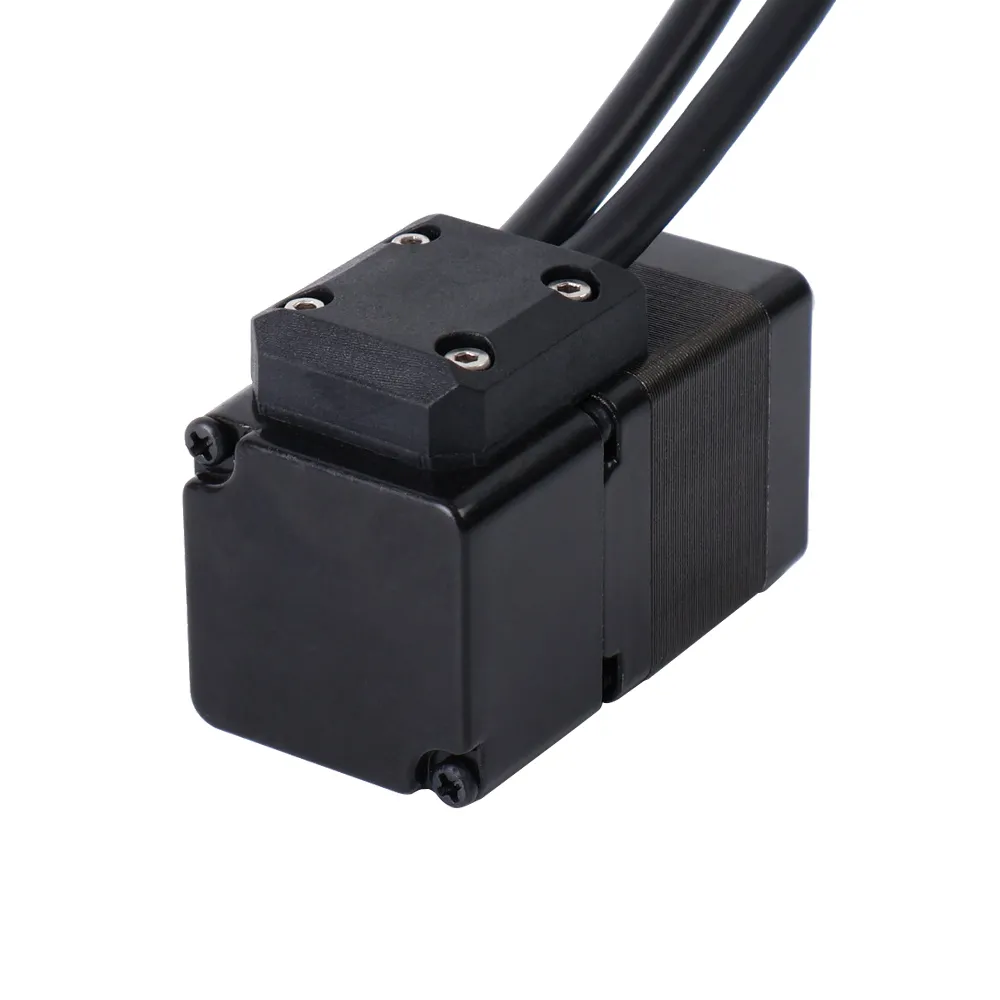

SPECIFICATIONS
Electrical Specification
Manufacturer Part Number | 11HS12-1004D-E1000 |
Number of Phases | 2 |
Step Angle | 1.8 deg |
Holding Torque | 0.06 Nm (8.5 oz.in) |
Rated Current/Phase | 1.0A |
Phase Resistance | 2.0 ohms ± 10% |
Inductance | 1.5mH ± 20% (1KHz) |
Physical Specifications
Frame Size | 28 x 28mm |
Body Length | 50mm |
Shaft Diameter | Φ5mm |
Shaft Length | 20mm |
Lead Length | 300mm |
Weight | 0.142kg |

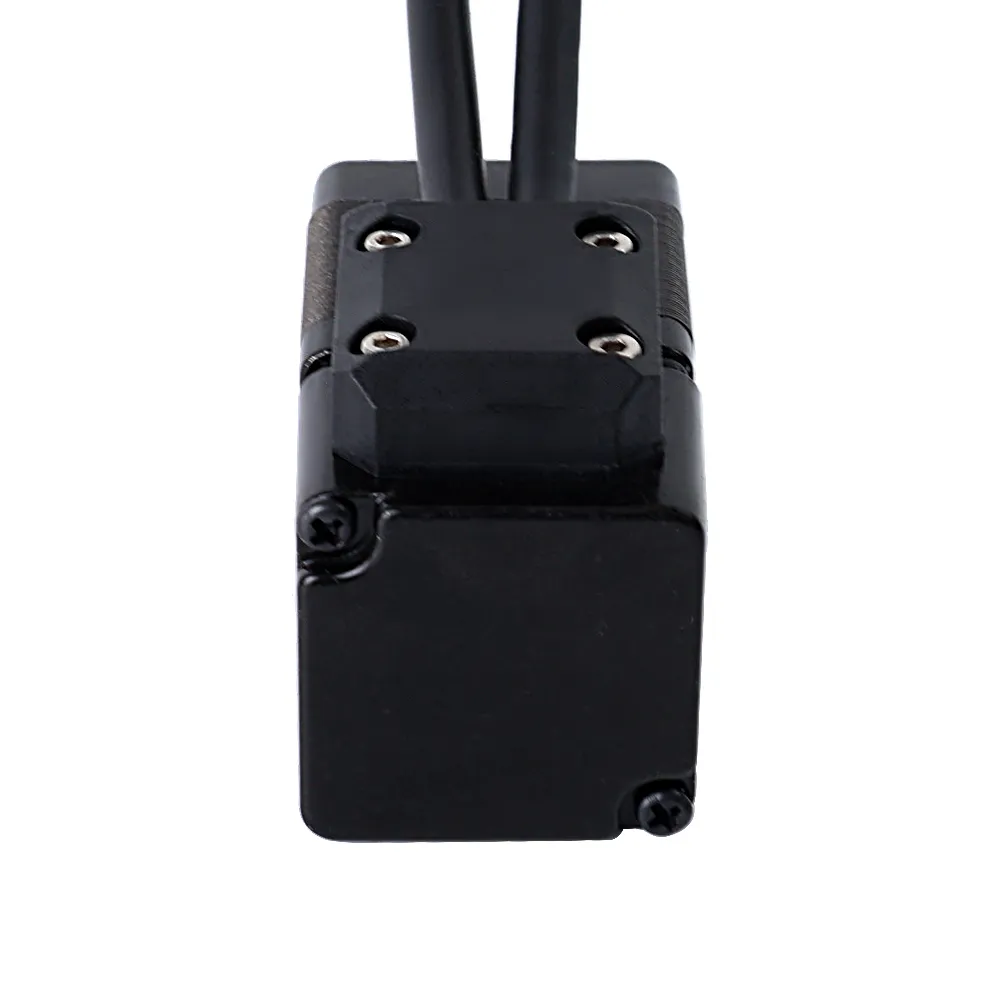

Encoder Specification
Output Circuit Type | Differential Type |
Encoder Type | Optical Incremental |
Encoder Resolution | 1000 PPR (4000 CPR) |
Output Signal Channels | 3 Channels |
Supply Voltage Min | 4.5V |
Supply Voltage Max | 5.5V |
High Level Output Voltage | 2.4V - Vcc |
Low Level Output Voltage | ≤ 0.4V |
