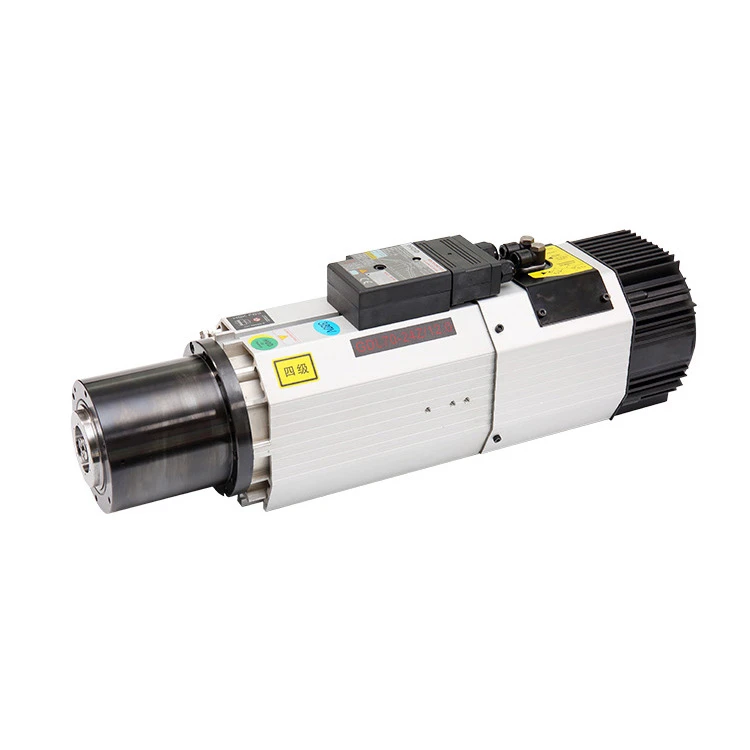

GDL70 12000W 380V 24000RPM ATC Air Cooled HSKF63 Spindle Motor

$2167-$2355

The GDL70 spindle motor is a highly capable piece of equipment. With 12000W of power and a rotation speed of 24000RPM, it is well-suited for demanding machining tasks.

Model TypeSpindle Motor

Voltage(V)380

Output(W)12000

Size(mm)70

Speed(RPM)24000

Changing MethodATC

Cooled MethodAir Cooled

SPECIFICATIONS

Model GDL70-HSK63F-24Z/12 Long nose
Speed (RPM) 24000
Frequency (Hz) 800
Power (KW) 12
Voltage (V) 380
Current (A) 20
Poles(N/m) 4p
Weight(kg) 31

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
GDL70-12000w-380v-24000rpm-ATC-air-cooled-HSKF63-spindle-motor-dimensions-2.step3096KBDownload
Spindle-Motor-Catalog.pdf12.1MBDownload
