CNC spindle motor air cooled 380V 1.5KW 18000RPM 300Hz ER20 collet

Home > CNC spindle motor air cooled 380V 1.5KW 18000RPM 300Hz ER20 collet

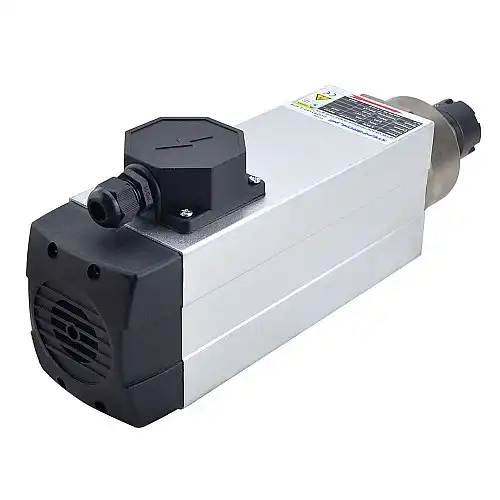

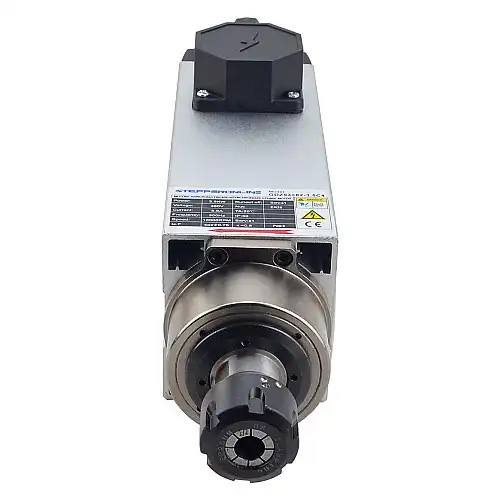

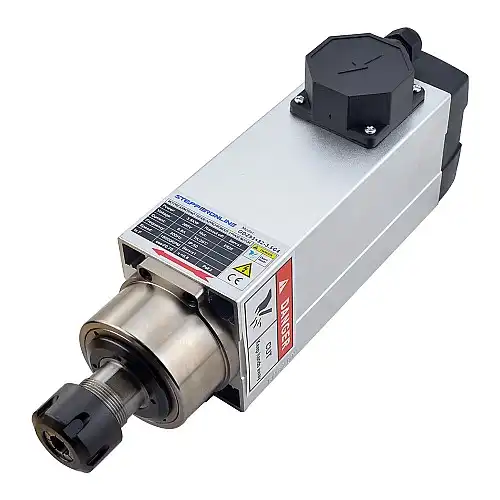

CNC spindle motor air cooled 380V 1.5KW 18000RPM 300Hz ER20 collet

The CNC spindle motor is designed for precise, high-speed machining with air cooling technology. With 1.5KW power and 18000RPM, it operates at 300Hz for increased efficiency. Additionally, the ER20 collet allows for easy and secure tool changes. Upgrade your machining capabilities with this professional-grade motor.

Frequency (Hz)0 - 300

Body Length(mm)137

Body width(mm)82

Body size (mm)93

Operating environment
Cooling method Air cooled
Spindle motor specification
Frequency (Hz) 0 - 300
Design square
Body Length(mm) 137
Body width(mm) 82
Body size (mm) 93
Bearing lubrication Fat
Power kW 1.5
material Stainless steel
Voltage (VAC) 380
Collet size ER20
Electrical specification
Speed(rpm) 0 - 18000
Product Type Spindle motor
Current (A) 3.8
Physical specification
Inventory method Special inventory
Carry 2x7005, 2x7002
Weight(Kg) 6.15

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
