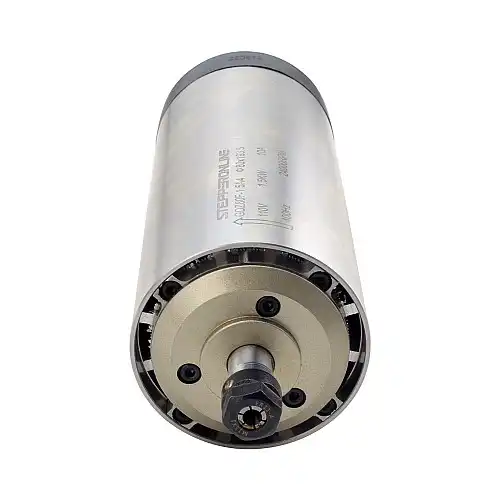

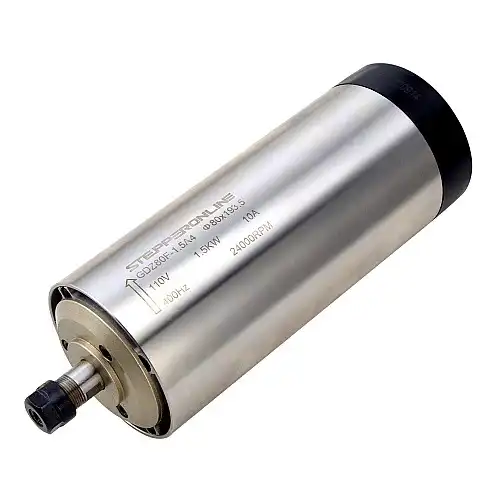

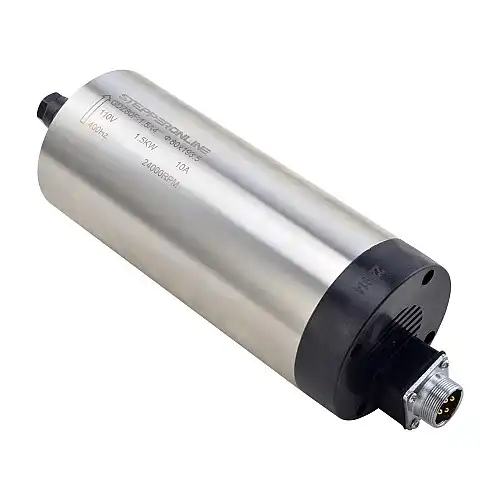

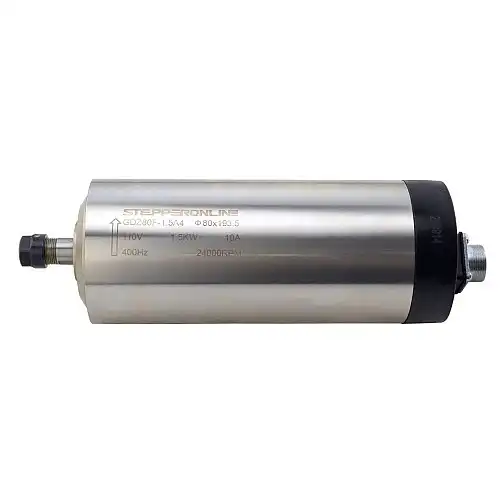

CNC spindle motor air cooled 110V 1.5KW 24000RPM 400Hz ER11 collet

Home > CNC spindle motor air cooled 110V 1.5KW 24000RPM 400Hz ER11 collet

CNC spindle motor air cooled 110V 1.5KW 24000RPM 400Hz ER11 collet

Achieve precise and efficient milling with our high-quality CNC spindle motor. With an air-cooled design, it operates at 110V and 1.5KW power for maximum performance. With a speed of 24000RPM and an ER11 collet, it's perfect for a variety of projects. Trust in our expertly designed and reliable product.

Power kW1.5

Voltage (VAC)110

Collet sizeER11

Speed(rpm)0 - 24000

Operating environment
Cooling method Air cooled
Spindle motor specification
Diameter(mm) 80
Frequency (Hz) 0 - 400
Design Round
Body Length(mm) 195
Bearing lubrication Fat
Power kW 1.5
material Stainless steel
Voltage (VAC) 110
Collet size ER11
Electrical specification
Speed(rpm) 0 - 24000
Product Type Spindle motor
Current (A) 5
Physical specification
Inventory method Special inventory
Carry 2x7002, 2x7002
Weight(Kg) 4.05

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

CNC spindle motor air cooled 110V 1.5KW 24000RPM 400Hz ER11 collet
CNC spindle motor air cooled 110V 1.5KW 24000RPM 400Hz ER11 collet
