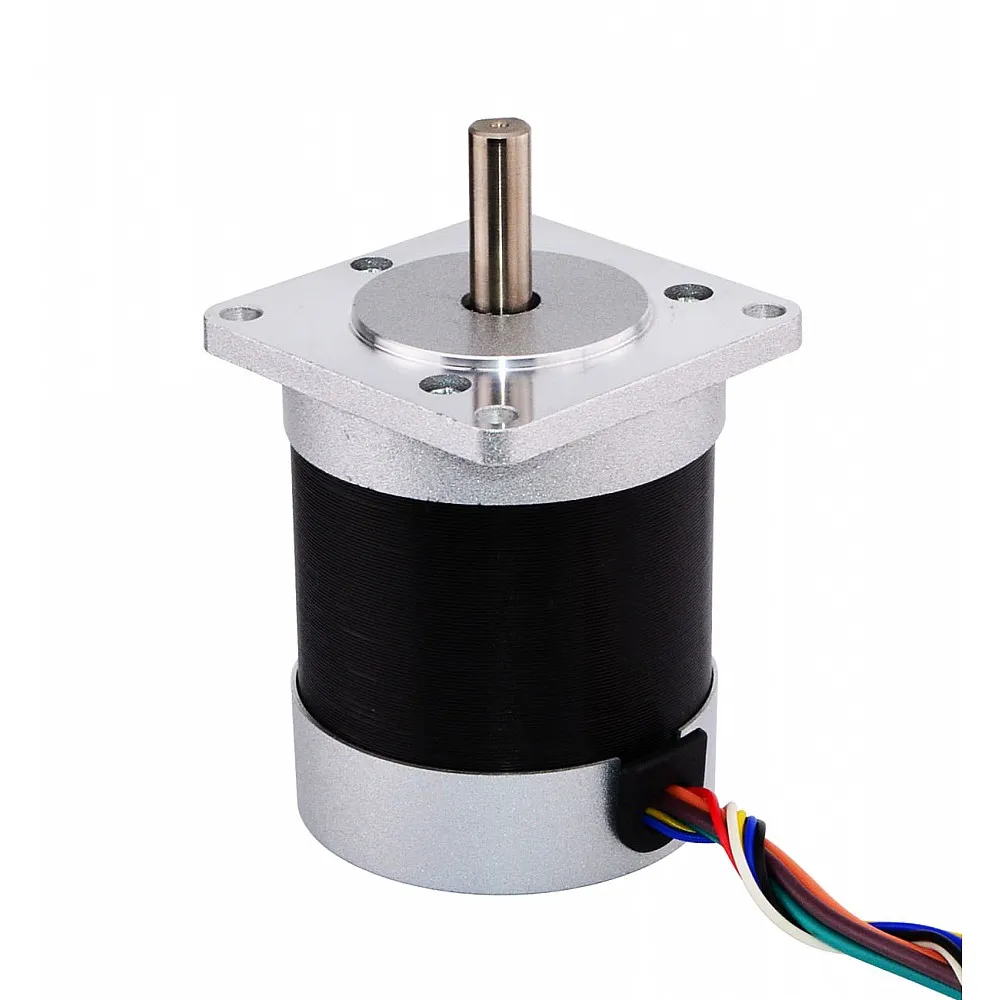

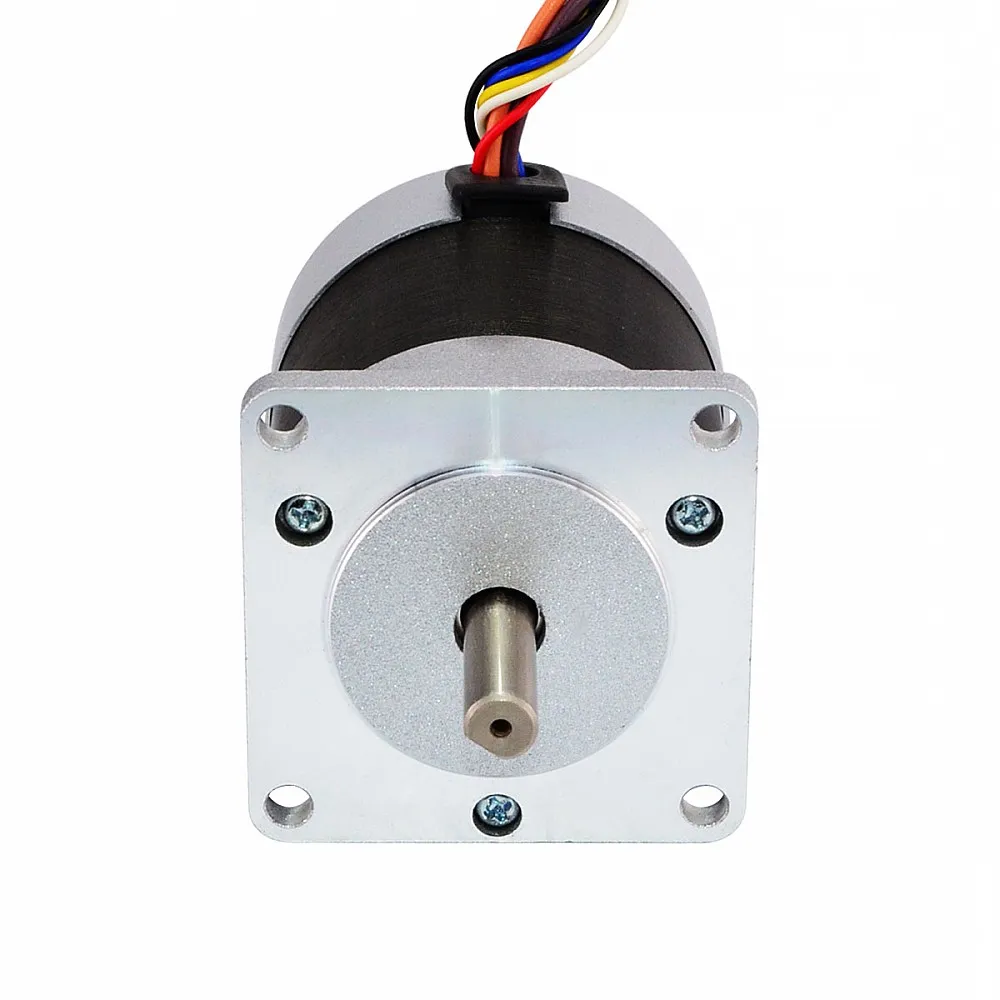

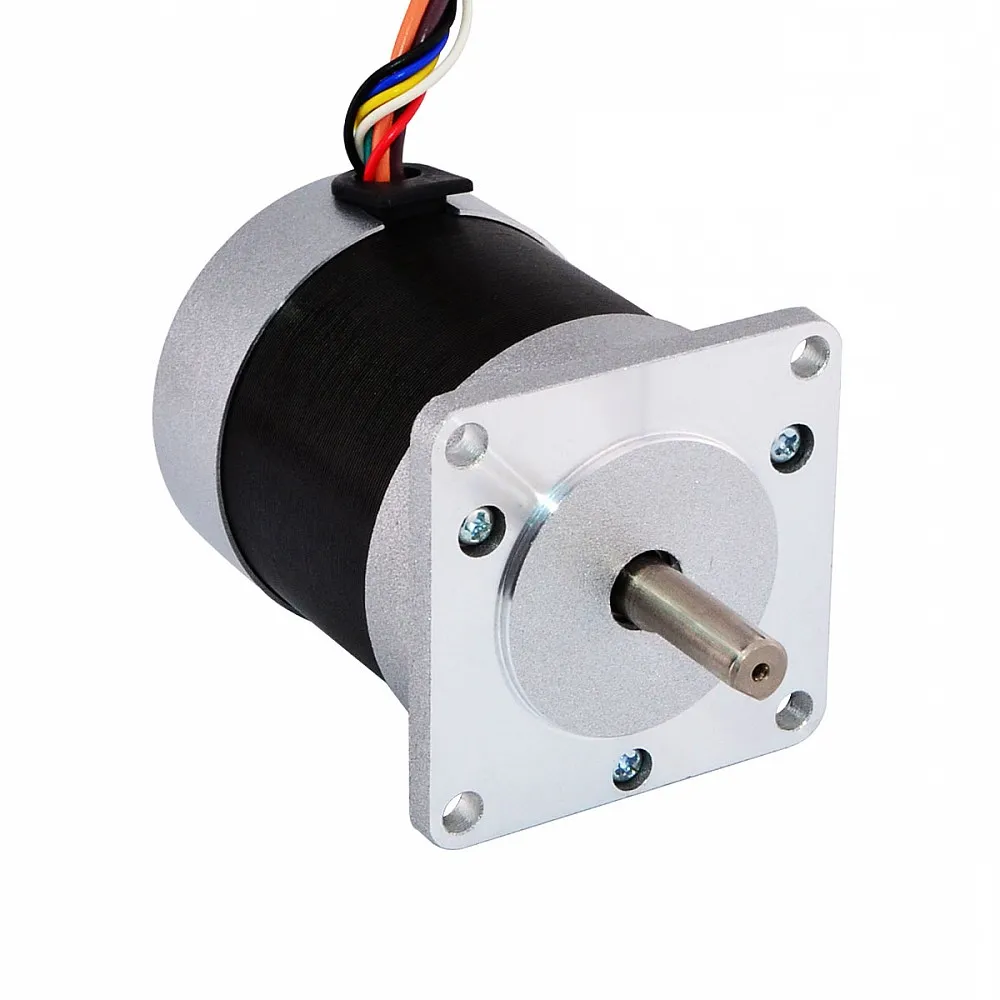

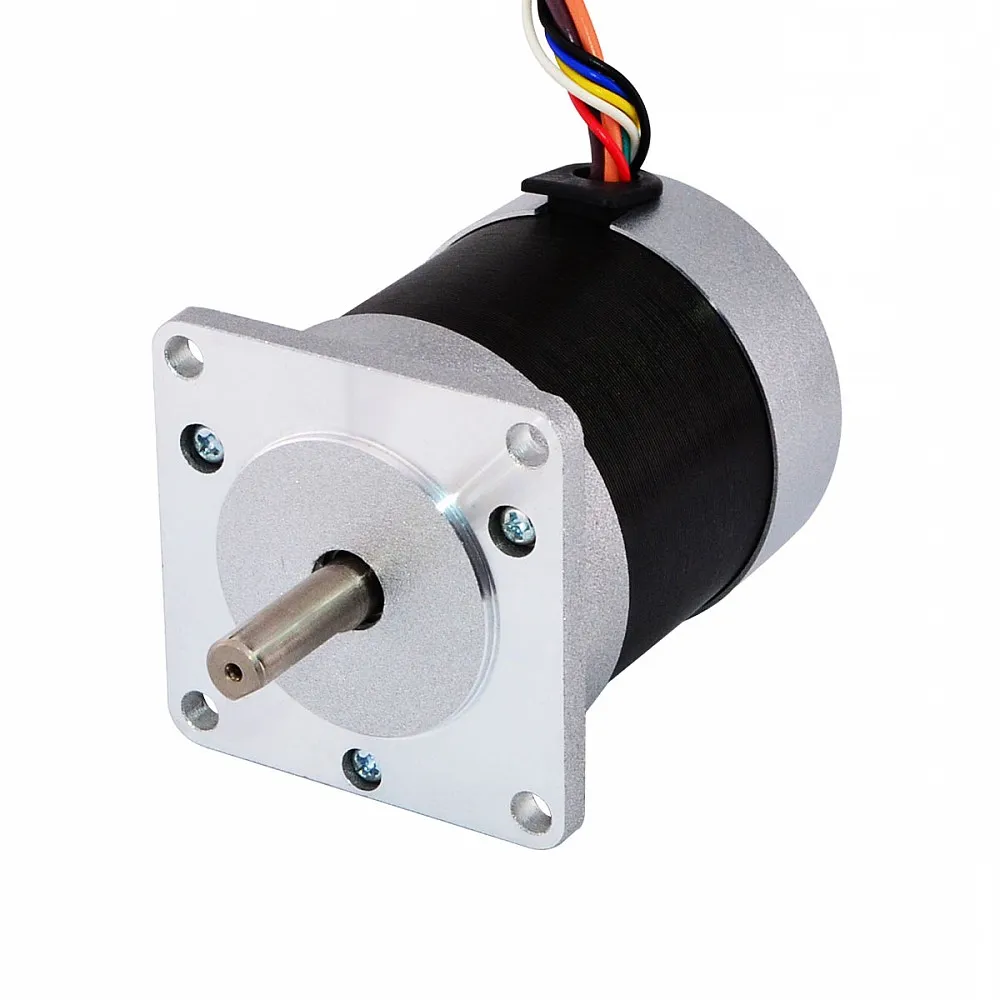

99W 36V 4300RPM 0.22Nm DC Brushless Motor

Home > 99W 36V 4300RPM 0.22Nm DC Brushless Motor

99W 36V 4300RPM 0.22Nm DC Brushless Motor

$32.20-$33.50

The 99W 36V 4300RPM 0.22Nm DC Brushless Motor is a powerful and efficient solution for your motion control needs. This motor features a brushless design, which ensures quiet operation, reduced maintenance, and increased lifespan compared to traditional brushed motors.

Motor TypeDC Brushless motor

Output Power (W)99

Voltage (V)36

Rated Speed (rpm)4300

Electrical Specification

Manufacturer Part Number 57BLR70-36-01
Phase 3
Poles 4
Rated Voltage 36V
Rated Speed 4300±10%RPM
Rated Torque 0.22Nm(31.15oz.in)
Rated Current 4.2±10%A
Rated Power 99W
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute
No. of Phase 3
Product Type BLDC Motor
Rated Current(A) 4.2
Rated Power(W) 99
Rated Speed(rpm) 4300
Rated Torque(Nm) 0.22
Rated Voltage(V) 36

Physical Specification

Frame Size Φ57mm
Body Length 73.1mm
Shaft Diameter Φ8mm
Shaft Length 25mm
Shaft Type D-cut
D-cut Length 20mm
Number of Leads 8
Lead Length 300mm
Bearing Type NMB Ball Bearing, C3
Weight 0.65kg
Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 69.1
Output Shaft Type O
Shaft Diameter(mm) 8
Shaft Length(mm) 25
