96V 2500W 12 Nm 2000 rpm 31A Brushless DC Motor
$2-$117.91
This motor features a low speed of 2000 rpm, a rated torque of 12 Nm, and a maximum torque of up to 30 Nm. With its stable speed control, excellent starting and acceleration characteristics, and good insulation quality, this motor is ideal for various applications.
SPECIFICATIONS
| Model: | BLDC-180WDM12020 |
| Matched Controller Model: | KBL |
| Rated Power: | 2.5 kW |
| Rated Voltage: | 96V |
| Rated Current: | 31A |
| Phase: | 3 phase |
| Holding Torque: | 12 Nm |
| Max. Torque: | 30 Nm |
| Rated Speed: | 2000 rpm |
| No-load Speed: | 2400 rpm |
| Square Flange Size: | 180 mm |
| Working Efficiency: | 85% |
| Insulation Grade: | F |
| Protection Grade: | IP54 |
| Motor Lead Length: | 1 meter |
| Certificate: | CE, RoHS, ISO/TS16949 |
| Weight: | 18.5 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

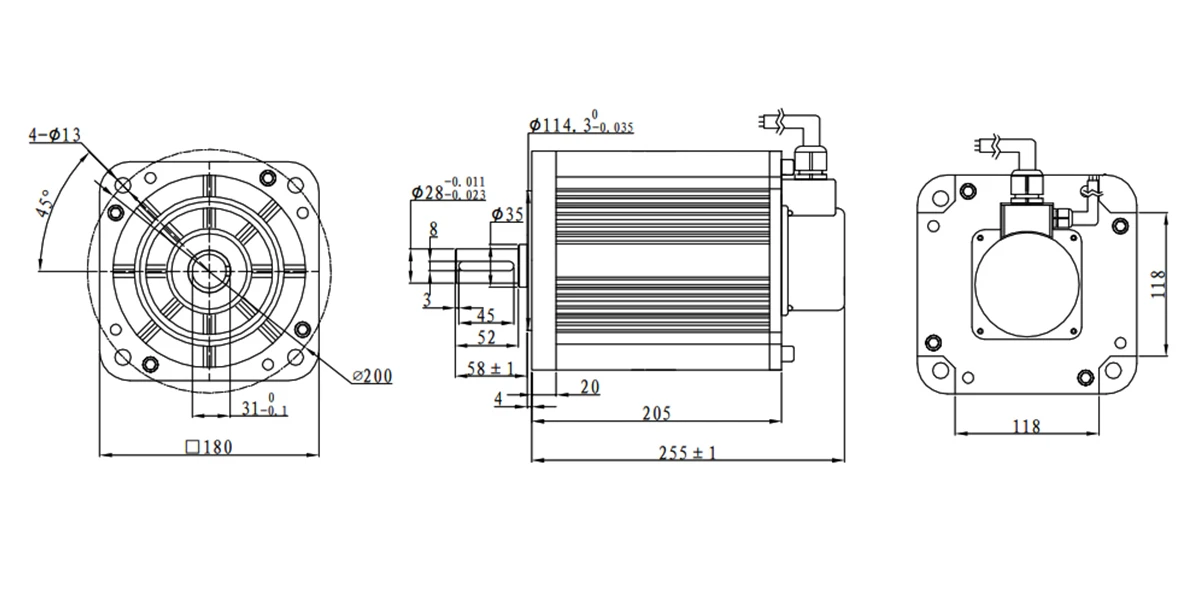

Dimensions(Unit: mm)
Line Define
Power Wire
| Red | Yellow | Blue |
| Motor U | Motor V | Motor W |
Feedback Wire
| Hall Line Color | Hall Signal Definition | Plug Serial Number |
| Orange and Black | 5V | 1 |
| Orange | 0V | 2 |
| Yellow | Hall A | 3 |
| Blue | Hall B | 4 |
| Green | Hall C | 5 |

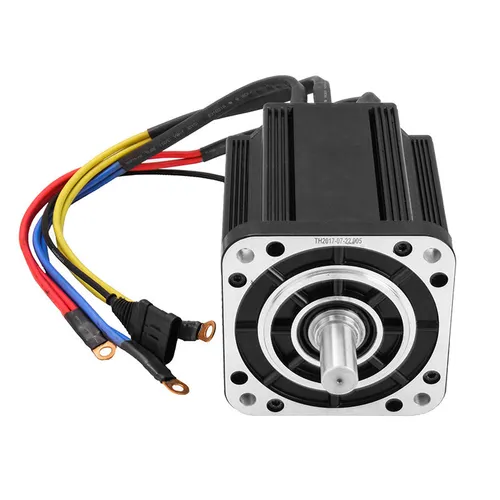

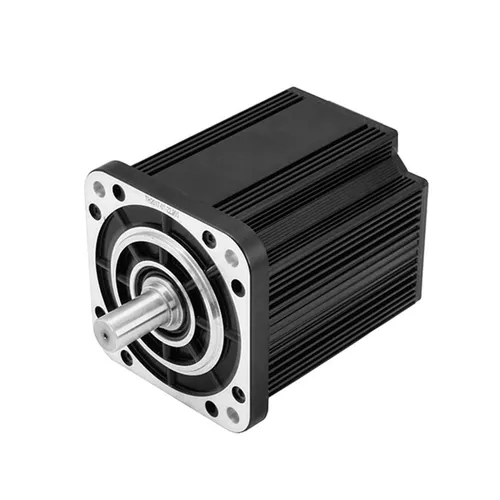

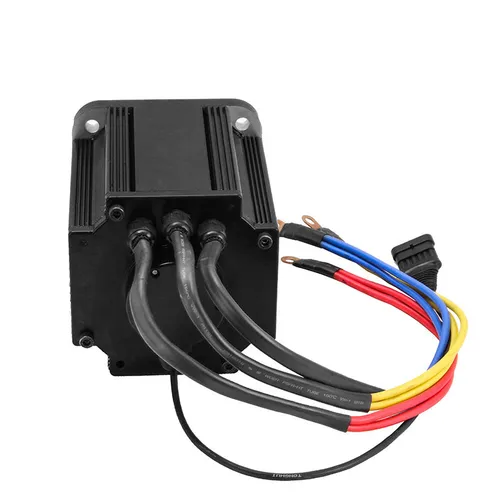

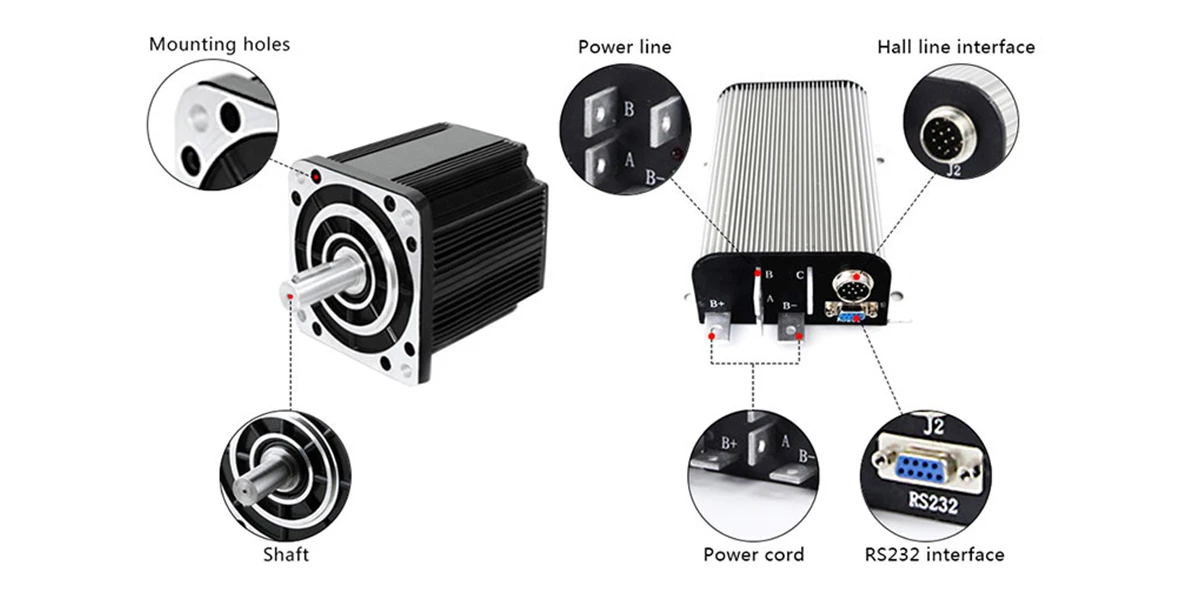

Product Display
Experience the power and reliability of our cost-effective 96V BLDC electric motor. This motor operates at a low speed of 2000 rpm with a no-load speed of up to 2400 rpm, making it suitable for a wide range of applications. With a rated torque of 12 Nm and a compact 180mm square flange size, it is easily integrated into various systems. You can purchase this motor directly from the manufacturer, ensuring competitive pricing and reliable support. It boasts excellent starting and acceleration characteristics, as well as good insulation quality and heat resistance.
Product Feature
- Stable speed control: The 96V brushless motor allows for continuous speed adjustment by comparing the feedback signal from the motor's speed to the set speed and adjusting the applied voltage accordingly. This ensures stable running speed even with load changes.
- Thin and high power: The 3-phase DC motor utilizes a permanent magnet brushless motor rotor, resulting in a slim and high-power design.
- Wide speed control range: The 2.5kW brushless DC motor offers a wider speed control range compared to speed AC motors and inverters. It is suitable for a broad range of applications, allowing smooth operation from low speeds to high speeds with the required torque.
- Contributes to energy savings: The brushless DC electric motor utilizes a permanent magnet rotor, reducing rotor losses and resulting in more than 20% power consumption reduction compared to three-phase induction motors with variable frequency control. This contributes to energy savings.
- Equipped with protection functions: The 96V 2500W BLDC motor is designed with built-in protection functions to ensure the safety of the equipment system.
Product Applications
The high torque 96V BLDC electric motor finds applications in various fields, including:
- Electric bicycles
- Inverter air conditioners
- Washing machines
- Drones
- Automobiles
- CNC machine tools
- Polishing and grinding equipment
- Packaging machinery
- Tools
- Turnstiles
- Industrial control systems
- Medical machinery
- Automation systems
- AGV trolleys
- Aerospace applications
- Intelligent storage equipment
Note: Ensure proper installation, adhere to safety guidelines, and consider the specific requirements of your application to maximize the performance and longevity of the motor.
