SPECIFICATIONS
| Model | Voltage (v) | Out put Power (w) | Speed No-load | Current N0-load | Speed With Load (rpm) | Current With Load （mN.m） | Current With Load (A) |
| Z5D90-12* | 12 | 90 | 3000 | 2.0Max | 2600 | 220 | 9 |
| Z5D90-24* | 24 | 90 | 3100 | 1.0Max | 2800 | 205 | 3.5 |
| Z5D90-90* | 90 | 90 | 3100 | 0.3Max | 2900 | 198 | 1 |

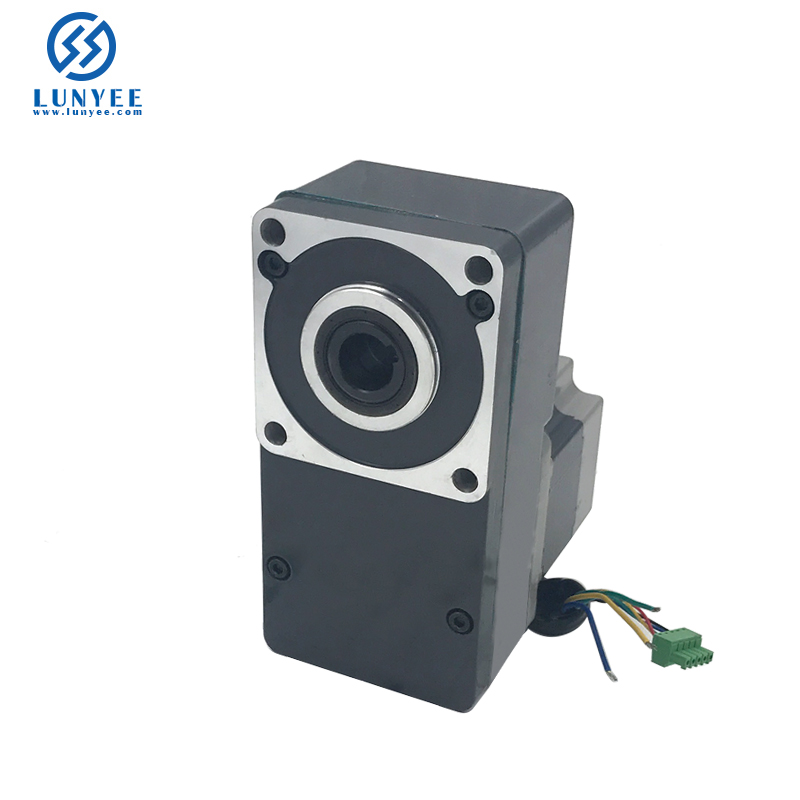

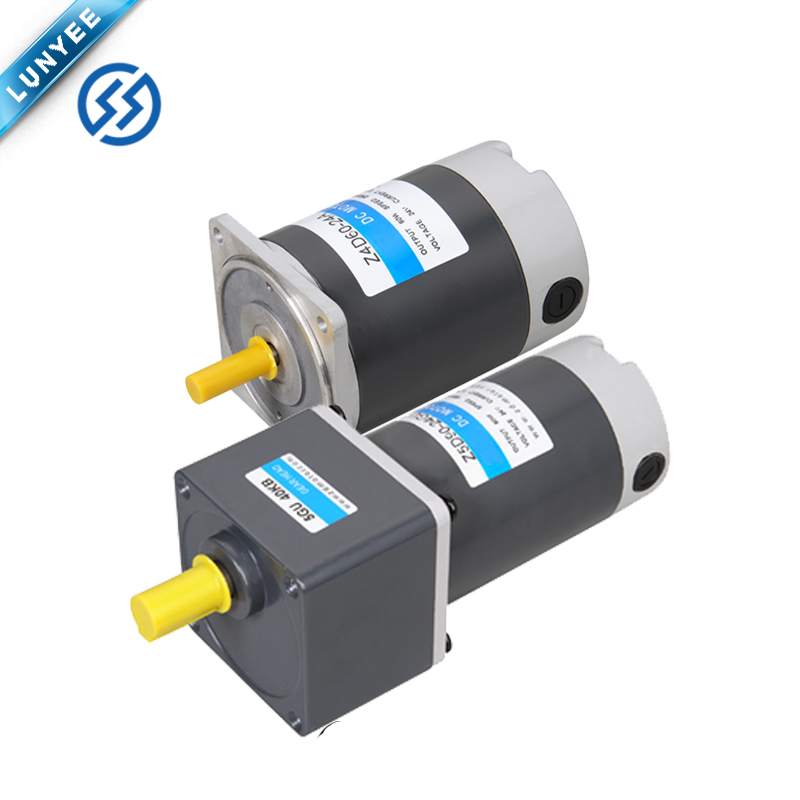

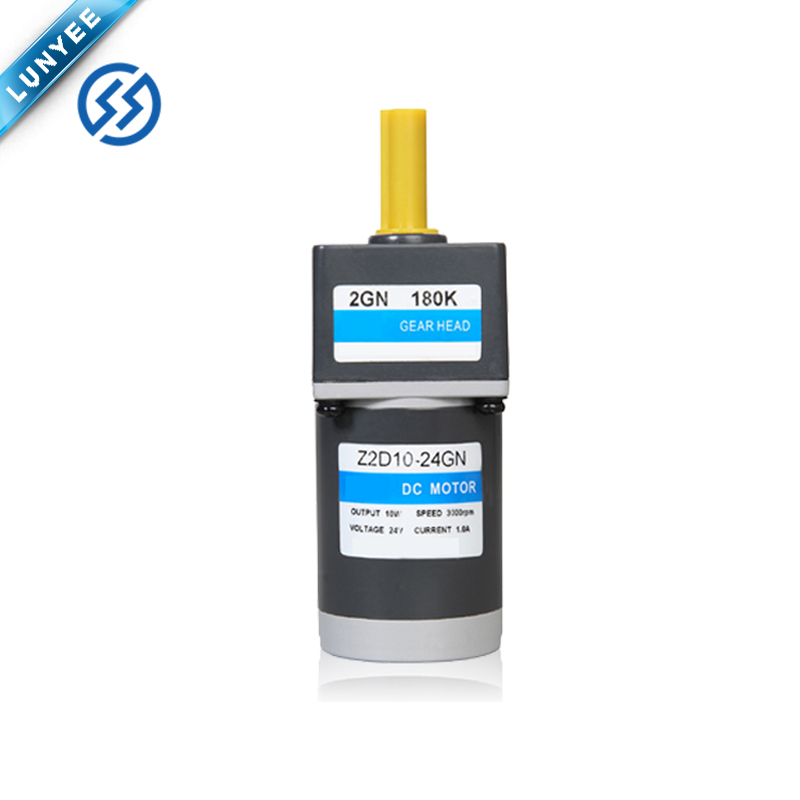

Product Display
A Brush DC Motor, which is powered by direct current, allows for precise speed control. The Brush DC Motor provides constant and consistent current by using rings to power a magnetic drive that powers the motor's armature. The Brush DC Motor, perhaps one of the oldest utilized motors, is widely employed due to its ability to change the speed-torque ratio in practically any manner.
Product Feature
Easy Installation and Maintenance:
User-friendly assembly process.
Maintenance requirements are minimal, saving time and resources.
High torque and Starter Power:
Provides substantial force, ideal for heavy-duty applications.
Quick start-up power ensures immediate operational readiness.
Quick Start-Up, Stop-Up, and Acceleration:
Quick and responsive operation for dynamic applications.
Smooth acceleration and deceleration for safer and better operations.
Reasonable Construction Costs:
Optimized for cost-effectiveness without compromising performance.
Wide Voltage Compatibility:
Designed to accommodate a variety of common voltages, ensuring operational compatibility.
Suitable for Extreme Working Conditions:
Built to withstand challenging environments, suitable for robust applications.
Product Applications
Industrial Usage:
Perfectly suited for electric propulsion, paper machines, cranes, and steel rolling mills applications.
Household and Small Appliances:
Enhances the performance of household products and small appliances.
Automotive Applications:
Used in power seats and windshield wipers for automotive applications.
Healthcare and Packaging Industry:
Aids in the operation of dispensing equipment in the medical and packaging sectors.
Robotics:
For robotic applications, provides fast, dynamic movements to suit a variety of tasks.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
