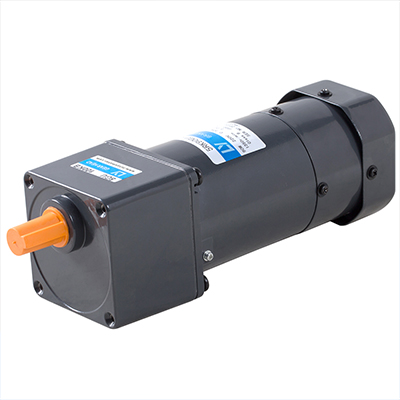

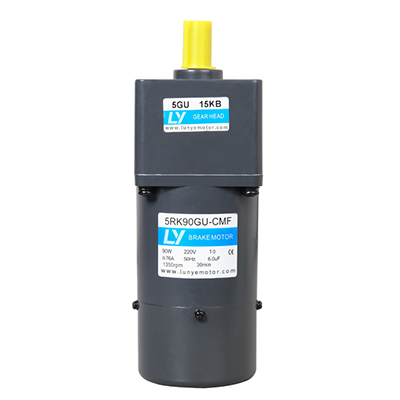

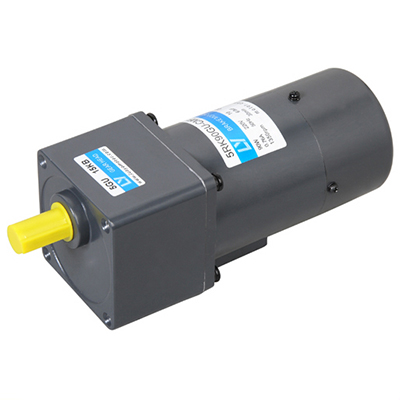

90W AC Electric Gear Brake Motor


Our 90W AC Electric Gear Brake Motor is designed for superior performance and long-lasting durability. It is made with a multi-pole design, offering a consistent output of 90 Watts and a variable speed range. Its reliable gear motor braking system provides quick and safe braking for maximum safety.

Model TypeBrake motor

Output Power (W)90

Voltage (V/Hz)100-380 50/60

Rated Speed (r/min)1250/1550

Product Display

A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.

Product Feature

Quick Braking Capability

The 90W AC Electric Gear Brake Motor is designed to provide immediate braking. This is especially useful in applications that require rapid stopping for safety and efficiency.

Position Maintenance Feature

Our motor comes with a fundamental position-maintenance feature that ensures reliability and longevity of operation under varied usage scenarios.


The AC Electric Gear Brake Motor offers excellent adaptability for custom solutions, meeting diverse application requirements.

Versatility in Voltage and Frequency

This motor is designed to operate under different voltages and frequencies, providing flexibility and convenience to users worldwide.

Integration with Gearbox

Our motor can be used in conjunction with a gearbox to maintain a constant speed, offering a wide range of reduction ratios.

Product Applications

Packaging Machines

The quick braking and position maintenance features of our motor make it an excellent choice for packing machines that require immediate stopping of the driving load.

Conveyor Systems

The gear motor is suitable for conveyor systems where immediate halting is required, thereby ensuring safety and efficiency.

CNC Machines

With its reliable braking system, our motor offers enhanced performance in CNC machines where quick stopping and position maintenance are crucial.

Automation Equipment

The AC Electric Gear Brake Motor's adaptability and quick response time make it suitable for various types of automation equipment.

Food Machines

Our motor's swift braking feature along with its ability to maintain position allows its application in food processing machines that require instantaneous halting and holding functionality.



AC Motor models available
Motor Flange Size
60 mm / 70mm / 80mm / 90mm / 104mm
Moter Type
AC induction Motor / speed-adjustable motor/ reservible motor/ brake motor
Output Power
6W / 15W / 25W / 40W / 60W / 90W / 120 W / 150w/ 180w/ 200W / 200W / 300W/ 370w/400w/ 750w (Can Be Customized)
Output Shaft
Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
Voltage type
AC single phase/ three phases 110V/120v/220v/ 380v /415v
Electric Brake; speed controller
Gearbox frame size
60 mm / 70mm / 80mm / 90mm / 104mm /120mm
Gear Ratio
Type Of Pinion
GN Type / GU Type
Gearbox Type
Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
