90W 90MM BLDC Gear Motor
This high-powered 90W 90MM Brushless DC Gear Motor is ideal for motion control in a variety of applications such as robots, automation equipment, and special vehicles. The motor features superior torque and high efficiency (up to 80%) due to its complete electronic commutation. Its compact size and low weight makes it easy to incorporate into your existing equipment.

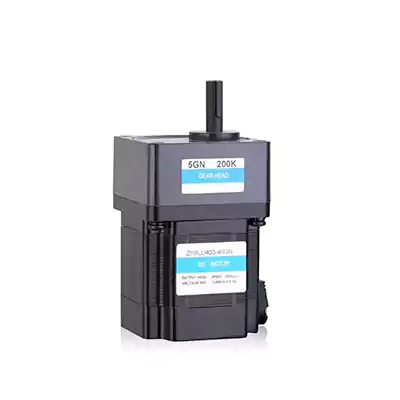

Product Display
This motor has the optional accessories: gearbox, controller, encoder, brake.
For DC brushless motor, we can make from 10W to 500W with all voltage and speed ratio.
Motor voltage,power and speed will be customized according to your requests under the allowed circumstance of adoptable dimension
If you have interest or demand, you can send inquiry for details
Gearbox Ratio, Speed and Torque:
Dimension Drawing
Product Feature
High Power Output
This 90W BLDC gear motor delivers substantial power, making it suitable for a wide range of demanding applications that require consistent and robust performance.
Compact and Efficient Design
With a 90mm frame, this motor combines a compact form factor with high efficiency, allowing for easy integration into various systems while ensuring optimal performance.
Durable Gearbox
Equipped with a durable gearbox, this motor provides high torque at lower speeds, ensuring reliable operation and enhanced performance under heavy loads.
Low Maintenance
Designed for longevity and low maintenance, this motor offers reliable performance over extended periods, reducing downtime and maintenance costs.
Product Applications
Industrial Automation
Ideal for industrial automation systems, this motor powers conveyor belts, robotic arms, and other automated machinery, providing efficient and precise operation.
Home Appliances
Perfect for home appliances such as washing machines, dishwashers, and HVAC systems, this motor ensures quiet and reliable performance, enhancing the user experience.
Medical Equipment
Suitable for medical equipment like patient beds and mobility aids, this motor delivers precise and dependable performance, contributing to improved patient care and operational efficiency.
Electric Vehicles
From electric scooters to small electric vehicles, this motor provides the necessary torque and efficiency for smooth and powerful propulsion, enhancing ride quality and performance.
Related Products
Videos
SPECIFICATIONS
| Model | Voltage (V) | Frequency (HZ) | Rated Power (W) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (N.m) | Grade Protection IP |
| Z5BLD90-220GN | 220-230 | 50/60 | 90 | 0.90 | 3000 | 0.286 | 65 |
| 100-120 | 50/60 | 90 | 1.80 | 3000 | 0.286 | 65 |
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
