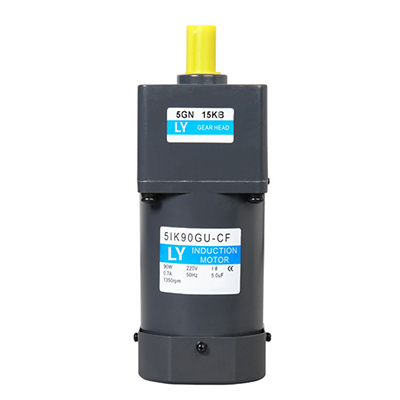

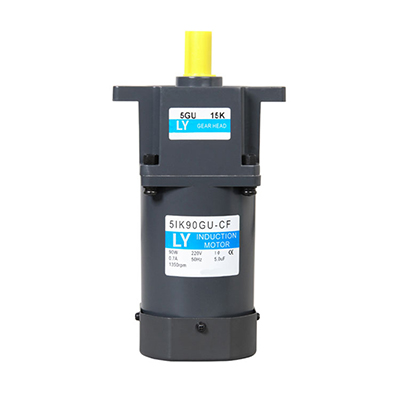

90W 1 phase AC gear reversible motor with speed controller

Home > 90W 1 phase AC gear reversible motor with speed controller

90W 1 phase AC gear reversible motor with speed controller

$67.2

This 90W 1 phase AC gear reversible motor with adjustable speed controller is a powerful solution for many industrial applications. It comes with an efficient design that minimizes losses and a rugged frame for maximum reliability. Its speed controller supports a wide range of input frequencies and enables precise control for your projects.

Motor TypeReversible Motor

Output Power (W)90

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)1250/1550


Model Type Above:gearbox below in():round shaft Output power W Voltage V Frequency Hz Current A Starting torque mN.m Rated tourque mN.m Rated speed r/min Capacitor μF
Lead Wire Type Terminal Box Type
5RK90GU-AF 5RK90GU-AFT 90 1ph100 50 1.78 470 700 1250 30
(5RK90A-AF) (5RK90A-AFT) 90 1ph100 60 2.35 470 570 1550 30
5RK90GU-EF 5RK90GU-EFT 90 1ph110 60 1.72 700 570 1550 25
(5RK90A-EF) (5RK90A-EFT) 90 1ph120 60 1.72 570 570 1550 25
5RK90GU-CF 5RK90GU-CFT 90 1ph220 50 0.82 560 700 1250 6
(5RK90A-CF) (5RK90A-CFT) 90 1ph230 50 0.81 560 700 1250 6
5RK90GU-HF 5RK90GU-HFT 90 1ph220 60 0.81 560 570 1550 6
(5RK90A-HF) (5RK90A-HFT) 90 1ph230 50 0.8 560 570 1550 6

Overview

Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.

  • 1. Saves space High effectiveness
  • 2. Reliable and long-lasting
  • 3. Powerful torque Low velocity
  • 4. High capacity for overload
  • 5. Outstanding performance
  • 6. Minimal energy consumption
  • 7. Numerous range of applications
