900W 12-24V PMDC Gear Motor with Shaft Hole

Home > 900W 12-24V PMDC Gear Motor with Shaft Hole

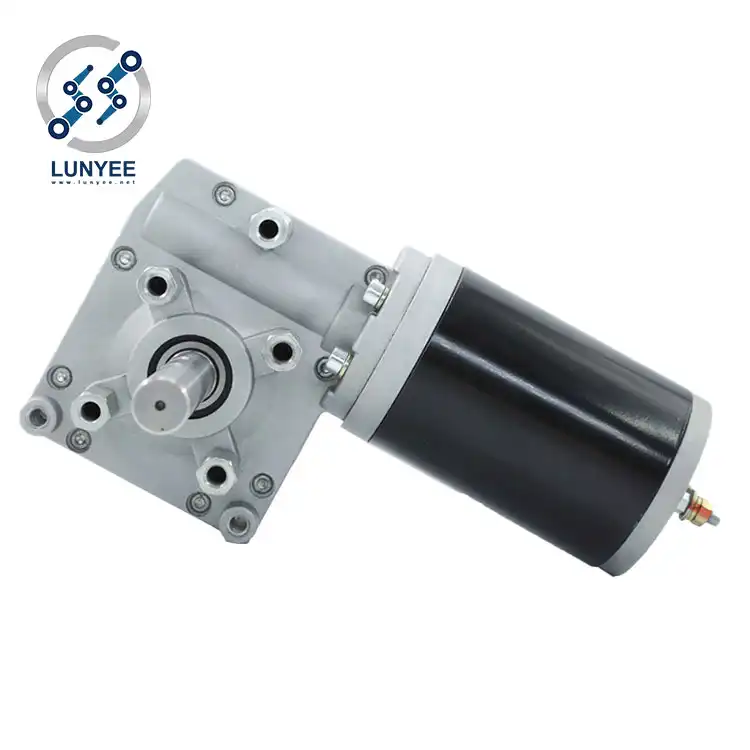

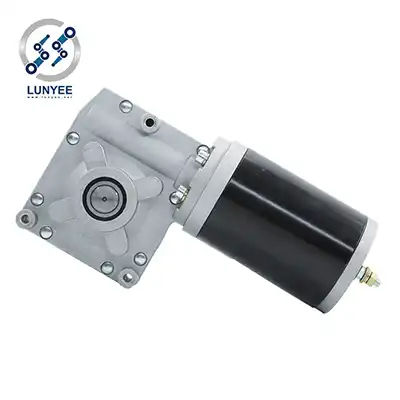

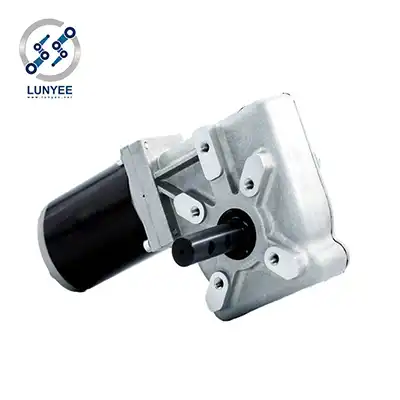

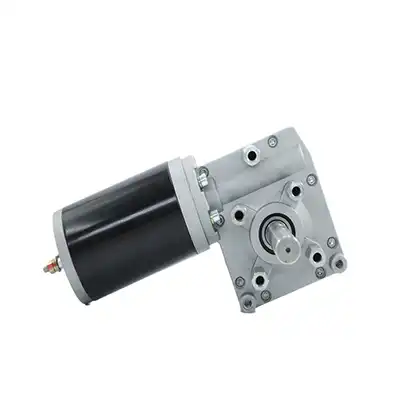

900W 12-24V PMDC Gear Motor with Shaft Hole

This powerful 900W gear motor operates at 12-24V and features a shaft hole, making it perfect for automation projects. With a maximum speed of 300RPM, it can also provide plenty of torque for heavy-duty jobs.

Motor TypePMDC Motor

Output Power (W)900

Voltage (V)12-24

Rated Speed (r/min)450

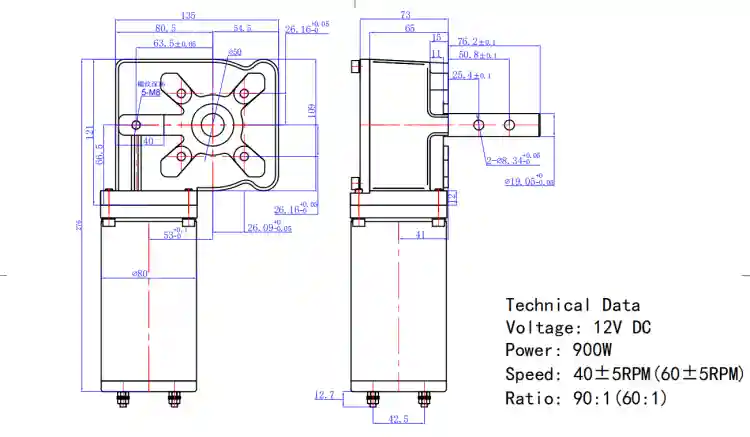

Motor Technical Data
Model Voltage(V) Torque(N.m) current(A) Speed(r/min) Power(W) Length(cm)
80ZYJW-02-90 12 0.58 25/13 3900 900 125
Gearbox Technical Data
Ratio Size(cm) Non-load speed(r/min) Load speed(r/min) rated torque(N.m) Max load(N.m)
90:1 102*122*56 43 40 22

40

Overview

900W 12-24V PMDC Gear Motor with Shaft Hole
900W 12-24V PMDC Gear Motor with Shaft Hole
Application Image
