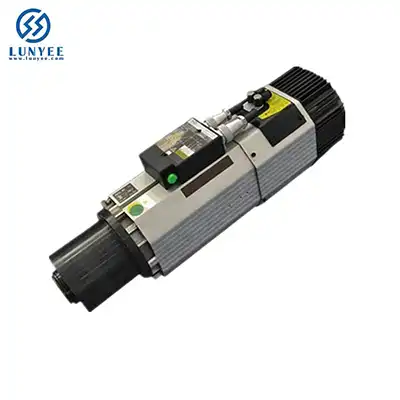

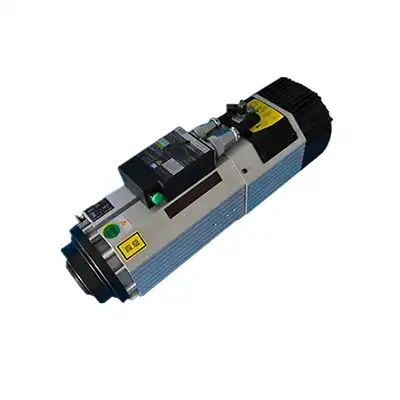

9-10KW 220-380V ATC Milling Spindle Motor

$1-$569.00

This 9-10KW ATC Milling Spindle Motor has a 220-380V voltage rating, making it ideal for machinery that requires high power output while still maintaining a low voltage. It can handle heavy-duty tasks and is capable of withstanding long-term use.

Model Type

Output Power (KW)()9-10

Voltage (V)()220

Rated Speed (rpm)()24000

Changing MethodATC

SPECIFICATIONS

Spindle Model GDL70-24Z/9.0
Cooling Type Air Cooling
Power 9KW
Voltage 380V/220V
Current 20A/32A
Size 142×417
Frequency 400HZ-800HZ
Speed 12000~24000
Collet ISO30/BT30
Bearing Type

 2*7008C/P4,2*7006C/P4

Weight 27Kg

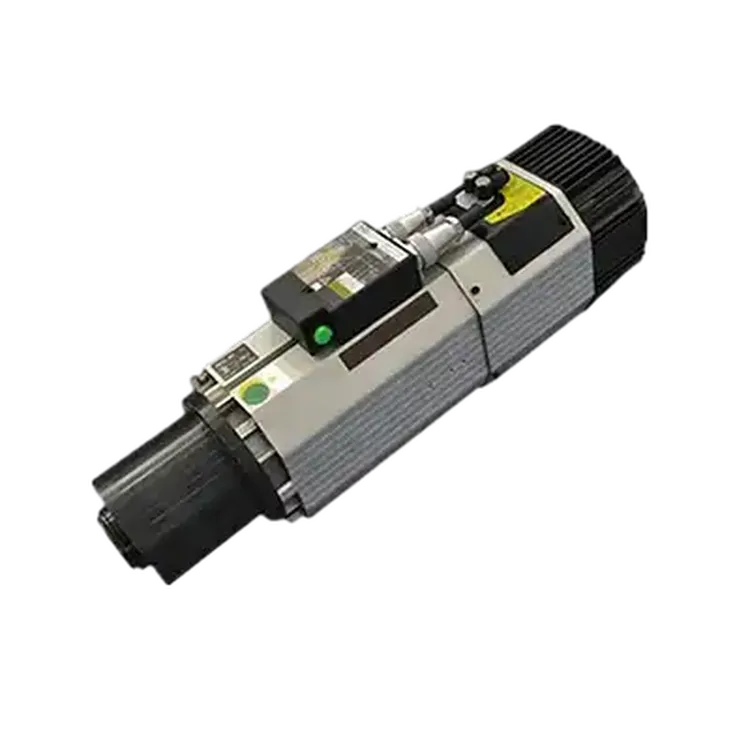

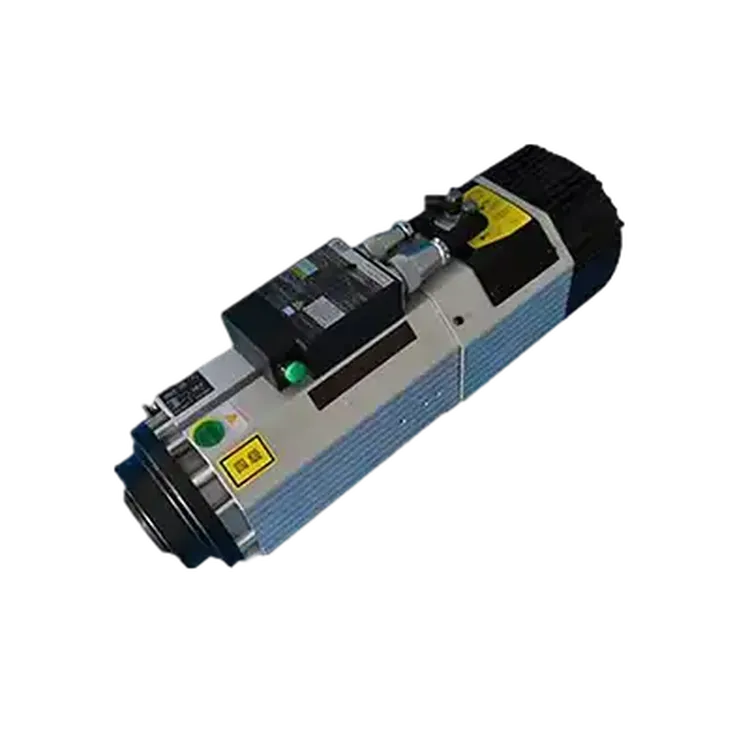

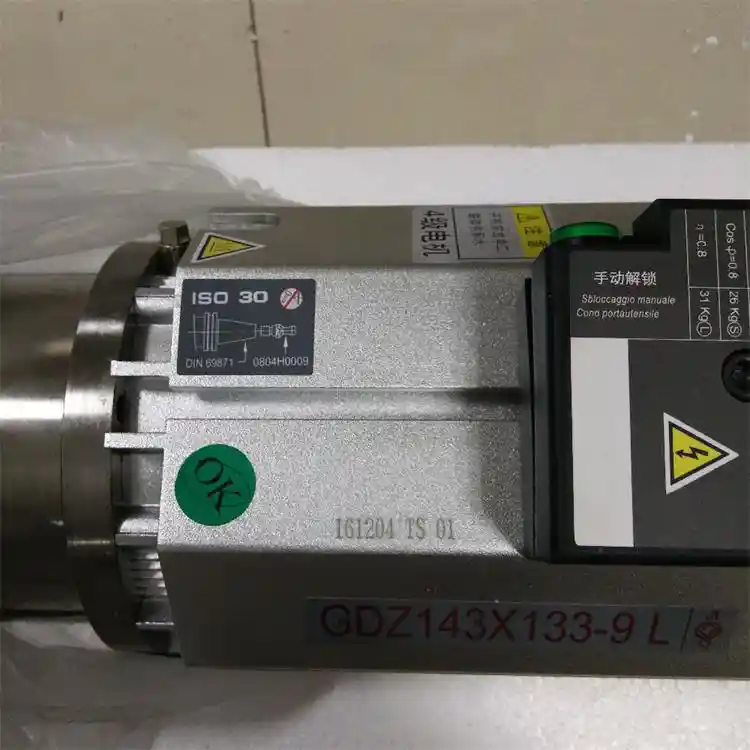

Product Display

spindle 1.0 description pic

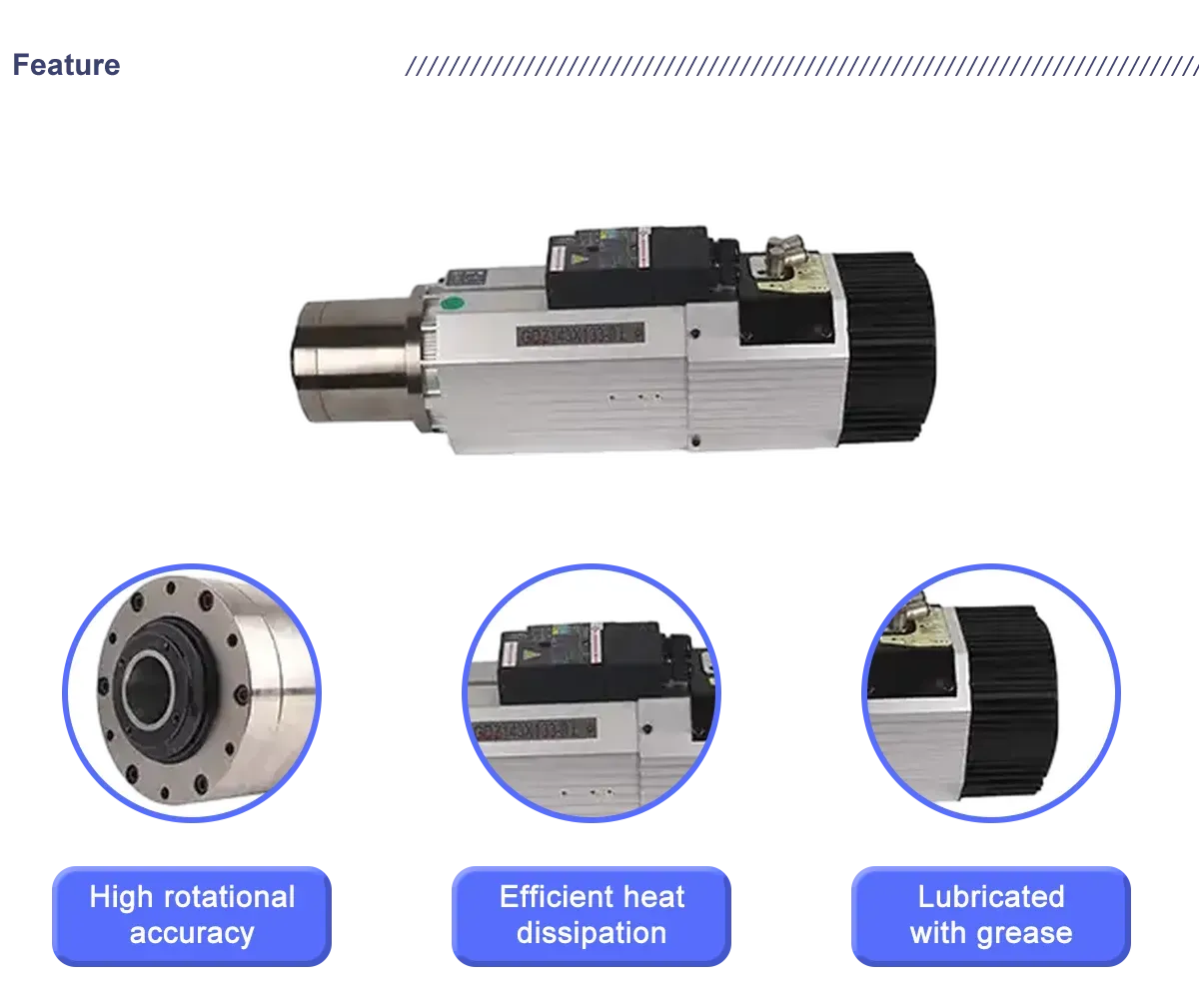

Product Feature

High Power Output

Provides a powerful output ranging from 9kW to 10kW, ensuring efficient and robust performance for milling applications.

Automatic Tool Change (ATC) Capability

Equipped with ATC functionality, allowing for quick and seamless tool changes, enhancing productivity and reducing downtime.

Wide Voltage Range

Supports both 220V and 380V power supplies, offering flexibility for different industrial setups.

High Speed Operation

Operates at high speeds, suitable for high-precision milling and machining tasks.

Durable Construction

Constructed with high-quality materials, ensuring durability and long-lasting performance in demanding environments.

Precision Engineering

Engineered with precision to ensure accurate and reliable milling operations.

Low Noise and Vibration

Designed for low noise and vibration, providing a quiet and stable working environment.

spindle 1.0 description pic

Product Applications

CNC Milling Machines

Ideal for CNC milling machines, providing powerful and precise spindle performance for various milling tasks.

Automated Manufacturing

Suitable for automated manufacturing processes that require reliable and efficient spindle motors.

Robotics

Can be integrated into robotic systems for precision milling and machining operations.

Woodworking

Perfect for high-speed woodworking applications, ensuring smooth and accurate cuts.

Metalworking

Applicable in metalworking industries, providing the power and precision needed for cutting and shaping metal parts.

Composite Material Processing

Used in the processing of composite materials, offering reliable performance for cutting and shaping composite parts.

Tool and Die Making

Ideal for tool and die making applications, ensuring precise and accurate machining of tools and dies.

9-10KW 220-380V ATC Milling Spindle Motor

Videos

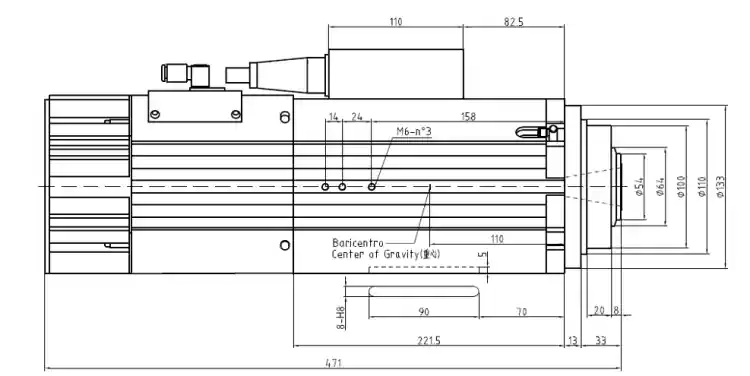

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Spindle-Motor-Catalog.pdf12.1MBDownload
