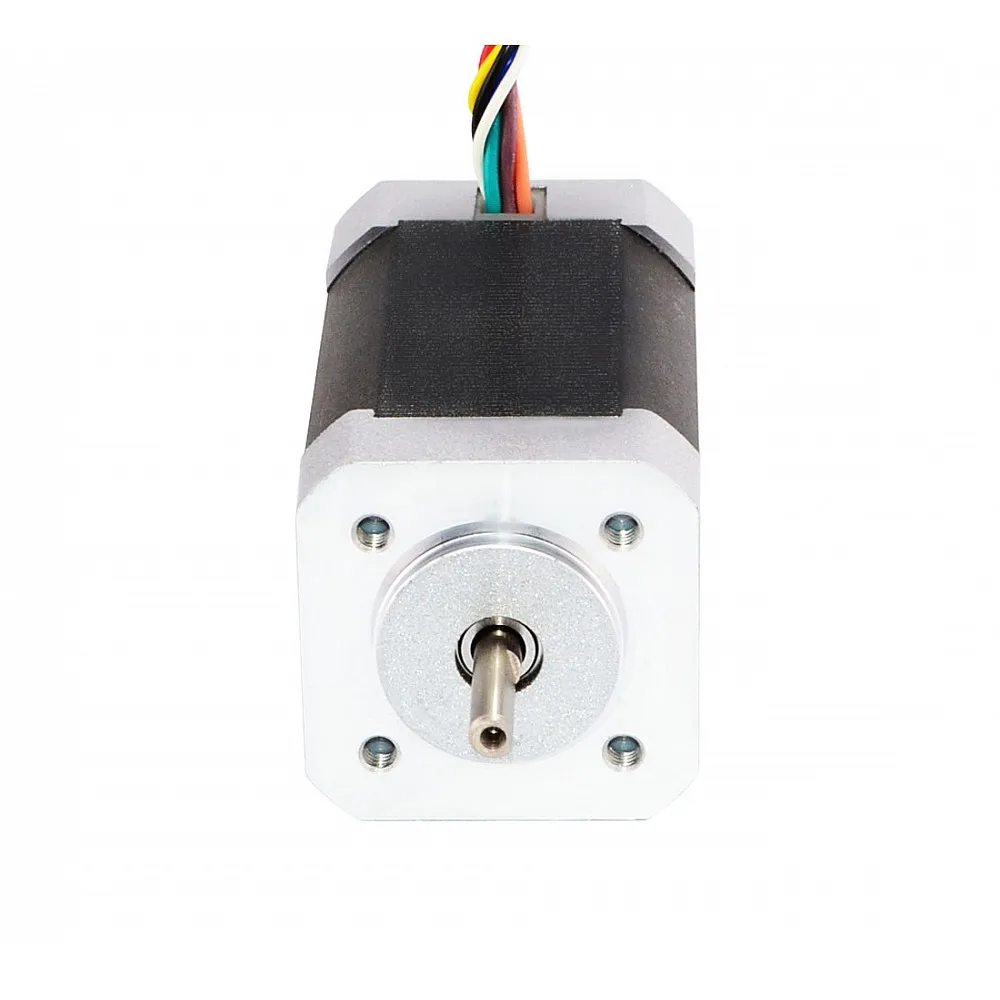

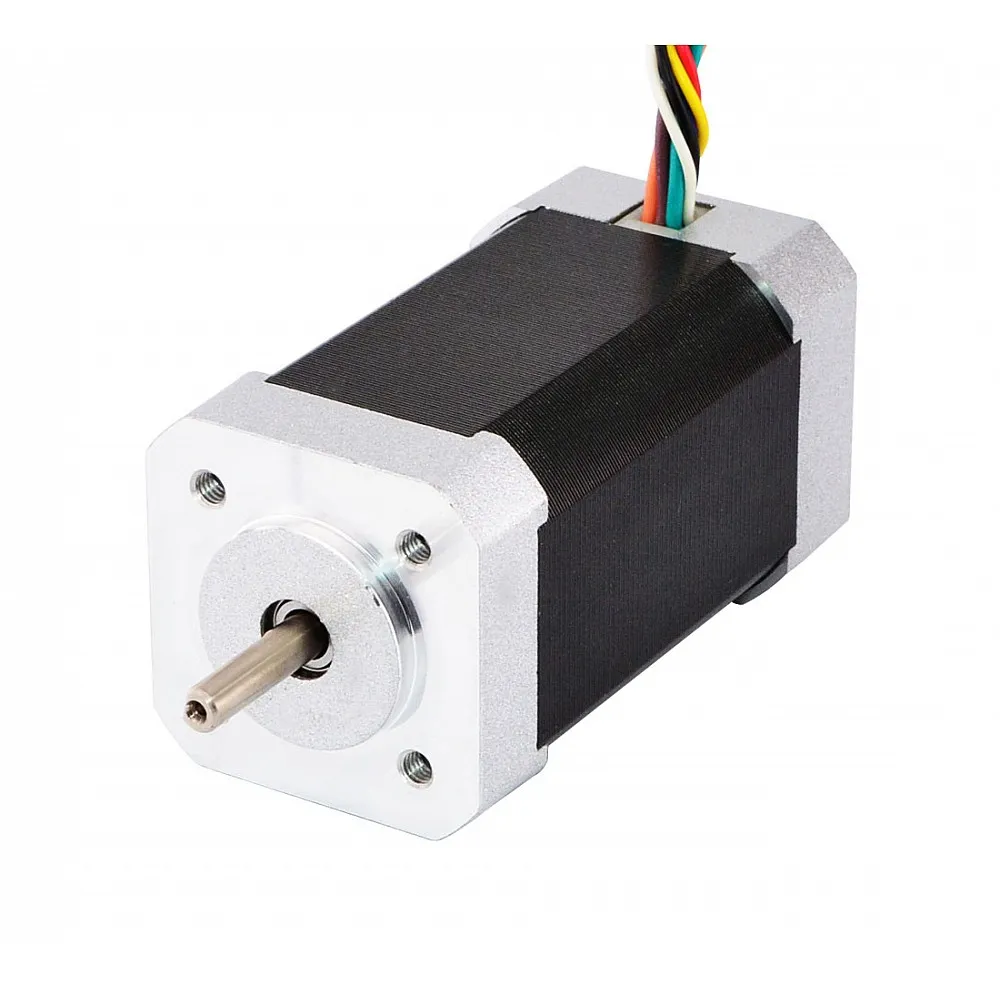

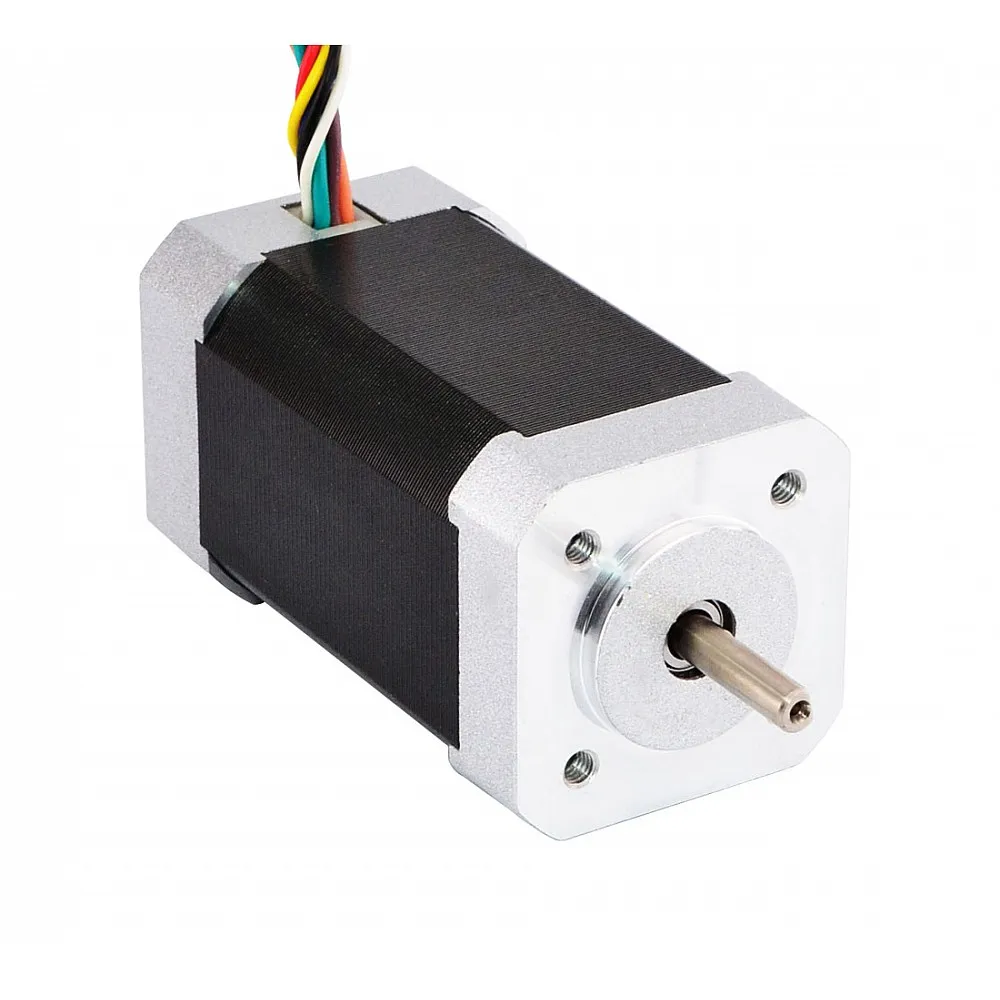

77.5W 24V 4000RPM 0.185Nm Brushless DC Motor


Model TypeDC Brushless motor

Output Power (W)77.5

Voltage (V)24

Rated Speed (rpm)4000



Electrical Specification

Manufacturer Part Number 42BLS80-24-01
Phase 3
Poles 4
Product Type BLDC Motor
Rated Current(A) 4.8
Rated Power(W) 77.5
Rated Speed(rpm) 4000
Rated Torque(Nm) 0.185
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 79.2
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Shaft Type D-cut
D-cut Length 15mm

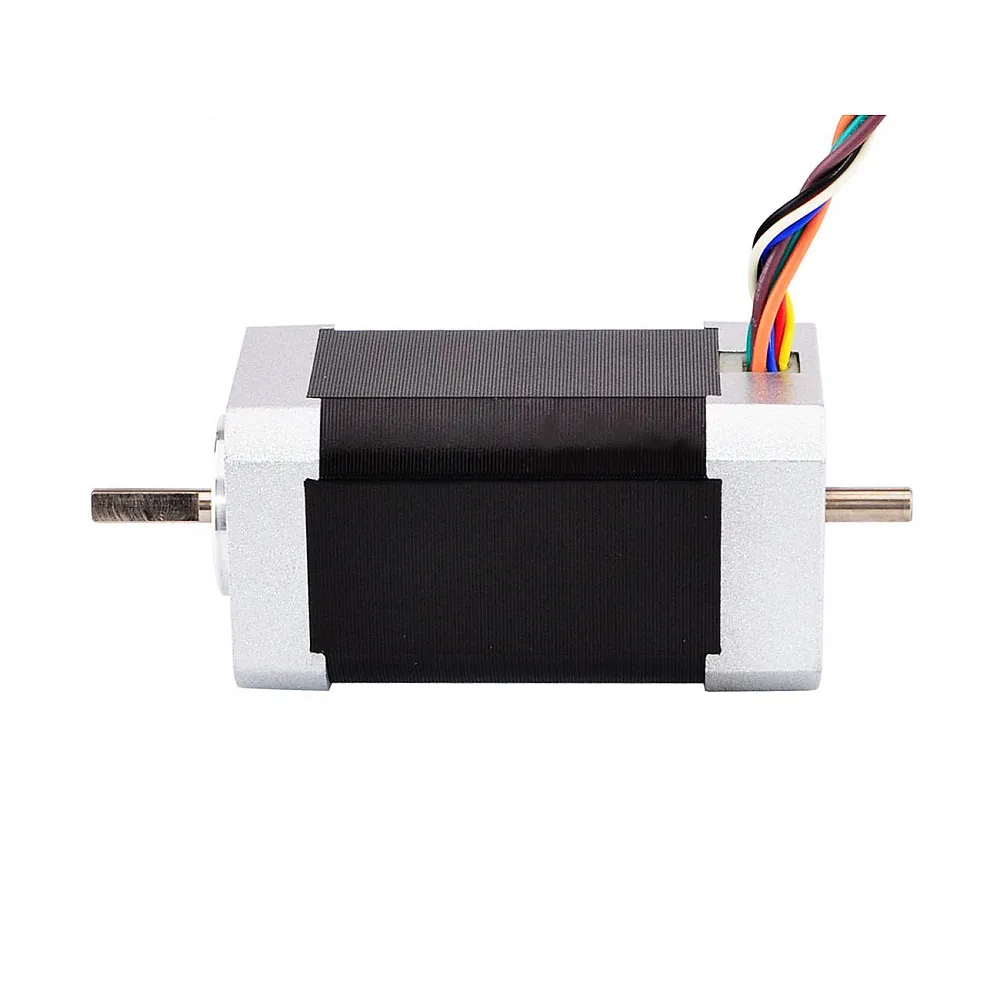

Rear Shaft Length 13.5mm
Rear Shaft Diameter Φ5mm
Number of Leads 8
Lead Length 300mm
Bearing Type NMB Ball Bearing, C3
Sensor Hall Sensor
Weight 0.65kg
