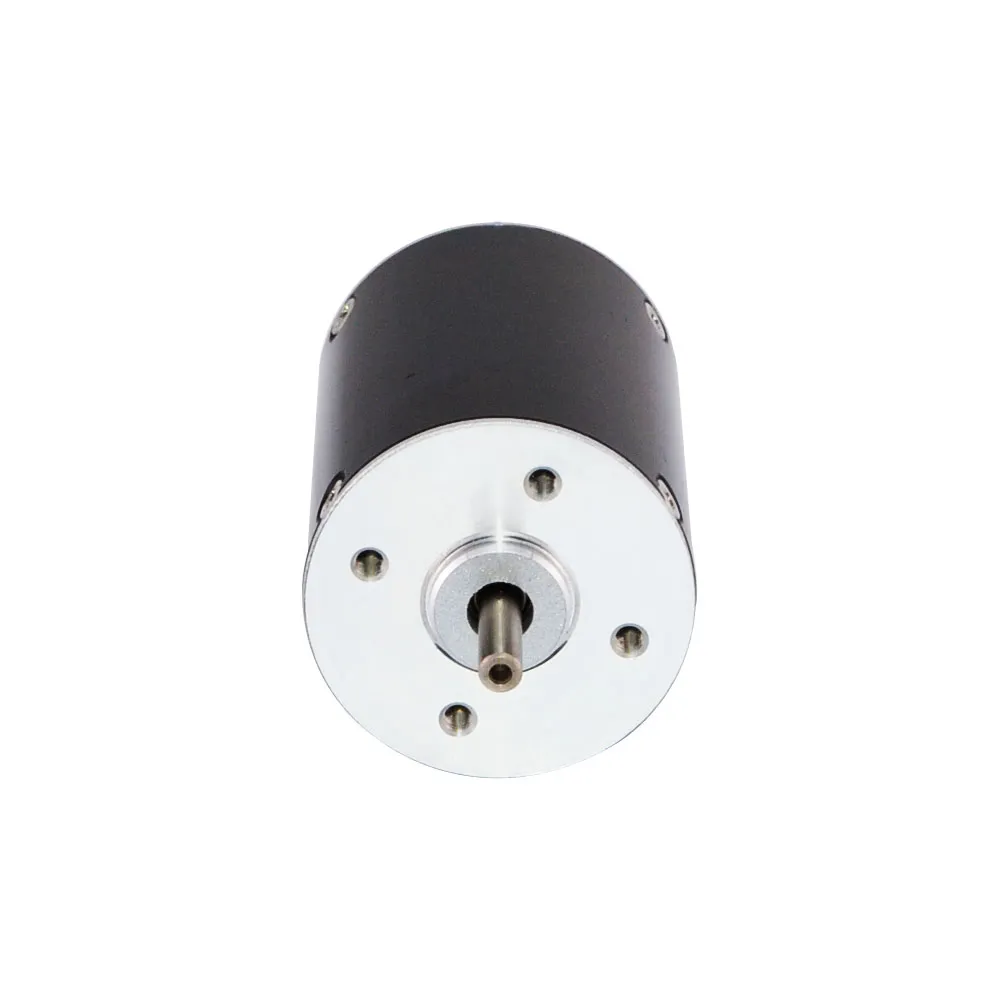

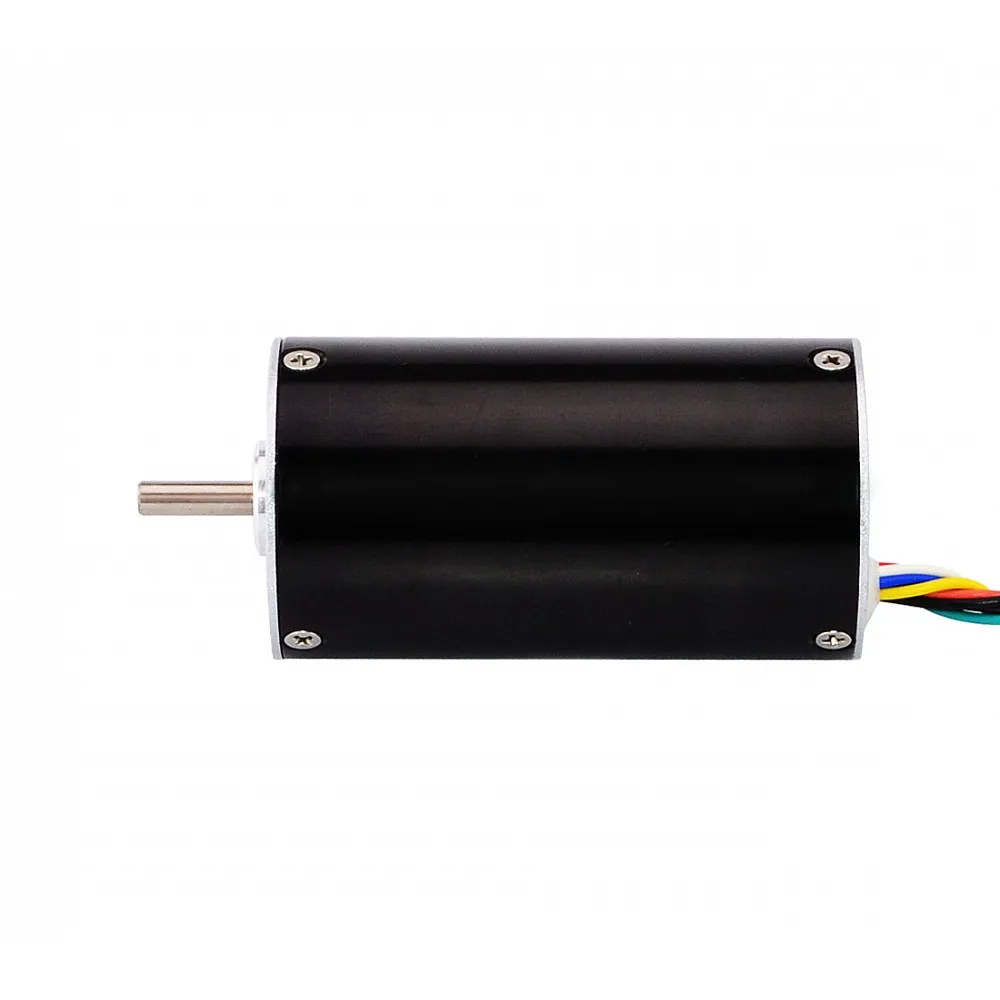

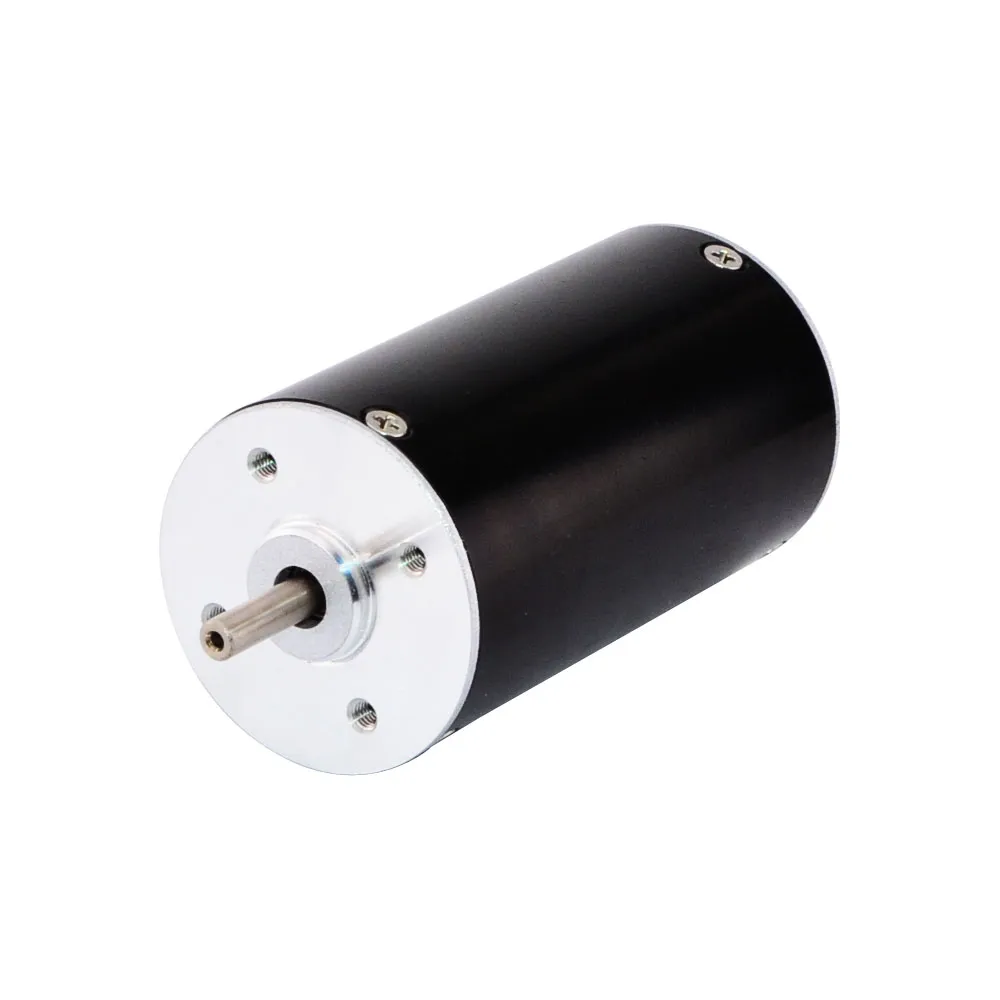

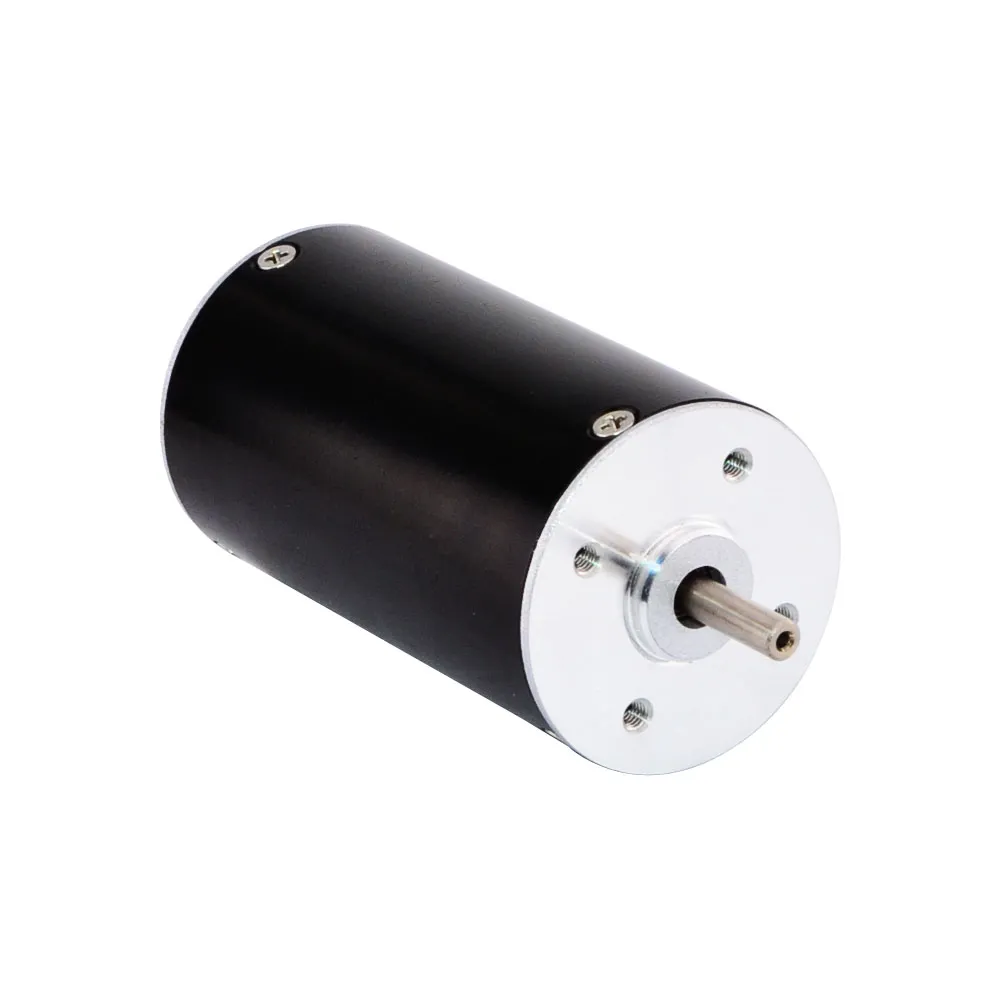

75W 24V 4000RPM 0.179Nm Brushless DC Motor

$32.69

75W 24V 4000RPM 0.179Nm Brushless DC Motor, a powerful and efficient solution for various applications. With its high power output and precise control, this motor enhances tasks that require reliable performance and precise speed control.

Model Type

Output Power (W)()75

Voltage (V)()24

Rated Speed (rpm)()4000

SPECIFICATIONS

Electrical Specification

Attribute Value
Manufacturer Part Number 42BLR83-24-01
Phase 3
Poles 4
Product Type BLDC Motor
Rated Current(A) 5
Rated Power(W) 75
Rated Speed(rpm) 4000
Rated Torque(Nm) 0.179
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Φ42
Body Length(mm) 83
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Bearing Type NMB Ball Bearing, C3
Sensor Hall Sensor
Weight 0.6kg

Videos

DIMENSIONS
