Home / 750W 80mm/90mm 2000rpm B2 Servo Motor And Servo Driver

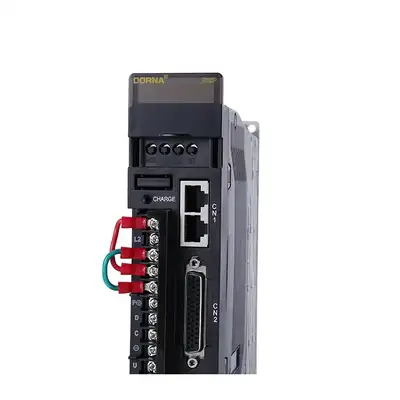

750W 80mm/90mm 2000rpm B2 Servo Motor And Servo Driver

$300-$345

This servo motor and driver set offers 750W of power and 2000rpm of speed, with an 80mm/90mm diameter for optimal performance. It is an efficient and reliable system designed for a wide variety of industries and applications.

Get a QuoteLeave a Message

Model TypeAC Synchronous Servo Motor

Output Power (W)750

Voltage (V)220

Rated Speed (r/min)2000

Product Display

750W 80mm/90mm B2 Servo Motor And Servo Driver 750W 80mm/90mm B2 Servo Motor And Servo Driver

servo motor drive kit details

750W 80mm/90mm B2 Servo Motor And Servo Driver

servo motor drive kit specifications

750W 80mm/90mm B2 Servo Motor And Servo Driver

Product Feature

High power output

Provides 750W of power for demanding applications.

Precision control

Offers precise control with a 2000RPM speed.

Compact design

80/90mm form factor for easy integration into various systems.

Efficient operation

Designed for 80-90% energy efficiency, reducing power consumption.

Robust construction

Built to withstand industrial environments for reliable performance.

750W 80mm/90mm 2000rpm B2 Servo Motor And Servo Driver 750W 80mm/90mm 2000rpm B2 Servo Motor And Servo Driver

Product Applications

Robotics

Powering robotic arms and joints with high precision and torque.

Automation

Controlling conveyor belts, CNC machines, and other automated systems.

Industrial Machinery

Driving pumps, compressors, and other heavy machinery.

Packaging

Ensuring accurate movement and positioning in packaging equipment.

750W 80mm/90mm B2 Servo Motor And Servo Driver

Videos

SPECIFICATIONS

Voltage (V) Power Driver Model Flange(mm) Motor Model Servo Motor
Rated speed (r/min) Torque(N.M)
220 100W EPS-B2-0D10AA-A000 40 40DNMA2-0D10DKAM 3000 0.32
200W EPS-B2-0D20AA-A000 60 60DNMA2-0D20DKAK 3000 0.64
400W EPS-B2-0D40AA-A000 60 60DNMA2-0D40DKAK 3000 1.27
750W EPS-B2-0D75AA-A000 80 80DNMA2-0D75DKAK 3000 2.39
80 80DNMA2-0D75CKAK 2000 3.58
90 90DNMA1-0D75DKAM 3000 2.39
90 90DNMA1-0D75CKAM 2000 3.58
1KW EPS-B2-0001AA-A000 80 80DNMA2-0001DKAK 3000 3.18
130 130DNMA2-0001CKAM 2000 4.77
1.5KW EPS-B2-01D5AA-A000 130 130DNMA2-01D5AKAM 1000 14.33
130 130DNMA2-01D5 BKAM 1500 9.55
EPS-B2-01D5AA-A000-G 130 130DNMA2-01D5CKAM 2000 7.16
130 130DNMA2-01D5DKAM 3000 4.77
2KW EPS-B2-02D2AA-A000-G 130 130DNMA1-02D2BKAM 1500 12.73
EPS-B2-02D2AA-A000 130 130DNMA1-02D2CKAM 2000 9.55
3KW EPS-B2-0003AA-A000 130 130DNMA2-0003CKAM 2000 14.33
130 130DNMA2-0003DKAM 3000 9.55

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
AC-Motor-Catalog.pdf23.4MBDownload
