750W 24V/36V/48V 3000 RPM BLDC Planetary Gear Motor
$735.61
This motor offers optional power supply options of 24V, 36V, or 48V, a gear ratio ranging from 4:1 to 250:1, a rated speed of 3000 rpm, a rated torque of 2.39 Nm, and an 86 mm motor dimension. It is designed for applications such as electric cars and industrial equipment.
SPECIFICATIONS
| Motor Model | D5BLD750-24A-30S | D5BLD750-36A-30S | D5BLD750-48A-30S |
| Voltage | 24V DC | 36V DC | 48V DC |
| Rated Current | 39.06A | 26.04A | 19.53A |
| No Load Current | ＜9.2A | ＜8.13A | ＜6.5A |
| Recommended drive model | BLD-750 | BLD-750 | BLD-750 |
| Motor Type | BLDC Motor | ||
| Power | 750W | ||
| Rated Speed | 3000 rpm | ||
| No Load Speed | 3300 rpm | ||
| Rated Torque | 2.39 N·m | ||
| Peak Torque | 7.16 N·m | ||
| Motor Dimension | 86 mm | ||
| Construction | Permanent Magnet | ||
| Direction of Rotation | CW/CCW | ||
| Certificate | CCC, CE, ROSH, LVD, EMC | ||
| Gear Ratio | 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250 | ||
Note
- If you would like CAD drawings of the motor and planetary gearbox, please contact us.
- Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Speed-Torque Curve
- Instantaneous maximum torque lineThe maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation areaThe motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque lineThe rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating areaWhen the motor rotates at different speeds, it runs continuously in this corresponding zone.

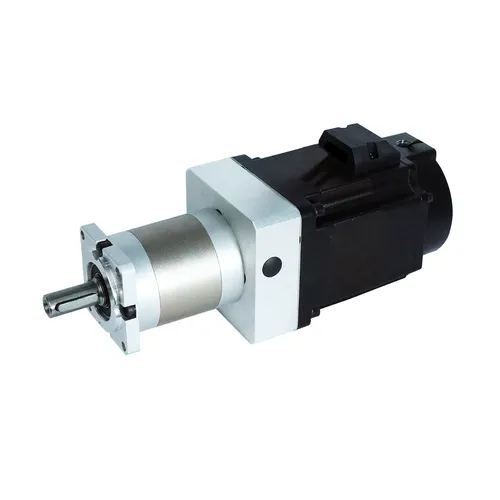

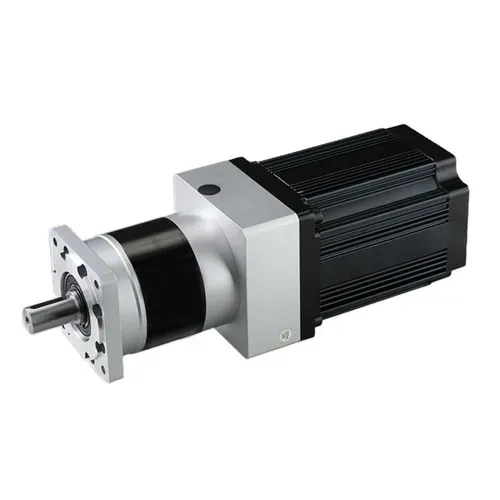

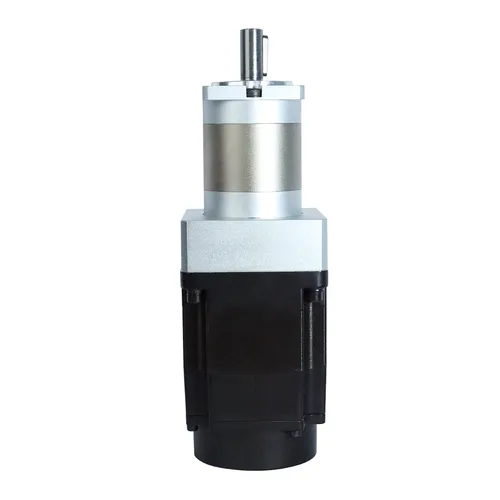

Product Display
The BLDC planetary gear motor is a high-demand product, featuring a power rating of 750 watts. It is available for purchase online with optional power supply options of 24V, 36V, or 48V. The motor is equipped with a planetary gearbox offering a gear ratio ranging from 4:1 to 250:1, enabling precise speed control. With a rated speed of 3000 rpm and a rated torque of 2.39 Nm, this motor delivers reliable performance. The motor's compact 86 mm dimension allows for easy integration into various systems. It is an ideal choice for electric cars and industrial equipment.
Product Feature
- Available power supply options: 24V, 36V, and 48V DC.
- Planetary gearbox with a speed ratio of up to 250:1.
- Brushless DC motor with low power consumption, high efficiency, and extended battery life.
- Provides high torque at low speeds, ensuring efficient operation.
- Easy speed adjustment and reversible direction for enhanced control.
- Customizable power, voltage, speed, shaft, motor length, and lead options for versatility.
Product Applications
The BLDC planetary gear motor finds applications in various fields, including:
- Electric cars, providing efficient and reliable propulsion.
- Industrial equipment, enabling precise and controlled motion.
- Automation systems, offering reliable and customizable power transmission.
Note: Customization options are available for power, voltage, speed, shaft, motor length, and lead. Ensure proper installation, adhere to safety guidelines, and consider the specific requirements of your application to maximize the performance and efficiency of the motor.
Tips: What is a planetary gear motor?
A planetary gear motor is a kind of geared device with a wide range of uses. It consists of a 3 phase brushless DC motor and a planetary gearbox. Its accuracy is very high. 100W~2000W planetary gear motors are available on brushless.com. They are mainly used to reduce the speed, increase the torque, and reduce the load or inertia ratio of the motor on the premise of ensuring accurate transmission.
