72V 5kW Air Cooling BLDC Motor For Electric Vehicle

Home > 72V 5kW Air Cooling BLDC Motor For Electric Vehicle

72V 5kW Air Cooling BLDC Motor For Electric Vehicle

$1,375.68

With a power output of 5kW and a rated speed of 3000-5000 rpm, this motor is highly versatile. It offers optional rated voltages of 24V/36V/48V, making it suitable for a wide range of applications, including electric vehicles, motorcycles, golf carts, ATVs, UTVs, and yachts.

Motor TypeDC Motor

Power(W)5000

Voltage (V)72

Rated Speed (rpm)3700

72V 5kW Air Cooling BLDC Motor For Electric Vehicle
Model: BLDC-HPM5000A
Voltage: 24V/36V/48V/72V
Rated Power: 5 kW
Peak Power: 10 kW
Rated Current: 125A/85A/60A
Max Phase Current: 300A/260A/200A
Protection Class: IP54
Rotational Speed: 3700 rpm
Rated Torque: 13Nm
Peak Torque: 45Nm
Efficiency: >90%
Diameter: 21cm
Height: 18cm
Weight: 11kg
Cooling Method: Air-cooled

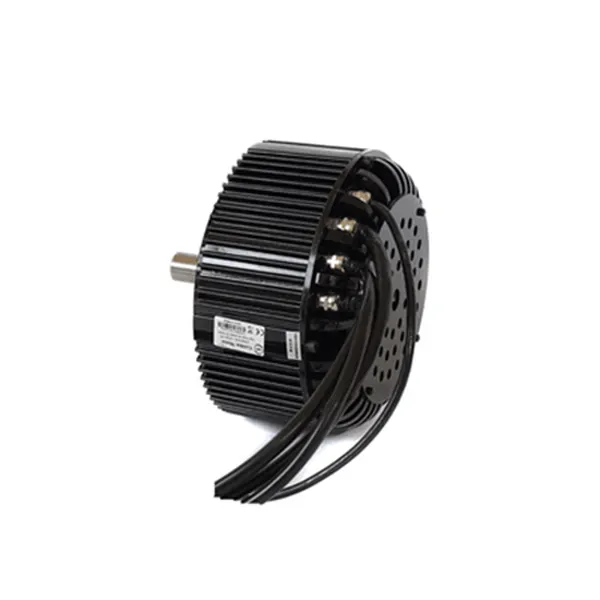

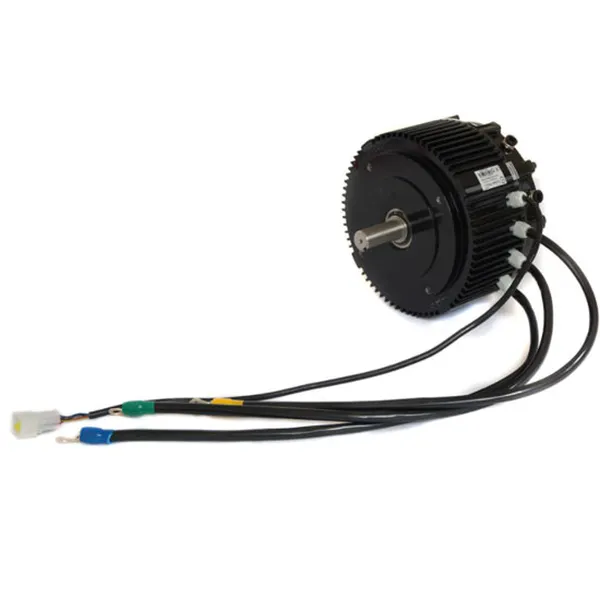

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Opt for the 72V 5000W DC brushless motor specifically designed for electric vehicles. With a rated speed range of 3000-5000 rpm, this air-cooled motor offers efficient cooling without the need for additional equipment. It is an ideal choice for building electric motorcycles, providing ample airflow and ensuring optimal performance. Its easy installation and cooling capabilities make it the best option for creating electric motorcycles with reliable cooling air circulation.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Features

  • 5kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
  • Air-cooled brushless motors are easy to build and require no additional equipment.
  • If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Application

72V 5kW Air Cooling BLDC Motor For Electric Vehicle

Tips: Can brushless DC motors be used in electric vehicles?

Brushless DC (BLDC) motors are popular motors in the industrial and automotive fields. In the automotive field, these motors are often used in electric vehicles (EVs) due to their high efficiency.
