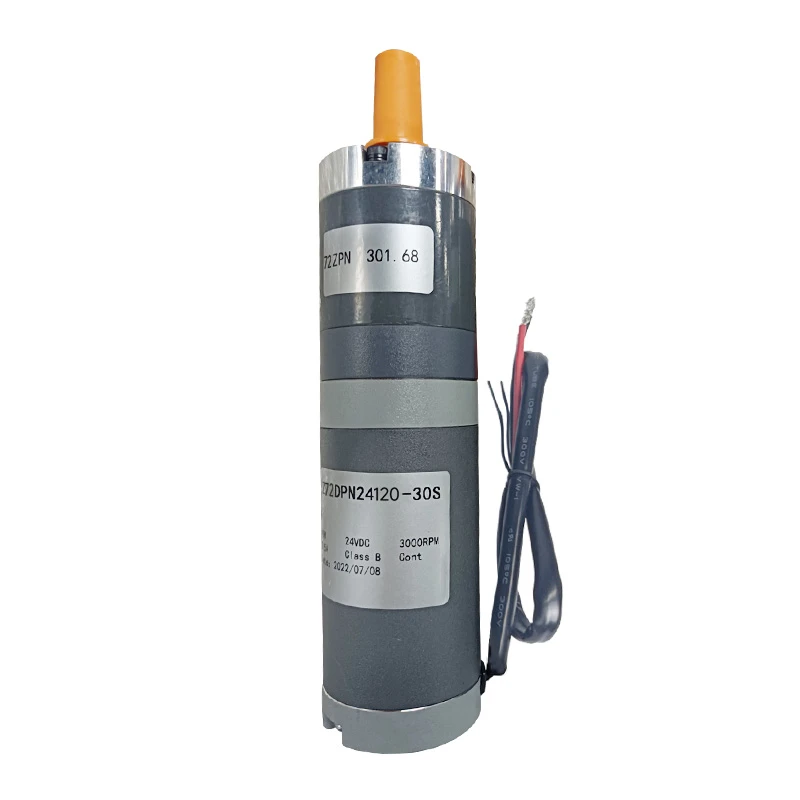

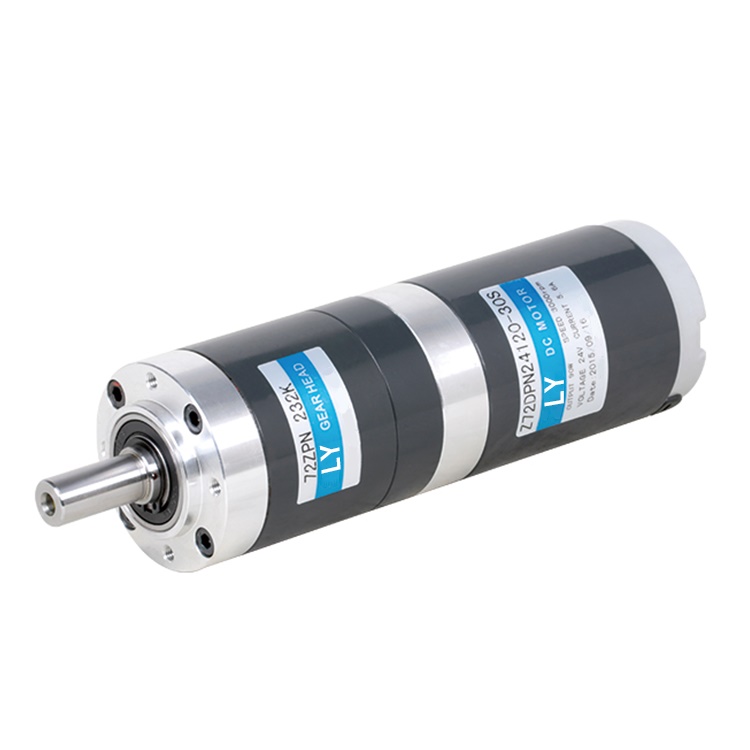

72mm 90/120W Diameter Planetary Brush Geared Motor

Home > 72mm 90/120W Diameter Planetary Brush Geared Motor

72mm 90/120W Diameter Planetary Brush Geared Motor

$96.00

This 72mm planetary brush geared motor has a 90/120W diameter, providing reliable torque for a variety of applications. Pair it with a controller or use it with a gear reducer for a long-lasting motor solution.

Motor TypeBrush Planetary Gear Motor

Output Power (W)90/120

Voltage (V)12/24

Speed with Load (rpm)3000

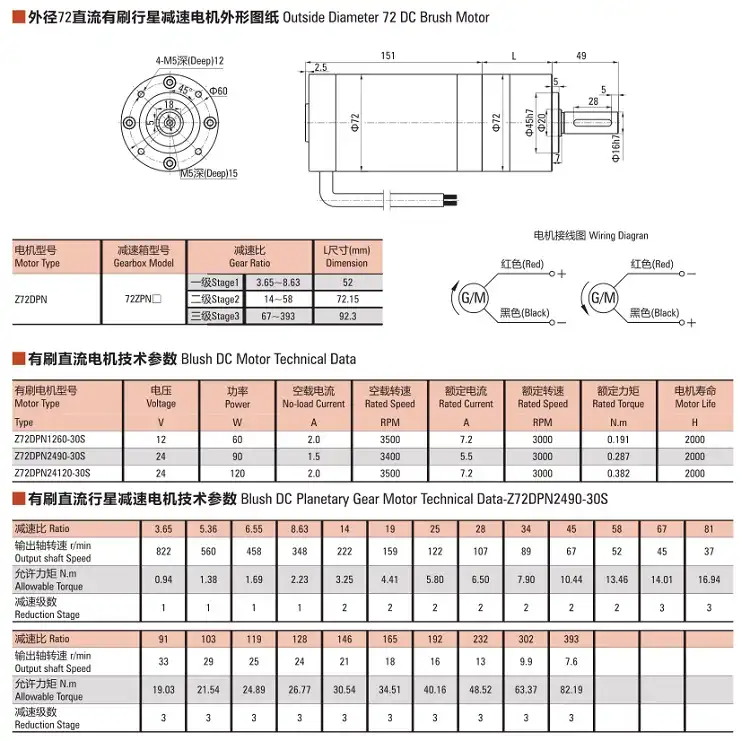

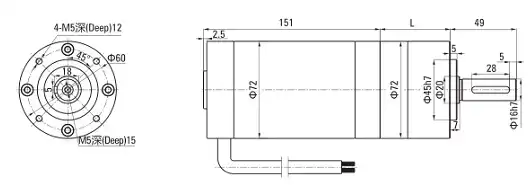

Model Voltage Power No-Load Current No-Load Speed Rated Current Rated Speed Rated Torque
Z72DPN2490-30S 24V 90W 1.5 3400rpm 5.5A 3000rpm 0.287N.m
Z72DPN24120-30S 24V 120W 2 3500rpm 7.2A 3000rpm 0.382N.m
Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.94 1.38 1.69 2.23 3.25 4.41 5.8 6.5
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 7.9 10.44 13.46 14.01 16.94 19.03 21.54 24.89
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 232 302 393 -
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 -
Allowable Torque(N.m) 26.77 30.54 34.51 40.16 48.52 63.37 82.19 -
Reduction Stage 3 3 3 3 3 3 3 -

Overview

1. Double support structure: Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot

2. Spindle connection: Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life

3. Inner hole: Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead

4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible

72mm 90/120W Diameter Planetary Brush Geared Motor 72mm 90/120W Diameter Planetary Brush Geared Motor
  1. This planetary gear motor is of low noise, small size, light weight
  2. Large output, high efficiency.
  3. Hard mechanical feature and stable electromagnetic performance.
