SPECIFICATIONS
| Model: | BLDC-HPM-20KW |
| Voltage: | 72V/96V |
| Rated Power: | 20kW |
| Peak Power: | 50 kW |
| Rated Current: | 325A/245A/196A |
| Max Phase Current: | 1000A/700A/500A |
| Protection Class: | IP54 |
| Rotational Speed: | 3200 rpm |
| Rated Torque: | 80Nm |
| Peak Torque: | 160Nm |
| Efficiency: | >90% |
| Size: | 30x30x25mm |
| Weight: | 45kg |
| Cooling Method: | Water-cooled |

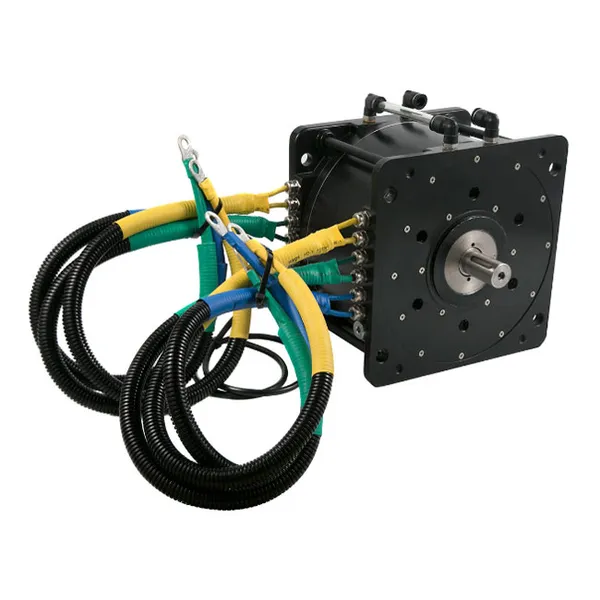

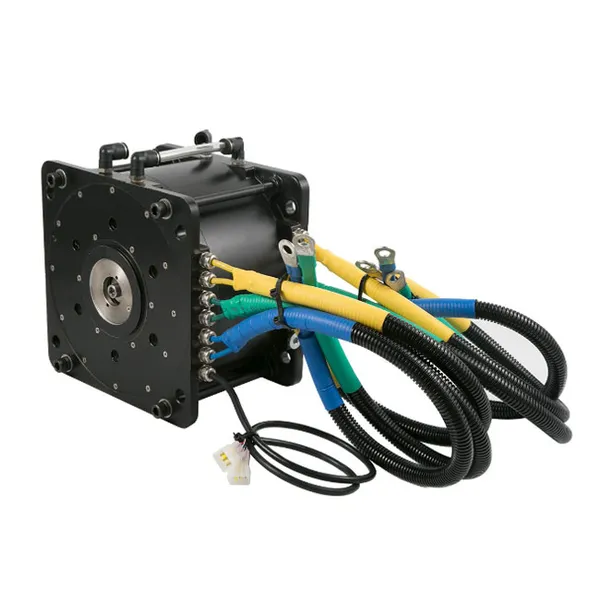

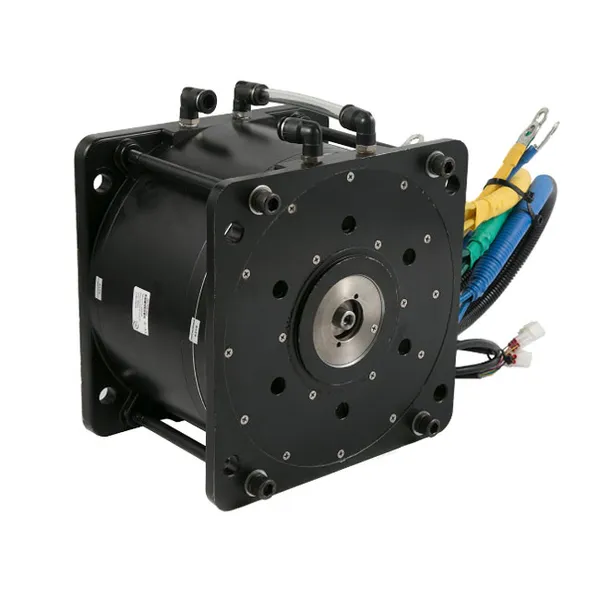

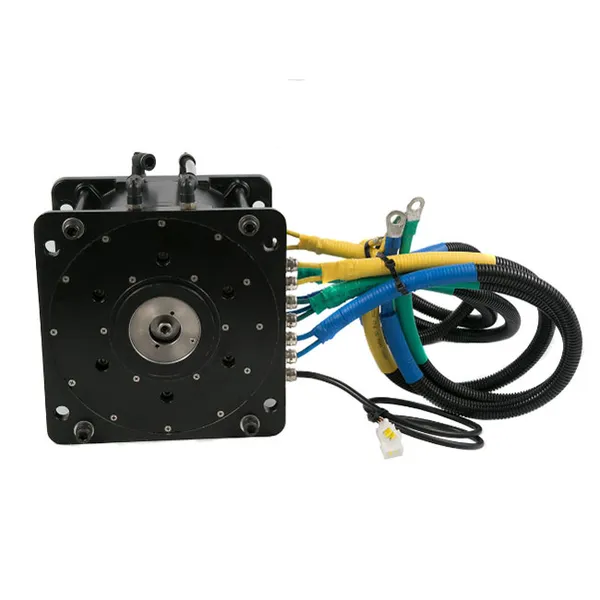

Product Display
Looking for an affordable 20kW brushless DC motor for your electric vehicle? Look no further! Our online store offers a high-quality motor designed specifically for electric vehicles and automobiles. This motor operates at 72V or 96V and delivers a rated torque of 80N.m with a rated speed range of 3000-5000 RPM.
One of the standout features of this motor is its easy-to-use air cooling system. It requires no additional equipment, making it a convenient choice for installation. The air cooling system effectively dissipates heat, ensuring optimal performance and reliability.
When paired with a brushless controller, this 20kW brushless DC motor provides a lightweight solution while delivering impressive torque. With a torque rating of 80 N.m and a peak torque of 160 Nm, it offers the power and performance required for various electric vehicle applications.
Product Feature
Potent Performance
With an impressive output of 20kW, this BLDC motor ensures your electric vehicle gets the power it needs to perform optimally.
Efficient Cooling
The water cooling mechanism is designed to handle the rigors of operation in electric vehicles, boosting performance by maintaining motor temperature within the optimal range.
Fits Variable Voltage
Operate efficiently at various voltages ranging from 72V to 96V. This provides flexibility for people using batteries of differing voltage outputs.
Durable and Reliable
Exceptional build quality ensures that the motor can withstand demanding conditions while maintaining a long service life.
Product Applications
Electric Bikes
High power ratings and the ability to operate on various voltages make this motor ideal for use in electric bikes.
Electric Trikes
The efficient cooling mechanism ensures optimal operation, making it perfect for use in electric trikes that need to maintain performance during extended use.
Electric Vehicles
With its durable and reliable build, this motor is suitable for all-weather use in a wide variety of electric vehicles.
Utility Vehicles
Unmatched power output makes it a great choice for utility vehicles involved in demanding tasks.
Related Products
Videos

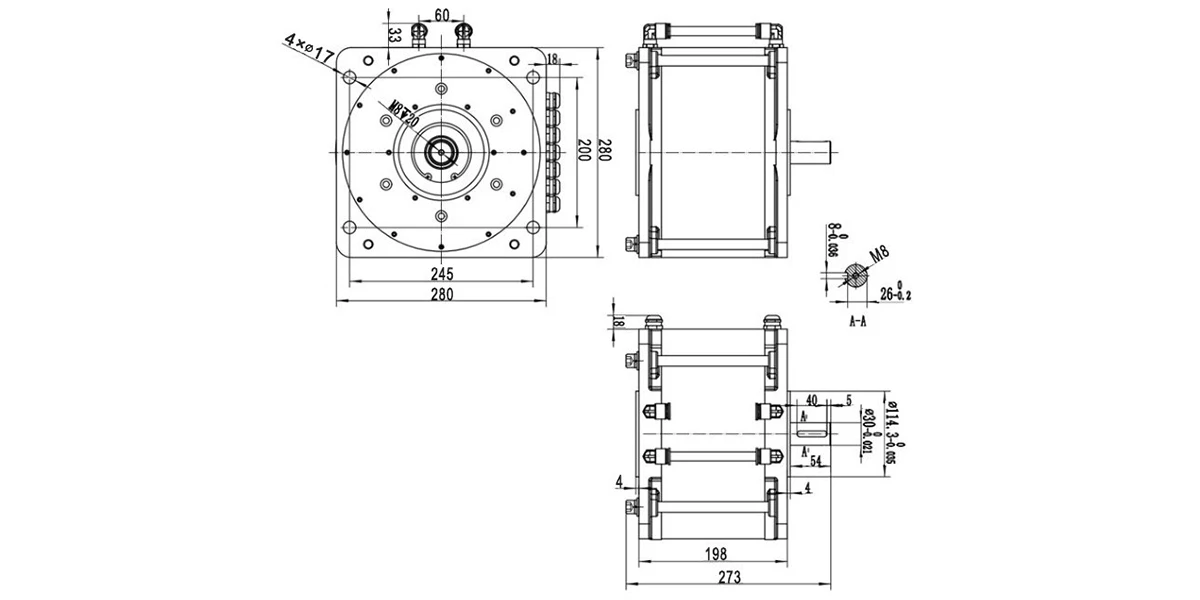

DIMENSIONS
