72/48/36/24/12V 10000N 50-800mm 5-160mm/s linear actuator

$79-$365

This linear actuator delivers maximum performance with its powerful 10000N force and wide, adjustable speed range of 5-160mm/s. You can choose from five voltage settings—72/48/36/24/12V—for reliable control. Enjoy smooth, versatile operation for any project.

Voltage(V)72V / 48V / 36V / 24V / 12V DC

Load Capacity()10000N

Max Speed()5mm/s(7000N) ,  160mm/s(750N)

SPECIFICATIONS

Input Voltage 72V / 48V / 36V / 24V / 12V DC
Load Capacity 10000N
Max Speed 5mm/s(7000N), 160mm/s(750N)
Stroke Customize
Type of Duty 10%,2min.on / 18min.off
Limit switches Inner
Operation Temperature -20℃~65℃ Customize
Protection Class IP65

If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!

Product Display

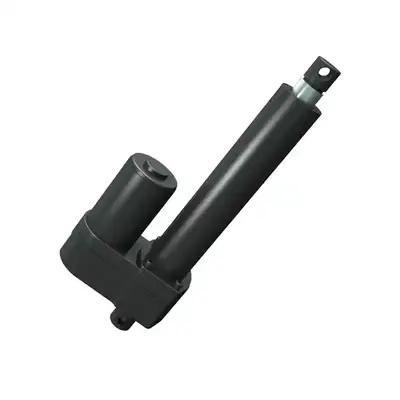

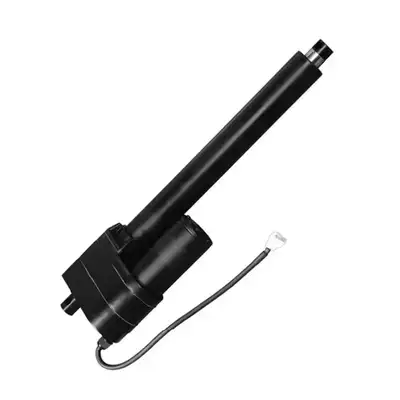

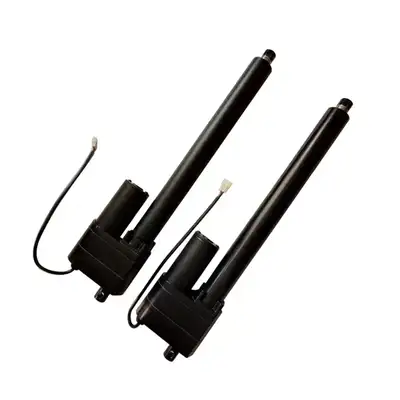

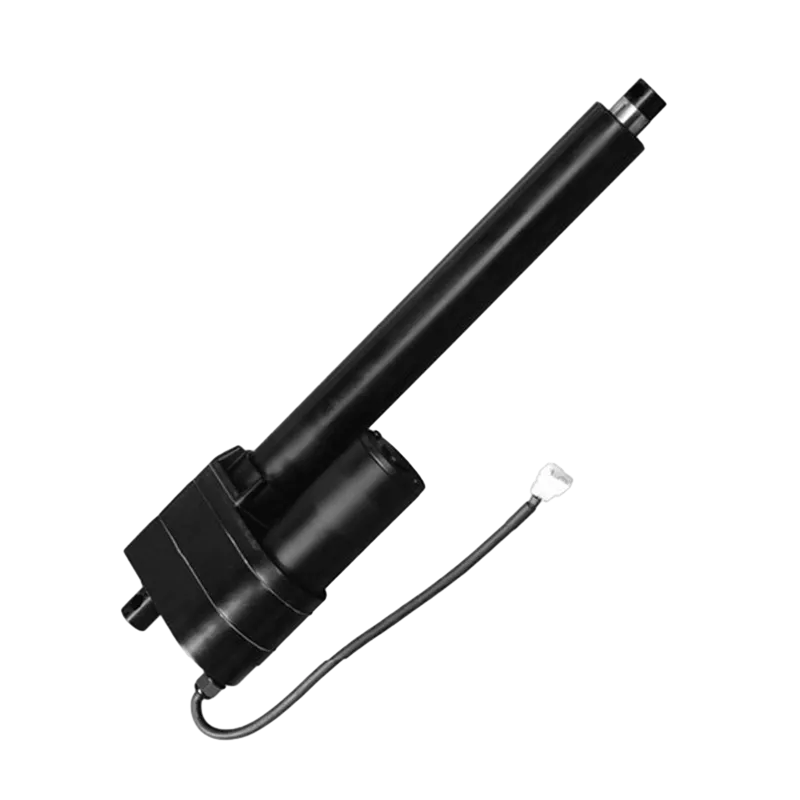

LY015 high-thrust industrial DC linear actuator is an extremely important product in the industrial industry. The product adopts DC permanent magnet motor, which has a small structure, strong and durable, and is especially suitable for occasions with harsh environment and relatively large output load requirements. Outstanding superior product performance makes this product very versatile in special vehicles, new energy, and environmental protection industries. The super protection ability can also be easily dealt with in the application of the shipbuilding industry.

72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator 72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator

Product Feature

High Lifting Capacity

The 72/48/36/24/12V Linear Actuator boasts a powerful lifting capacity of up to 10000N, making it suitable for heavy-duty applications requiring substantial force.

Adjustable Stroke Length

This actuator offers an adjustable stroke length ranging from 50mm to 800mm, providing flexibility to meet various application needs.

Variable Speed Options

With speed options ranging from 5mm/s to 160mm/s, this actuator allows for precise control over movement speed, ensuring optimal performance for different tasks.

Wide Voltage Range

Compatible with multiple voltage options (72V, 48V, 36V, 24V, 12V), this actuator offers versatility and can be integrated into various power systems and environments.

72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator

Product Applications

Industrial Automation

Ideal for industrial automation, this powerful actuator can be used in machinery and equipment that require precise and robust linear motion control.

Medical Equipment

Suitable for medical applications such as hospital beds, patient lifts, and examination tables, this actuator provides reliable and smooth operation, enhancing patient comfort and safety.

Solar Tracking Systems

Perfect for solar tracking systems, this actuator can efficiently adjust the position of solar panels to maximize energy capture throughout the day.

Home Automation

Great for home automation projects, this actuator can be used in adjustable furniture, automated windows, and other smart home devices, adding convenience and modern functionality.

72V / 48V / 36V / 24V / 12V 10000N 50-800mm 5-160mm/s linear actuator
