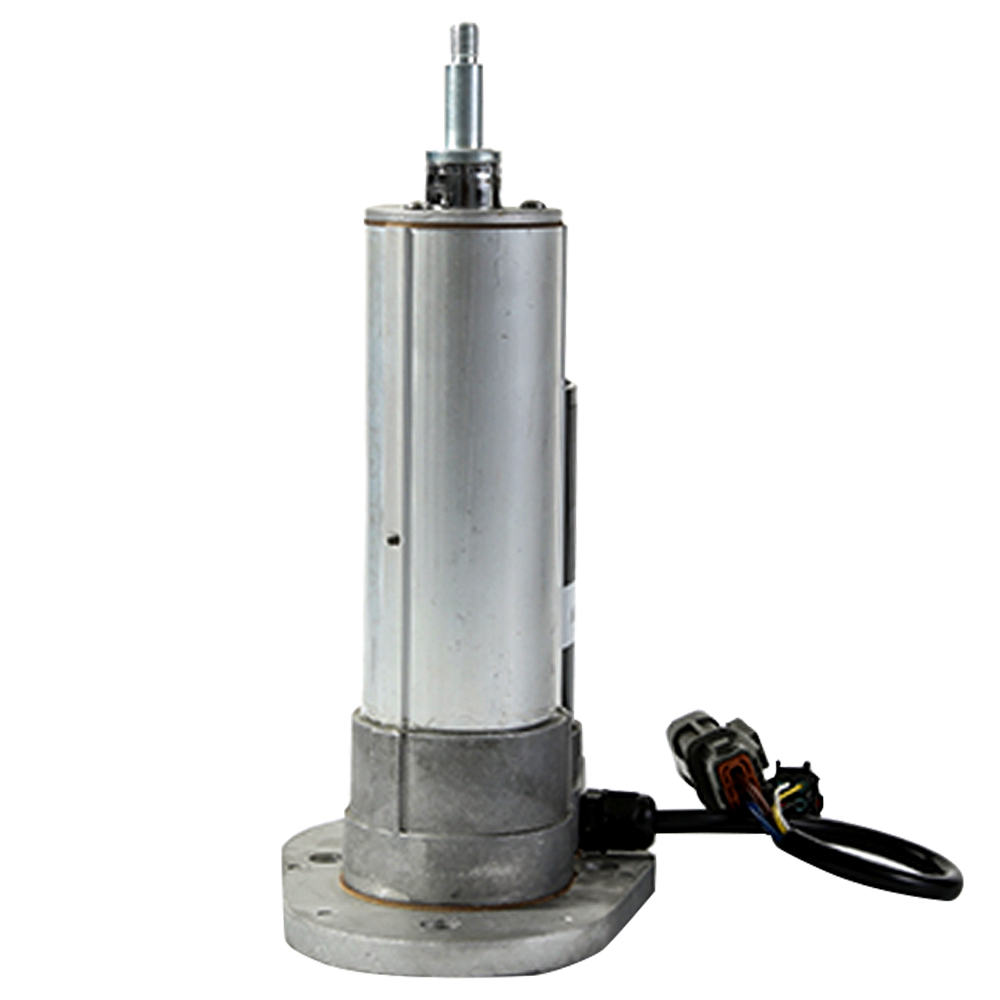

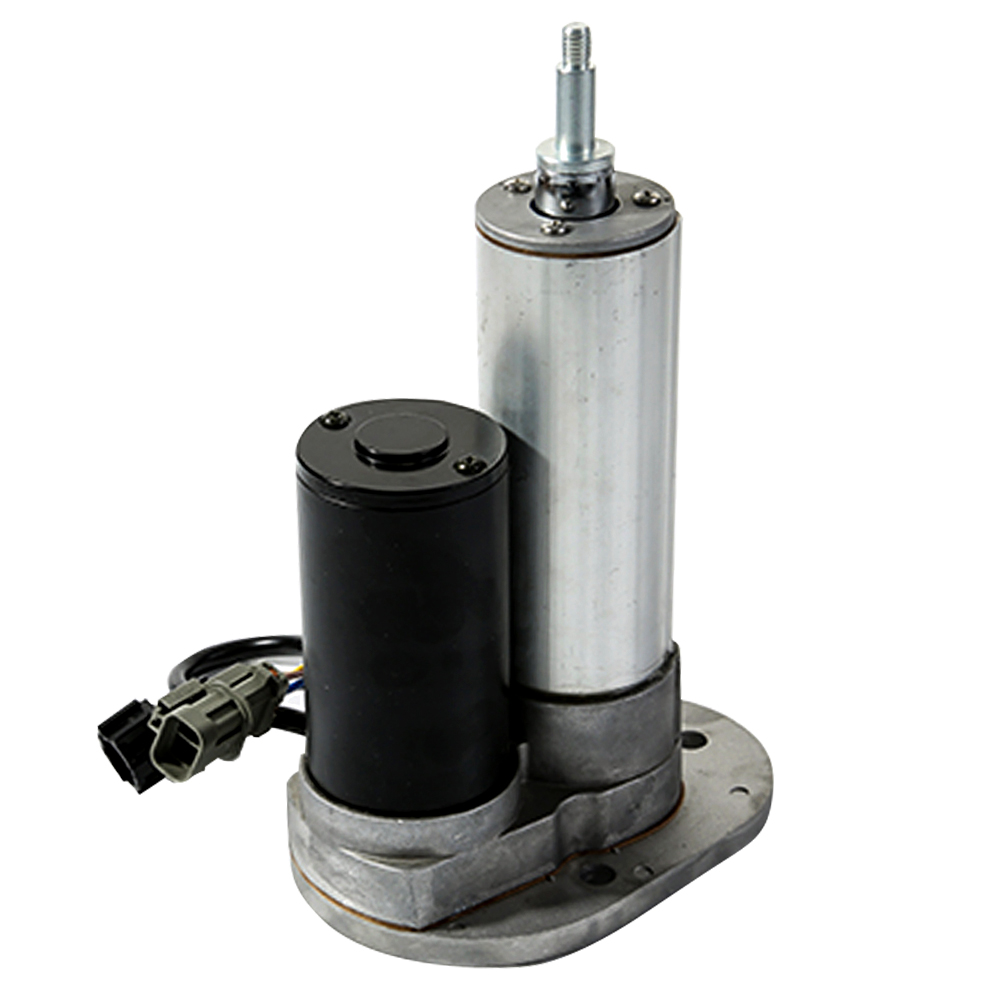

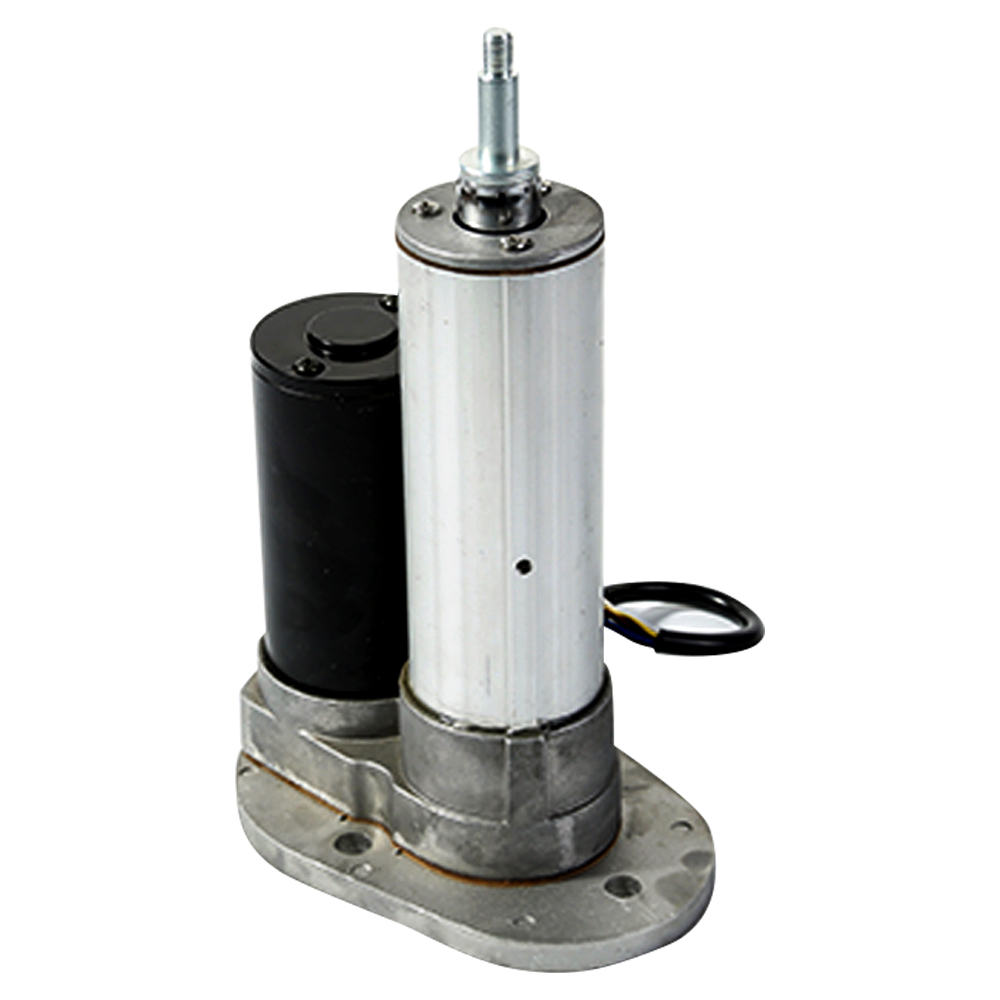

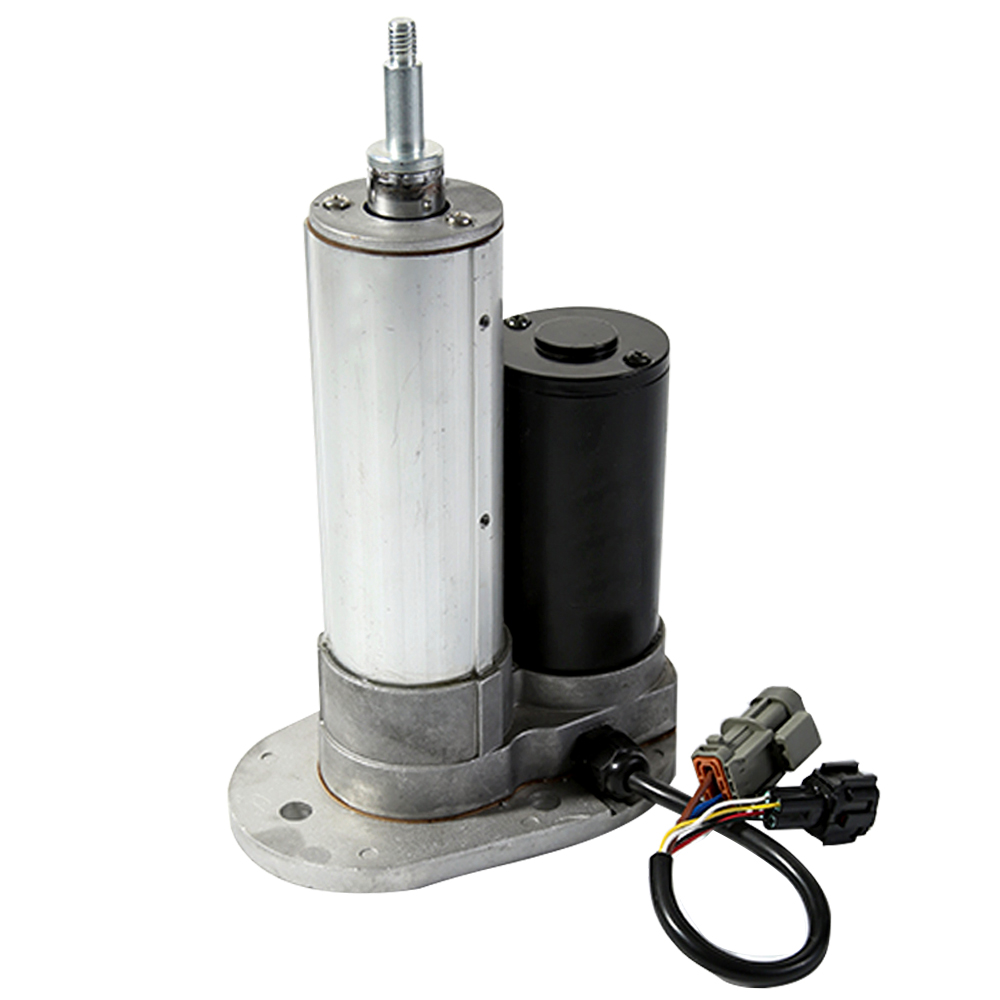

72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator

Home > 72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator

72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator

$89-$247

This linear actuator is an ideal choice for a wide range of applications, offering a DC voltage range of 72-12V, a maximum thrust of 8000N and a stroke length of 50-800MM. Its speed range of 7.5-20mm/s enables fast, reliable operation.

Voltage (V)72/48/36/24/12 DC

Load Capacity (N)8000


Input Voltage 72V /48V/36V/24V/ 12V DC
Load Capacity 8000N
Max Speed 7.5mm/s-20mm/s
Stroke Customize
Type Of Duty 10%,2min.on/18min.off
Limit switches Inner
Operation Temperature -15℃~45℃
Protection Class IP67

Overview

LY015C low-noise permanent magnet DC motor driven worm gear and worm drive mechanical lift. It has the characteristics of small size, lighter weight, large torque and large stroke. The range of travel options is large, and with the controller, any height adjustment in the lifting position can be realized, meeting the needs of free adjustment of the lifting height of the product. It is most widely used in the fields of display stand, medical equipment, mechanical equipment and so on.

72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator 72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator 72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator
72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator 72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator 72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator
  • 1. Aluminum alloy material, compact structure design
  • 2. Light weight, adopts DC motor gear reduction
  • 3. Built-in limit switch, can realize automatic stop at the end of the stroke
  • 4. Itinerary can be customized, easy to install and easy to operate
  • 5. Low noise, green and environmental protection
72-12V DC 8000N 50-800MM 7.5-20mm/s Linear Actuator
