Product Display
A Brush DC Motor, which is powered by direct current, allows for precise speed control. The Brush DC Motor provides constant and consistent current by using rings to power a magnetic drive that powers the motor's armature. The Brush DC Motor, perhaps one of the oldest utilized motors, is widely employed due to its ability to change the speed-torque ratio in practically any manner.
Product Feature
High-Power Motor
The 6W Brush DC gear motor traits a powerful output, satisfying needs for demanding DIY projects, robotics, and automated applications.
Versatile Voltage Compatibility
With available voltage options of 12V, 24V, and 90V, the motor offers flexibility for a variety of power systems.
Long-life Durable Construction
This motor promotes a sturdy construction and high-quality components that assure a long operational lifespan.
Efficient and Silent Performance
Featuring silent ball bearings and alloy steel gears, the motor provides high-load operation without compromising on noise levels. The motor's high precision brings about smooth operation and a longer life.
Product Applications
DIY Projects
This motor is an excellent choice for DIY enthusiasts who demand reliable and robust motor performance.
Robotics
Given its stable output and low-noise operation, the motor is well-suited for intricate applications like robotics that require precision and quiet functionality.
Automated Applications
Perfect for applications that demand automation, as it promotes high and consistent torque output.
Customization Scope
The customer can customize motor power, voltage, and speed according to their requirements, making it suitable for a wide range of specialized applications.
Related Products
Videos
SPECIFICATIONS
| Model | Voltage(v) | Out put Power(w) | No-load Parameters | Load Parameters | Brush Life(H) | Motor Weight(Kg) | |||
| Speed(r/min) | Current(A) | Speed(r/min) | Torque(mN.m) | Current(A) | |||||
| Z2D06-12 | 12 | 6 | 3200 | 0.6Max | 2950 | 19 | 0.8 | 2000 | 0.6 |
| Z2DW06-12 | 12 | 6 | 3200 | 0.6Max | 2950 | 19 | 0.8 | 2000 | 0.6 |
| Z2D06-24 | 24 | 6 | 3200 | 0.3Max | 2950 | 19 | 0.5 | 2000 | 0.6 |
| Z2DW06-24 | 24 | 6 | 3200 | 0.3Max | 2950 | 19 | 0.5 | 2000 | 0.6 |
| Z2D06-90 | 90 | 6 | 3000 | 0.2Max | 2800 | 20 | 0.3 | 2000 | 0.6 |
| Z2DW06-90 | 90 | 6 | 3000 | 0.2Max | 2800 | 20 | 0.3 | 2000 | 0.6 |
Reminder
Motor voltage, power and speed can be customized according to customer requirements under the conditions of accessories size and other conditions
If W is added after D, it means an external brush gear motor, if there is no W, it is a standard built-in brush gear motor;
For external brush motor, user can replace brush externally; built-in brush motor replaces brush When motor needs to be disassembled, it can be replaced
Parallel Shaft Gearhead (Sold Separately)
| Gearhead Type | Gearhead Model | Gear Ratio | |||
| Long Life.Low Noise | 2GN10XK(Mid-gearbox) | 3、 3.6、 5、 6、 7.5、 9、 12.5、 15、 18、 25、 30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200 | |||
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 |
| Z2D06-24GN | Speed(r/min) | 983 | 819 | 590 | 492 | 393 | 328 | 295 | 236 |
| 2GN□K | 0.05 | 0.06 | 0.08 | 0.09 | 0.12 | 0.14 | 0.16 | 0.2 | |
| 0.46 | 0.56 | 0.77 | 0.93 | 1.16 | 1.39 | 1.54 | 1.93 | ||
| Type | Gear Ratio | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 |
| Z2D06-24GN | Speed(r/min) | 197 | 164 | 148 | 118 | 98 | 82 | 74 | 59 |
| 2GN□K | 0.24 | 0.28 | 0.28 | 0.35 | 0.42 | 0.51 | 0.57 | 0.71 | |
| 2.31 | 2.78 | 2.78 | 3.47 | 4.16 | 5 | 5.55 | 6.94 | ||
| Type | Gear Ratio | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| Z2D06-24GN | Speed(r/min) | 49 | 39 | 33 | 29 | 25 | 20 | 16 | 15 |
| 2GN□K | 0.76 | 0.96 | 1.15 | 1.27 | 1.53 | 1.91 | 2.29 | 2.55 | |
| 7.49 | 9.37 | 11.2 | 12.5 | 15 | 18.7 | 22.5 | 25 |

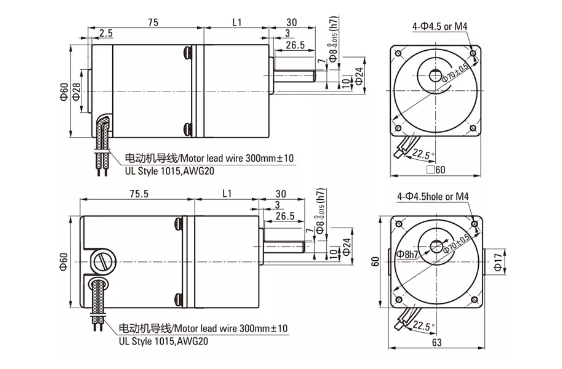

Installation Dimensions
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
