Home / 60W 90mm Flange Electric AC Gear Motor

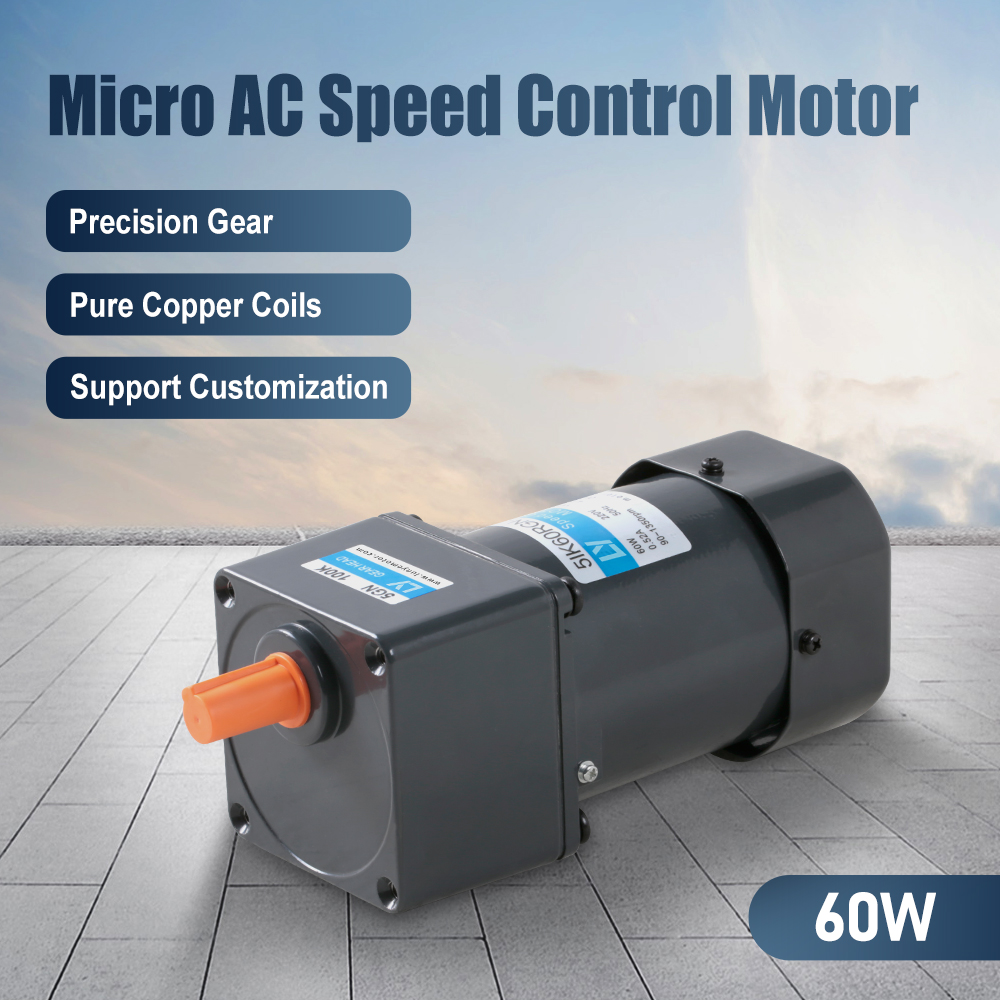

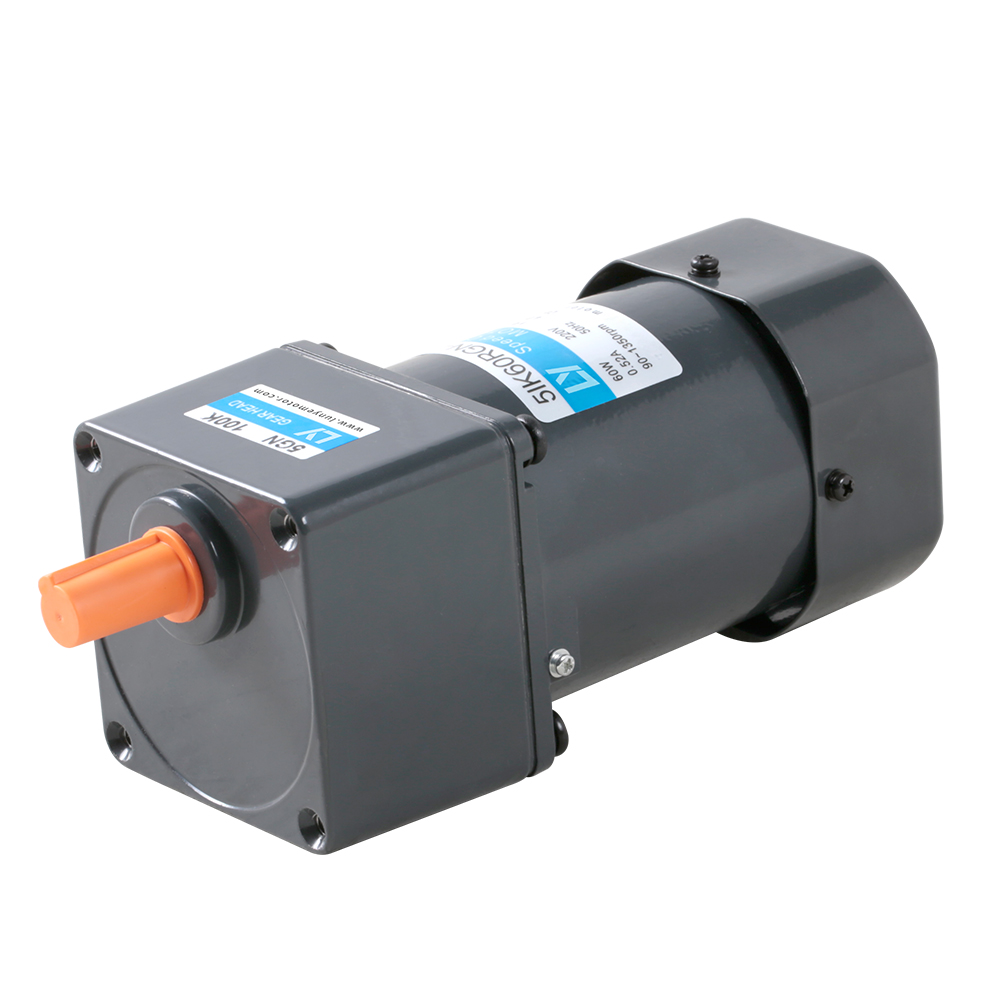

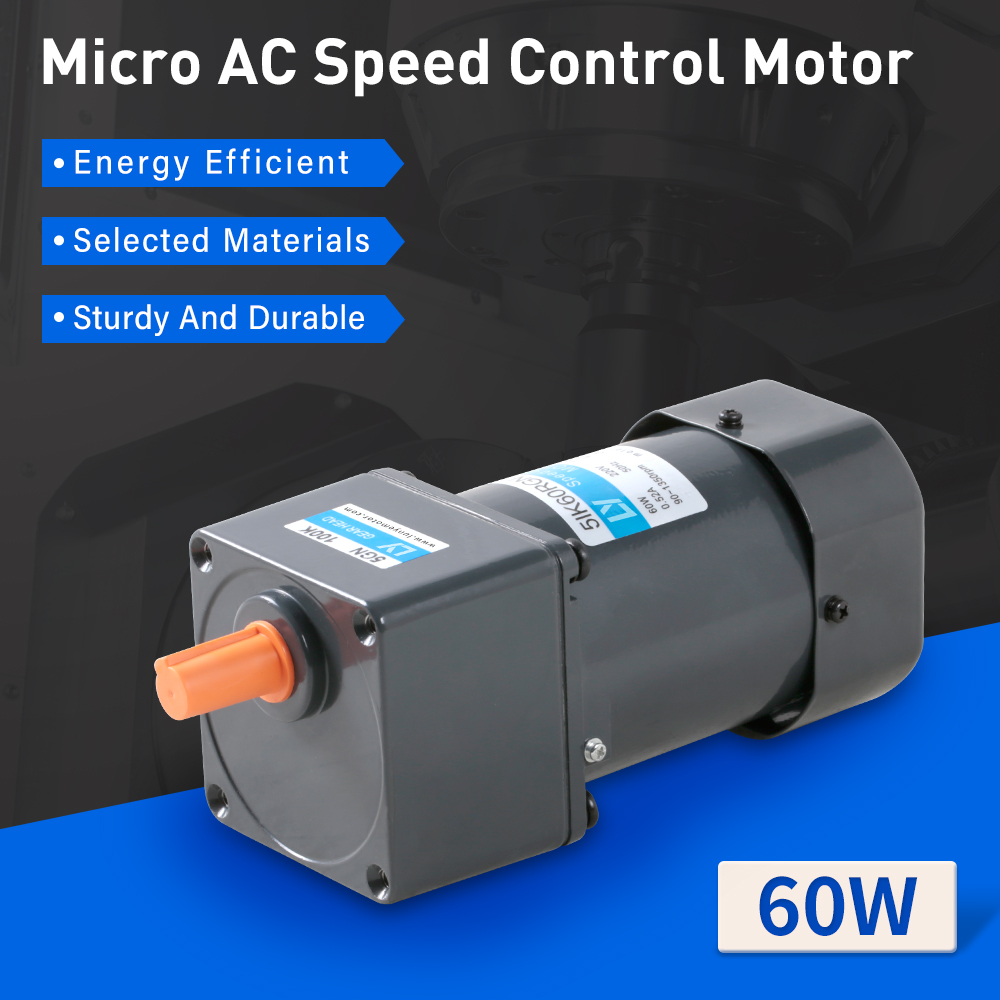

60W 90mm Flange Electric AC Gear Motor


This 60W 90mm Flange Electric AC Gear Motor is an efficient and powerful motor for your application needs. With its 90mm flange size, this motor provides reliable torque capability and can handle up to 60W of power. Enjoy smooth and quiet performance with the gear motor’s electromagnetic brake.

Model TypeSpeed Adjustable Motor

Output Power (W)60

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)90-1350/1650

Product Display

Speed adjustable motor is applied with a variable frequency drive or comparable technology to regulate motor speed and torque. Variable speed motors enable goods and manufacturing facilities to significantly decrease the amount of energy spent by the motors in their devices by putting these critical variables of motor performance under the control of the operator.

Product Feature

Controlled current on start

The 60W 90mm Flange Electric AC Gear Motor ensures minimized power demand during startup, providing an optimal start with low impact on your power system.

Lower power demand at startup

This motor is designed with a low power demand feature at startup, which prevents system overloads and increases the longevity of the motor.

Acceleration under Control

The motor's smooth, controllable acceleration enhances the performance and lifespan of your equipment by preventing wear and tear.

Variable Speed Operation

Our AC Gear Motor enables a wide range of operating speeds, providing users with flexibility, versatility, and precision control to meet the demands of various applications.

Torque Limit Adjustment

This feature allows users to adjust the motor's torque limit to prevent overloading and to ensure it performs efficiently in every operational context.

Stopping Under Control

Our motor offers superior controlled stopping capability, which is critical in operations that require an immediate halt for safety or operational efficiency.

Energy Conservation

The AC Gear Motor optimizes energy consumption, ensuring peak performance, cost-effectiveness, and better sustainability.

Product Applications


Our variable speed motor reduces idle running power loss and is perfect for use in conveyors, improving efficiency and energy consumption.

Pumps and Blowers

Its variable speed and adjustable torque make this motor suitable for use in pumps and blowers, resulting in better flow control and enhanced energy management.


The AC Gear Motor optimizes compressor operations, improving the overall system performance and energy usage.

Weighfeeders and Screwfeeders

Our motor's speed control provides precise feeding in weighfeeders and screwfeeders, improving system precision and efficiency.

Electric Cranes

The motor's smooth acceleration, precise speed control, and reliable stop function make it an ideal choice for use in electric cranes.


With controlled acceleration, variable speed operation, and reliable stopping, this motor is perfectly suited for applications in robotics, enabling precise movement and improved efficiency.



Motor Type / Lead Wire Type Output Power (W) Voltage (V) Frequency (Hz) Speed Control Range (rpm) Rated Torque (mN.m) Starting Torque (mN.m) Current (A) Capacitor (μF)
5IK60RGN-AF 5IK60RA-AF 60 1ph100 50-60 90-1400 460-490 140-160 2
5IK60RGN-EF 5IK60RA-EF 60 1ph110-120 60 90-1700 490 160 1.8-0.23
5IK60RGN-CF 5IK60RA-CF 60 1ph220-230 50 90-1400 490 140 0.8
5IK60RGN-HF 5IK60RA-HF 60 1ph220-230 60 90-1700 490 160 0.85
