Home / 60W 220V micro AC permanent magnet synchronous motor

60W 220V micro AC permanent magnet synchronous motor

$46.00-$58.00

This 60W 220V micro AC permanent magnet synchronous motor is designed for superior power and efficiency. Its low-speed torque achieves higher efficiency while offering greater torque than traditional AC motor designs. The motor’s high-efficiency design also yields energy savings of up to 55%.

Motor TypeMicro AC Motor

Output Power (W)60

Voltage (V)220

Rated Speed (rpm)2.5-110

Parametter Table

Name AC permanent magnet synchronous motor
Optional Rotating Speed 2.5-110 RPM
Model 80KTYZ
Voltage AC 220V
Power 60W
Current 0.2A
Continuous use time 24 hours continuous operation
Motor size 81*78MM
Output shaft size 10*30MM
Whether to speed no speed
Whether it is positive or negative can be reversed
Weight 1.3kg

Product Display

60W 220V micro AC permanent magnet synchronous motor

Product Feature

High-Efficiency Operation

Our micro AC permanent magnet synchronous motor delivers an exceptional efficiency boost, saving up to 55% in energy, making operations more sustainable and cost-effective.

Powerful Low-Speed Torque

Designed for exceptional low-speed torque performance, this motor provides greater power for heavy-duty tasks without compromising speed or efficiency.

Flexible Speed Range

Featuring a versatile speed range from 2.5 to 110 RPM, our motor offers precision for various applications where control and adaptability are essential.

24-Hour Continuous Operation

Enhanced durability enables this motor to perform reliably in continuous 24-hour cycles without risk of overheating or wear.

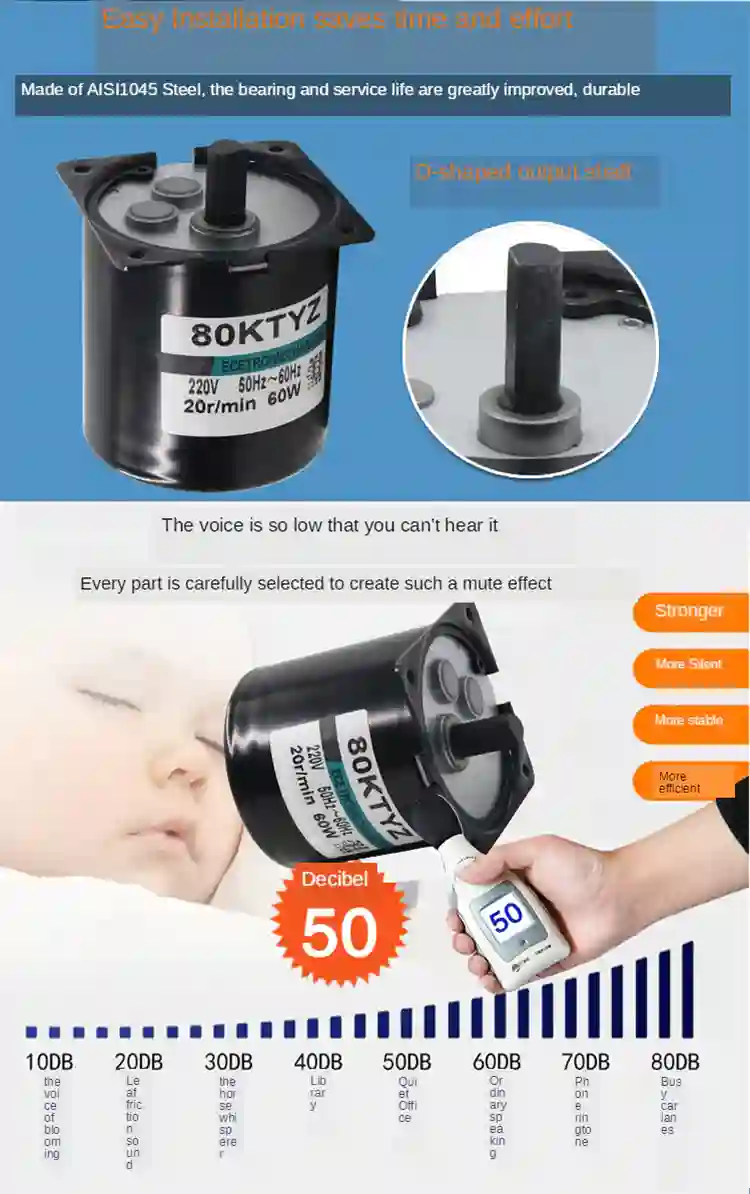

Quiet Operation

Our motor runs with minimal noise, providing a more pleasant environment and reducing acoustic distractions in sensitive settings.

Reversible Direction

This motor can operate in both forward and reverse directions, giving users flexibility in incorporating the motor into various mechanical systems.

Compact Size and Build

With motor dimensions of 81*78MM and a robust construction, our product is built to fit into compact spaces without sacrificing performance.

60W 220V micro AC permanent magnet synchronous motor

Product Applications

Energy-Efficient Machinery

Due to the motor’s high-efficiency capabilities, it is an ideal choice for machines that strive for sustainability without sacrificing power.

Automation and Robotics

The motor's consistent torque and reliable speed control make it well-suited for automation and robotic applications, where precision is key.

Medical Equipment

With its quiet and continuous operation, the synchronous motor is perfect for medical equipment where uninterrupted use and minimal noise is a priority.

Manufacturing Applications

Our motor's ability to deliver consistent performance for long hours makes it indispensable in diverse manufacturing applications that demand relentless operation.

Conveyor Systems

The adjustable speed range and reversible direction features enable versatile use in conveyor system designs, enhancing their adaptability to different production needs.

Home Appliances

Its compact size, quiet operation, and efficiency make this motor seamlessly integrable into various home appliance designs.

60W 220V micro AC permanent magnet synchronous motor

Available Options

  1. Voltage
  2. Output Power
  3. Rated Speed
  4. Torque
  5. IP Grade

Technical Documents

Layout DrawingInstallation GuideLayout Drawing

Videos

Certificate

After-sale warranty

Warranty Period

The Manufacturer warrants that the motor product shall be free from defects in material and workmanship under normal use and service for a period of 24 months from the date of installation or 30 months from the date of shipment from the factory, whichever occurs first.

This warranty covers the repair or replacement, at the Manufacturer's option, of any part that fails due to defects in material or workmanship during the warranty period, provided that:

  1. The motor is installed, operated and maintained in accordance with the Manufacturer's instructions and recommendations.
  2. Written notice of the defect is provided to the Manufacturer within the warranty period.
  3. The motor is returned to the Manufacturer's factory or authorized service center, with transportation charges prepaid by the customer.
  4. Examination by the Manufacturer confirms the alleged defect was not caused by misuse, neglect, improper installation, unauthorized repair or alteration, accident, or abnormal conditions of operation.

This warranty does not cover normal wear and tear, nor any consumables such as bearings, brushes, shafts, etc. The Manufacturer's liability under this warranty is limited to the repair or replacement of the motor, and does not include any responsibility for incidental or consequential damages.

This warranty is the sole and exclusive warranty provided by the Manufacturer and is in lieu of any other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose.

Training Resources

The Manufacturer offers comprehensive training resources to ensure proper installation, operation, and maintenance of its electric motor products. These training resources include:

  1. Installation and Operation Manuals:
    • Detailed step-by-step instructions for safe and effective installation
    • Guidance on proper operating procedures and parameters
    • Troubleshooting guides to address common issues
  2. Online Training Videos:
    • Instructional videos covering installation, configuration, and maintenance
    • Demonstrations of advanced features and programming
    • Tutorials on optimizing motor performance and efficiency
  3. Technical Support Hotline:
    • Direct access to the Manufacturer's team of motor experts
    • Assistance with application-specific questions and problems
    • Advice on upgrading, retrofitting, or replacing motor systems
  4. Hands-on Training Workshops:
    • In-person training sessions held at regional locations
    • Opportunity to work directly with the Manufacturer's technicians
    • Comprehensive curriculum covering all aspects of motor ownership
  5. Maintenance and Repair Guides:
    • Guidelines for routine inspections, cleaning, and preventive maintenance
    • Procedures for diagnosing and repairing common motor failures
    • Recommendations for spare parts inventory and scheduled replacements

The Manufacturer is committed to ensuring customer success through extensive training resources and technical support. Contact your sales representative to learn more about the available training options for your specific motor requirements.

Purchase Notes

  1. Determine the required motor power, speed, and torque based on your application needs.
  2. Consider the motor type (e.g. AC, DC, servo) that best suits your requirements.
  3. Ensure the motor's frame size, mounting, and shaft configuration match your existing or planned setup.
  4. Check the motor's efficiency, noise level, and operating temperature range.
  5. Verify the motor's certifications and compliance with relevant safety standards.
  6. Evaluate the motor's warranty coverage and after-sales support.
  7. Compare quotes from multiple reputable suppliers to get the best value.
  8. Plan for any additional accessories or control components needed for a complete motor system.
  9. Consult with technical experts if you have any questions or require application-specific recommendations.
  10. Account for shipping time and lead-in when ordering to avoid production delays.

Transportation

Transportation Channels

Our industrial electric motors are backed by a robust global logistics network, offering seamless delivery via sea, land, and air transportation. Through strategic partnerships with leading international logistics providers, we ensure your orders reach you efficiently, no matter your location.

Destination Countries

Our industrial electric motors are distributed globally, serving customers in over 120 countries worldwide America, Europe, and Asia.

Order Frequency

With our proven track record of delivering over 10,000 orders per year, you can count on us to be your reliable and responsive motor solutions provider.
