Home / 60W 1phase Small Gear AC Motor with Terminal Box

60W 1phase Small Gear AC Motor with Terminal Box


This 60W 1phase Small Gear AC Motor is equipped with a terminal box for easy installation and maintenance. Its lightweight and compact design make it perfect for a variety of industrial applications. Enjoy a long life span and reliable operation with this powerful and cost-effective motor.

Power (W)60

Voltage (V)220/110

Frequency (HZ)50/60

Model Type
below in():round shaft
Output power
Starting torque
Rated tourque
Rated speed
Lead Wire Type Terminal Box Type
5RK60GN-AF 5RK60GN-AFT 60 1ph100 50 1.26 470 470 1250 25
(5RK60A-AF) (5RK60A-AFT) 60 1ph100 60 1.7 470 380 1550 25
5RK60GN-EF 5RK60GN-EFT 60 1ph110 60 1.05 330 380 1550 15
(5RK60A-EF) (5RK60A-EFT) 60 1ph120 60 1.05 380 380 1550 15
5RK60GN-CF 5RK60GN-CFT 60 1ph220 50 0.55 420 470 1250 4.5
(5RK60A-CF) (5RK60A-CFT) 60 1ph230 50 0.6 460 470 1250 4.5
5RK60GN-HF 5RK60GN-HFT 60 1ph220 60 0.55 420 380 1550 4.5
(5RK60A-HF) (5RK60A-HFT) 60 1ph230 60 0.6 460 380 1550 4.5

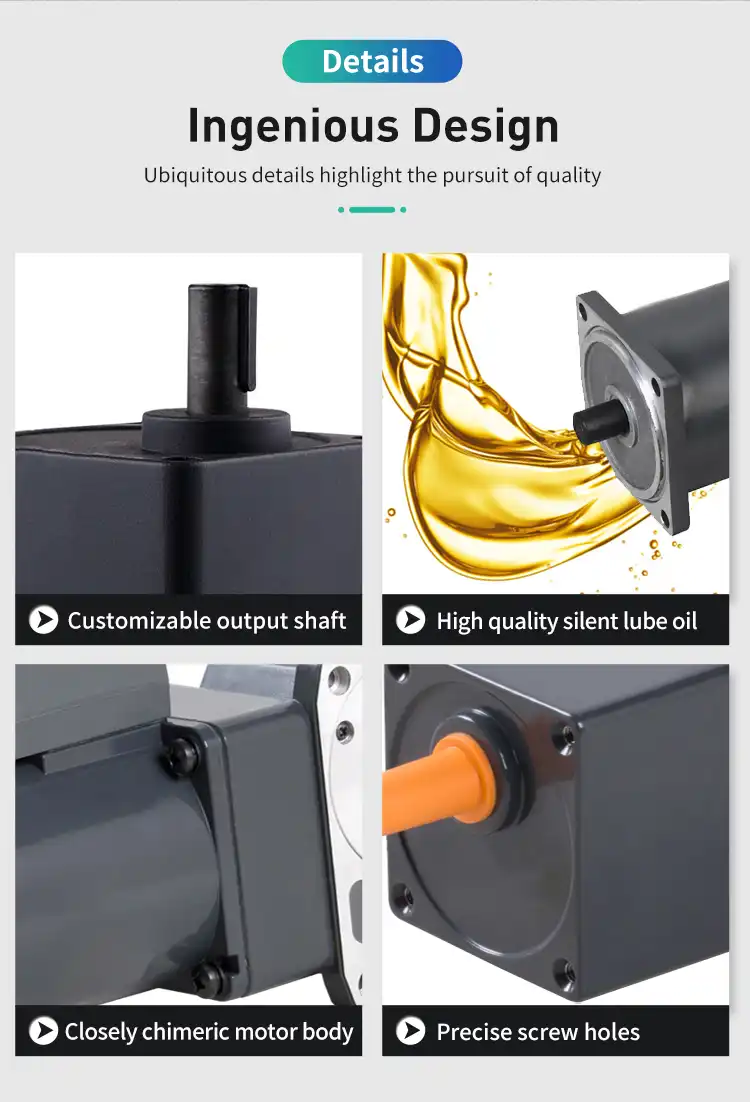

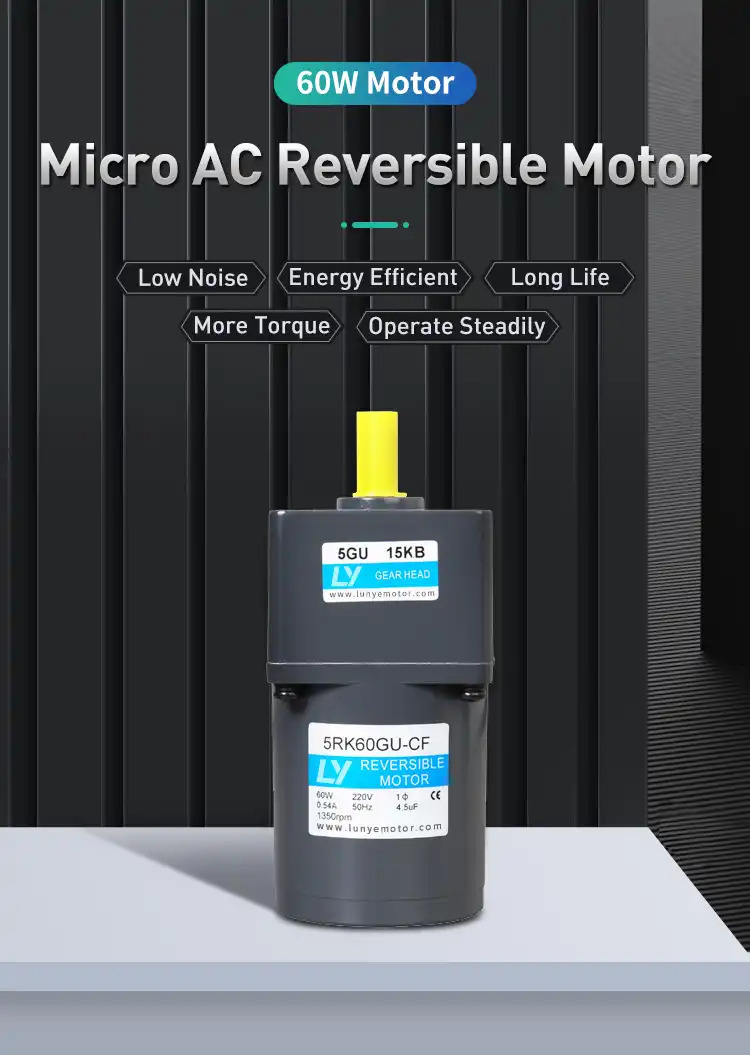

Product Display

Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.

Product Feature

Easy Installation and Maintenance

This motor comes equipped with a terminal box, streamlining the installation process and making routine maintenance straightforward and hassle-free.

Compact and Lightweight Design

Designed for versatility and ease of use, its compact size and light weight make it suitable for a wide range of applications without compromising power or performance.

Reversible Operation with Basic Brake

Included basic brake allows for quick stopping and direction change, making it an excellent choice for applications requiring regular directional shifts.

High Efficiency and Power

Despite its small size, this motor offers high efficiency and powerful torque, suitable for demanding tasks while maintaining low velocity for precision applications.

Long-Lasting and Reliable

Constructed with durability in mind, this motor promises a long life span and reliable operation through even the most strenuous uses.

Energy Efficient

Designed for minimal energy consumption, this motor delivers outstanding performance while reducing operational costs and environmental impact.

Versatile Voltage Adaptability

With options for both 220 and 110 volts, coupled with versatile frequency ratings of 50/60 Hz, this motor is adaptable to various power supplies and applications.

Product Applications

Industrial Automation

Its robust design and reliable performance make it perfect for use in automated processes and machinery, where precision and durability are key.

Medical Equipment

The compact and quiet operation of this motor suits it well for medical devices, where space is at a premium and operation noise should be kept to a minimum.

Consumer Appliances

Ideal for inclusion in consumer appliances requiring compact size, efficiency, and reliable performance, such as fans, small pumps, or household tools.

Office Automation Equipment

Its reversible operation and precise control capabilities make it an excellent choice for office equipment, including printers, scanners, and shredders.

Manufacturing Machinery

With high torque and the ability to handle a high capacity of overload, it's suited for various manufacturing machinery applications, offering reliability under intense operational demands.

Lab Equipment

Its precise control and minimal energy consumption make it an ideal candidate for lab equipment, where precision and efficiency are paramount.

Small-scale Renewable Energy Projects

The motor's efficiency and adaptable voltage make it useful for small-scale renewable energy applications, like solar panel orientation systems.

Available Options

  1. Voltage
  2. Output Power
  3. Rated Speed
  4. Torque
  5. IP Grade

Technical Documents

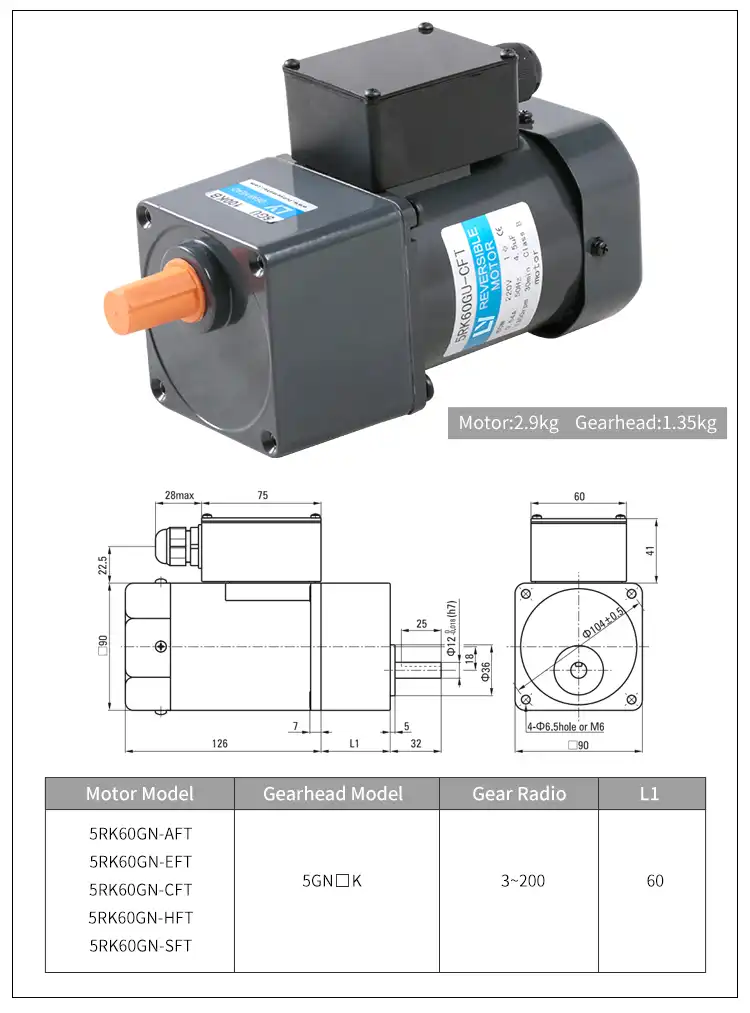

Layout DrawingInstallation GuideLayout Drawing
