| Model |
Power(W） |
Volatge(VDC） |
Current(A） |

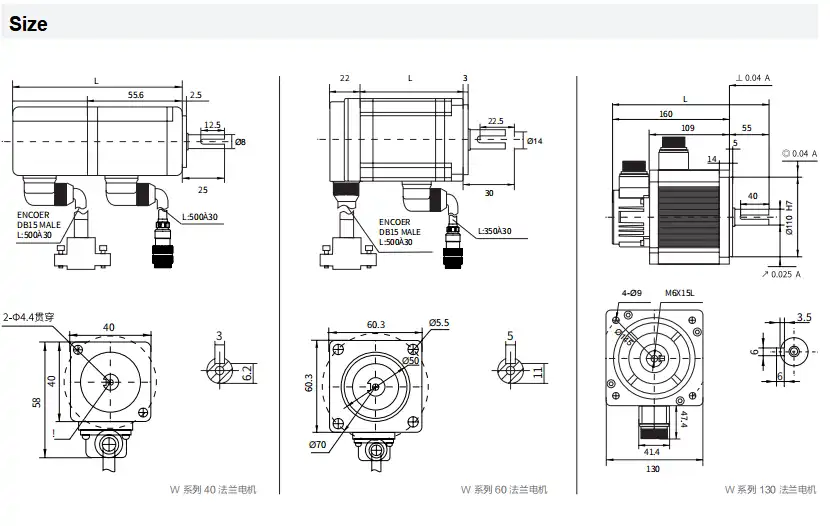

Flange(mm） |
Shaft Dia.(mm) |
Rated Speed(RPM） |

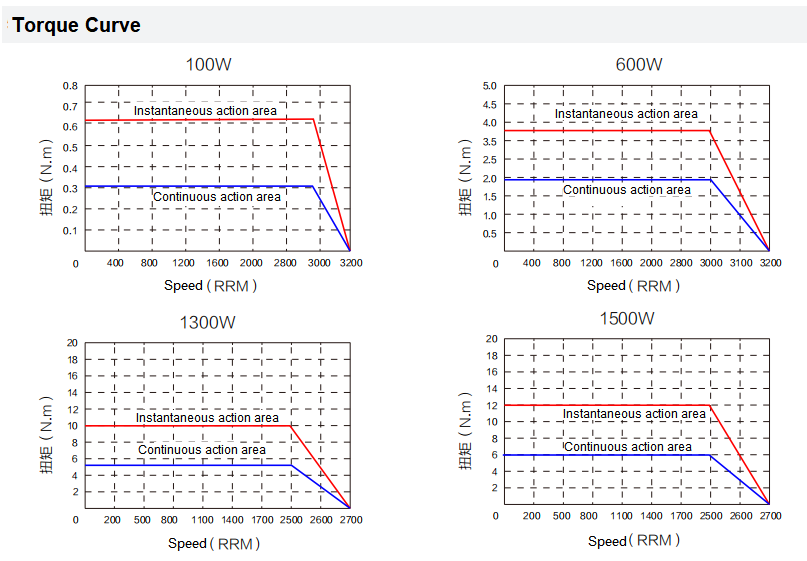

Rated Torque(N·m） |
Encoder(PPR) |
Motor Length（mm） |
Length with Brake（mm） |
Driver |
| ACL40100W4- 2500E-24-8 |
100 |
24 |
7.5 |
40 |
8 |
3000 |
0.32 |
2500 |
99 |
136.3 |
IDS306 |

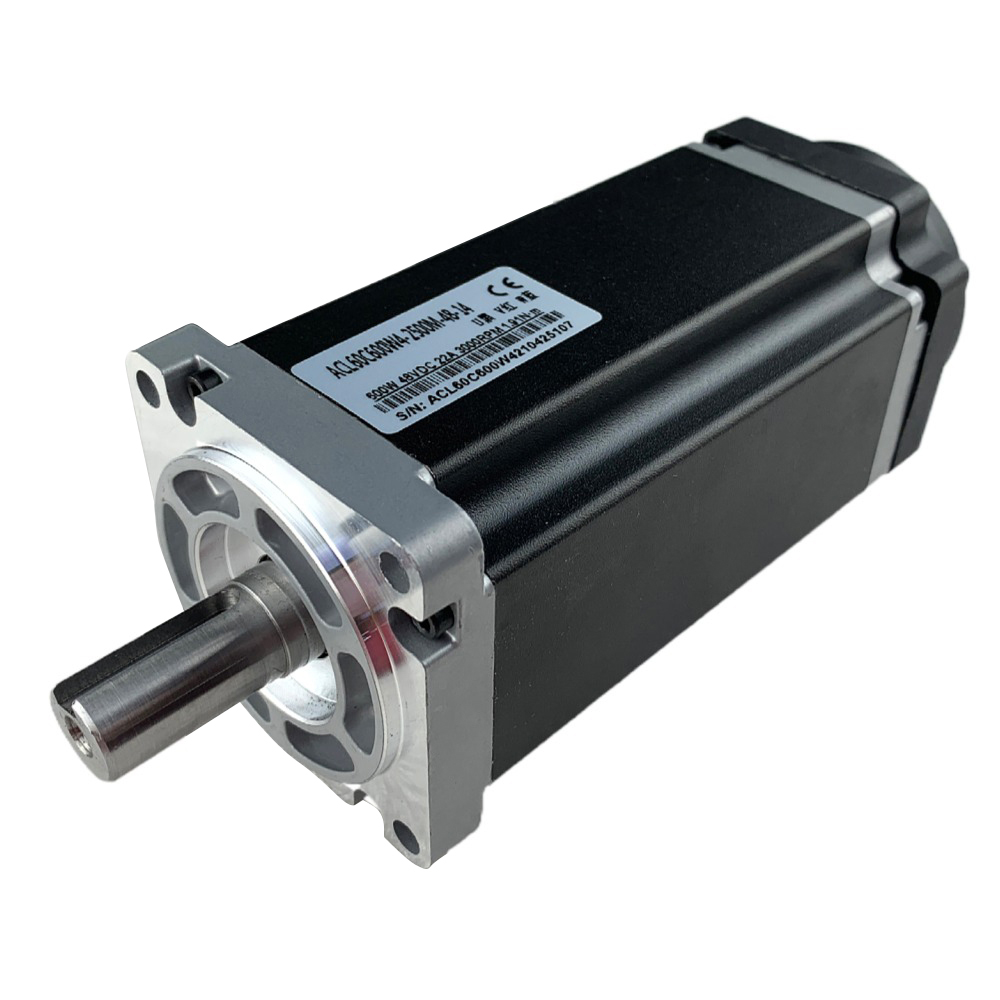

| ACL60600W4- 2500M-48-14 |
600 |
48 |
22 |
60 |
14 |
3000 |
1.91 |
2500 |
159 |
199.8 |
IDS850 |
| ACL1301300W4- 2500M-48-22 |
1300 |
48 |
40 |
130 |
22 |
2500 |
5 |
2500 |
160 |
204 |
IDS8100 |
| ACL1301500W4- 2500M-48-22 |
1500 |
48 |
47 |
130 |
22 |
2500 |
6 |
2500 |
160 |
204 |
IDS850PRO |
Product Display / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

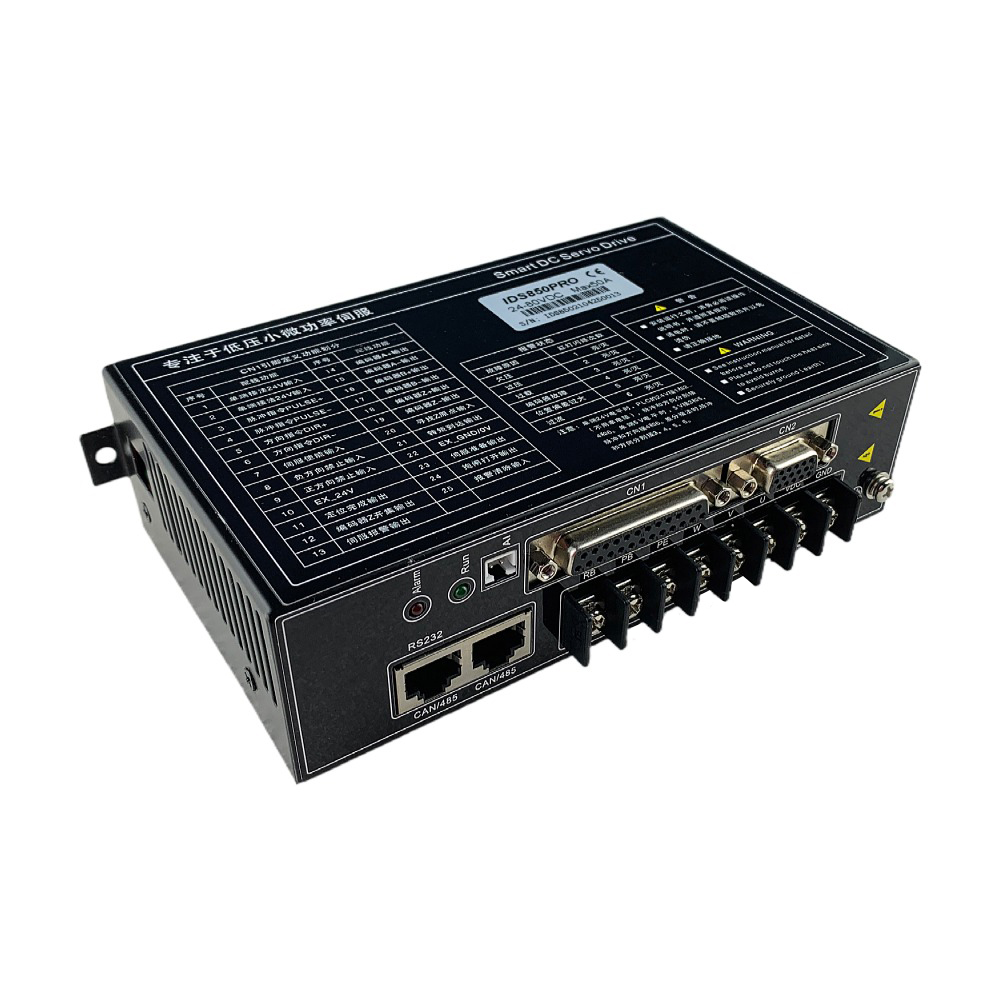

- Working voltage: 24~80VDC
- Output current: peak 50A
- Suitable motor: 5~1500W low voltage DC servo motor
- Control mode: external pulse (single-ended / differential), analog, CAN bus, RS485 bus, RS232 communication control, IO control, etc., support position, speed and torque modes
- Parameter debugging: RS232 communication, PC debugging software or handheld debugger debugging, can backup and import parameters
- Abnormal protection: with undervoltage, overvoltage, overload, overcurrent, position deviation is too large, encoder abnormality and other alarm functions
- Support energy dissipation function
- Tracking error: ±1pulse
- Speed control accuracy: ±1PRM
- Maximum received pulse: 1MHZ
- Minimum speed: 1RPM
- Maximum no-load acceleration: 200PRM/ms
Feature / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
- Standard DC servo motor W series power band 100~1500W, compatible with ac servo motor installation size,encoder line number 2500.
- The servo motor has strong overload capacity and strong customization, and is suitable for applications with multiple varieties, small quantities and project customization.
