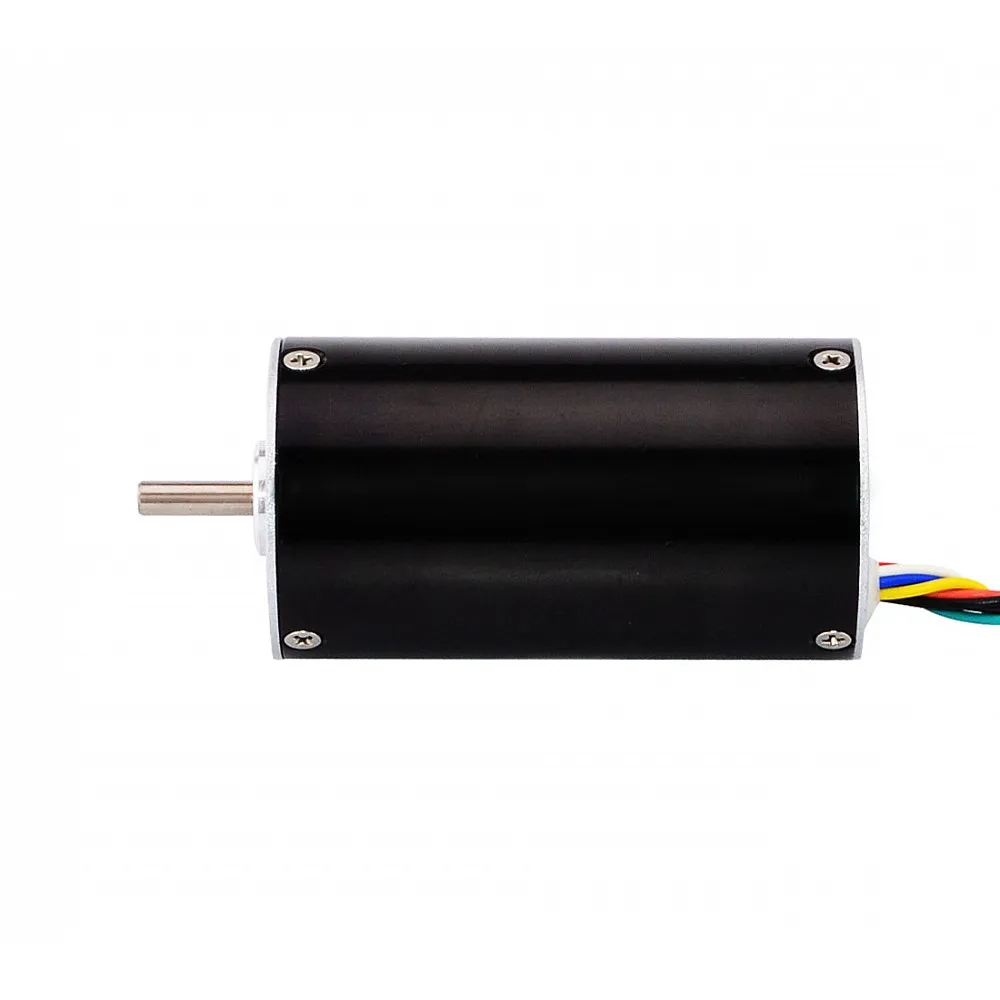

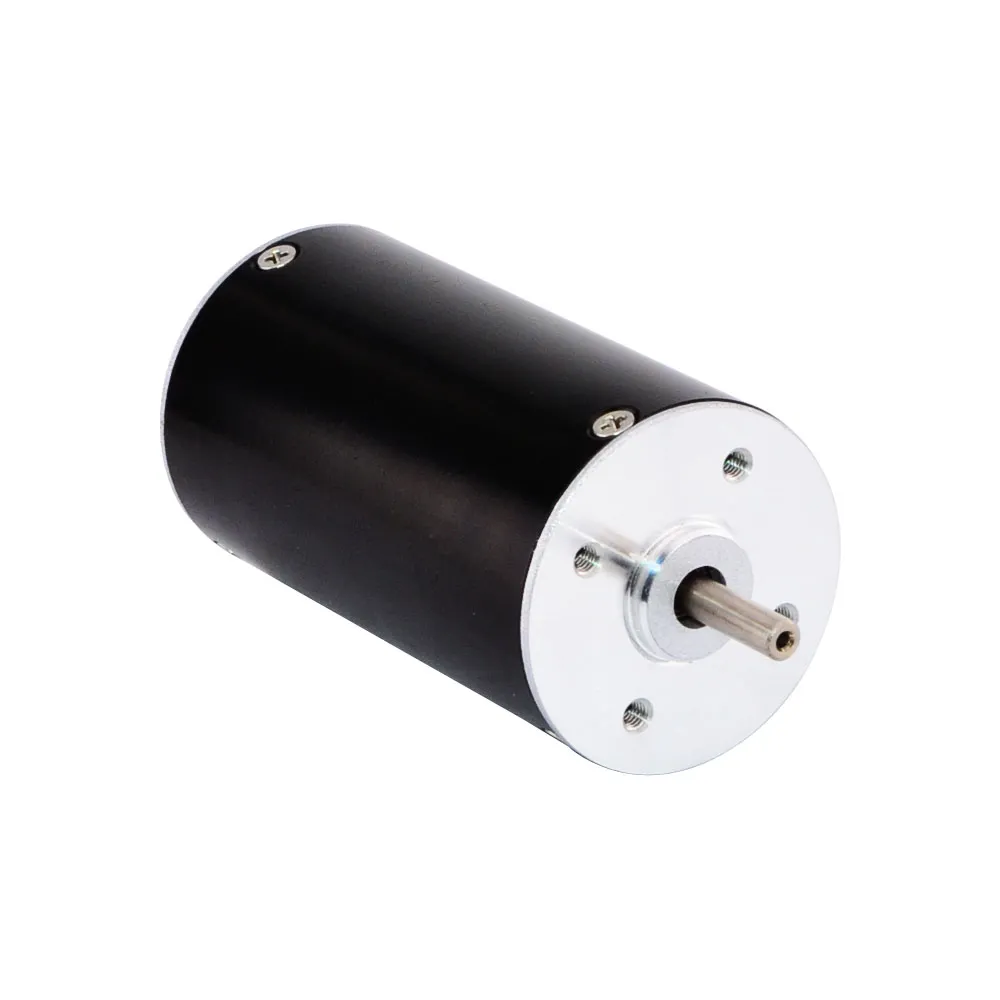

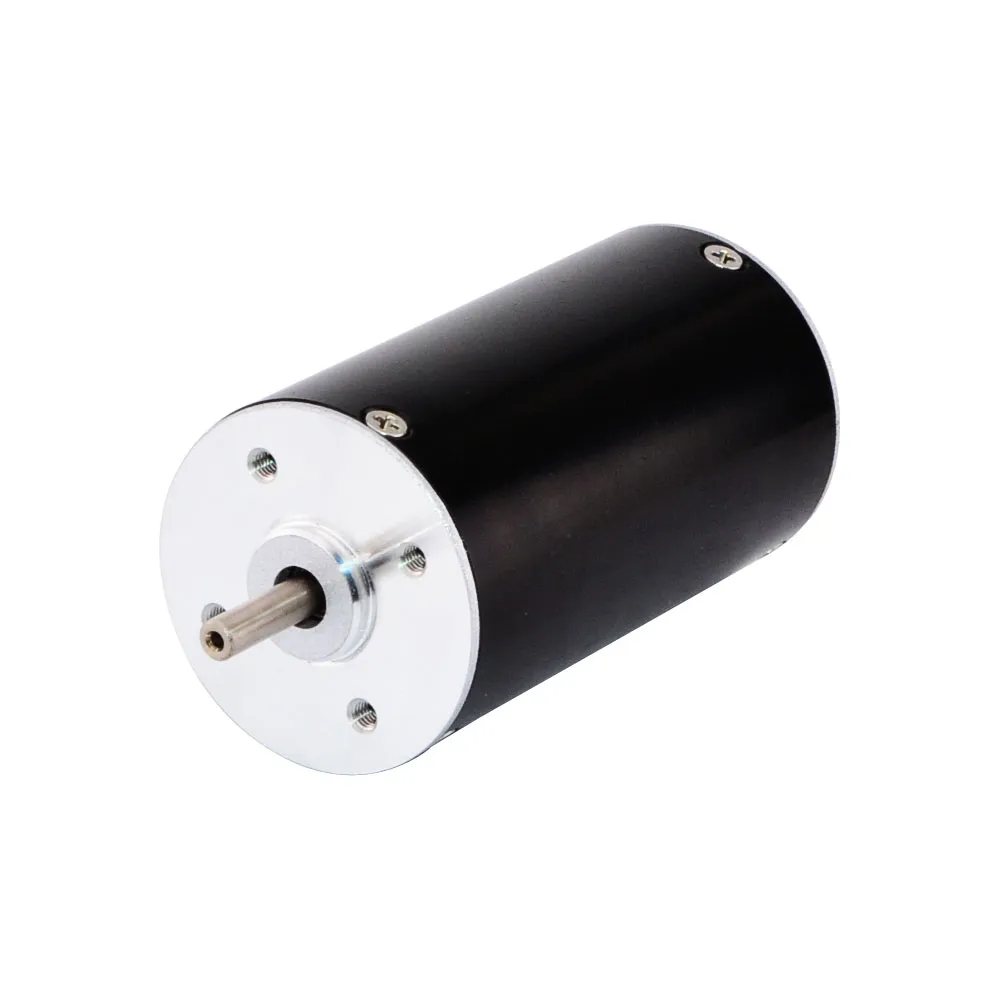

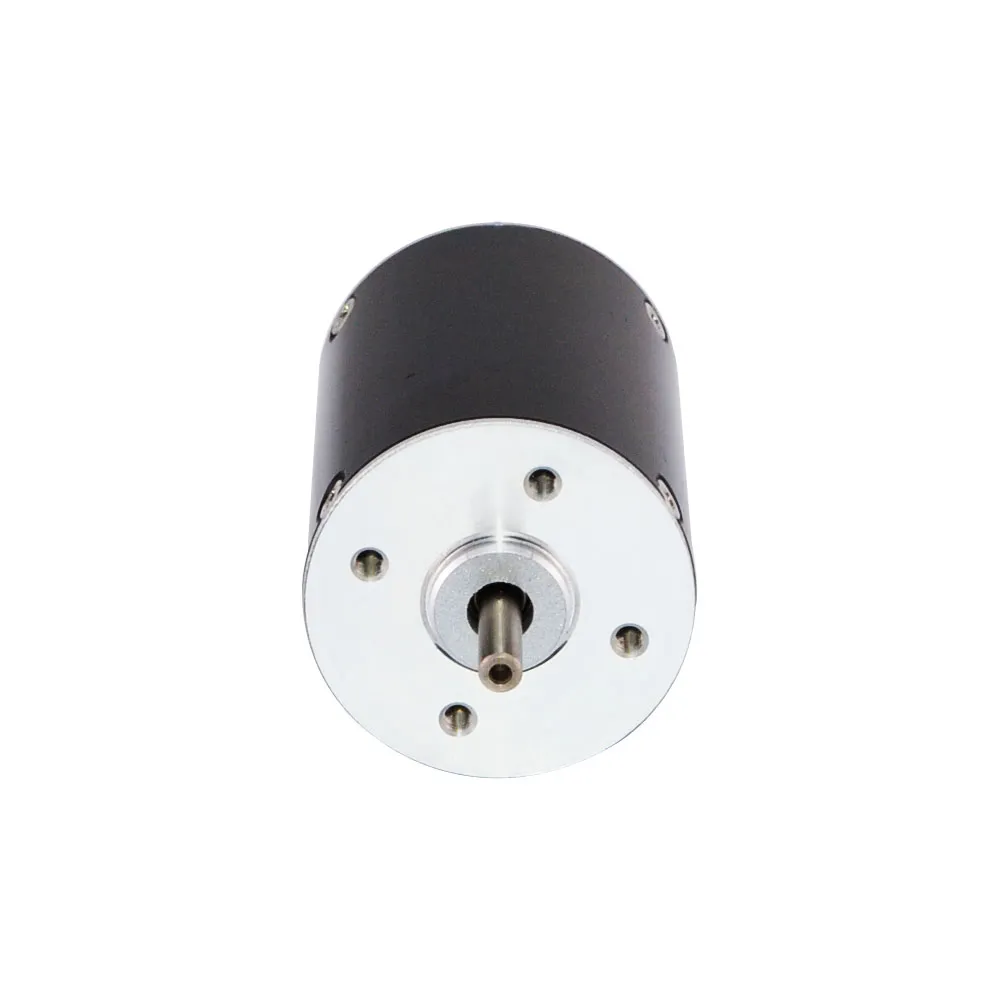

55W 24V 4000RPM 0.131Nm Brushless DC Motor
$26.16
55W 24V 4000RPM 0.131Nm Brushless DC Motor, a compact and efficient solution that delivers reliable performance and precise control. With its optimized power output and smooth operation, this motor is perfect for applications that require enhanced efficiency and precision, such as robotics, automation systems, and small machinery.
SPECIFICATIONS
Electrical Specification
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 42BLR63-24-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 3.5 |
| Rated Power(W) | 55 |
| Rated Speed(rpm) | 4000 |
| Rated Torque(Nm) | 0.131 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 63 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Bearing Type | NMB Ball Bearing, C3 |
| Sensor | Hall Sensor |
| Weight | 0.45kg |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
