Home / 52.5W 24V 4000RPM 0.125Nm Brushless DC Motor

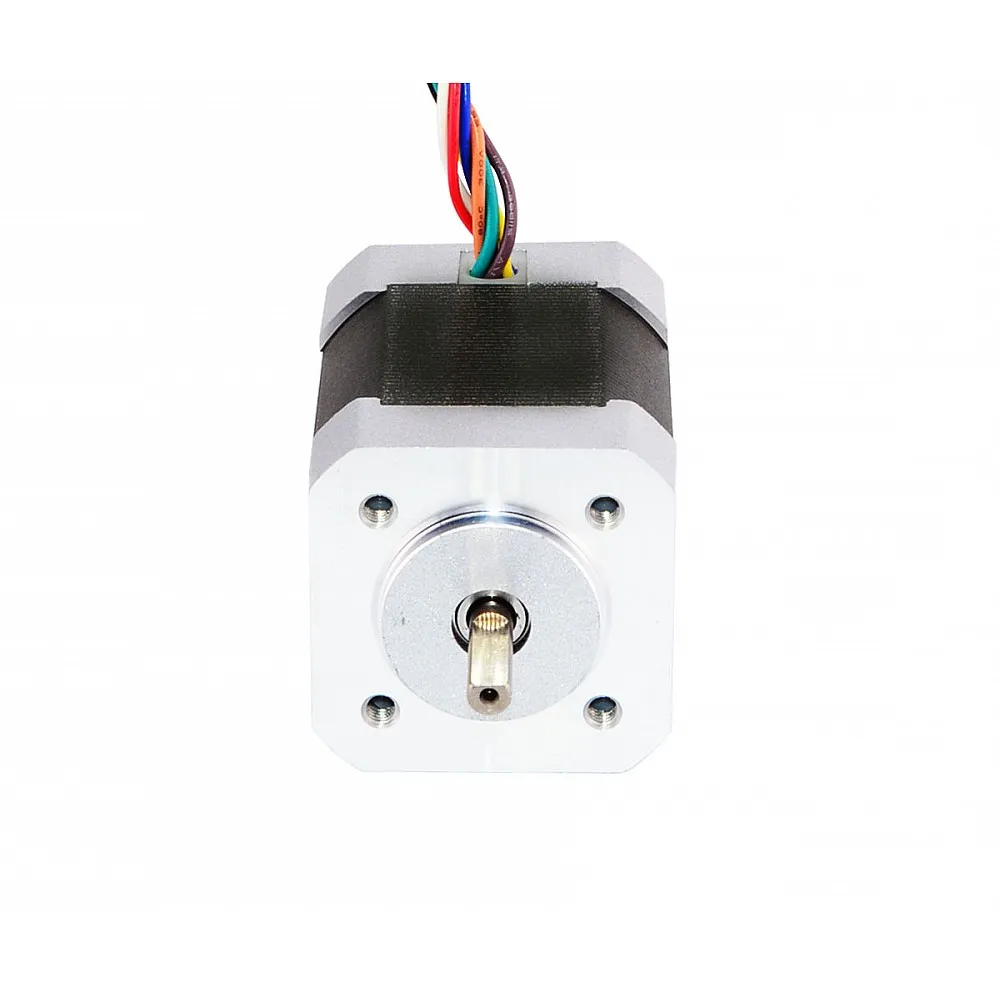

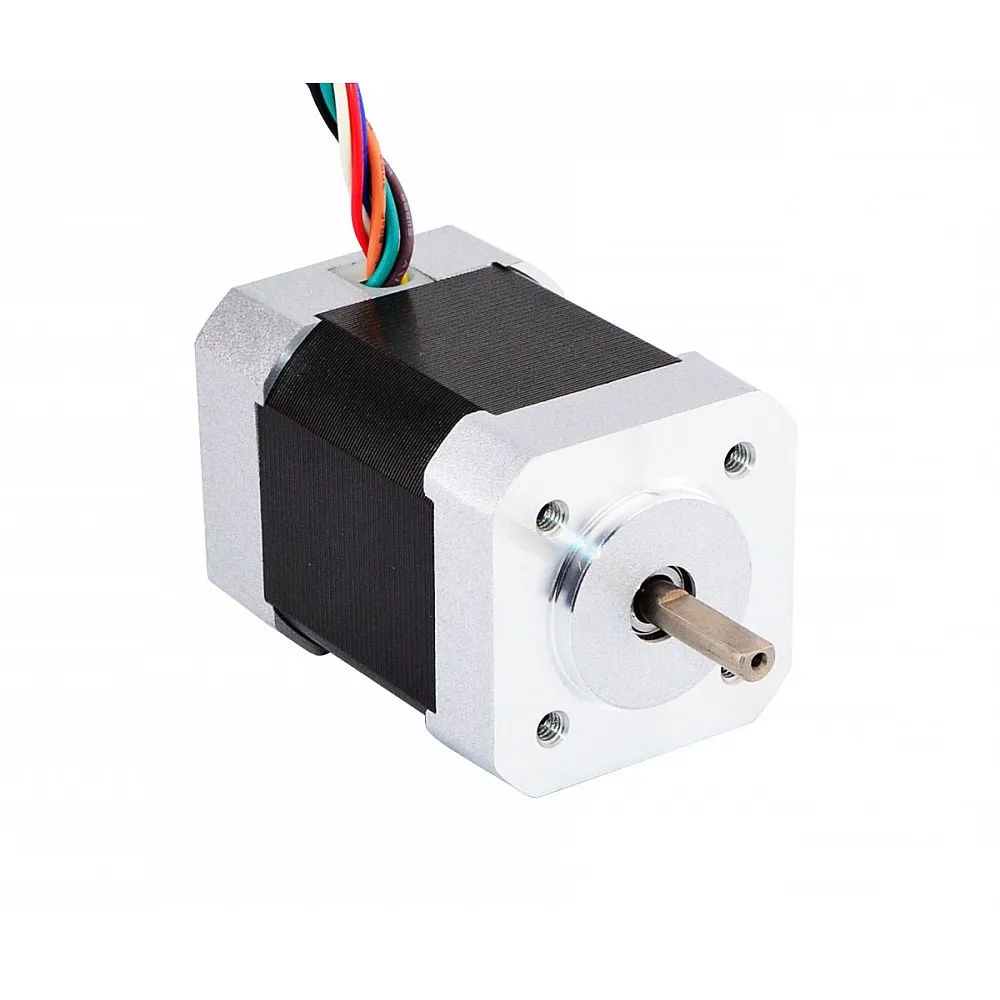

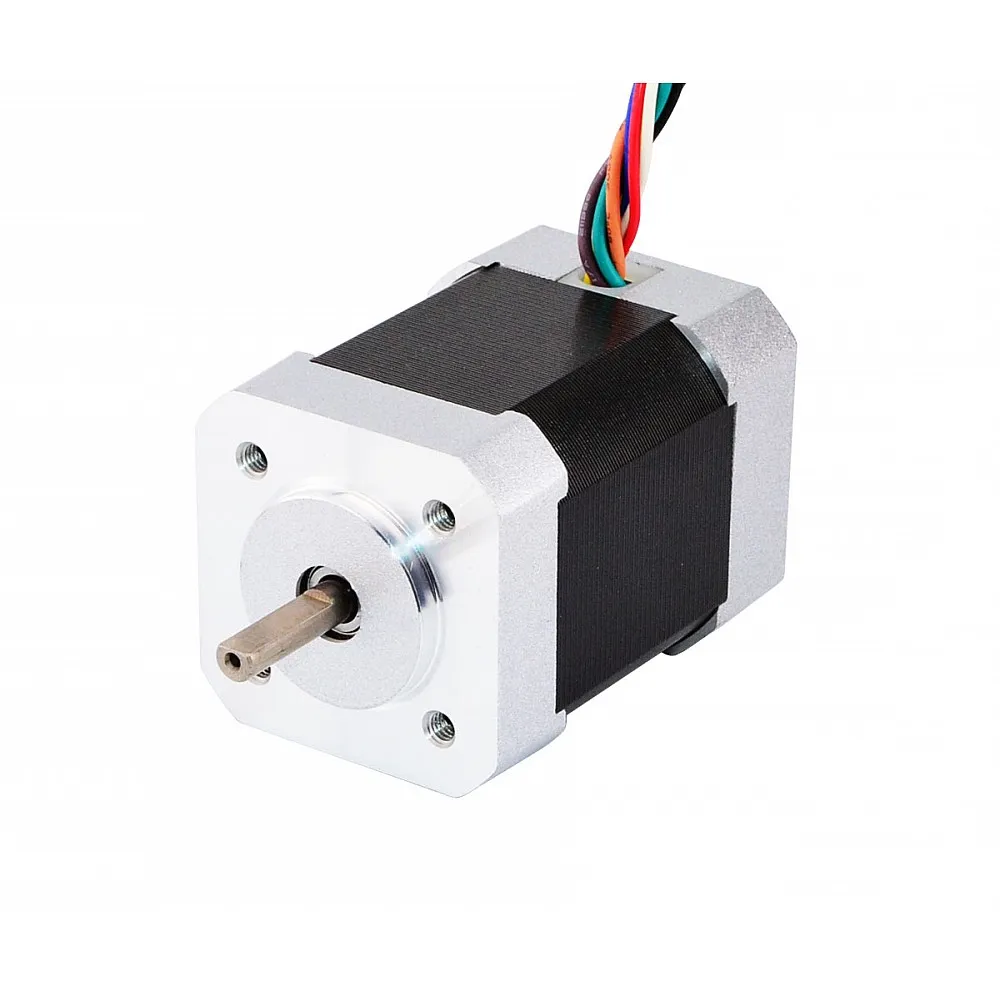

52.5W 24V 4000RPM 0.125Nm Brushless DC Motor

$24.85

52.5W 24V 4000RPM 0.125Nm Brushless DC Motor, a compact and powerful solution for various applications. With its optimized power output and precise speed control, this motor delivers reliable performance and enhances tasks that require efficient and accurate operation.

Model Type

Output Power (W)()52.5

Voltage (V)()24

Rated Speed (rpm)()4000

SPECIFICATIONS

Electrical Specification

Attribute Value
Manufacturer Part Number 42BLS60-24-01
Phase 3
Poles 8
Product Type BLDC Motor
Rated Current(A) 3.4
Rated Power(W) 52.5
Rated Speed(rpm) 4000
Rated Torque(Nm) 0.125
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 59.2
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Bearing Type NMB Ball Bearing, C3
Sensor Hall Sensor
Weight 0.6kg

Product Feature

High Efficiency

This brushless DC motor offers high efficiency, reducing energy consumption and improving performance.

Compact and Lightweight

Designed with a compact and lightweight frame, making it suitable for applications with limited space.

High Speed

Operates at a speed of 4000RPM, providing quick and efficient performance for various applications.

Stable Torque Output

Delivers a stable torque of 0.125Nm, ensuring consistent and reliable operation.

Durable Construction

Constructed with high-quality materials, ensuring long-lasting durability and reliability.

Low Noise Operation

Engineered to operate with minimal noise, providing a quiet working environment.

Low Maintenance

Features a brushless design, which reduces maintenance requirements and extends the motor's lifespan.

Product Applications

Robotics

Ideal for use in robotics, providing precise and efficient movement for various robotic applications.

Medical Equipment

Suitable for integration into medical equipment that requires reliable and efficient motor performance.

Industrial Automation

Perfect for industrial automation systems, offering consistent and high-speed operation.

Electric Vehicles

Can be used in electric vehicle applications, providing efficient and powerful motor capabilities.

Consumer Electronics

Applicable in consumer electronics that require compact and efficient motor solutions.

Home Appliances

Suitable for home appliances, providing reliable and quiet operation for various household devices.

Precision Instruments

Ideal for use in precision instruments that demand high accuracy and reliable motor performance.

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
