SPECIFICATIONS
| Model: | BLDC-H63100 |
| Max Power: | 5000W (6.5 hp) |
| Rotation Speed KV (RPM/V): | 140KV |
| Max Current: | 100A |
| Input Voltage Range: | 4-12S |
| Max Torque: | 10 N.m |
| Recommend ESC: | VESC6 dual drive (3S-12S) |
| No-Load Current: | 1.9A at 10V |
| Motor Length: | 100mm |
| Motor Diameter: | 63mm |
| Weight: | 1.4 kg |
| Total Length: | 138 (including shaft) |
| Motor Resistance: | 0.031 Ohm |
| Shaft Diameter: | 8mm |
| Motor Wind: | 9 |
| Shaft Length: | 25mm |
| Motor Inductance: | 77uh |
| Shaft Diameter: | 10mm round shaft, 10mm D-shaft, 8mm round shaft (Optional) |
| Bullet Connector: | 4mm |
| Shipping Package: | BLDC-63100 motor*1, banana head 4.0mm female head*3 |
Note: The motor is powered by 4-14S batteries, S is the number of batteries, the voltage of every battery is 3.7V DC.

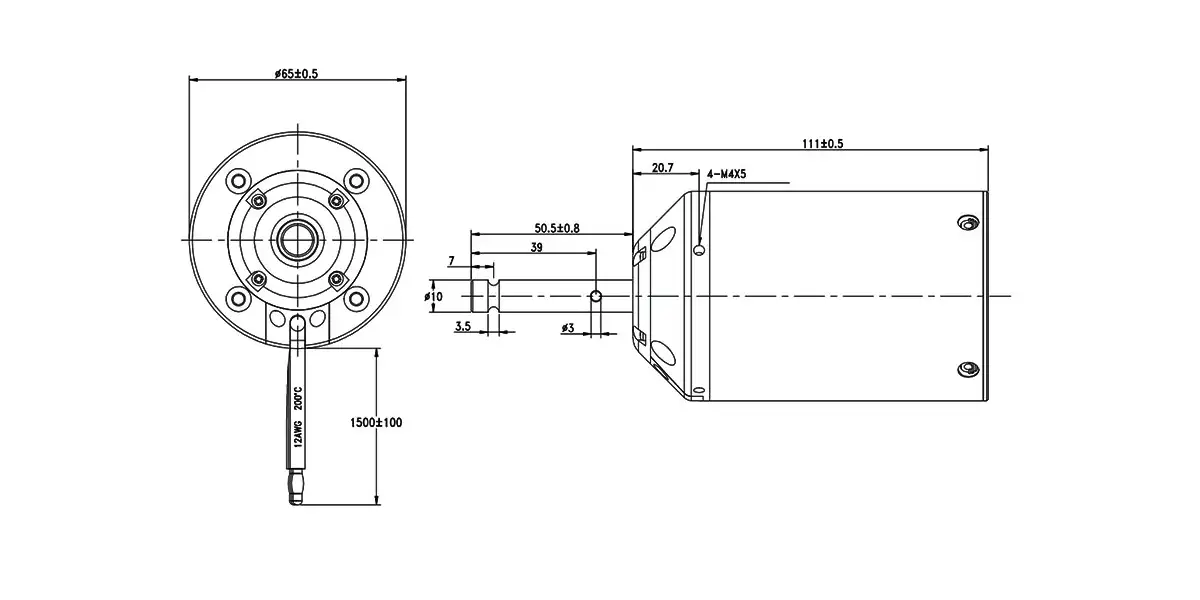

Dimensions(Unit: mm)
ESC (Electronic Speed Controller) Specification
| Model | Current Value | Number of Batteries (Input Voltage) |
| FSESC 4.12 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| FSESC 4.20 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated | Continuous 70A, peak 200A | 3S-12S (8V-60V) |
| VESC4 dual drive integration * | 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel | 3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive | 50A continuous 1-channel, peak 120A 1-channel | 3S-12S (8V-60V) |
| VESC6 dual drive | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| Single drive V6 75200 | Continuous 200A | 3S-12S (8V-60V) |
| Single drive VESC6 waterproof version | Continuous 60A, peak 150A | 3S-12S (8V-60V) |

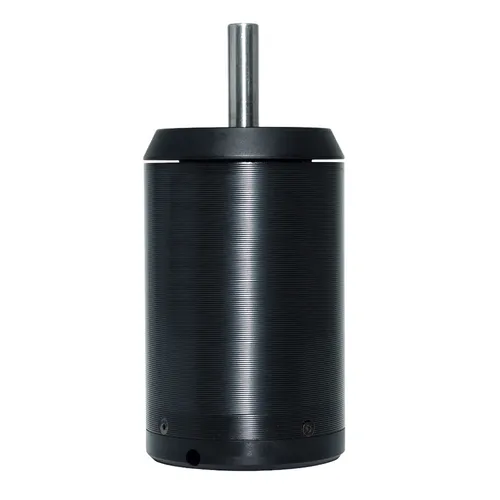

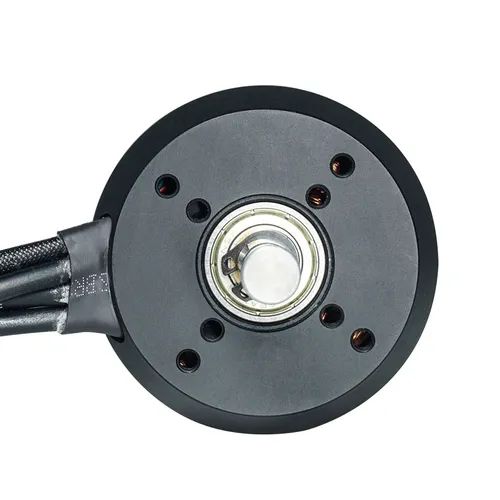

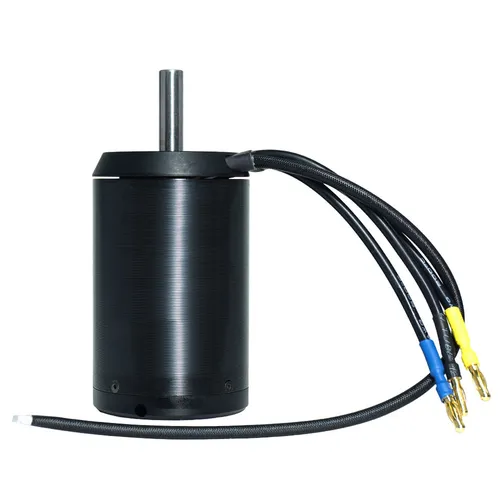

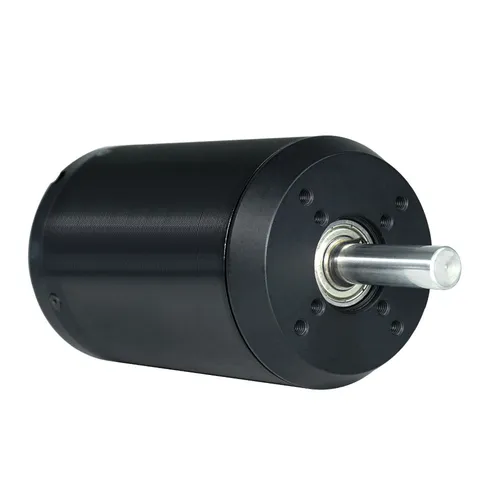

Product Display
The low-cost 140KV outrunner brushless sensored DC motor is a reliable and affordable motor designed for electric scooter applications. With its Hall element and precision design, this motor ensures maximum energy conversion efficiency. It operates with an input voltage range of 4-12S and can handle a current of up to 100A. The motor provides a high torque of 10N.m and comes with optional shaft diameters of 8mm or 10mm. It is engineered to deliver excellent performance and longevity.
Product Feature
High Torque Output
The 5000w 140kv motor delivers a powerful torque, essential for high-demand applications. Its exceptional strength ensures durability and reliable performance in various conditions.
Variable Speed Control
With a wide operational speed range, this motor provides users with precise speed control. This adaptability makes it perfect for a variety of applications, ensuring efficient performance.
Efficient Cooling System
Designed with an advanced cooling system, the motor maintains optimal temperatures, enhancing longevity and consistent performance during prolonged use.
Low Noise Operation
Engineered for quiet operation, this motor is ideal for use in noise-sensitive areas. Its low noise output allows for a more pleasant environment while in operation.
- Input voltage range of 4-12S for versatility in battery selection.
- High torque output of 10N.m for powerful propulsion.
- Optional shaft diameter of 8mm or 10mm to suit different scooter models.
- Precision design for maximum energy conversion efficiency.
- Excellent heat dissipation quality ensures reliable system operation.
- Waterproof and dustproof for enhanced durability.
- Low energy consumption and low noise for efficient and quiet operation.
- Long service life for extended usability.
Product Applications
Electric Vehicles
This motor is perfectly suited for electric vehicles, providing the necessary power and efficiency for improved performance and range.
Industrial Machinery
Its robustness makes it a prime choice for heavy-duty industrial machines, where reliable and consistent operation is critical.
Renewable Energy Projects
With its efficient power conversion, the motor is an excellent component for renewable energy projects, including wind and water turbines.
Recreational Devices
Ensuring smooth and reliable operation, it’s also great for powering various recreational devices, enhancing user experience with its performance.
Tips:Do brushless motors need sensors?
A sensorless brushless motor is quite simply a brushless motor that does not have a built-in sensor. A sensorless brushless motor requires a sensorless brushless motor controller (sometimes referred to as a brushless electronic speed controller or ESC) in order to work.
