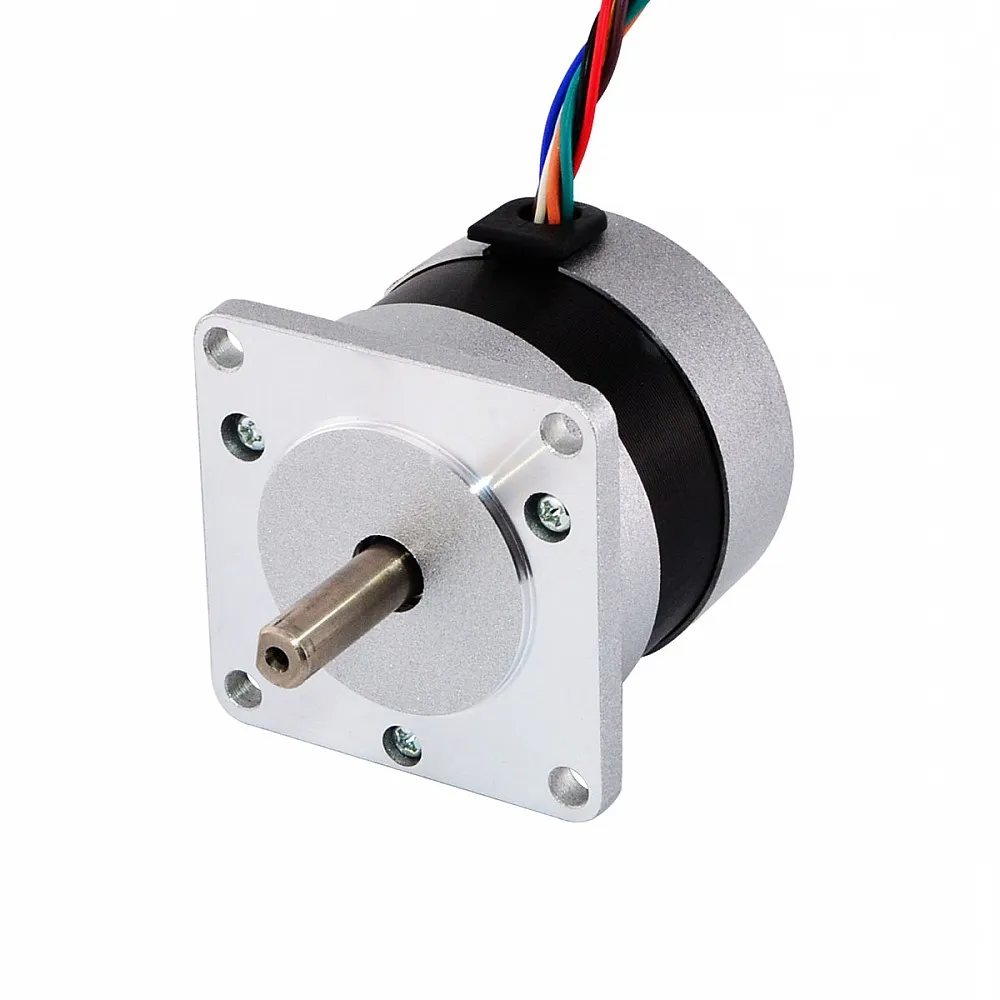

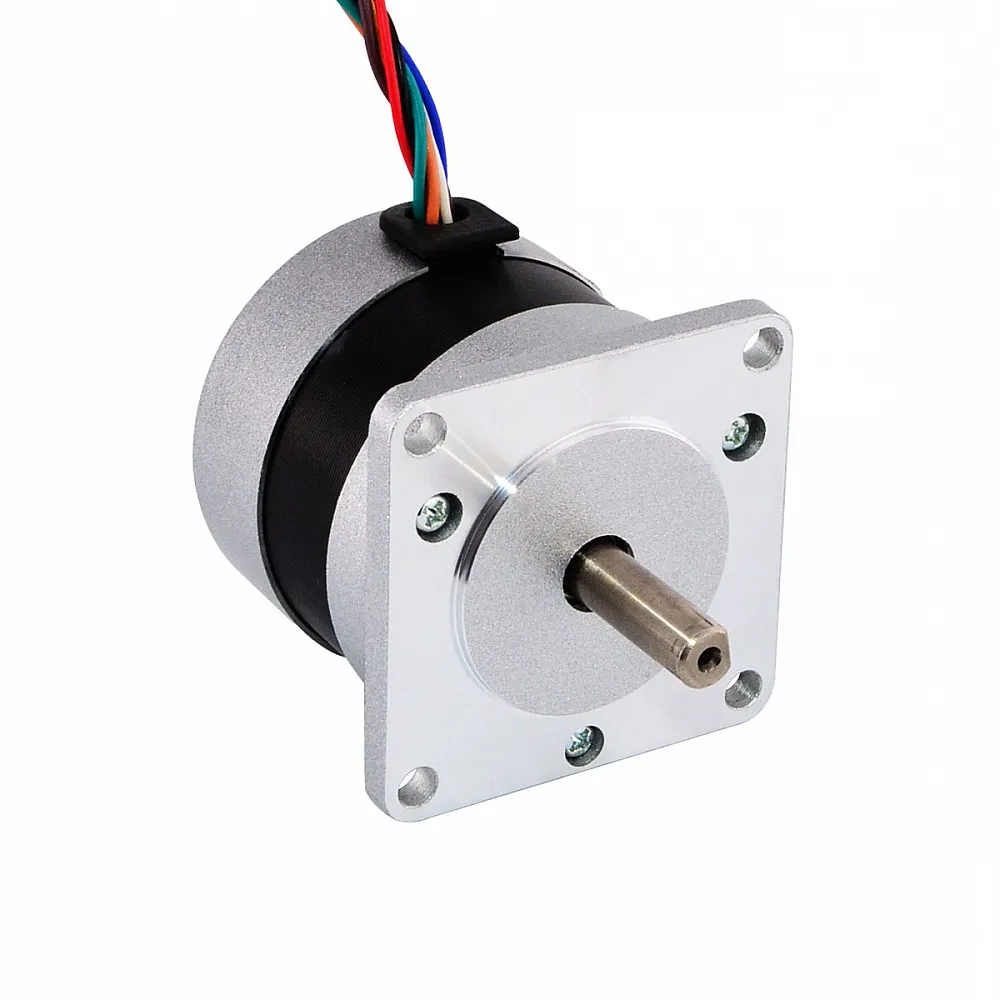

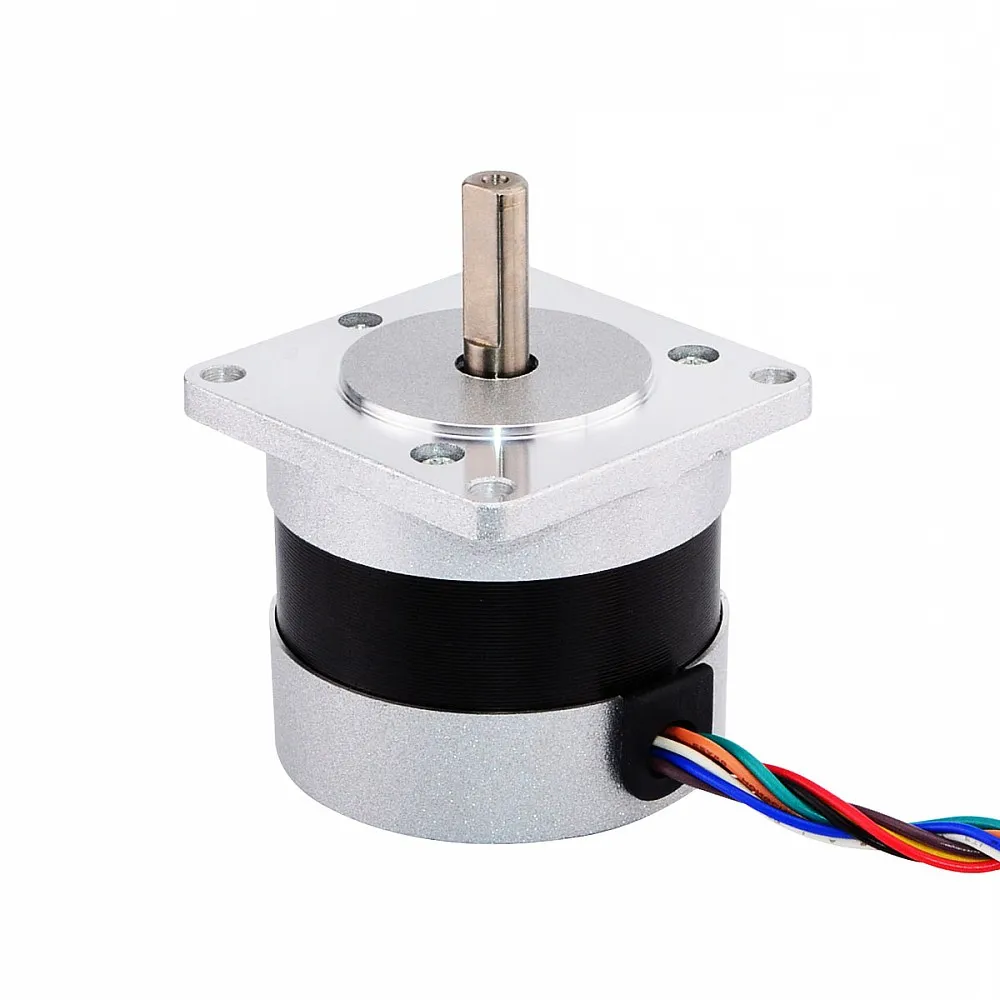

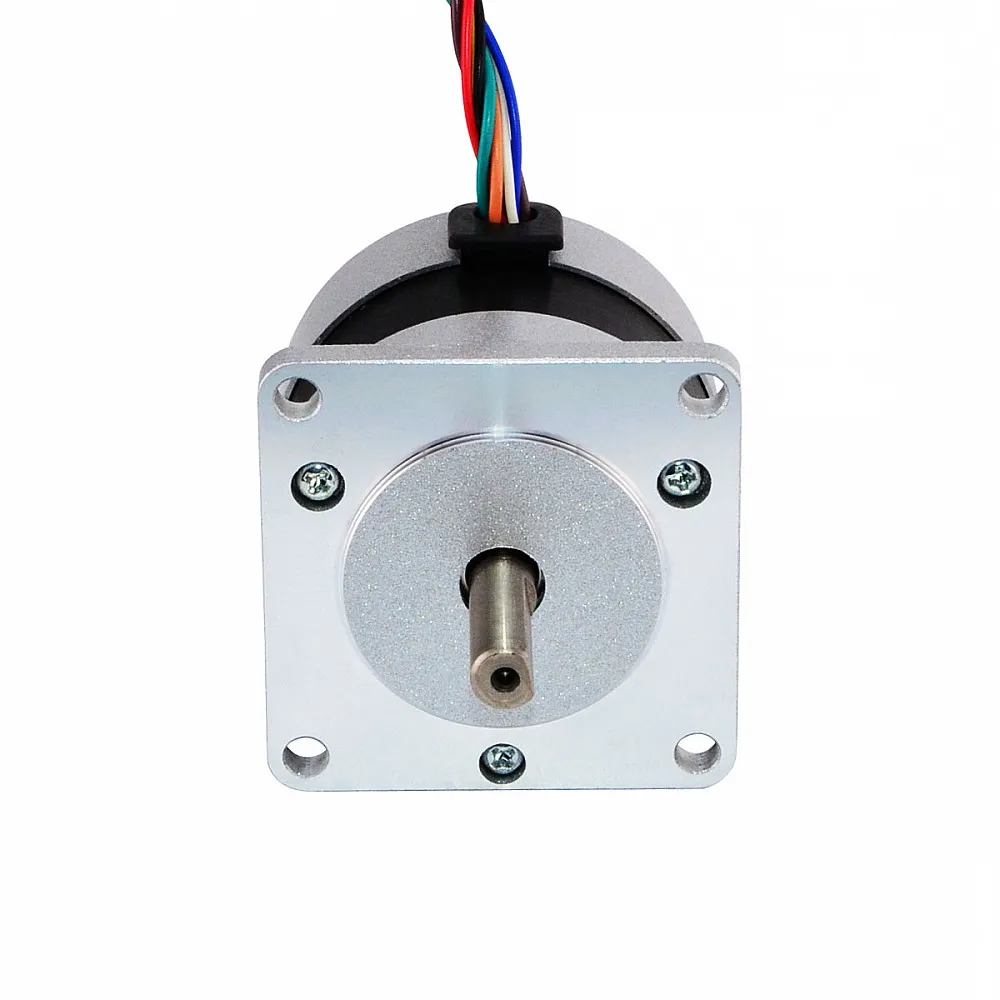

46W 36V 4000RPM 0.11Nm Brushless DC Motor
$24.85
46W 36V 4000RPM 0.11Nm Brushless DC Motor, a compact and efficient solution for applications that require precise control and low power consumption. Ideal for tasks such as small robotics, automation systems, and electric actuators, this motor delivers reliable performance and enhances overall efficiency.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 57BLR50-36-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 2 |
| Rated Power(W) | 46 |
| Rated Speed(rpm) | 4000 |
| Rated Torque(Nm) | 0.11 |
| Rated Voltage(V) | 36 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 49.1 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Shaft Type | D-cut |
| D-cut Length | 20mm |
| Number of Leads | 8 |
| Lead Length | 300mm |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 0.5kg |
