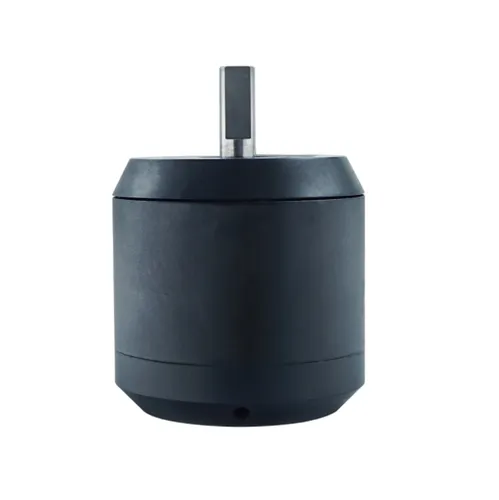

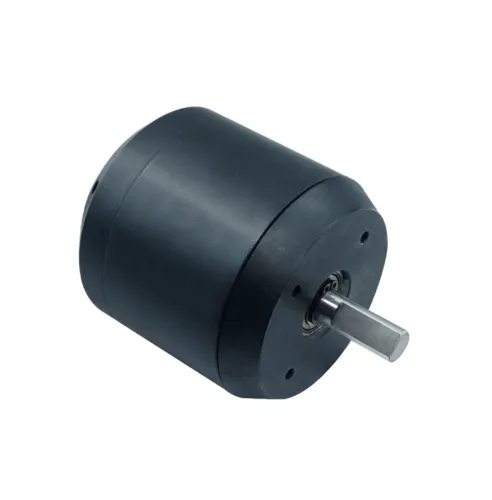

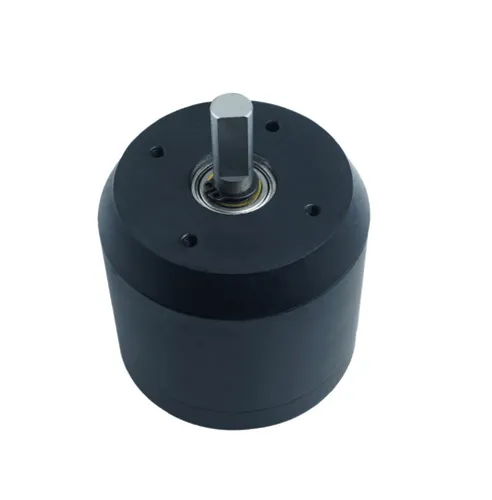

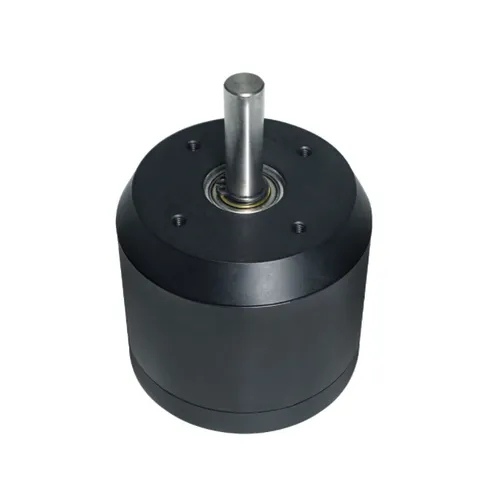

4300W 110KV 6-18S Outrunner Sensored Brushless DC Motor

Home > 4300W 110KV 6-18S Outrunner Sensored Brushless DC Motor

4300W 110KV 6-18S Outrunner Sensored Brushless DC Motor

$293.47

High power 4300W outrunner sensored brushless DC motor with a speed of 110KV, current of 100A, and power range of 6-18S. It offers a maximum torque of 9.5 Nm and has a 10mm shaft diameter. Suitable for RC aircraft, airplanes, multi-rotors, helicopters, fixed-wing aircraft, and robotic arms.

Motor TypeDC Motor

Power(W)4300

Voltage (V)8-60

Rated Speed (RPM/V)110

Model: BLDC-H7070
Max Power: 4000W (5 hp)
Rotation Speed KV (RPM/V): 110KV
Max Current: 100A
Motor Length: 70mm
Motor Diameter: 70mm
Weight: 1.2kg
Max Voltage: 4S~12S
Motor cable: 320mm 12AWG
Internal Resistance: 0.055 Ohm
Max Torque: 9.5 N.m
Shaft Diameter: 10mm

Note: 12S batteries power the motor, S is the number of batteries, the voltage of every battery is 3.7V DC.

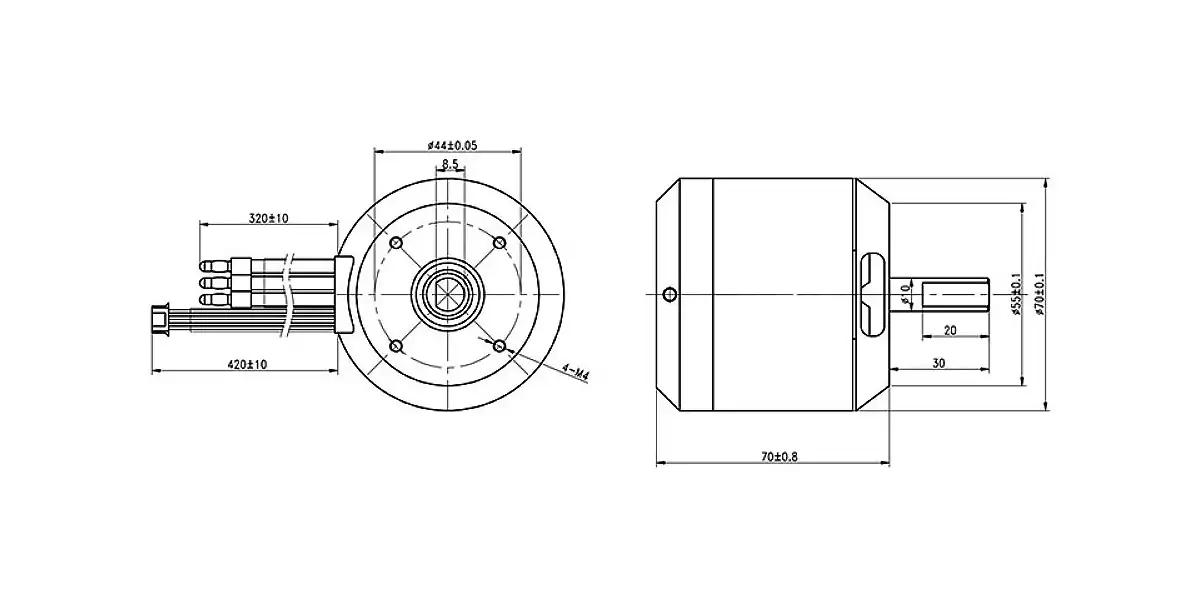

Dimensions(Unit: mm)

4300W 110KV 6-18S Outrunner Sensored Brushless DC Motor

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

  • The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
  • Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
  • The limit speed of the V4 series ESC is 60000 ERPM.The limit speed of the V6 series ESC is 15000 OERPM.
  • If the maximum speed of the BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of the motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model Current Value Number of Batteries (Input Voltage)
FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
FSESC 4.20 Continuous 50A, peak 240A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integrated Continuous 70A, peak 200A 3S-12S (8V-60V)
VESC4 dual drive integration * 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

High power 4300W outrunner sensored brushless DC motor with a speed of 110KV, current of 100A, and power range of 6-18S. It offers a maximum torque of 9.5 Nm and has a 10mm shaft diameter. Suitable for RC aircraft, airplanes, multi-rotors, helicopters, fixed-wing aircraft, and robotic arms.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

High Power Output and Efficiency

The 4300W power rating alongside the 110KV speed provides exceptional performance, ensuring maximum efficiency for demanding applications.

Advanced Torque Capability

With a maximum torque of 9.5 Nm, this motor delivers the thrust required for high-torque applications, enabling robust and dynamic operation.

Wide Voltage Range Compatibility

Accommodates a broad voltage range from 8V to 60V, making it versatile for use in a variety of electronic speed control (ESC) systems.

Reliable Sensored Operation

The integration of sensors allows for precision control and feedback, which is crucial for applications requiring acute performance monitoring.

Durable and Robust Design

Constructed to withstand rigorous usage, this motor is built for longevity and reliability, assuring continuous operation with minimal maintenance.

Optimized for Custom Applications

The 10mm shaft diameter enables compatibility with a wide range of setups, catering to custom project requirements.

  • Speed of 110KV for efficient performance.
  • Max power output of 4300W and current rating of 100A.
  • Highest torque of 9.5 Nm for enhanced propulsion.
  • 10mm shaft diameter for compatibility with various applications.
  • Sensored design for precise control and feedback.
  • Reliable and durable construction for long-lasting usage.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Remote-Controlled (RC) Vehicles and Aircraft

Perfect for RC enthusiasts, this motor is suitable for aircraft, multi-rotors, helicopters, and fixed-wing aircraft, providing efficiency and reliability.

Robotic Arms and Machinery

With its impressive torque, the motor excels in robotics, energizing arms and equipment that require exactitude and strength.

Personal Electric Transportation

Ideal for electric skateboards and longboards, the motor delivers smooth acceleration and ample power to enhance the riding experience.

Specialized Combat Robotics

Combat robots demand high-performance motors that offer reliable and consistent torque, which this motor delivers with ease.

Note: Please ensure the motor is used in compliance with safety guidelines and regulations, and consider the specific requirements and limitations of your application.

Tips:Can an outrunner sensored brushless motor run without a Hall sensor?

If an outrunner sensored brushless DC motor without a Hall sensor is broken, it cannot be replaced with a brushless DC motor with Hall sensor. These two motors have different hardware drive circuits and different program codes, and the replacement brushless motor will not work.
