Home / 40W 90mm Flange Electric AC Gear Motor

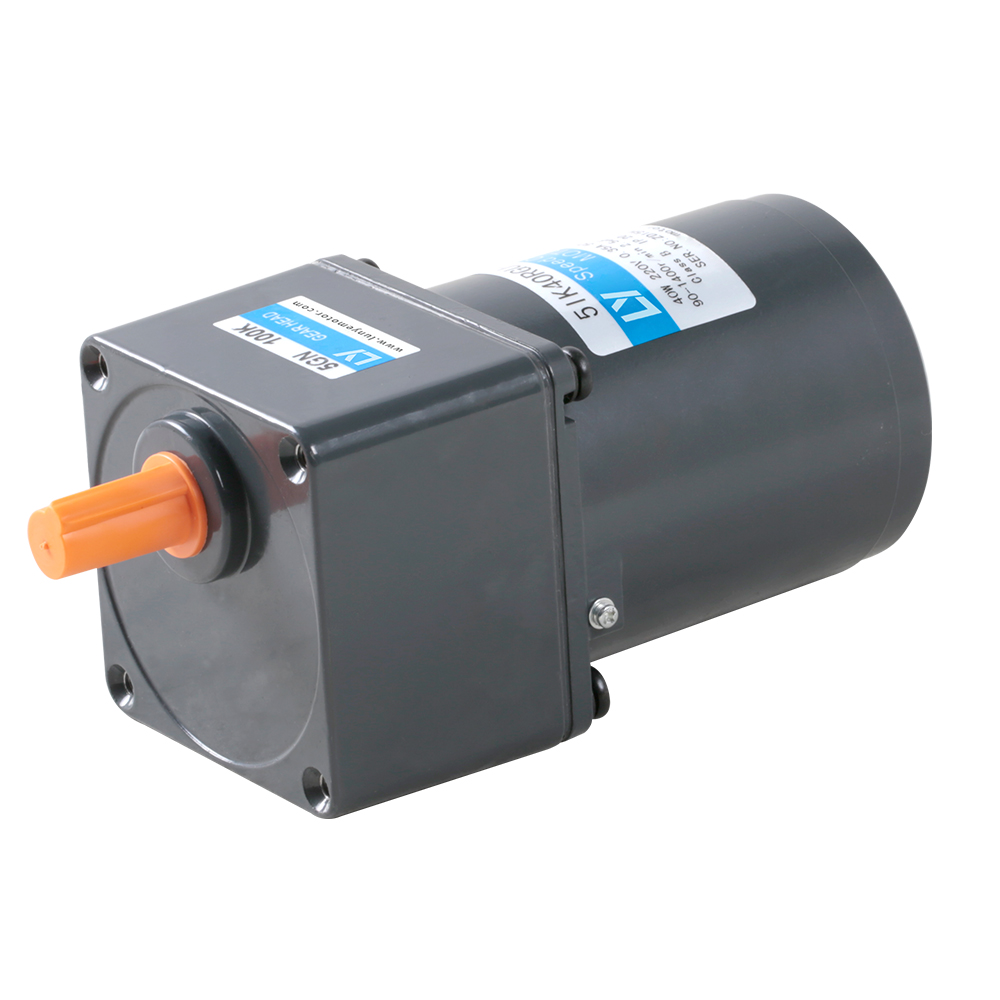

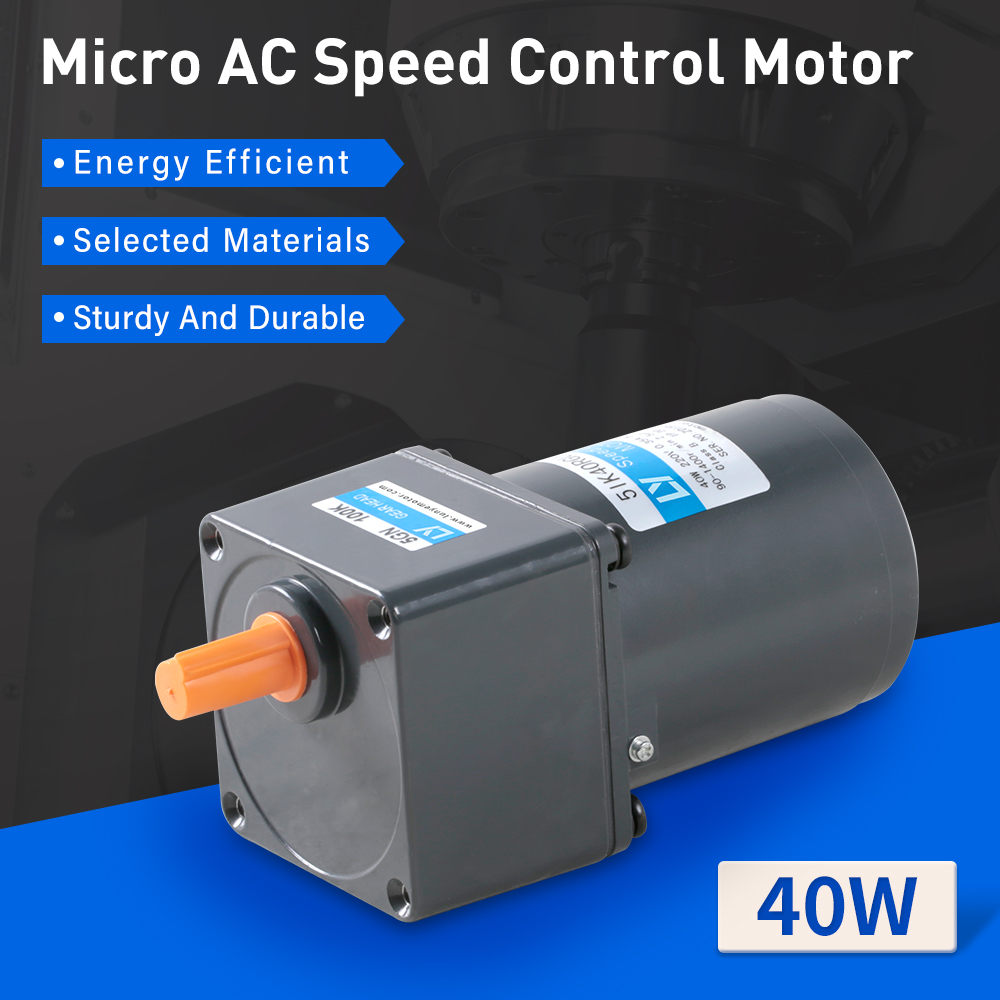

40W 90mm Flange Electric AC Gear Motor

$43.33-$46.58

This 40W 90mm AC gear motor provides highly efficient operation in a compact size. Featuring a wide range of speeds, adjustable torque, and low noise levels, it is perfect for powering motorized machines. With an impressive power-to-weight ratio, this motor is the ideal choice for projects requiring reliable, yet compact power.

Motor TypeSpeed Adjustable Motor

Output Power (W)40

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)90-1350/1650

Motor Type
Lead Wire Type
Output power
W
Voltage
V
Frequency
Hz
Speed Control
Range
r/min
Rated Torque Starting Torque
mN.m
Current
A
Capacitor
μF
Pinion Shaft
5IK40RGN-A 5IK40RA-A 40 1ph100 50 90-1400 260 70 180 0.95 12
5IK40RGN-A 5IK40RA-A 40 1ph100 60 90-1700 260 70 180 0.95 12
5IK40RGN-E 5IK40RA-E 40 1ph110 60 90-1700 260 65 180 1.05 8
5IK40RGN-E 5IK40RA-E 40 1ph120 60 90-1700 260 65 180 0.23 8
5IK40RGN-C 5IK40RA-C 40 1ph220 50 90-1400 300 75 160 0.55 2.5
5IK40RGN-C 5IK40RA-C 40 1ph230 50 90-1400 300 75 160 0.55 2.5
5IK40RGN-H 5IK40RA-H 40 1ph220 60 90-1700 230 70 145 0.55 2.5
5IK40RGN-H 5IK40RA-H 40 1ph230 60 90-1700 230 70 145 0.55 2.5

Product Display

Speed adjustable motor is applied with a variable frequency drive or comparable technology to regulate motor speed and torque. Variable speed motors enable goods and manufacturing facilities to significantly decrease the amount of energy spent by the motors in their devices by putting these critical variables of motor performance under the control of the operator.

Product Feature

Compact Design, Powerful Operation

With an impressive power-to-weight ratio, this motor packs power in a small form factor, making it ideal for projects that require reliable, yet compact power.

Speed Adjustability

A versatile performer offering a wide range of adjustable speeds, delivering precise operational control.

Excellent Torque Control

Enable torque limit adjustments to cater to specific operational needs, improving efficiency and product integrity.

Quiet Operation

Designed for low noise levels, it ensures minimal disturbances during operation, improving overall work environment.

Energy Efficiency

Embedding features like controlled current startup and variable speed operation cut down energy consumption, thus offering an eco-friendly, economical solution.

Product Applications

Motorized Machines

Perfect fit for motorized machines necessitating adjustable speed and torque, contributing to enhanced system performance and efficiency.

Conveyor Systems

From food processing lines to warehouse conveyors, it offers adjustable speed and reliable operation for safe, seamless process flow.

Automation Equipment

Proves invaluable in automated equipment where precise control of speed and torque increases accuracy and productivity.

Compact Machinery

An ideal choice for compact machines where form factor and power efficiency is vital, without compromising on performance.

Environmental Control Systems

From HVAC systems to water treatment plants, its energy efficiency and performance characteristics make it a reliable choice.

Available Options

  1. Voltage
  2. Output Power
  3. Rated Speed
  4. Torque
  5. IP Grade

Technical Documents

Layout DrawingInstallation GuideLayout Drawing

Videos

Certificate

After-sale warranty

Warranty Period

The Manufacturer warrants that the motor product shall be free from defects in material and workmanship under normal use and service for a period of 24 months from the date of installation or 30 months from the date of shipment from the factory, whichever occurs first.

This warranty covers the repair or replacement, at the Manufacturer's option, of any part that fails due to defects in material or workmanship during the warranty period, provided that:

  1. The motor is installed, operated and maintained in accordance with the Manufacturer's instructions and recommendations.
  2. Written notice of the defect is provided to the Manufacturer within the warranty period.
  3. The motor is returned to the Manufacturer's factory or authorized service center, with transportation charges prepaid by the customer.
  4. Examination by the Manufacturer confirms the alleged defect was not caused by misuse, neglect, improper installation, unauthorized repair or alteration, accident, or abnormal conditions of operation.

This warranty does not cover normal wear and tear, nor any consumables such as bearings, brushes, shafts, etc. The Manufacturer's liability under this warranty is limited to the repair or replacement of the motor, and does not include any responsibility for incidental or consequential damages.

This warranty is the sole and exclusive warranty provided by the Manufacturer and is in lieu of any other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose.

Training Resources

The Manufacturer offers comprehensive training resources to ensure proper installation, operation, and maintenance of its electric motor products. These training resources include:

  1. Installation and Operation Manuals:
    • Detailed step-by-step instructions for safe and effective installation
    • Guidance on proper operating procedures and parameters
    • Troubleshooting guides to address common issues
  2. Online Training Videos:
    • Instructional videos covering installation, configuration, and maintenance
    • Demonstrations of advanced features and programming
    • Tutorials on optimizing motor performance and efficiency
  3. Technical Support Hotline:
    • Direct access to the Manufacturer's team of motor experts
    • Assistance with application-specific questions and problems
    • Advice on upgrading, retrofitting, or replacing motor systems
  4. Hands-on Training Workshops:
    • In-person training sessions held at regional locations
    • Opportunity to work directly with the Manufacturer's technicians
    • Comprehensive curriculum covering all aspects of motor ownership
  5. Maintenance and Repair Guides:
    • Guidelines for routine inspections, cleaning, and preventive maintenance
    • Procedures for diagnosing and repairing common motor failures
    • Recommendations for spare parts inventory and scheduled replacements

The Manufacturer is committed to ensuring customer success through extensive training resources and technical support. Contact your sales representative to learn more about the available training options for your specific motor requirements.

Purchase Notes

  1. Determine the required motor power, speed, and torque based on your application needs.
  2. Consider the motor type (e.g. AC, DC, servo) that best suits your requirements.
  3. Ensure the motor's frame size, mounting, and shaft configuration match your existing or planned setup.
  4. Check the motor's efficiency, noise level, and operating temperature range.
  5. Verify the motor's certifications and compliance with relevant safety standards.
  6. Evaluate the motor's warranty coverage and after-sales support.
  7. Compare quotes from multiple reputable suppliers to get the best value.
  8. Plan for any additional accessories or control components needed for a complete motor system.
  9. Consult with technical experts if you have any questions or require application-specific recommendations.
  10. Account for shipping time and lead-in when ordering to avoid production delays.
