40W 220V 1/3phase small ac motor with terminal box and brake

40W 220V 1/3phase small ac motor with terminal box and brake

Name: 40W 220V 1/3phase small ac motor with terminal box and brake
Price: 22.61 USD
Availability: InStock

$20.19-$22.61

This 40W 220V 1/3phase small ac motor is a reliable, low-power motor with a built-in terminal box and brake, making it a great choice for light industry applications. It provides reliable performance and long lasting operation, perfect for commercial and residential use.

Get a Quote Leave a Message

Model Type

Output Power (W)()40

Voltage (V/Hz)()220

Rated Speed (r/min)()1250/1550/1600

SPECIFICATIONS

Motor Type Lead Wire Type		Rating	Output power W	Voltage V	Frequency Hz	Current A	Starting torque mN.m	Rated tourque mN.m	Rated speed r/min	Capacitor μF
Pinion Shaft	Round Shaft	Rating	Output power W	Voltage V	Frequency Hz	Current A	Starting torque mN.m	Rated tourque mN.m	Rated speed r/min	Capacitor μF
5RK40GN-AM	5RK40A-AM	30min	40	1ph100	50	0.78	300	315	1200	15
5RK40GN-AM	5RK40A-AM	30min	40	1ph100	60	1.05	300	260	1550	15
5RK40GN-EM	5RK40A-EM	30min	40	1ph110	60	0.79	260	260	1550	12
5RK40GN-EM	5RK40A-EM	30min	40	1ph120	60	0.8	260	260	1550	12
5RK40GN-CM	5RK40A-CM	30min	40	1ph220	50	0.45	270	315	1250	3
5RK40GN-CM	5RK40A-CM	30min	40	1ph230	50	0.45	270	315	1250	3
5RK40GN-HM	5RK40A-HM	30min	40	1ph220	60	0.45	270	260	1550	3
5RK40GN-HM	5RK40A-HM	30min	40	1ph230	60	0.45	270	260	1550	3
5IK40GN-SM	5IK40A-SM	Cont	40	3ph220	0.3	800	315	1250	1250	3
5IK40GN-SM	5IK40A-SM	Cont	40	3ph220	0.25	600	250	1600	1550	3

Product Display

A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.

Product Feature

Compact and Efficient

This small AC motor provides efficient performance in a compact size, making it ideal for applications where space is limited.

Multi-Phase Compatibility

Supports both single-phase and three-phase power, offering versatility for various electrical setups and requirements.

Integrated Brake System

Equipped with a built-in brake, ensuring precise control and safety in applications that require immediate stopping and holding.

Durable Construction

Constructed with high-quality materials and a robust terminal box, ensuring long-lasting durability and reliable operation in industrial environments.

Product Applications

Conveyor Systems

Ideal for use in conveyor systems, providing reliable and controlled motion for material handling in manufacturing and logistics.

Packaging Equipment

Perfect for packaging machinery, offering precise control for operations such as wrapping, sealing, and labeling.

Textile Machinery

Suitable for textile machines, enabling accurate and efficient control of processes like spinning, weaving, and knitting.

Automation Systems

Essential for various automation systems, providing consistent and reliable performance in automated production lines and equipment.

Videos

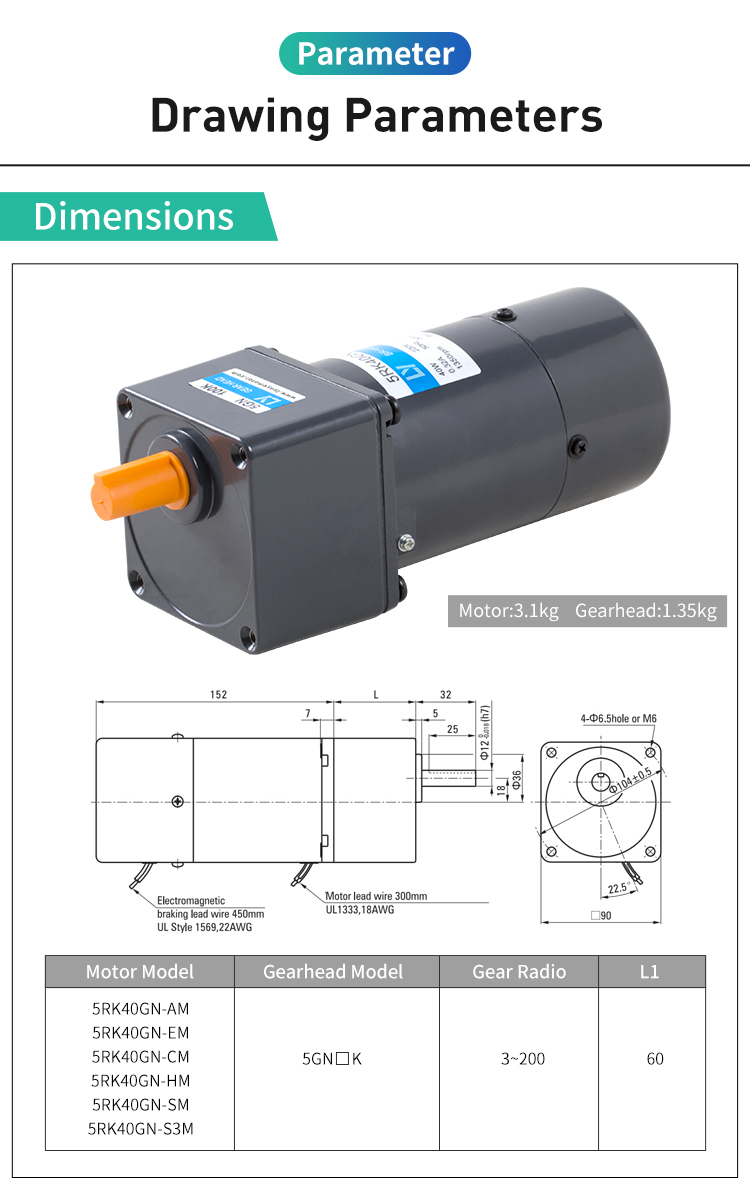

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
