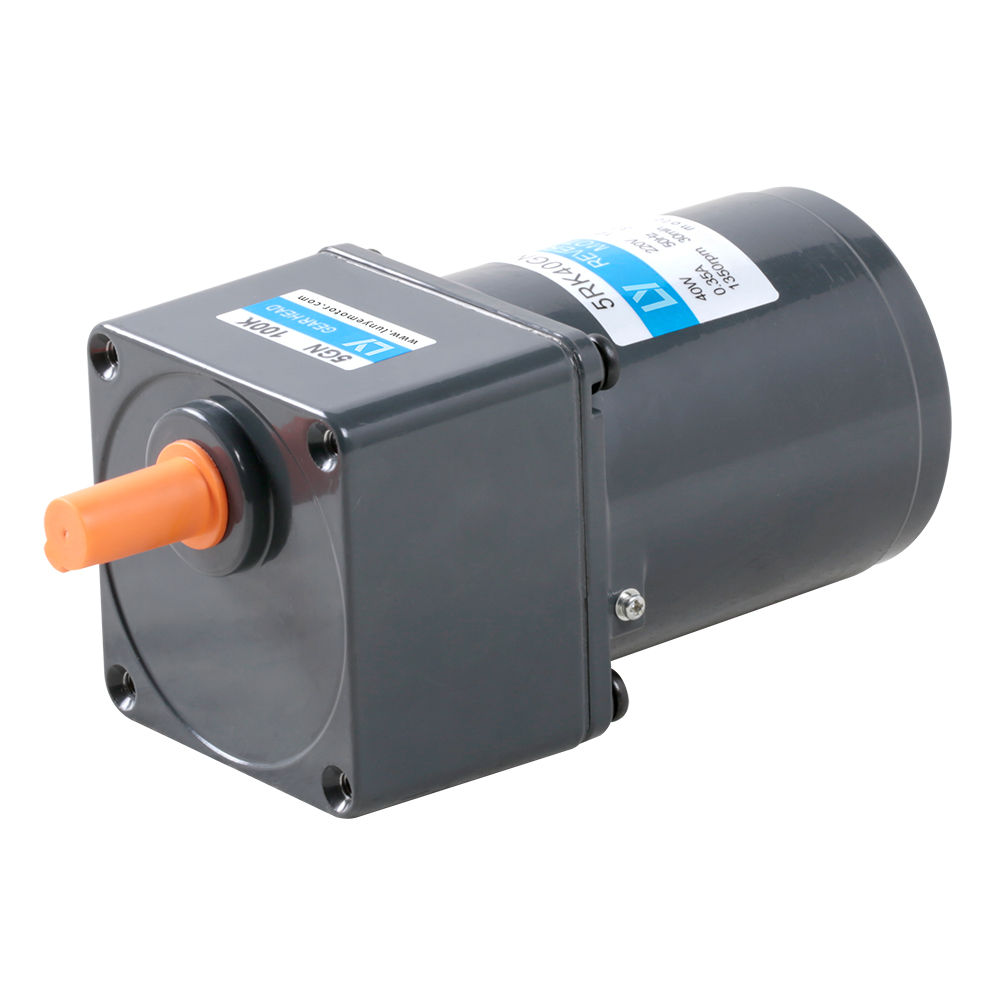

40W 1phase AC Geared Motor

Home > 40W 1phase AC Geared Motor

40W 1phase AC Geared Motor

$43.33 - $46.58

This 40W 1phase AC Geared Motor offers powerful performance and reliable operation. With its industry-grade quality and long-lasting durability, it is ideal for industrial motor applications. Enjoy consistent torque and speed over a wide range of applications.

Motor TypeReversible Motor

Output Power (W)40

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)1250/1550


Model Type
Above:gearbox
below in():round shaft
Output power
W
Voltage
V
Frequency
Hz
Current
A
Starting torque
mN.m
Rated tourque
mN.m
Rated speed
r/min
Capacitor
μF
Lead Wire Type Terminal Box Type
5RK40GN-A 5RK40GN-AT 40 1ph100 50 0.78 300 315 1250 15
(5RK40A-A) (5RK40A-AT) 40 1ph100 60 1.05 300 260 1550 15
5RK40GN-E 5RK40GN-ET 40 1ph110 60 0.79 260 260 1550 12
(5RK40A-E) (5RK40A-ET) 40 1ph120 60 0.8 260 260 1550 12
5RK40GN-C 5RK40GN-CT 40 1ph220 50 0.45 270 315 1250 3
(5RK40A-C) (5RK40A-CT) 40 1ph230 50 0.45 270 315 1250 3
5RK40GN-H 5RK40GN-HT 40 1ph220 60 0.45 270 260 1550 3
(5RK40A-H) (5RK40A-HT) 40 1ph230 60 0.45 270 260 1550 3

Overview

Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.

  • 1. Saves space High effectiveness
  • 2. Reliable and long-lasting
  • 3. Powerful torque Low velocity
  • 4. High capacity for overload
  • 5. Outstanding performance
  • 6. Minimal energy consumption
  • 7. Numerous range of applications
