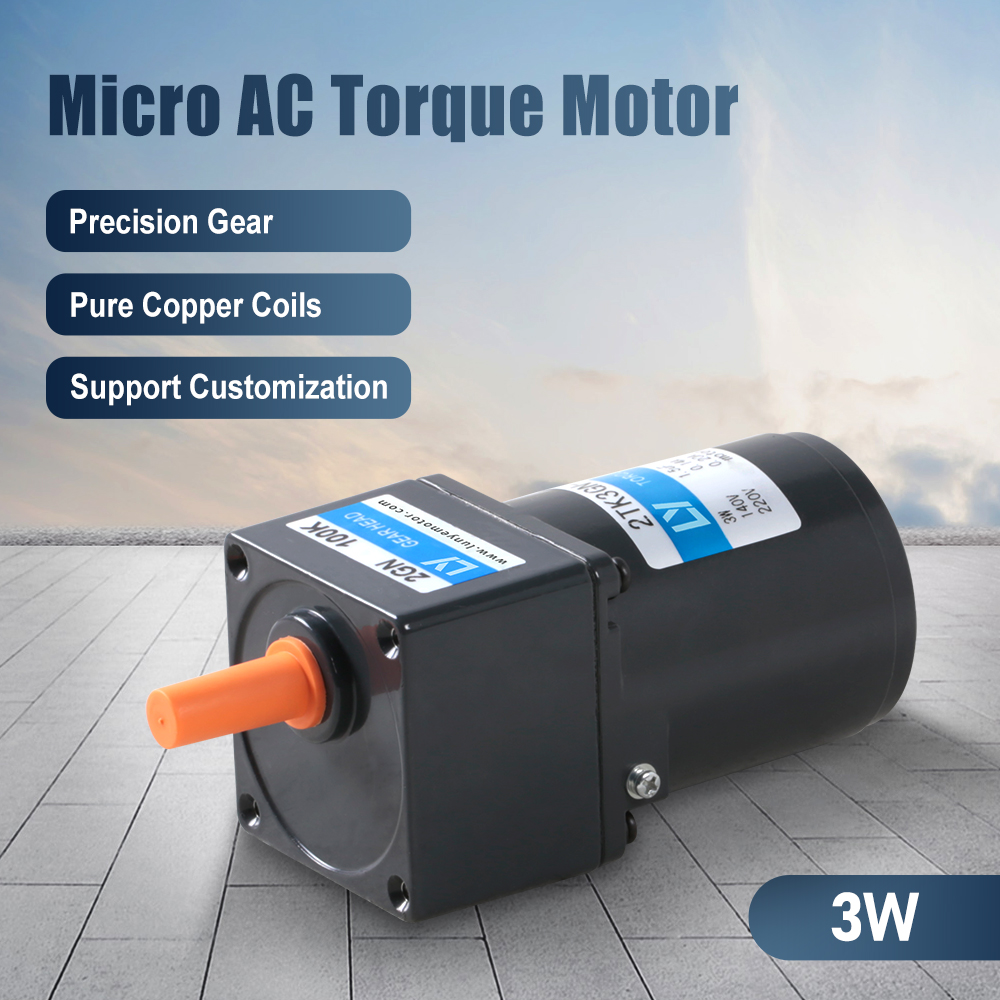

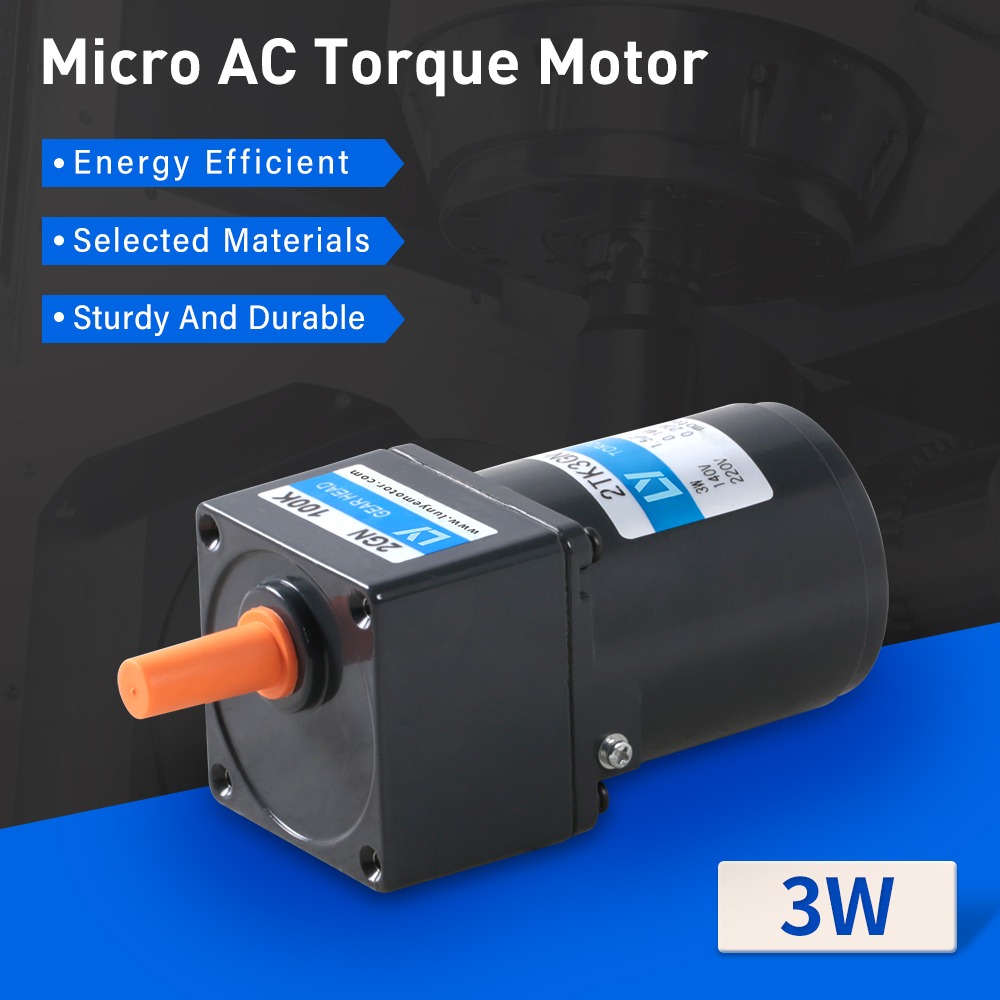

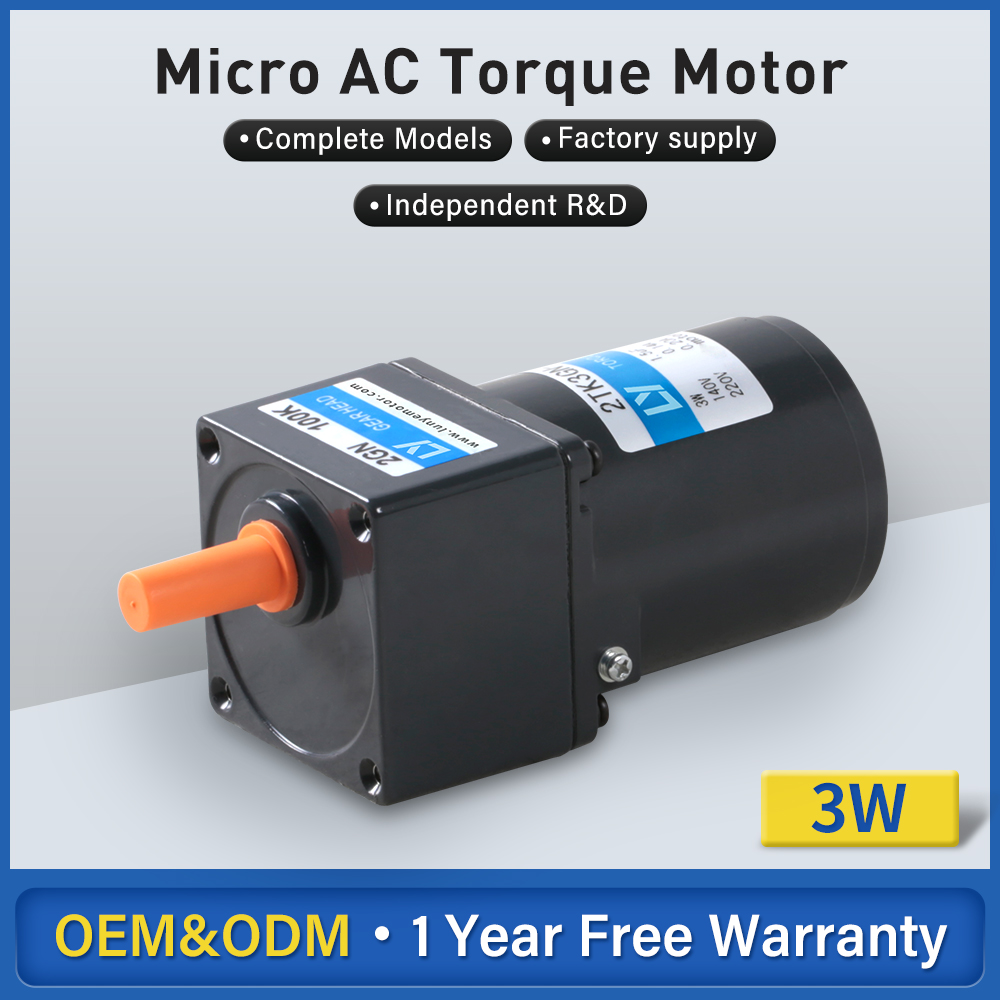

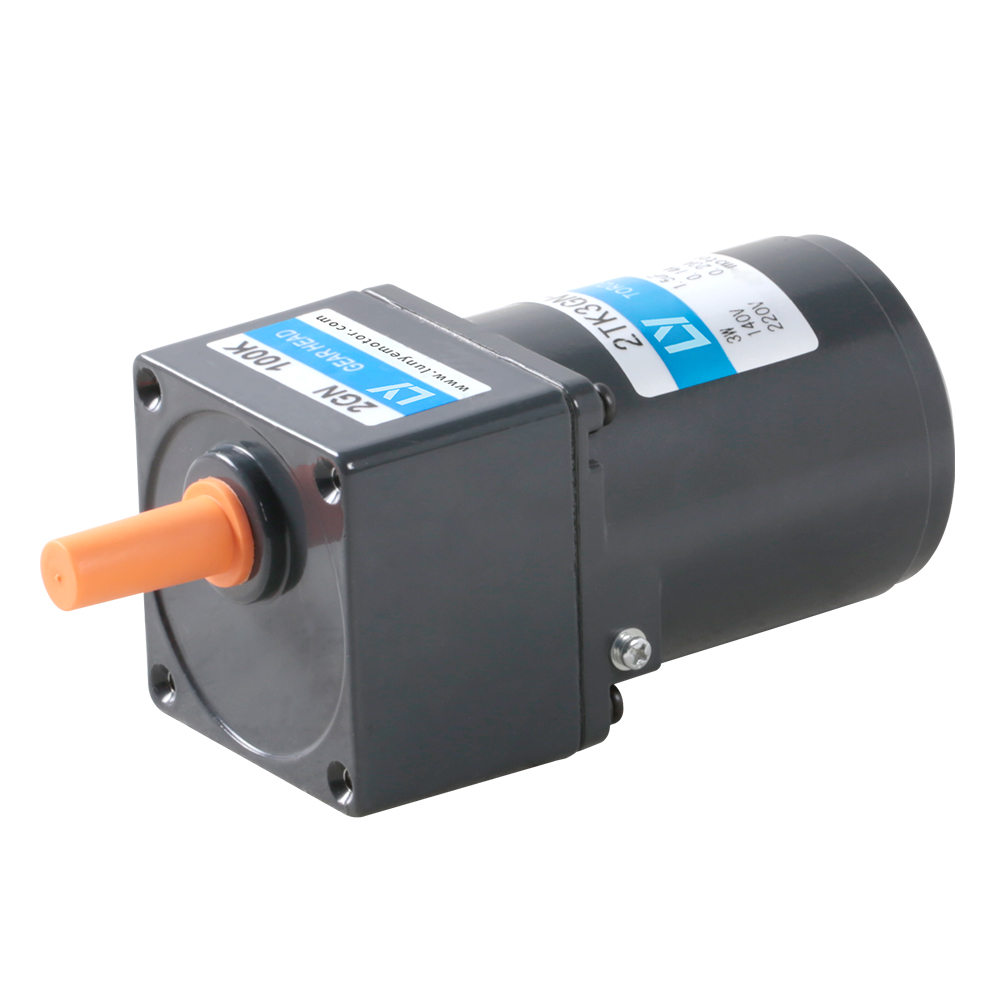

3W Micro AC Low RPM High Torque Motor

Home > 3W Micro AC Low RPM High Torque Motor

3W Micro AC Low RPM High Torque Motor

$11.60

This 3W micro AC low RPM high torque motor is perfect for applications requiring high levels of accuracy and torque with low operation noise. With a no-load speed of up to 6500 rpm and a rated torque of up to 30 mN.m, this motor is both powerful and efficient.

Motor TypeTorque Motor

Output Power (W)3

Voltage (V/Hz)60-220 50/60

Rated Speed (r/min)750/900

Model Type
Lead Wire Type
Rating At
Locked rotor
Voltage
V
Frequency
Hz
Starting Torque
mN.m
Max. Output power
W
Speed at Max. Output power
r/min
Torque at Max. Output power
mN.m
Capacitor
μF
Pinion Shaft Roung Shaft
2TK3GN-A 2TK3A-A 5MIN
CONT
110
60
50 69
25
3.2
1.3
750 41
16
7/250
2TK3GN-A 2TK3A-A 5MIN
CONT
110
60
60 69
25
3.2
1.3
900 37
11
6/250
2TK3GN-C 2TK3A-C 5MIN
CONT
220
140
50 69
25
3.2
1.2
750 41
16
1.5/450
2TK3GN-C 2TK3A-C 5MIN
CONT
220
140
60 69
25
3.2
1.2
900 37
11
1.2/450
3TK6GN-A 3TK6A-A 5MIN
CONT
110
60
50 134
68
6
2.5
750 80
36
8/250
3TK6GN-A 3TK6A-A 5MIN
CONT
110
60
60 134
68
6.5
2.8
900 74
30
7/250
3TK6GN-C 3TK6A-C 5MIN
CONT
220
140
50 134
68
6
2.5
750 80
36
2/450
3TK6GN-C 3TK6A-C 5MIN
CONT
220
140
60 134
68
6.5
2.8
900 74
30
1.5/450
4TK10GN-A 4TK10A-A 5MIN
CONT
110
60
50 235
74
10
3
750 127
46
10/250
4TK10GN-A 4TK10A-A 5MIN
CONT
110
60
60 69
25
10
3
900 127
38
8/250
4TK10GN-C 4TK10A-C 5MIN
CONT
220
140
50 265
98
10
3
750 127
46
2.5/450
4TK10GN-C 4TK10A-C 5MIN
CONT
220
140
60 225
90
10
3
900 127
38
2/450
5TK20GN-A 5TK20A-A 5MIN
CONT
110
60
50 363
137
20
6
750 224
76
15/250
5TK20GN-A 5TK20A-A 5MIN
CONT
110
60
60 294
108
26
6
900 216
64
12/250
5TK20GN-C 5TK20A-C 5MIN
CONT
220
140
50 363
137
20
6
750 224
76
3.5/450
5TK20GN-C 5TK20A-C 5MIN
CONT
220
140
60 216
64
26
6
900 216
64
3/450

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Torque motors have a high starting torque and torque motors have a high starting torque and sloping characteristics, allowing easy speed control simply by changing the power supply voltage. (The motor torque varies approximately in proportion to the voltage square.)

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Substantial Torque Capacity

Designed to deliver power in demanding scenarios, our AC gear motor impresses with a remarkable 16Nm torque. This robust capability empowers your heavy-duty applications, ensuring consistent performance even in strenuous conditions.

Speed You Control

Experience unparalleled control with our AC gear motor's expansive speed range of 0-135RPM. A broad speed spectrum offers vital versatility, allowing for keen operational precision and dynamic adaptability in response to task demands.

Reversible Functionality

Engineered for maximum convenience, our AC motor effortlessly switches rotational directions, a critical offering for equipment requiring direction shifts, such as hoists and conveyor systems. This flexibility empowers applications where bidirectional functionality is indispensable.

Eco-friendly Efficiency

Optimized for energy conservation, the AC gear motor design reduces operational costs while promoting sustainability. This efficiency, crucial in continuous industrial usage, not only minimizes energy drain but ensures optimal resource utilization.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Industrial Equipment

Ideal for harsh industrial environments, our AC gear motor delivers consistent power with adaptability to fluctuating loads. Its application spans industrial mixers, conveyor systems, and other heavy-duty machinery, promising reliability amid demanding conditions.

Robotics

Providing precision and controlled speed variations, our AC gear motor is a preferred choice for robotics. The dependable component driving robotic systems and industrial automation, it facilitates fine-tuned movements and positioning within collaborative robots (cobots) and beyond.

Automotive Solutions

Essential in the automotive realm, our AC gear motor powers vital equipment requiring reverse functionality and torque. As the versatile motor behind assembly lines and maintenance platforms, it ensures smooth, reliable operation within any automotive machinery.

Agriculture Machinery Powerhouse

Matching the rugged demands of agricultural equipment processing, our AC gear motor is a reliable choice for harvesting and material handling machinery. From powering grain augers and harvesters to conveyors and feed mixers, it delivers unyielding strength and reliability.

Home Appliance Applications

Our AC gear motor's efficiency and adaptability make it uniquely suitable for home appliance manufacturing. As a quiet, durable, and precisely controllable component within washing machines, dishwashers, dryers and beyond, it is the motor choice for a range of appliances.

Customizable Solutions

Beyond the outlined industry applications, our AC gear motor is customizable to a host of other specialized tasks across varied sectors. From specialized equipment to unique machinery and applications, our motor can be tailored to your specific industry needs and challenges.
