Home / 3kW Air Cooling BLDC Motor for Electric Vehicle

3kW Air Cooling BLDC Motor for Electric Vehicle

$908.65

3kW air-cooled brushless DC motor, specially designed for electric vehicles and other applications. High torque-to-weight ratio, lightweight, efficient and low-noise, help your vehicle to the next level!

Model Type

Power(KW)()2-3

Voltage (V)()48

Rated Speed (rpm)()3000-5000

SPECIFICATIONS

3kW Air Cooling BLDC Motor for Electric Vehicle
Model: BLDC-HPM3000A
Voltage: 48V/60V/72V
Rated Power: 2kW-3kW
Peak Power: 6kW
Rated Current: 75A/55A
Max Phase Current: 240A/220A
Protection Class: IP54
Efficiency: >90%
Rated Speed: 3600 rpm
Rated Torque: 10 N.m
Peak Torque: 25 N.m
Poles: 8
Weight: 8kg
Matched Controller: BLDC-VEC200
Cooling System: Air cooling
Dimension: 18cm dia. 12.5cm height
Measurement: 25cm*25cm*26cm/CTN

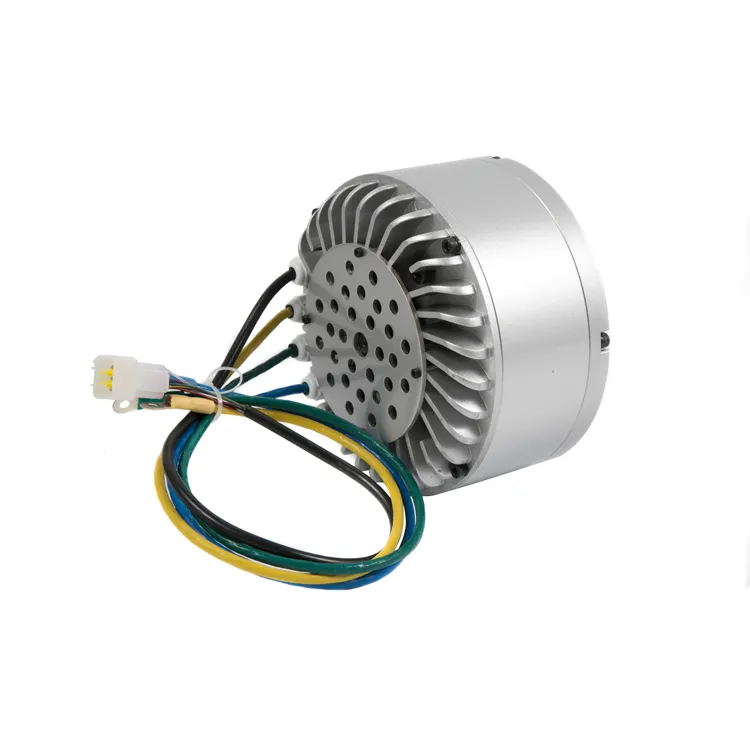

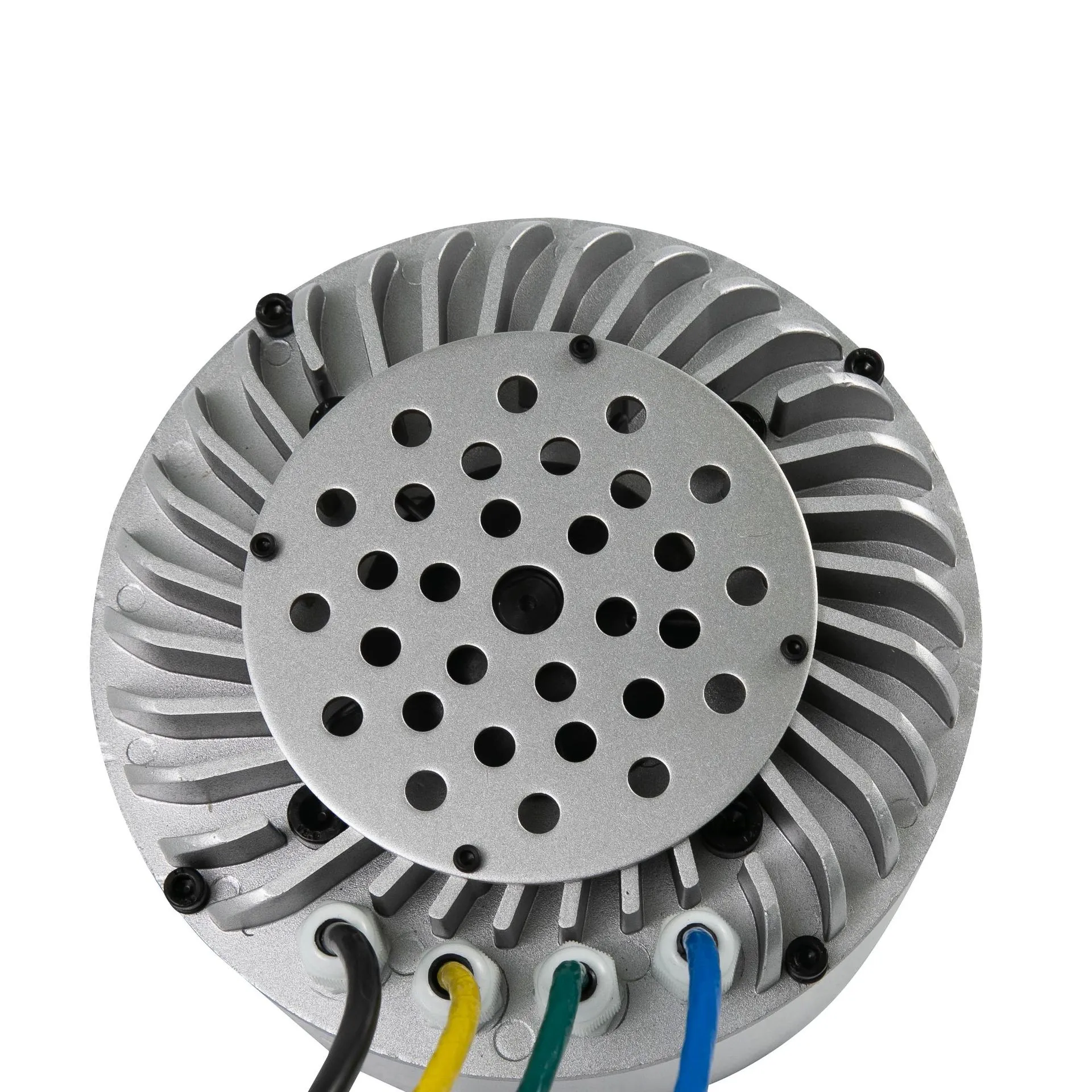

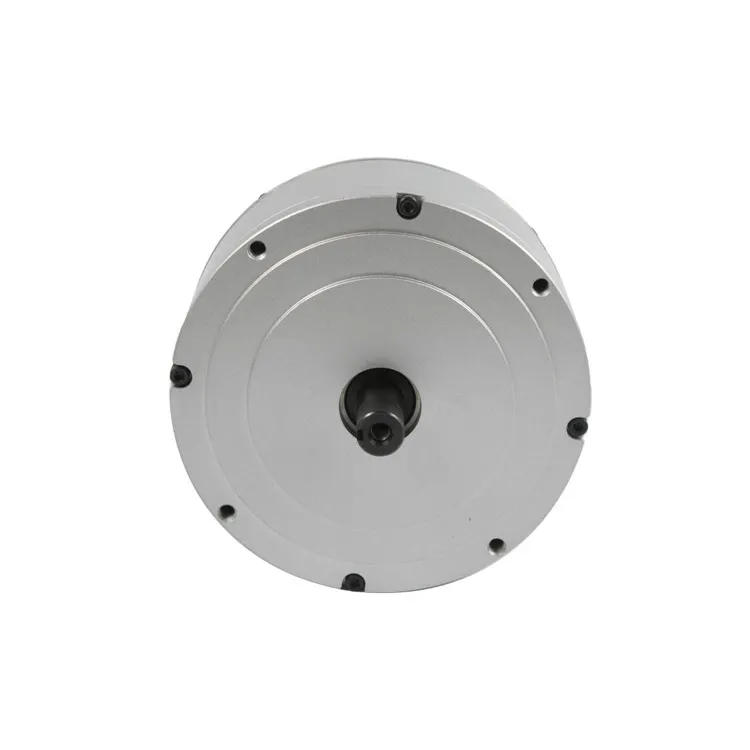

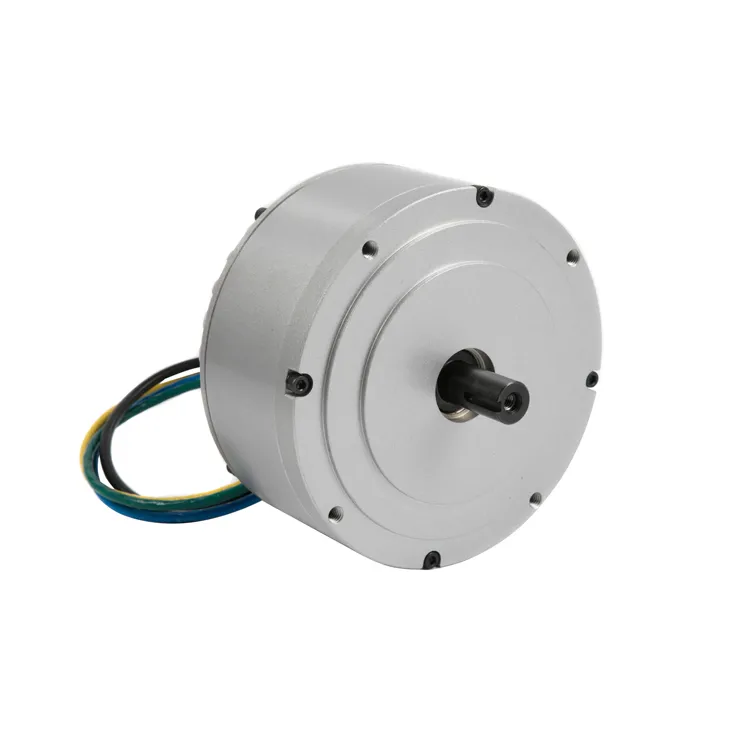

Product Display

This 3kW air-cooled brushless DC motor is designed for electric vehicles and cars. It is low-cost, high-efficiency, low-noise, and easy to maintain. It is suitable for a variety of electric vehicles, including electric cars, electric bicycles, electric scooters, and electric forklifts.

Product Feature

High Power Output

This air-cooled BLDC motor delivers a robust power output of 3kW, providing strong propulsion suitable for various electric vehicles.

Efficient Air Cooling

Equipped with an efficient air-cooling system, this motor maintains optimal operating temperatures, ensuring consistent performance and longevity.

Compact and Lightweight Design

Featuring a compact and lightweight design, this motor is easy to integrate into electric vehicles without adding unnecessary bulk or weight.

High Efficiency

With its high efficiency, this motor minimizes energy loss and maximizes performance, contributing to longer battery life and extended vehicle range.

Product Applications

Electric Cars

This motor is ideal for electric cars, providing reliable and powerful propulsion to ensure smooth and efficient driving experiences.

Electric Motorcycles

With its high power output and compact design, this motor is perfect for electric motorcycles, delivering fast acceleration and excellent performance.

Electric Scooters

Suitable for electric scooters, this motor offers efficient propulsion, enhancing ride quality and maneuverability for urban commuting.

Electric Tricycles

From passenger tricycles to cargo carriers, this motor provides the necessary power and efficiency for various types of electric tricycles.

Tips: Why Do Electric Vehicles Use 3kW BLDC Motor?

BLDC motors have a permanent magnet rotor surrounded by a wire-wound stator. The windings in the stator are electronically commutated rather than using brushes. This makes the BLDC motor easier to maintain, more durable and smaller.

Brushless motors are 85-90% more efficient, can respond faster at higher operating speeds, are easier to control in terms of speed control and reverse, are less prone to the failures experienced with brushed motors, and are self-starting.

The composition of the BLDC motor also allows the vehicle's internal machinery to remain cooler and heat resistant. In addition, because the motor is brushless, there are no dangerous brush sparks.

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
