Home / 380V AC 2.2KW 24000rpm Water Cooling CNC Spindle Motor

380V AC 2.2KW 24000rpm Water Cooling CNC Spindle Motor

$

Introducing the 2.2KW CNC Spindle Motor, delivering 380V AC and up to 24,000rpm. Perfect for precision woodworking, metalworking, and engraving applications requiring heavy cutting operations. Water cooling prevents heat damage and ensures uninterrupted operation. Perfect for the demanding craftsman.

Power (W)()2200

Voltage (V)()380

Operating Speed (rpm)()24000

Changing MethodManual

Cooled MethodWater Cooled

SPECIFICATIONS

Model LY80-2.2-ER20
Power 2.2 kW
Diameter φ80 mm
Phase Three phase
Speed 24000 rpm
Voltage 3-phase 380V±10% AC 3-phase 220V±10% AC
Current 4.2A 8.0A
Matched VFD Model GK3000-4T0037G (5 hp three phase VFD) GK3000-4T0055G (7.5 hp three phase VFD)
Frequency 400Hz
Torque 0.85 Nm
Number of Pole 2 poles
Cooling Type Water-cooled
Installation Method Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication Grease
Thermal Class Class F
Protection Class IP50
Certification CE
Warranty Bearings for half a year, other parts for one year
Joint of Nose ER20 (φ3.175 mm - φ13mm)
Bearings Type 7005C P4*2 & 7002C P4*1
Application Woodworking & Plastic
Weight 5 kg

Product Display

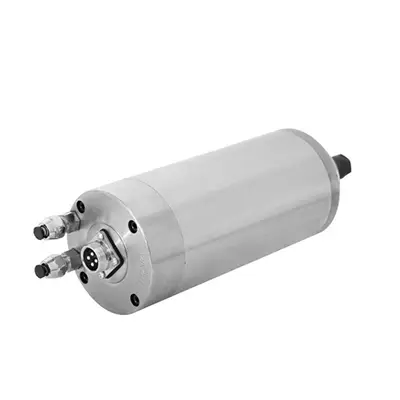

380V AC 2.2KW 24000rpm Water Cooling CNC Spindle Motor

Product Feature

High Power Output

Delivers a robust 2.2KW output, making it suitable for a wide range of CNC machining tasks.

High-Speed Performance

Operates at an impressive speed of 24000RPM, ensuring efficient and precise machining.

Water-Cooling System

Features a water-cooling system that maintains optimal operating temperatures and prevents overheating.

Stable Frequency Operation

Provides stable frequency operation, delivering smooth and consistent performance under varying load conditions.

Durable Construction

Constructed with high-quality materials to ensure longevity and reliable performance in industrial environments.

Low Noise Operation

Designed to operate quietly, making it ideal for noise-sensitive environments.

Precision Bearings

Equipped with precision bearings that ensure smooth and accurate machining.

Product Applications

Woodworking

Ideal for high-speed woodworking tasks such as cutting, milling, and engraving with precision.

Metalworking

Suitable for precise metalworking applications, delivering smooth and accurate machining.

Plastic Fabrication

Perfect for machining plastic components with high precision and efficiency.

Prototyping

Used in prototyping and model making, ensuring detailed and precise results.

Engraving

Excellent for engraving intricate designs on various materials with high accuracy.

Sign Making

Ideal for creating detailed signs and designs on wood, metal, and plastic surfaces.

Videos

DIMENSIONS
