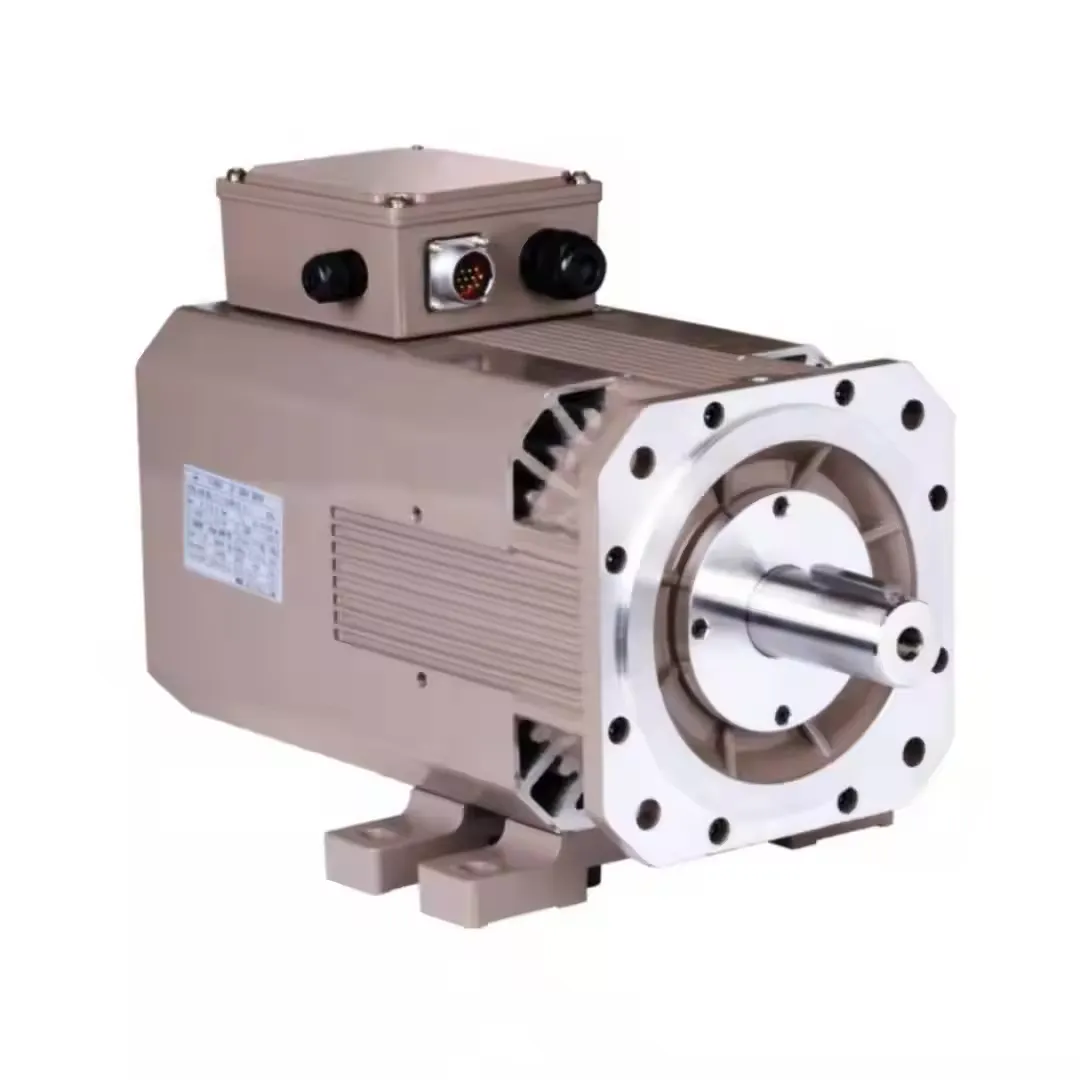

3700W 220-380V 24000RPM AC Spindle Servo Motor
$636-$715
The 3700W 220-380V 24000RPM AC Spindle Servo Motor is a high-performance motor specifically designed to enhance the performance and precision of applications such as CNC machines, packing machines, printers, textile machines, and plastic machines, ensuring efficient and accurate operation.
SPECIFICATIONS
| Warranty | 3 months - 1 year |
|---|---|
| Place of Origin | Shanghai, China |
| Brand Name | Lunyee |
| Model Number | 145BGL |
| Type | SERVO MOTOR |
| Frequency | 50Hz |
| Phase | Three-phase |
| Protect Feature | Totally Enclosed |
| Efficiency | IE 2 |
| Communication Mode | RS485 |
| Encoder Type | 1024/2500 line incremental, resolver |
| Control Mode | Vector Control SVPWM |
| Protect Function | Overload, Overcurrent, Overvoltage, Overheat, Encoder Fault |
| Position Precision | 1 pulse |
| Control | DSP |
| Motor Insulation | Class B (130°C temp) |
| Weight | 28~273 kg |
| Application | NC, packing machine, printer, textile, plastic machine |
| Type | Spindle Servo Motors |
Product Feature
High-Power and High-Speed Performance
Offers 3700W of power and a high rotational speed of 24000RPM, making it ideal for applications requiring fast, powerful, and precise movements.
Varied Voltage Range
Operates across a voltage spectrum of 220-380V, making it versatile for integration into diverse industrial power landscapes.
Durable and Safe
Offers total enclosure for protection against dust, particles, and liquids, ensuring safe and long-lasting performance.
Advanced Control Techniques
Employs Vector Control SVPWM for precise control over motor operations, enhancing functional reliability and user control.
Built-In Communication
Supports RS485 communication, allowing easy integration into digital control systems for real-time monitoring and control.
High Efficiency
Efficiency rating of IE2 assures potent performance while minimizing energy usage.
Product Applications
CNC Machines
Ideal for CNC machines requiring high-speed, high-torque spindle operations for intricate and fast material processing.
Metal Fabrication
Appropriate for metal fabrication equipment, where high speed and power are necessary for efficient operation.
Woodworking Machinery
Equipped to handle the rigors of woodworking machines, where high-speed spindle rotation is key to precise cutting, shaping, and finishing.
Automated Manufacturing
Perfect for use in automated production lines that demand fast and precise motor movements.
Precision Engineering
Suits specialized precision engineering applications where high-speed and accurate control are imperative for superior outcomes.
Robotics
An excellent fit for advanced robotic systems needing high-speed and precise servo motors for complex operations.
Research and Development Labs
Due to its high precision capabilities, it's a suitable choice for use in
