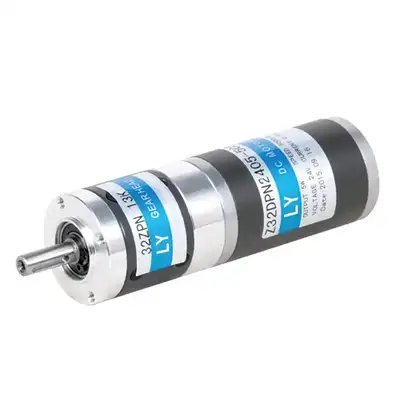

32mm 10w/15w Diameter Planetary Brushless Geared Motor
$75.00-$89.00
The 32mm 10w/15w Diameter Planetary Brushless Geared Motor is a powerful and compact motor with a diameter of 32mm and wattage of 10w/15w. Its planetary gearbox provides more torque and higher efficiency for a range of applications.
Product Display
- 1. Double support structure:Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot
- 2. Spindle connection:Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life
- 3. Inner hole:Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead
- 4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible
Product Feature
High Efficiency
This planetary brushless geared motor delivers high efficiency, ensuring optimal performance with minimal energy consumption.
Compact Size
With a diameter of only 32mm, this motor is designed to fit in small spaces, making it ideal for applications with limited installation space.
Wide Power Range
Available in power ratings of 10W to 15W, providing flexibility to suit various application requirements.
Durable Construction
Constructed with high-quality materials, ensuring long-lasting performance and durability in various environments.
Low Noise Operation
Designed for low noise operation, making it suitable for applications that require quiet performance.
High Torque
Provides high torque output, making it suitable for applications that require powerful and reliable performance.
Brushless Design
The brushless design reduces maintenance needs and increases the motor's lifespan.
Product Applications
Medical Devices
Ideal for medical devices, offering reliable and precise performance in sensitive and critical applications.
Robotics
Suitable for robotic applications, providing accurate and powerful movement for various robotic systems.
Industrial Automation
Perfect for industrial automation systems, delivering efficient and reliable performance in manufacturing processes.
Consumer Electronics
Used in consumer electronics, providing high efficiency and quiet operation for various electronic devices.
Office Equipment
Ideal for office equipment, ensuring reliable and quiet operation for machines like printers and copiers.
Home Appliances
Suitable for home appliances, offering high performance and efficiency for various household devices.
Model Building
Used in model building applications, providing precise and reliable performance for hobbyists and enthusiasts.
Related Products
Videos

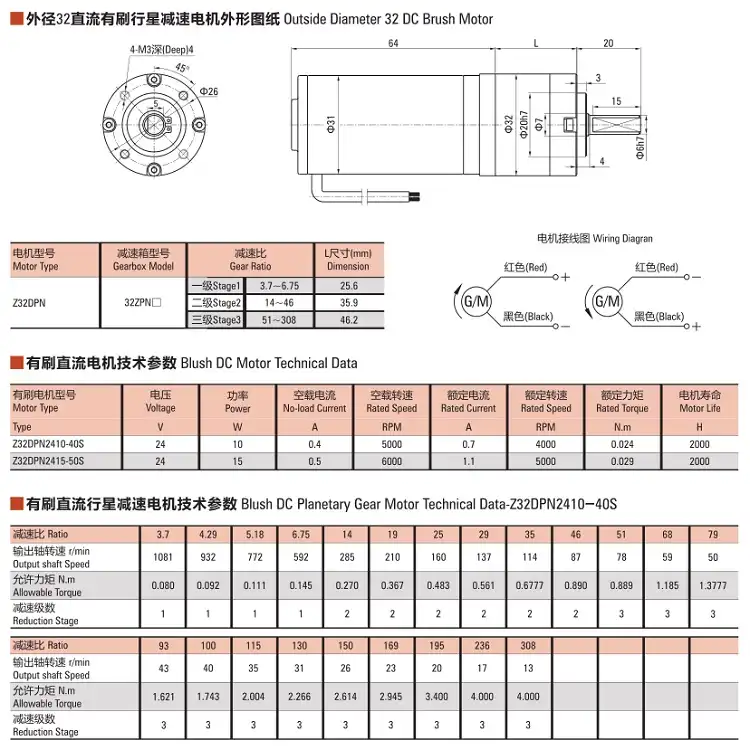

SPECIFICATIONS
| Item | Value |
| Warranty | 1 year |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Weight (KG) | 0.5KG |
| Customized support | OEM |
| Gearing Arrangement | Planetary |
| Output Torque | 0.048Nm |
| Input Speed | 3000RPM |
| Output Speed | 13-1081RPM |
| Place of Origin | China |
| Brand Name | UML |
| Product name | BLDC Gearbox |
| Application | Machine Tool |
| Keyword | 24v Dc Worm Gear Motor |
| Type | Reduction Motor |
| Structures | Bearing + Gear + Box |
| Color | Silver Gray |
| Mounting Position | Variable Mounted |
| Material | Metal Steel |
| Model Number | Z32BLDPN |
| Output Form | Solid Output Shaft |

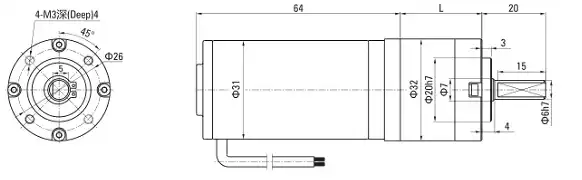

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
