26W 24V 4000RPM 0.0625Nm Brushless DC Motor

Home > 26W 24V 4000RPM 0.0625Nm Brushless DC Motor

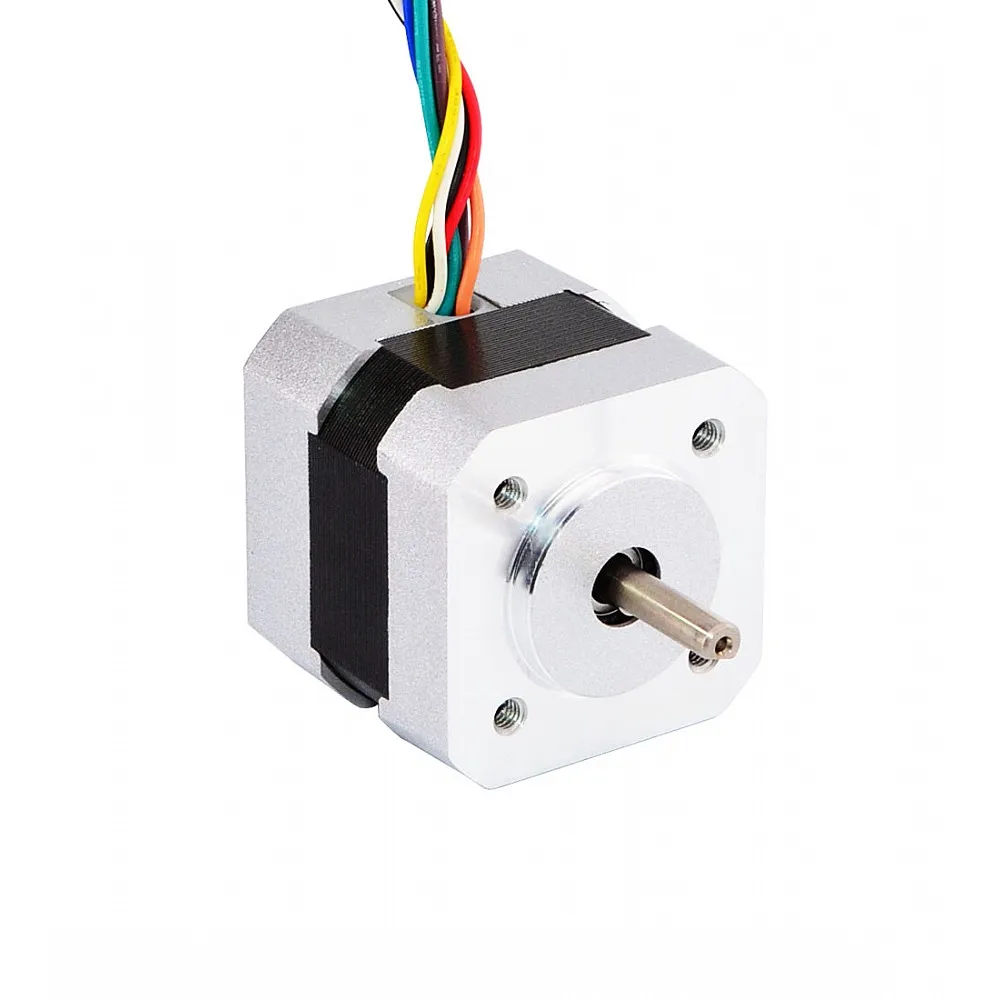

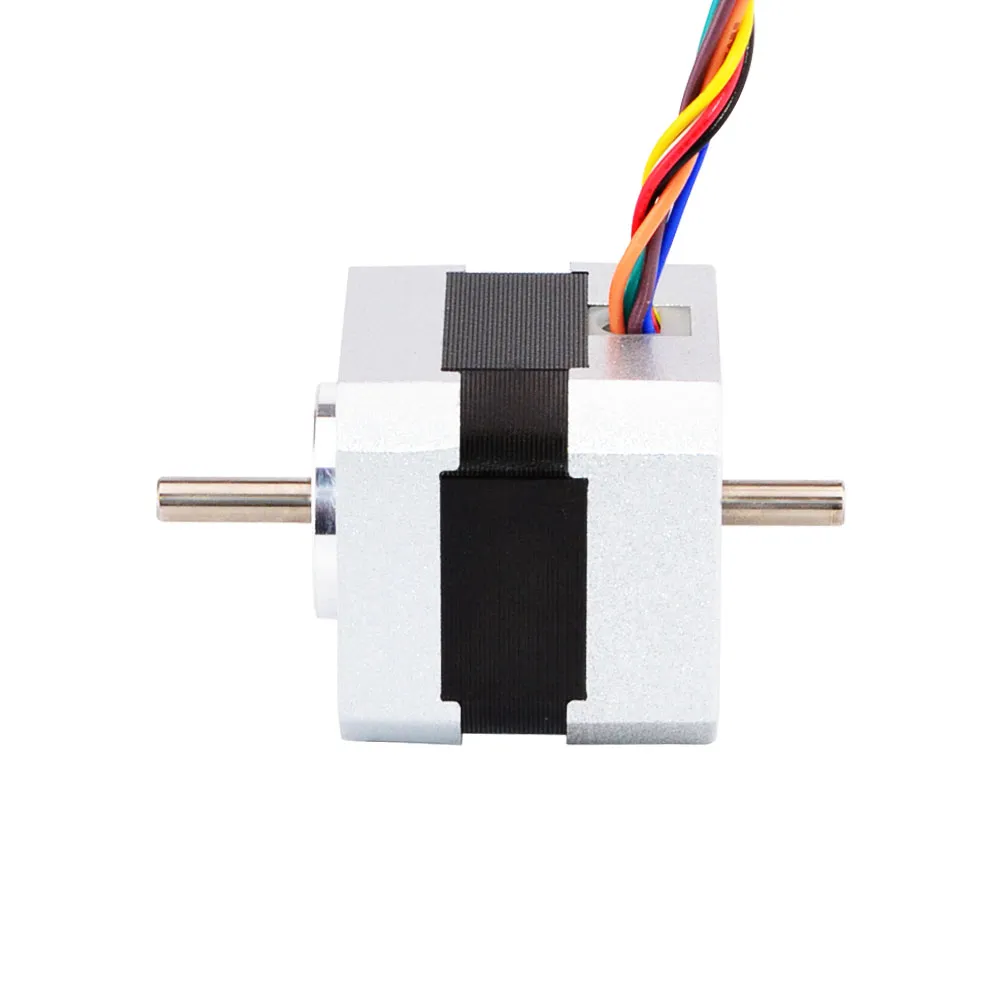

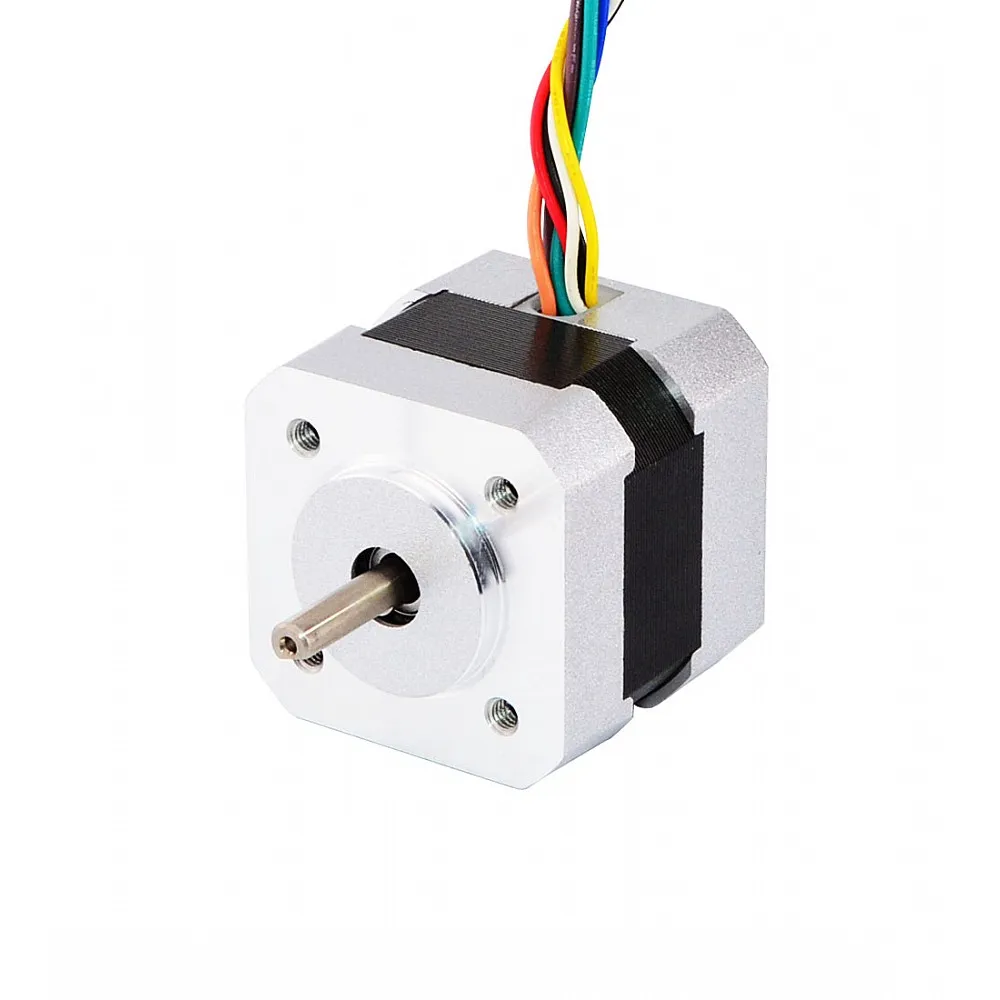

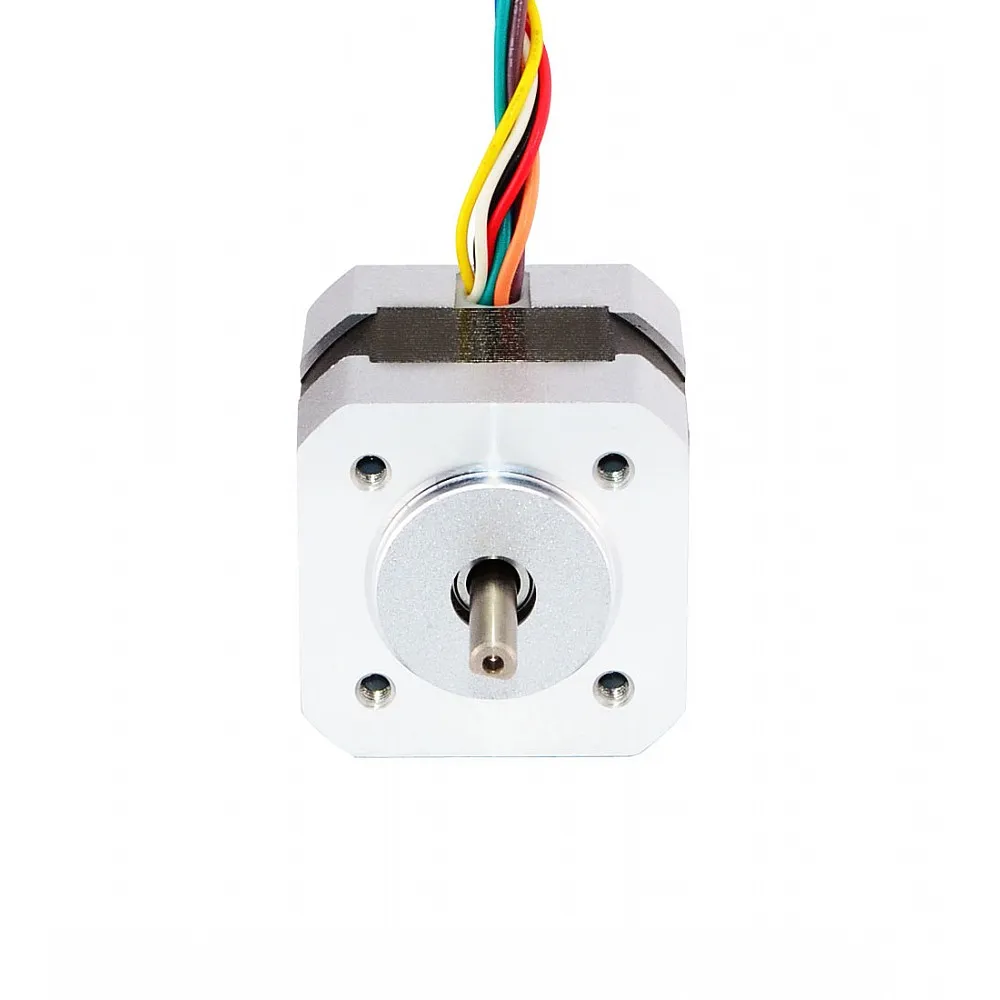

26W 24V 4000RPM 0.0625Nm Brushless DC Motor

$19.88

26W 24V 4000RPM 0.0625Nm Brushless DC Motor, a compact and efficient solution that combines power and precision for a wide range of applications. With its optimized power output and precise speed control, this motor is perfect for tasks requiring reliable performance, such as automation systems, robotics, and small machinery.

Motor TypeDC Brushless motor

Output Power (W)26

Voltage (V)24

Rated Speed (rpm)4000

Electrical Specification

Attribute Value
Manufacturer Part Number 42BLS40-24-01
Phase 3
Poles 8
Rated Current(A) 1.8
Rated Power(W) 26
Rated Speed(rpm) 4000
Rated Torque(Nm) 0.063
Rated Voltage(V) 24
Insulation Class Class B
Insulation Resistance 100MΩ Min @500VDC
Dielectric Strength Test 500VAC for 1 Minute

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 20
With Gearbox No
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 39.2
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Shaft Type D-cut
D-cut Length 15mm
Rear Shaft Length 13.5mm
Rear Shaft Diameter Φ5mm
Number of Leads 8
Lead Length 300mm
Bearing Type NMB Ball Bearing, C3
Sensor Hall Sensor
Weight 0.3kg

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
