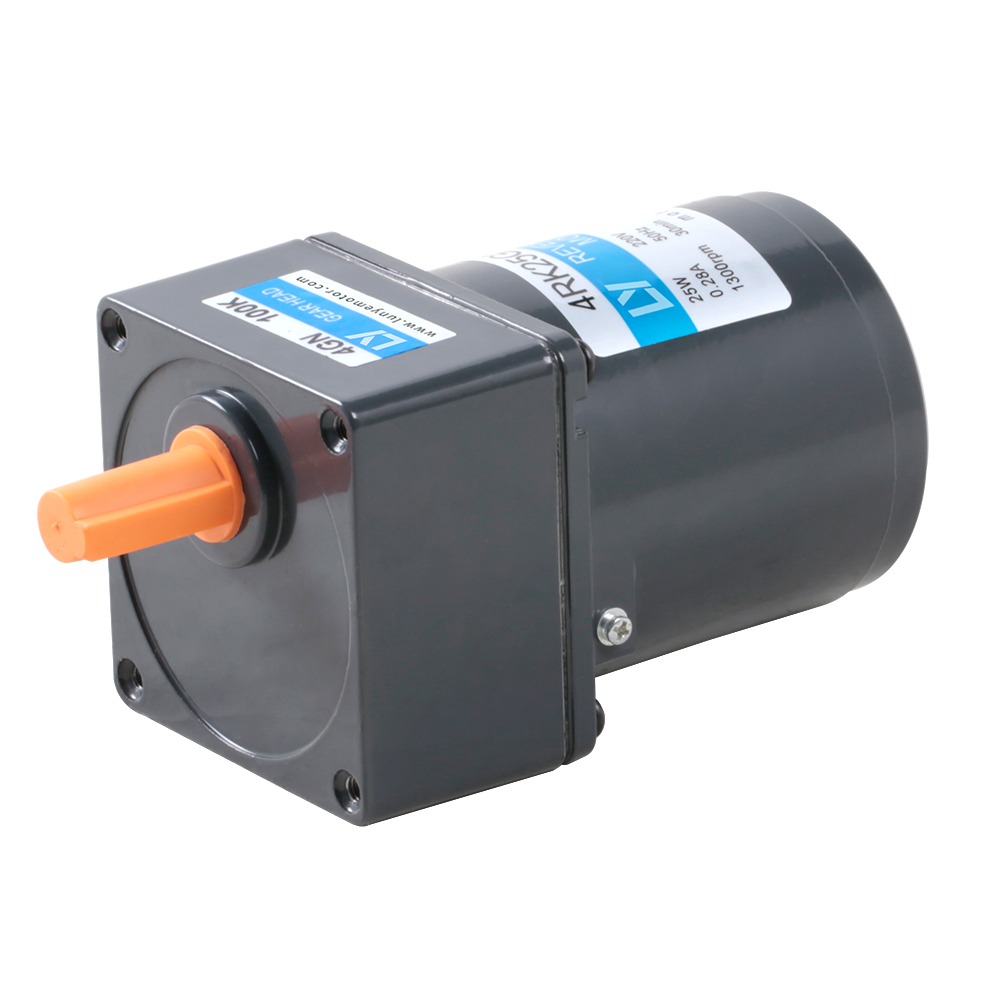

25W Single Phase AC Gear Motor

Home > 25W Single Phase AC Gear Motor

25W Single Phase AC Gear Motor

$32.50 - $34.67

This 25W Single Phase AC Gear Motor is designed to deliver steady and reliable performance. Its robust construction ensures high performance and stability over long periods of time. It's a great choice for applications that require consistent performance and reliability.

Motor TypeReversible Motor

Output Power (W)25

Voltage (V/Hz)100-230 50/60

Rated Speed (r/min)1250/1550

Model Type
Above:gearbox
below in():round shaft
Output power
W
Voltage
V
Frequency
Hz
Current
A
Starting torque
mN.m
Rated tourque
mN.m
Rated speed
r/min
Capacitor
μF
Lead Wire Type Terminal Box Type
4RK25GN-A 4RK25GN-AT 25 1ph100 50 0.59 160 200 1250 10
(4RK25A-A) (4RK25A-AT) 25 1ph100 60 0.68 140 165 1550 10
4RK25GN-E 4RK25GN-ET 25 1ph110 60 0.45 140 165 1550 8
(4RK25A-E) (4RK25A-ET) 25 1ph120 60 0.5 140 165 1550 8
4RK25GN-C 4RK25GN-CT 25 1ph220 50 0.29 140 200 1250 2.2
(4RK25A-C) (4RK25A-CT) 25 1ph230 50 0.3 140 200 1250 2.2
4RK25GN-H 4RK25GN-HT 25 1ph220 60 0.35 140 165 1550 2.2
(4RK25A-H) (4RK25A-HT) 25 1ph230 60 0.35 140 165 1550 2.2

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Robust and Reliable Performance

Our 25W Single Phase AC Gear Motor is engineered for reliability and performance. The motor's sturdy build guarantees long-lasting functionality and stability, ideal for consistent power delivery in various applications.

Versatile Power and Speed Control

With an output power of 25W and a voltage range of 100-230V at 50/60Hz, this motor supports a wide array of operating conditions. It offers a rated speed of 1250/1550 revolutions per minute (RPM), enabling precise speed control for your specific needs.

Efficient Directional Change

The motor includes a basic brake system for quick stopping and direction reversal, making it suitable for tasks requiring frequent movement changes. The reversible design ensures smooth transitions, vital for automated processes and applications.

Optimized for High Torque at Low Speeds

Paired with various gearbox options, this AC gear motor can decrease the output speed to heighten torque, addressing the needs of applications that demand powerful force at reduced velocities.

High Overload Capacity

Designed to endure sporadic overloads without compromise, the 25W Single Phase AC Gear Motor maintains operational integrity even under strenuous conditions, underscoring its durability and dependability.

Energy-Efficient Design

Emphasizing energy efficiency, this gear motor minimizes power consumption while delivering excellent performance. This not only reduces operational costs but also supports eco-friendly practices.

Diverse Application Suitability

With a variety of gearbox configurations and performance characteristics, this motor is optimally suited for a broad range of industrial, commercial, and technical applications, adjusting to the precise requirements of different operational settings.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Industrial Machinery

Our AC gear motor is ideal for the rigors of heavy machinery where consistent power and adaptability to varying loads are a necessity. It can withstand demanding industrial environments and provide reliable performance in applications such as conveyor systems, industrial mixers, and heavy-duty equipment.

Robotics

The precision and variability in speed of our AC gear motor make it an excellent choice for robotics. It offers fine control and dependability, enabling precise movement and positioning of robotic components. It is suitable for applications in industrial automation, collaborative robots (cobots), and other robotic systems.

Automotive Applications

Our AC gear motor finds application in the automotive industry, particularly in equipment that requires torque and reverse functionality. It can be used in assembly lines, maintenance platforms, and other automotive machinery where reliable and versatile motor operation is essential.

Agricultural Equipment

Our AC gear motor flawlessly fits into agricultural machinery that demands high torque for processing, harvesting, or material handling. It can power agricultural equipment such as conveyors, grain augers, harvesters, and feed mixers, providing the necessary strength and reliability for agricultural applications.

Home Appliance Manufacturing

With its adaptability and efficiency, our AC gear motor is a prime choice for manufacturers of home appliances. It is suitable for applications in appliances that require quiet operation, durability, and precise control, such as washing machines, dryers, dishwashers, and more.
