SPECIFICATIONS
| Model | Voltage(v) | Out put Power(w) | No-load Parameters | Load Parameters | Brush Life(H) | Motor Weight(Kg) | |||
| Speed(r/min) | Current(A) | Speed(r/min) | Torque(mN.m) | Current(A) | |||||
| Z6D250-24 | 24 | 250 | 3400 | 3.0Max | 3000 | 796 | 16.0 | 2000 | 3.2 |
| Z6D250-90 | 90 | 250 | 3300 | 1.2Max | 3000 | 796 | 4.0 | 2000 | 3.2 |
| Z6D250-220 | 220 | 250 | 3300 | 0.9Max | 3000 | 796 | 2.0 | 2000 | 3.2 |
Product Display

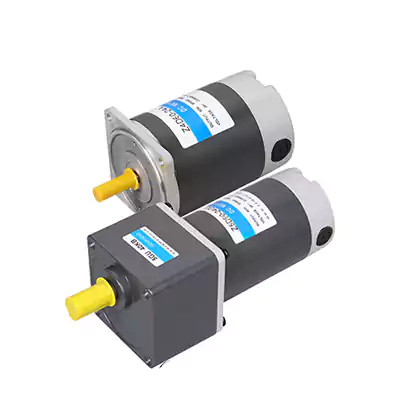

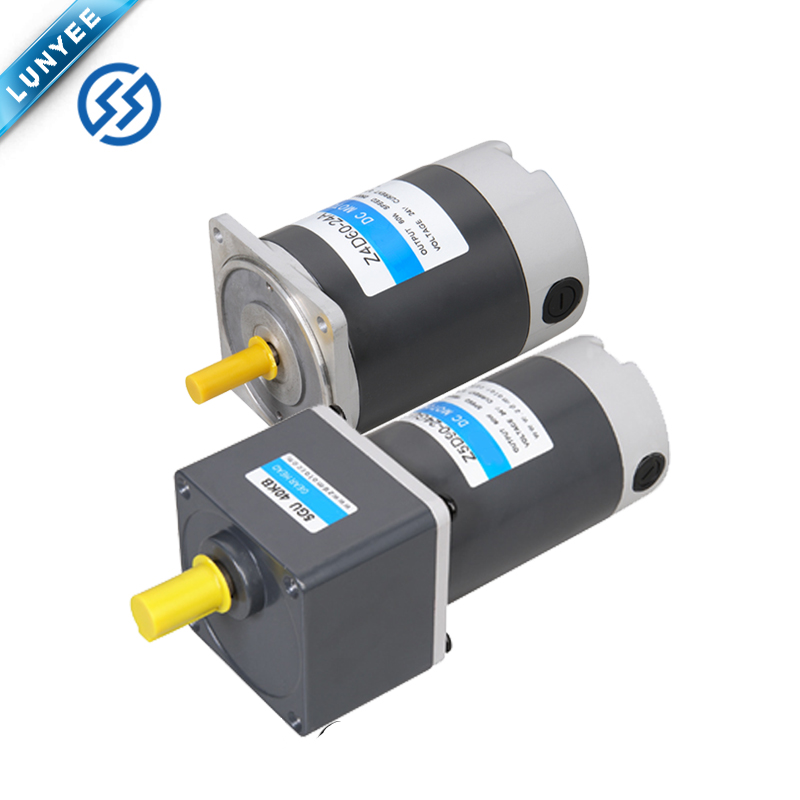

The 250W DC motor is a brushed motor with the advantages of low noise, high torque and long life
Reminder
Motor voltage, power and speed can be customized according to customer requirements under the conditions of accessories size and other conditions
If W is added after D, it means an external brush gear motor, if there is no W, it is a standard built-in brush gear motor;
for external brush motor, user can replace brush externally; built-in brush motor replaces brush When motor needs to be disassembled, it can be replaced
Parallel Shaft Gearhead (Sold Separately)
Product Feature
- *Silent Bearing: High precision silent ball bearing highload operation, no shaking longer life
- *Gear Set: Use alloy steel gears, high precision high hardness, strong wear resistance and increase motor torque
- *Pure copper: Strong conductivity increase torque
- *Precision-cast housing: The cast iron material is harder than ordinary case, The heat dissipation effect is better, firm and durable
Remarkable Torque
The 250W brush DC gear motor provides a significant torque, offering reliable performance for applications that require a high level of power output.
Adjustable Speed
Featuring a broad speed range, this motor provides precise control over operations, and allows the versatility to adjust the motor speed in accordance with the demands of the application.
Bi-Directional Operation
Designed for flexibility, this motor can operate in both directions, providing adaptability for a range of applications.
Product Applications
Industrial Machinery
Optimized for heavy-duty use, this motor provides consistent power and adapts to varying loads, ensuring reliable performance in strenuous industrial environments.
Robotics
The precise control this motor offers makes it an ideal choice for robotics. It provides the necessary reliability and adaptability for intricate movements and positioning in robotic systems.
Automotive Applications
Suitable for a range of automotive applications, this motor provides reliable, high-power performance for vehicle systems.
