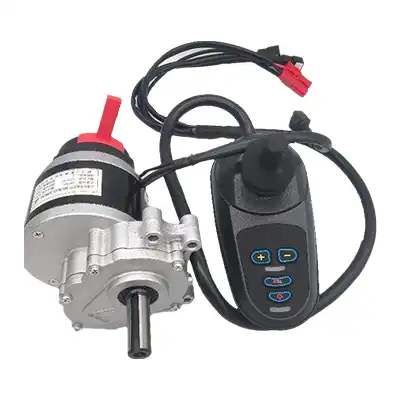

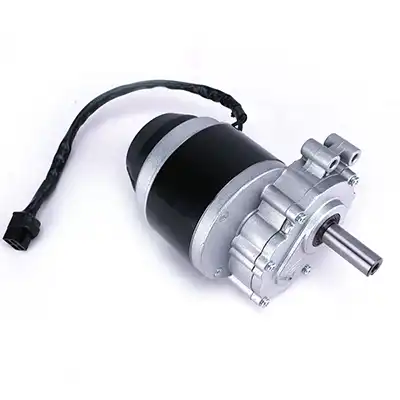

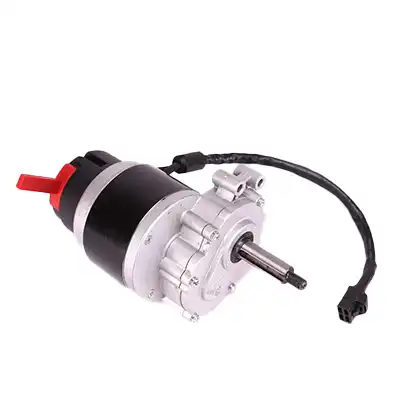

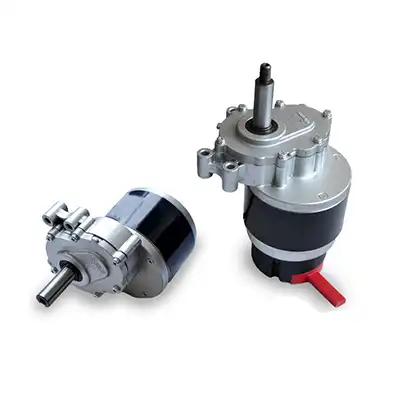

250W 24V PMDC Gear Motor with electromagnetic brake

This 250W 24V PMDC Gear Motor with electromagnetic brake offers efficient performance with its permanent magnet design and high torque capabilities. The motor is able to provide continuous torque up to 20N.m and its electromagnetic brake offers efficient and reliable braking power.

Description

Enquiry

MY1016Z 24V 250W MOTOR
Voltage	24V
Power	250W
Motor speed	2400 / 3700 RPM
Output speed	75/120/160 rpm
Rated torque	≥45mm
No-load current	≤ 4.0 A
Rated current	≤13.7 / 14.8 A
Working hours	S2 : 60
Insulation class	E
Reduction ratio	23.2 : 1
Motor efficiency	≥ 70 / 76 %
Load capacity	100kg/pcs

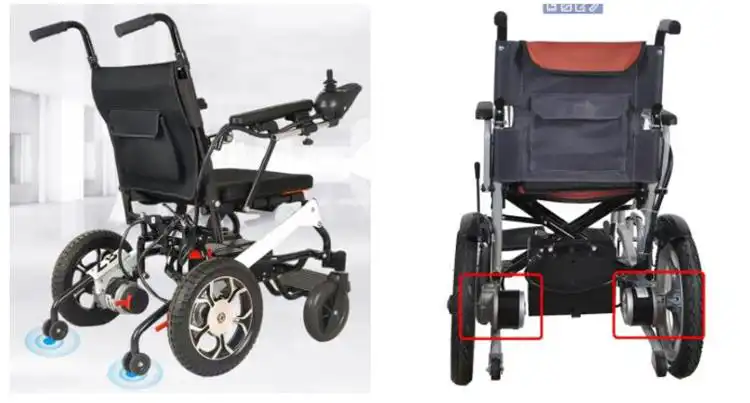

Application	wheelchair
