SPECIFICATIONS
| Band name | Lunyee |
| Model No.: | NMRV025, NMRV030, NMRV040, NMRV050 |
| Ratio: | 5,7.5,10,15,20,25,30,40,50 |
| Color: | Blue/Silver Grey Or On Customer Request |
Material: |
Housing: Size 25-110 Is Aluminum Alloy, Size 110-150 Is Cast-Iron |
| Worm Wheel: ZCuSn10Pb1 | |
| Worm:20Cr | |
| Pinion:Tin Bronze | |
| Output Shaft: Steel-45# | |
| Matching motor | 160w、200w、250w、300w、350w、400w |
| Usages: | Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing,Wood working, Glass. |
| IEC Flange: | IEC Standard Flange Or On Customer Request |

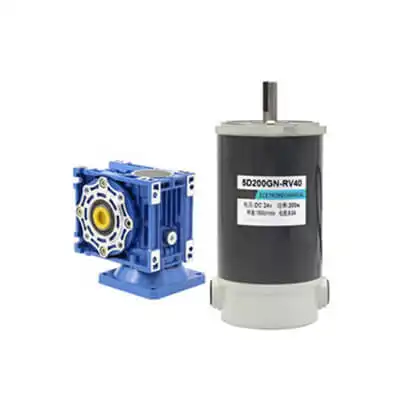

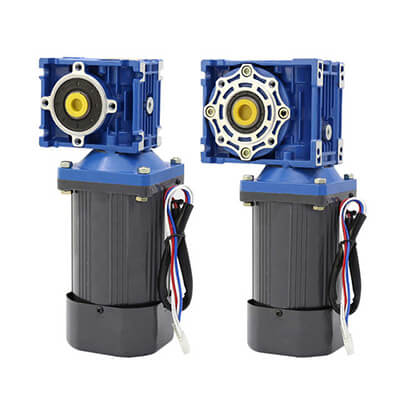

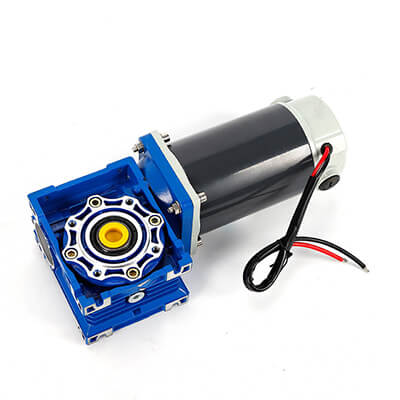

Product Display
A Brush DC Motor, which is powered by direct current, allows for precise speed control. The Brush DC Motor provides constant and consistent current by using rings to power a magnetic drive that powers the motor's armature. The Brush DC Motor, perhaps one of the oldest utilized motors, is widely employed due to its ability to change the speed-torque ratio in practically any manner.
Product Feature
Optimized for E-bikes
Specifically designed and built for E-bike propulsion, providing 250W of power to enhance the cycling experience.
Brushed PMDC Motor
Equipped with a brushed PMDC (Permanent Magnet DC) motor, ensuring exceptional durability and reliable power.
Efficient Power Utilization
Renders high efficiency of ≥78%, leading to optimal power utilization and extended battery life.
Excellent Speed Control
Offers a rated speed of 3000RPM and No-Load Speed of 3850RPM, granting precise speed manipulation to meet diverse user needs.
High Torque
Generates a rated torque of 0.8NM, upgrading E-bike performance by enabling effective power transfer.
Low No-Load Current
Features a low No-Load Current of ≤2.2A, saving energy when in idle or standby mode.
Product Applications
E-bike Propulsion System
An ideal choice for E-bike builders looking for reliable power and excellent durability.
Small Bike Models
Its compact size makes it appropriate for smaller bike designs, ensuring swift and easy installation.
Battery-Powered Vehicles
Fits into other battery-powered vehicles such as electric scooters, matching the demand for efficient energy use, and stable performance.
DIY Projects
Perfect for enthusiasts keen on building homemade E-bikes or other similar projects.
Motorized Indoor Cycles
Can be utilized in indoor cycling trainers for controlled and effective workouts.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
