25-84V 6000W 120KV Sensorless Waterproof Brushless DC Motor

Home > 25-84V 6000W 120KV Sensorless Waterproof Brushless DC Motor

25-84V 6000W 120KV Sensorless Waterproof Brushless DC Motor

$386.92

The IP68 waterproof inrunner brushless motor is a high-quality and cost-effective choice for underwater applications. With a power output of 6000W, rotation speed of 120KV, and torque of 9 Nm, this motor is perfect for electric surfboards, propellers, robots, boosters, and more. Its waterproof design and sensorless operation ensure reliable performance.

Motor TypeDC Motor

Power(W)6000

Voltage (V)25-84

Rotation speed(KV)120

25-84V 6000W 120KV Sensorless Waterproof Brushless DC Motor
25-84V 6000W 120KV Sensorless Waterproof Brushless DC Motor
Model: BLDC-65161
Max Power: 6000W
Rotation Speed KV (RPM/V): 120KV
Max Input Voltage: DC 25-84V
Max. Spin Speed: 16380 rpm
Peak Current: 200A
Motor Pole: 6
Max Torque at 60%: 9 Nm

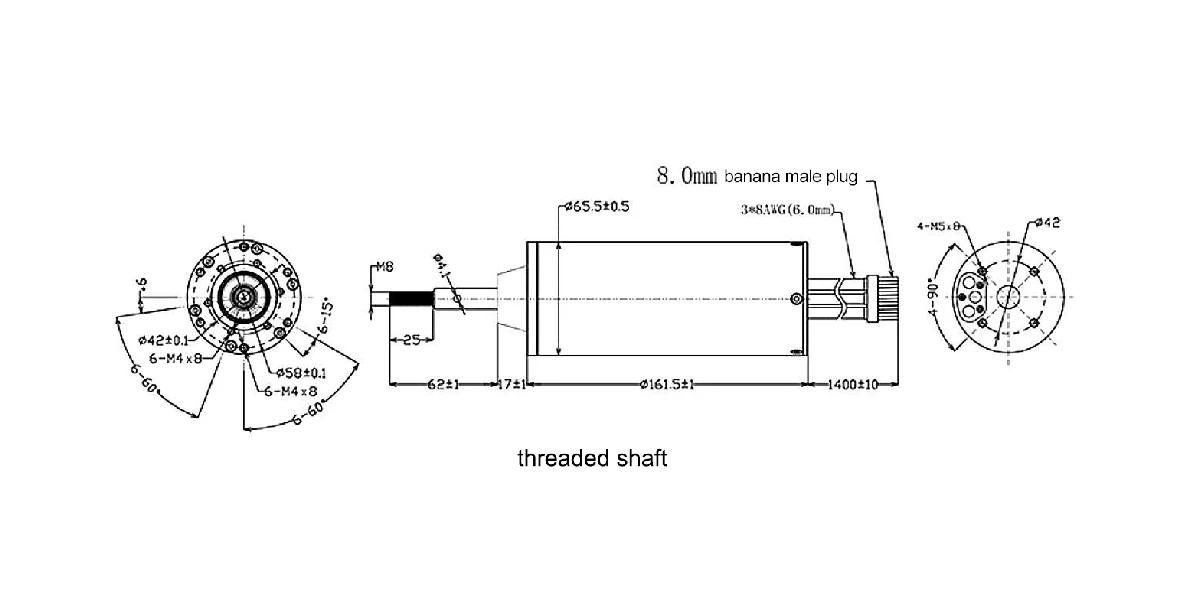

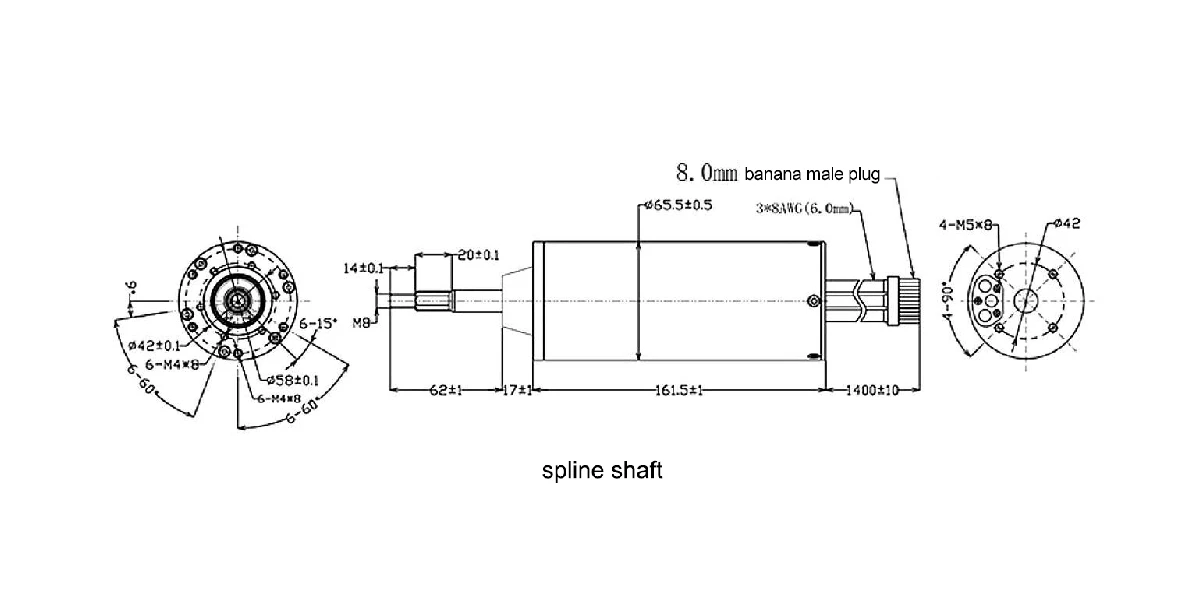

Motor Dimension: 65*161mm
Max Working Temperature: 120℃
Insulation Voltage & Leak Current: AC500V/10mA/3S
Lead Wires Extension: 8AWG x 1300mm
Waterproof Grade: IP68
Motor Wire: 8 AWG
Plug: 8mm
Weight: 3kg

Note: The motor is powered by 6-20S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

ESC (Electronic Speed Controller) Selection forWaterproof BLDC Motor

  • The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
  • Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
  • The limit speed of V4 series ESC is 60000 ERPM.The limit speed of V6 series ESC is 15000 OERPM.
  • If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model Current Value Number of Batteries (Input Voltage)
FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
FSESC 4.20 Continuous 50A, peak 240A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integrated Continuous 70A, peak 200A 3S-12S (8V-60V)
VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
Single drive V6 75200 * Continuous 200A 3S-12S (8V-60V)
Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

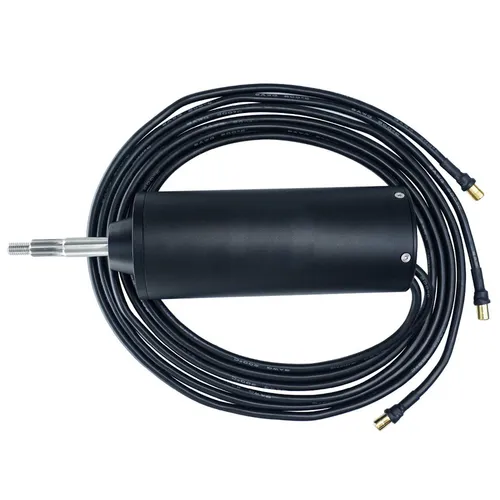

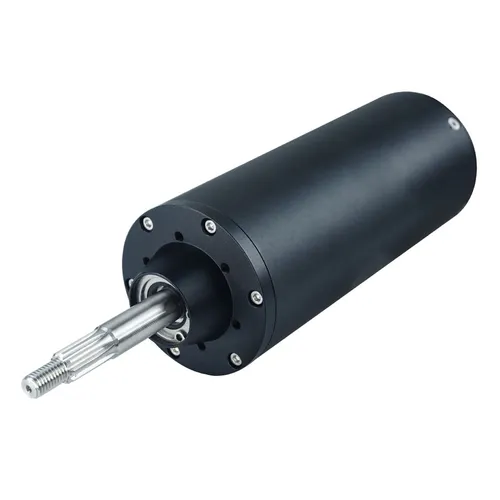

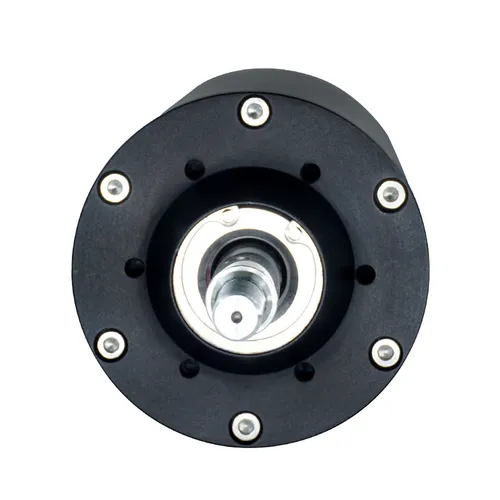

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

The IP68 waterproof inrunner brushless motor is a high-quality and cost-effective brushless DC motor. Designed to withstand water immersion, this motor is fully protected against water ingress, making it ideal for underwater applications. With a power output of 6000W, a rotation speed of 120KV, an input voltage range of 6-12S (DC 25.2-84V), and a torque of 9 Nm, this motor delivers exceptional performance and reliability. It is widely used in electric surfboards, propellers, robot models, boosters, hydro systems, and other submersible equipment.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Features

  • IP68 waterproof rating for reliable operation in wet and submerged environments.
  • High-quality construction ensures durability and performance.
  • 6000W motor with a rotation speed of 120KV for powerful propulsion.
  • Input voltage range of 6-12S (DC 25.2-84V) for versatile power supply options.
  • High torque output of 9 Nm for enhanced performance.
  • Sensorless design simplifies operation and control.

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Application

The IP68 waterproof inrunner brushless motor finds extensive application in various industries and recreational activities. It is commonly used in electric surfboards, propellers, robot models, boosters, hydro systems, and other submersible equipment where reliable and efficient propulsion is required.

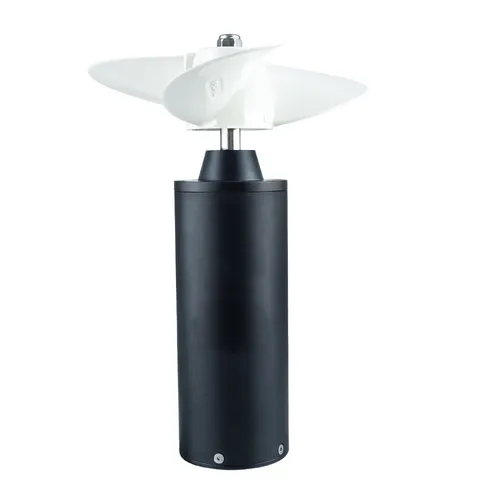

When paired with a compatible controller, this sensorless inrunner BLDC motor provides a complete propulsion system. The motor, combined with the matching ESC driver, offers a maximum power output of 6kW and is suitable for direct-drive propellers, Efoil electric surfboards, skateboards, and longboard applications.

The competitive price of this BLDC motor, along with its reliable performance and compatibility with ESC controllers, makes it an excellent choice for enthusiasts and professionals alike. Whether you're cruising on an electric surfboard, propelling a robot model, or seeking high-speed thrills on a skateboard or longboard, this IP68 waterproof inrunner brushless motor delivers the power and efficiency required for an enjoyable and successful experience.

Tips: How to test the airtightness and waterproofness of the outrunner bldc motor's housing?

The key to the air-tightness and waterproof detection of the motor shell is the auxiliary fixture. Due to the particularity of the motor shell, it is necessary to customize the corresponding mold for the air-tightness and waterproof detection of the motor shell. Put the product into the mold, and the upper mold is down Press and fix the product and set up a test port to test by inflation. The test pressure is 250KPA, the inflation time is 10 seconds, the voltage stabilization time is 10 seconds, the test time is 5 seconds, and the leakage value is 0.05KPa. The OK/NG products can be quickly detected by using the sensor in the motor housing air tightness detection device, and the motor housing air tightness and waterproof detection equipment use compressed air, which can realize fast motor housing air tightness and waterproof detection.
