SPECIFICATIONS
| Torque output: | 47 Nm |
| Nominal Voltage: | 24 Vdc (wide range) |
| Operating Ambient Temp: | < 70°C |
| Gearing: | 50RV30 Worm type, 71B14 interface, ratio 1: 0 |
| Max power: | 700 W |
| Max output speed: | 3000 rpm |
| Max current: | 30 A |
| Leads: | 2 leads 4mm2 x 500mm |
| Brake: | 24 Vdc, 6 Nm |
| Encoder: | Dual phase 90° difference, 1000 P/R |
| Protection: | IP54 |
| Note: | Typical data subject to change without notification |
Note:
- 24 Vdc is standard. Contact factory for other voltages. Motors are available with 12, and 48 Vdc windings models.
- All performance data based upon operation with uniform DC current. Rectified and nonfiltered AC change performance values.

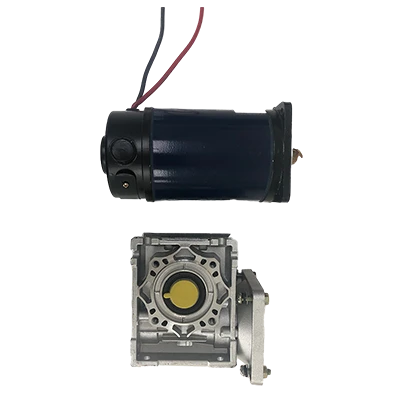

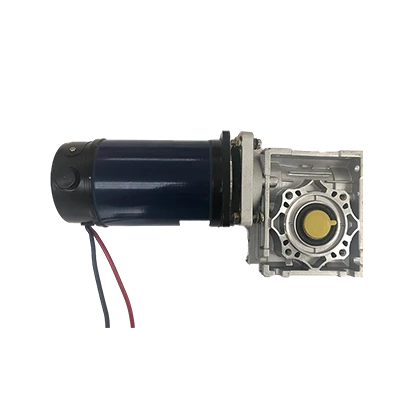

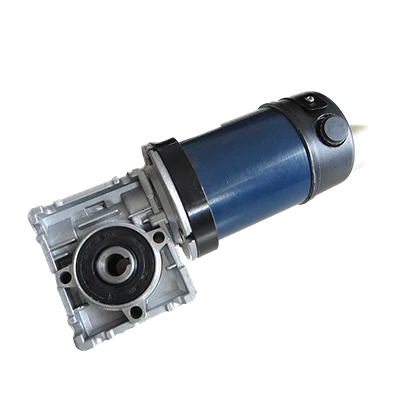

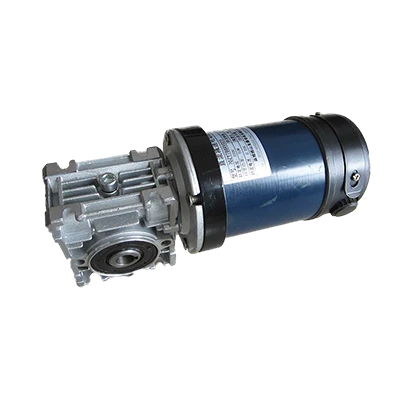

Product Display
The high efficiency DC motor is a brush type, permanent magnet motor. With the constant flux field, the speed-torque and current-torque curves are linear, and reliability and efficiency are improved. Two leads from the motor allow simple reversing.
The brushed DC motor is furnished with a heavy duty integral gear unit with a wide range of reductions. Gearing is designed with worm gears for quiet operation and hardened spur.
Product Feature
High Efficiency
The motor is a brush-type permanent magnet motor with a constant flux field for linear speed-torque and current-torque curves, improving reliability and efficiency.
Durable Gear System
Equipped with a heavy-duty integral gear unit with various reductions and a gear system designed with worm gears for quiet operation alongside hardened spur gears for enhanced durability.
Substantial Torque
With a torque output of 47Nm and a maximum power of 700W, this motor ensures high performance for demanding applications.
Convenient Reversing Capability
Two leads from the motor allow for simple control for reversing the motor's direction.
Protection and Additional Features
This unit includes an encoder for precise control, a brake system for safety, and is designed with IP54 protection against dust and splashing water.
Product Applications
Automotive Industry
DC motors are widely used in various automotive applications, such as power windows, windshield wipers, cooling fans, sunroofs, and power seats, due to their ability to provide precise control and high torque output.
Industrial Automation
In industrial automation systems, DC motors are employed for tasks like conveyor belt systems, packaging machinery, and robotic systems, where accurate positioning and speed control are crucial.
Home Appliances
Many household appliances, such as washing machines, dishwashers, vacuum cleaners, and power tools, rely on DC motors for their operation and motion control.
Office Equipment
DC motors are commonly found in office equipment like printers, scanners, copiers, and paper shredders, where they control the movement of paper and other components.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems utilize DC motors for controlling dampers, air flow, and fan speed in residential and commercial buildings.
Robotics and Automation
In robotics and automation applications, DC motors are used for precise motion control, positioning, and articulation of robotic arms, grippers, and other components.
Medical Equipment
Various medical devices and equipment, such as hospital beds, wheelchairs, prosthetic limbs, and surgical instruments, employ DC motors for smooth and controlled movements.
Renewable Energy Systems
In renewable energy systems, such as solar tracking systems and wind turbines, DC motors are used for positioning and orientation mechanisms to optimize energy capture.
Related Products
Videos

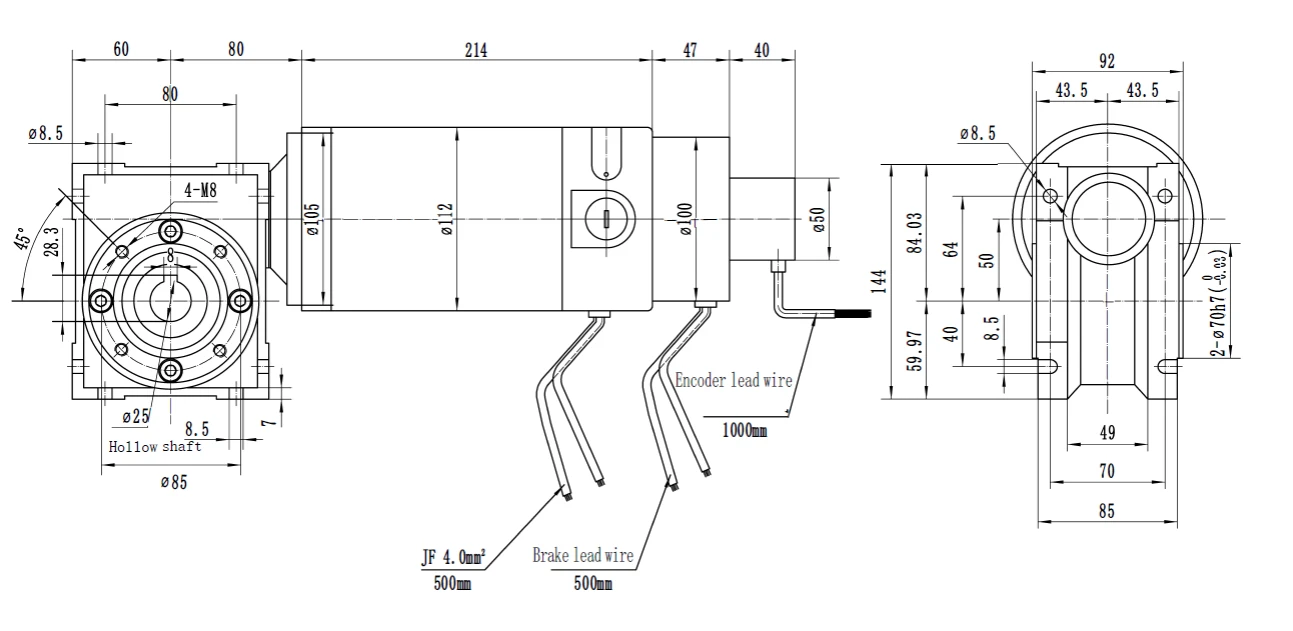

DIMENSIONS
