24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor

$156.98

24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor, Features: High Speed, High Torque, Wide Application Range, Application: Automobiles, Tools, Industrial Control, Automation, Aerospace, and more.

Model Type

Power(W)()50

Voltage (V)()24

Rated Speed (rpm)()3000

SPECIFICATIONS

24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor
Model: BLDC-D2BLD50-24A-30S
Matched Controller Model: BLD-120A
Rated Power: 50W
Rated Voltage: 24V DC
Rated Current: 2.6A
Phase: 3 phase
Rated Torque: 0.16 Nm
Max. Torque: 0.48 Nm
Rated Speed: 3000 rpm
No-load Speed: 3300 rpm
No-load Current: <0.4A
Square Flange Size: 60 mm
Working Efficiency: 85%
Insulation Grade: F
Protection Grade: IP54
Motor Lead Length: 1 meter
Certificate: CE, RoHS, ISO
Weight: 2 kg

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

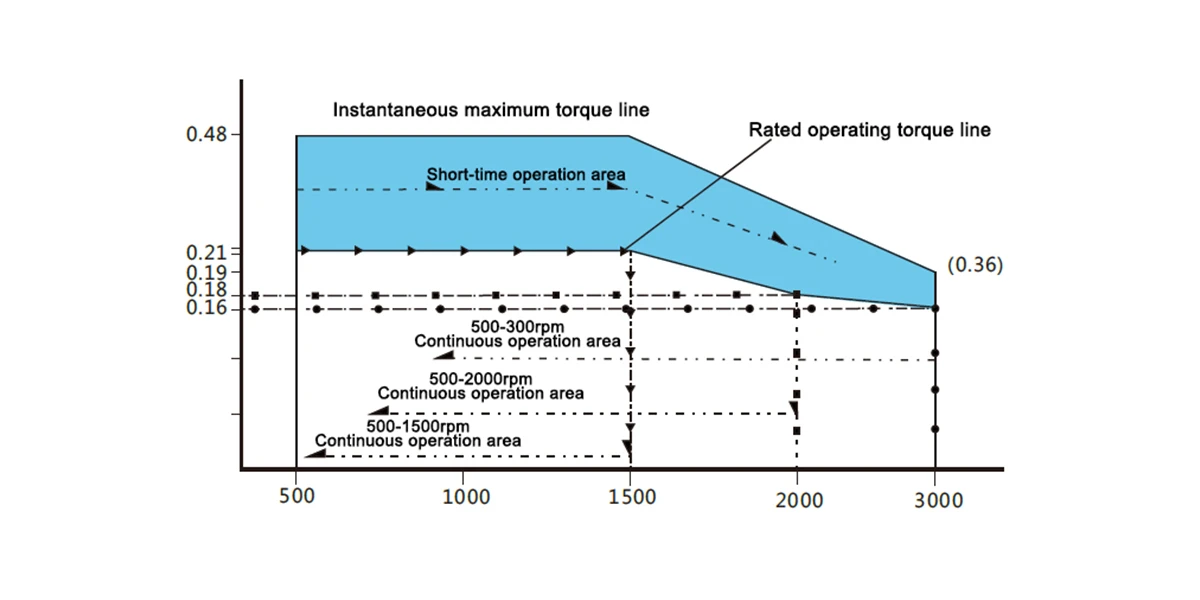

Speed - Torque Curve

24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor
  • Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started.Beyond this torque, the over-current protection of the driver will cause the motor to stop.
  • Short-time operation area: The motor can run for a short time within this torque range at different speeds.If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
  • Rated operating torque line: The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
  • Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Line Define

24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor
Power Wire Hall Wire
Red U Red 5V
Yellow V Black GND
Black W Blue Hu
Green Hv
White Hw

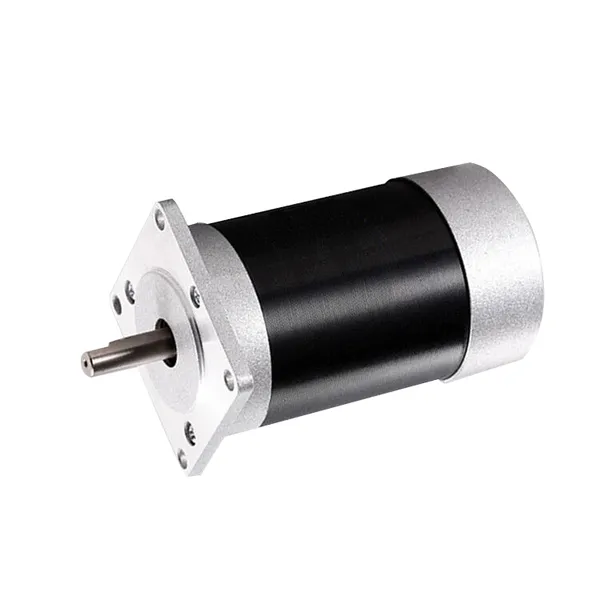

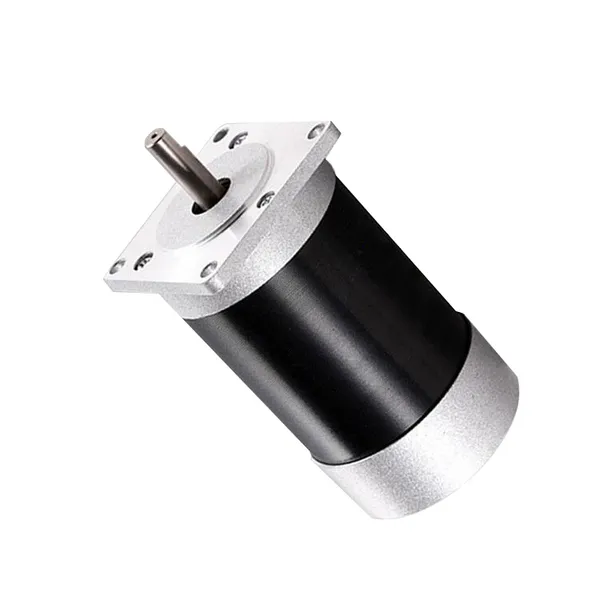

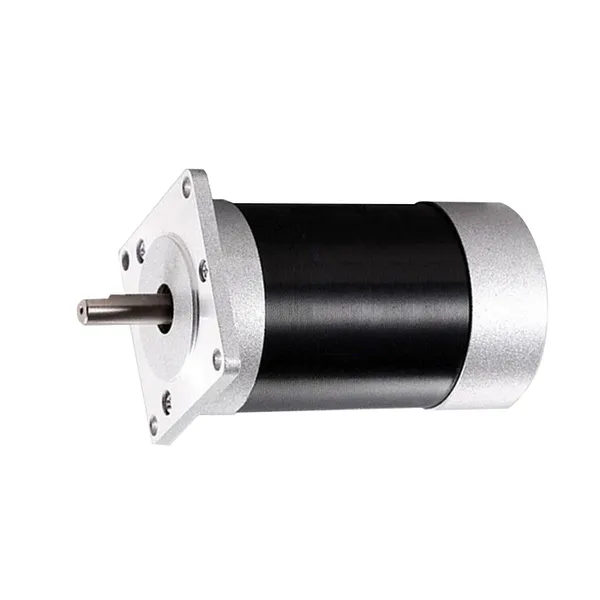

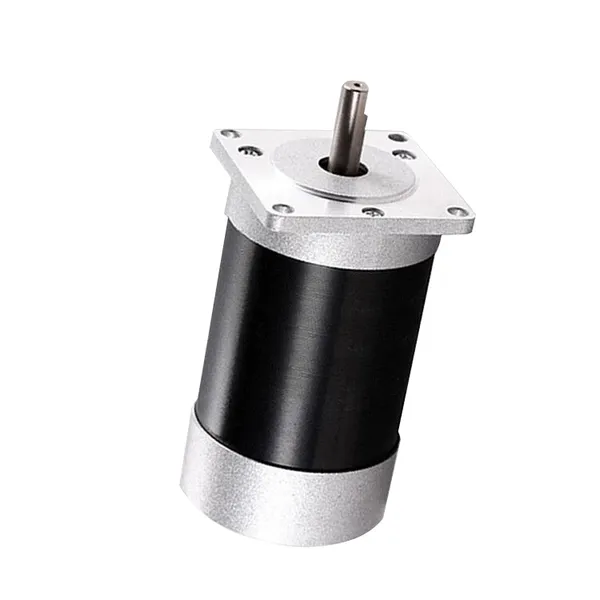

Product Display

Looking for a reasonably priced 24V brushless DC motor? We have just what you need! Our high-speed brushless motor offers a rated power of 50W, with a rated speed of 3000 rpm and a rated torque of 0.16 Nm. It can deliver a peak torque of 0.48 Nm, making it suitable for various applications. The motor operates at a rated current of 2.6A, ensuring efficient performance.

Our brushless DC motor is widely used in a diverse range of industries. Whether it's automobiles, tools, industrial control, automation, aerospace, or other applications, this motor meets the demands of different sectors. With its high torque, smooth operation, low interference, long life, and low maintenance costs, it offers reliable and efficient performance.

When paired with a brushless controller, this 20kW brushless DC motor provides a lightweight solution while delivering impressive torque. With a torque rating of 80 N.m and a peak torque of 160 Nm, it offers the power and performance required for various electric vehicle applications.

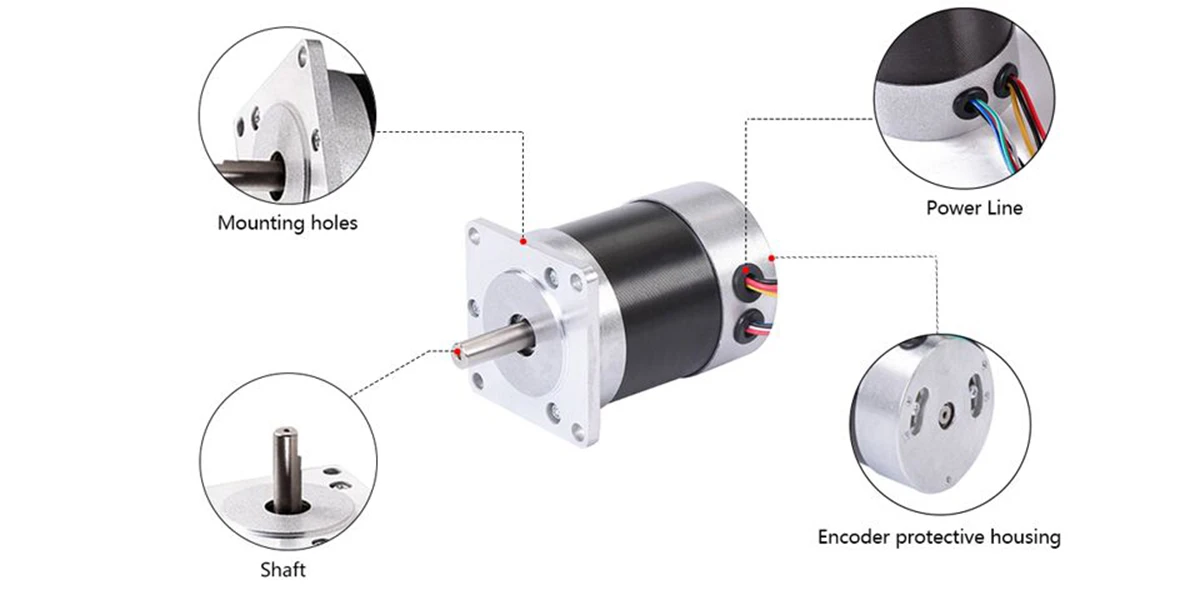

Product Feature

Features

  • Stable Speed Control: 24V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
  • Thin, High Power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
  • Wide Speed Control Range: The speed control range of 500W brushless motor than speed AC motor and inverter wider, because unlike the speed AC motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
  • Contribute To Energy Saving: The rotor of the brushless motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
  • Equipped With Protection Function: The high-speed BLDC motor helps to protect the safety of the equipment system.

Product Applications

Wide Range of Applications

This high-torque brushless DC motor is versatile and finds use in a multitude of applications including electric bicycles, inverter air conditioners, washing machines, drones, automobiles, CNC machine tools, grinding equipment, packaging machinery, tools, turnstiles, industrial control systems, medical machinery, automation, AGV trolleys, aerospace, intelligent storage equipment, and more. Its robust design and wide application range make it a reliable choice.

Development and Upgrade Projects

Upgrade your existing equipment or develop new projects with our high-quality 24V brushless DC motor. It guarantees high-speed, high-torque performance and broad applicability to meet industry specific demands. Purchase yours online today and experience the reliability and efficiency it brings to your project.

Optimal Battery Use

Our motor can run on a 12V or 24V battery, though a 24V supply is recommended for optimal performance. It will not harm your motor if run on a lower voltage; however, the power output will be reduced. Thus, our motor is adaptable to a variety of power setups.

24V 50W 0.16 Nm 3000 rpm 2.6A Brushless DC Motor

Tips: Can a 12V battery run a 24V BLDC motor?

Either go 12V or add another battery and run the rated 24V. It won't hurt your motor. Most newer ones will not even turn over because the circuit board senses less than 22 volts (dead 24v system). Old ones will turn over but you will have half power.

Videos

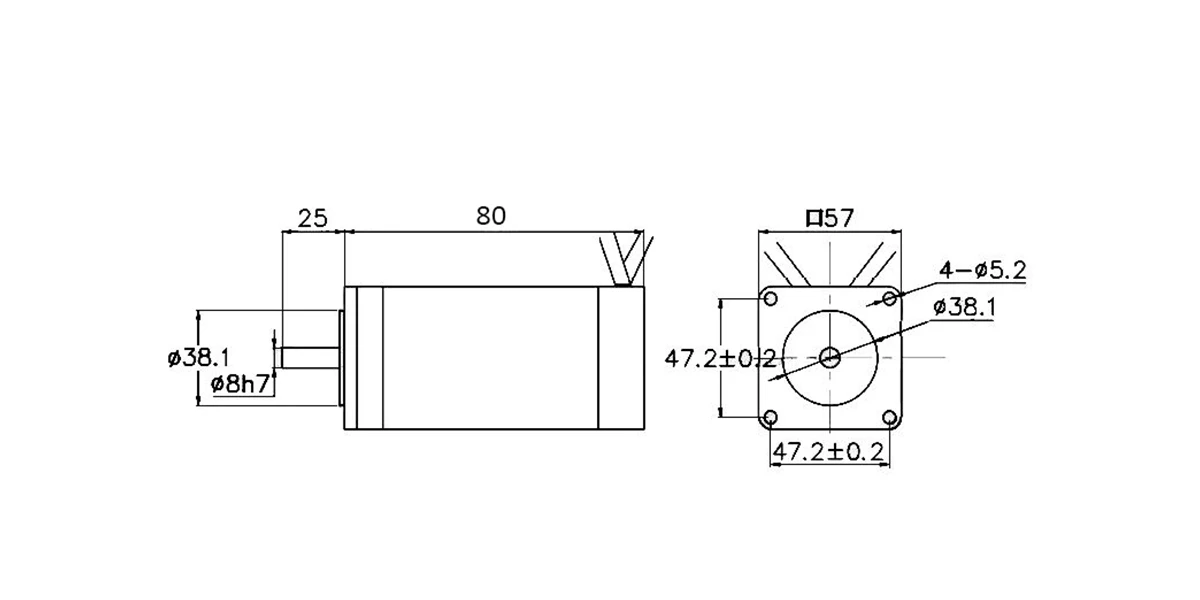

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
