24V 40W 8000rpm Inrunner Sensored Brushless DC Motor

Home > 24V 40W 8000rpm Inrunner Sensored Brushless DC Motor

24V 40W 8000rpm Inrunner Sensored Brushless DC Motor

$125.69

Motor TypeDC Motor

Power(W)40

Voltage (V)24

Rated Speed (rpm)8000

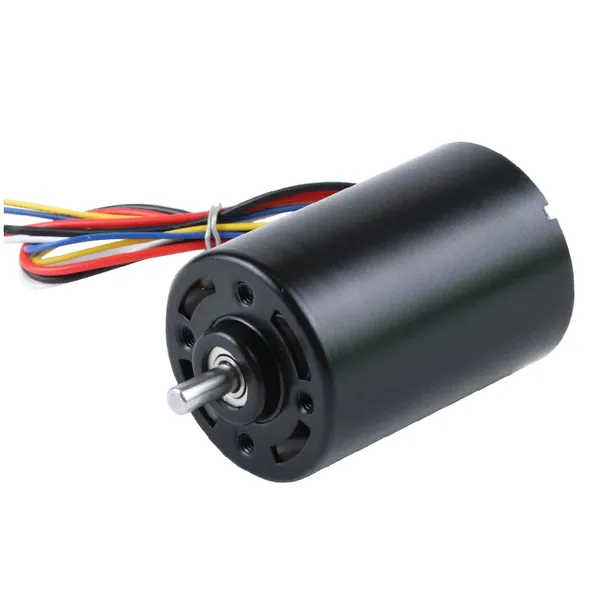

24V 40W 8000rpm Inrunner Sensored Brushless DC Motor
Model: BLDC-4260

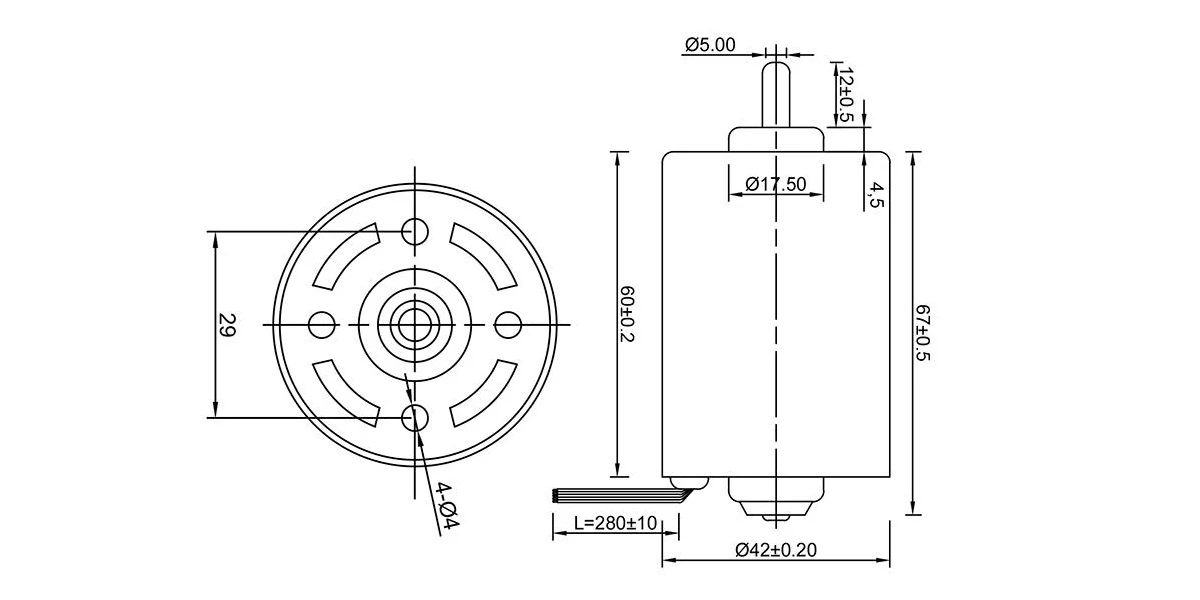

Shaft Length: 12 mm
Shaft Diameter: 5 mm
Size: 42 mm (D), 67 mm (L)
Construction: Permanent Magnet
Wiring: 5 lines
Motor Type: Micro Brushless DC Motor
Rated Power: 40W
Rated Voltage: 24V DC
Rated Current: 2.52A
No load Speed: 8000 rpm
No load Current: 0.3A
Rated Torque: 675 gf.cm
Motor Housing: Stainless steel
Weight: 190g
Efficiency: 80%
Certification: CE
Warranty: 12 Months

Line Define

  • Red: Positive input of motor power supply (DC10V-27V).
  • Black: Negative pole of motor power supply.
  • Yellow: FG signal output (for external equipment to detect the speed of the motor, and the two pairs of pole magnetic ring motors output 9 square wave pulses after one revolution).
  • White: Motor positive inversion control, CCW when not connected, low level (≤0.6V) CW when connected.
  • Blue: Speed control, by inputting the analog voltage mode (0-5V) to adjust the speed, the speed is proportional to the voltage.

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

The high-speed brushless motor with 8000 RPM is ideal for various applications that require small diameter, low noise, and high torque. With its built-in hall sensor and precise speed control capabilities, it offers reliable performance in demanding scenarios.

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Features

  • The 24V high-speed brushless DC motor features a double ball-bearing structure and is equipped with a built-in sensored hall drive.
  • The inrunner sensored brushless DC motor operates at 8000 rpm and offers reversible rotation and adjustable speed.
  • This motor also incorporates various functions such as wire-controlled brake, pulse width PWM speed regulation, FG signal testing, over current protection (1.5A), and over temperature protection (80°C).

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Application

This motor is well-suited for equipment that requires efficient and smooth operation at high speeds, such as robotics, precision machinery, automation systems, and small-scale electric vehicles. Additionally, its compact size and versatile functionality make it a valuable choice for applications where space is limited, and precise control over direction and speed is essential.

Tips: How to Choose a Small Brushless DC Motor?

Brushless DC (BLDC) motors are widely used in intelligent automobiles, household appliances, medical devices, and industrial automation due to their advantages of low noise and high torque. With various types and specifications available, it is crucial to select the right brushless DC motor that meets your product requirements. Here are some tips to help you make an informed choice:

  • Specification Selection: If the supply voltage is adjustable, choose a BLDC motor with torque and speed values close to the rated requirements of your product. By adjusting the voltage, you can achieve the desired rotation speed. The 12V and 24V small BLDC motors are popular choices among customers. In cases where the supply voltage is constant and no suitable brushless DC motor is available, select a motor based on torque and then adjust the product voltage and rotation speed accordingly.
  • Power Selection: It is important to consider the maximum power of the motor. If the power of the brushless DC motor is too small, it may experience overload when the load exceeds the rated output power. This can lead to overheating, vibration, reduced rotation speed, abnormal noise, and even motor burnout. On the other hand, choosing a motor with excessive power can result in unnecessary waste. Carefully evaluate the power requirements to ensure an optimal match.
  • Type Selection: Priority should be given to selecting a ferrite permanent magnet DC motor due to its high efficiency, low cost, and low temperature rise. However, in cases where there are strict performance requirements, limited space, or high ambient temperatures, consider selecting an Al-Ni-Co permanent magnet DC motor or a rare earth permanent magnet DC motor. These alternative types of motors offer superior performance characteristics to meet specific application needs.
